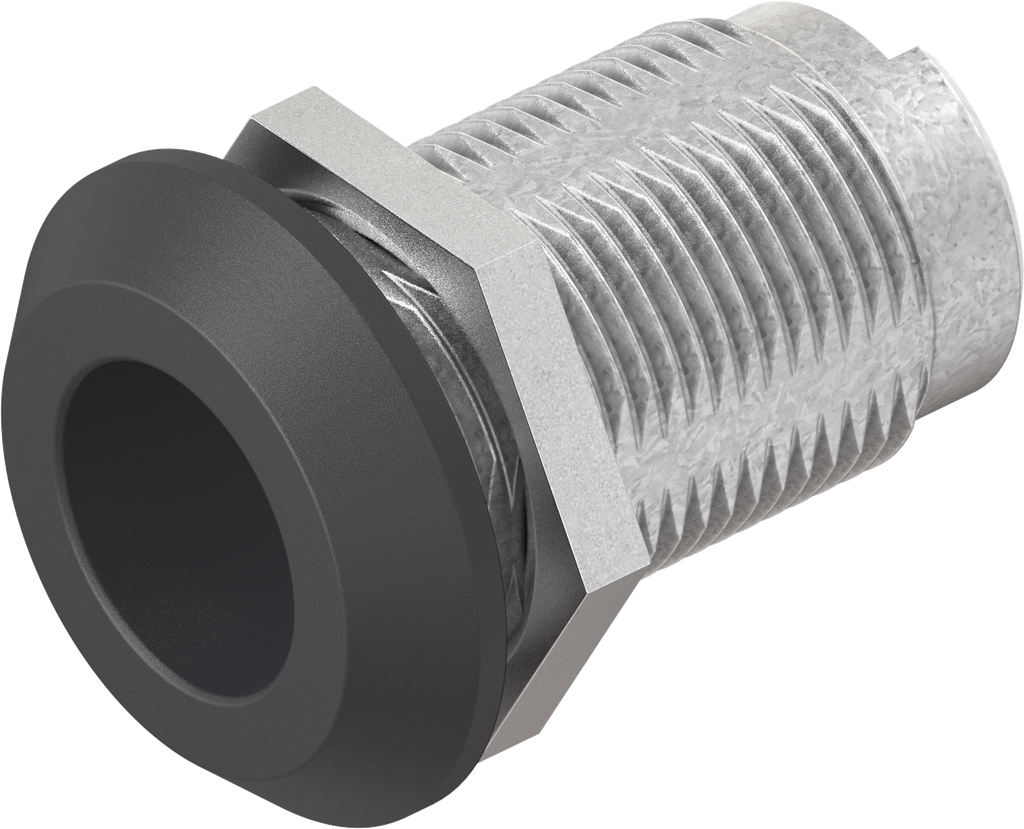

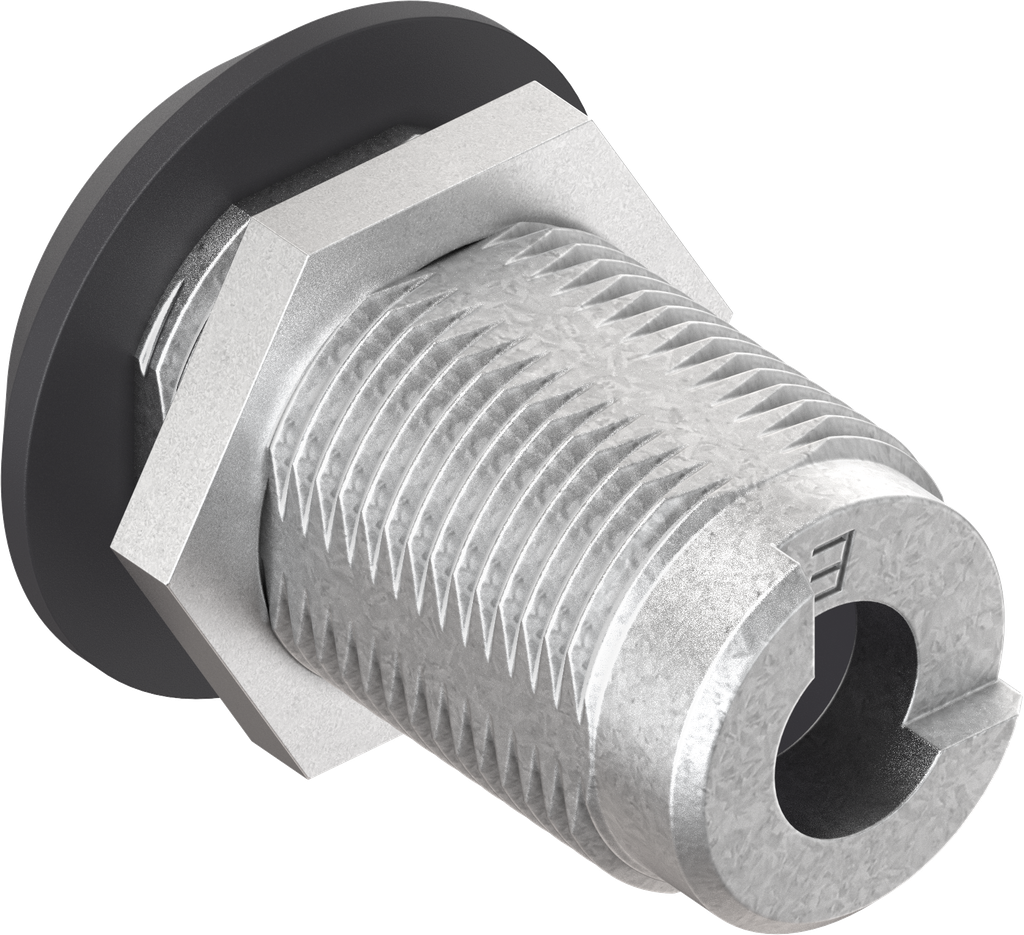

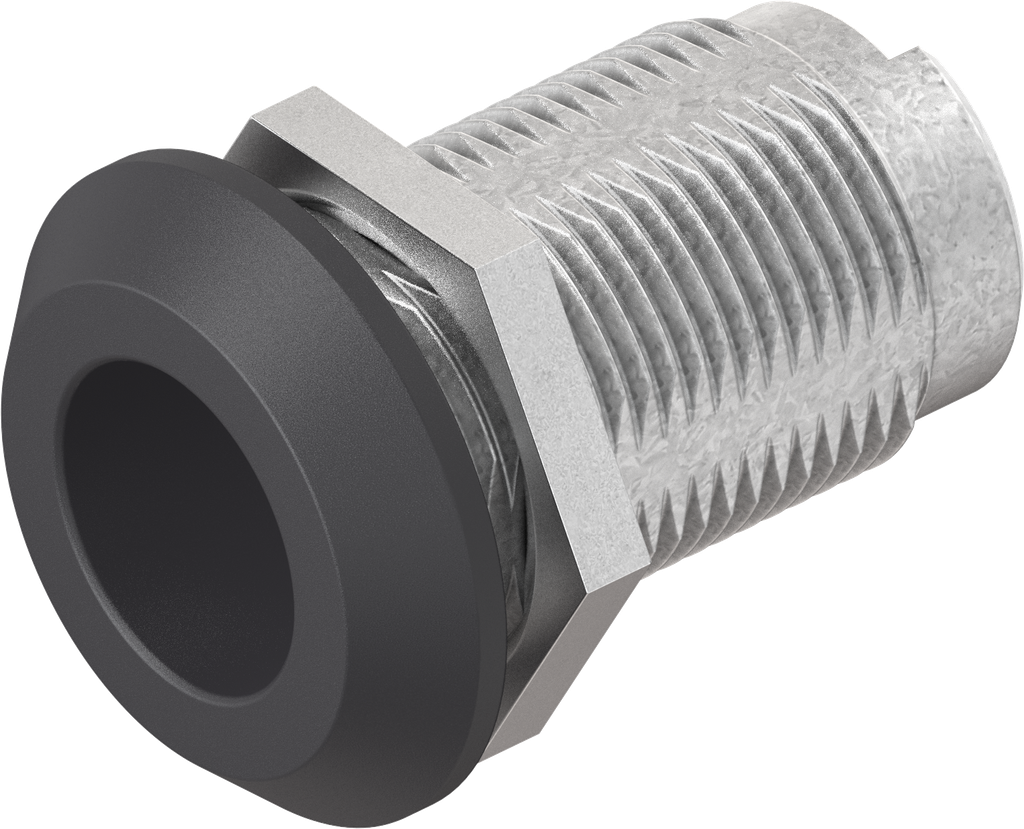

Housing, Zinc die black powder-coated
Key features:
This product is a modular component of a UL-certified closure.
Internal Reference:
1000-U317
Product Type:
Housing
Program:
1000
Catalog sheet:
1B-140
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
32 x 6 mm
GH Mass:
36 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
26 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert
No Specifications
