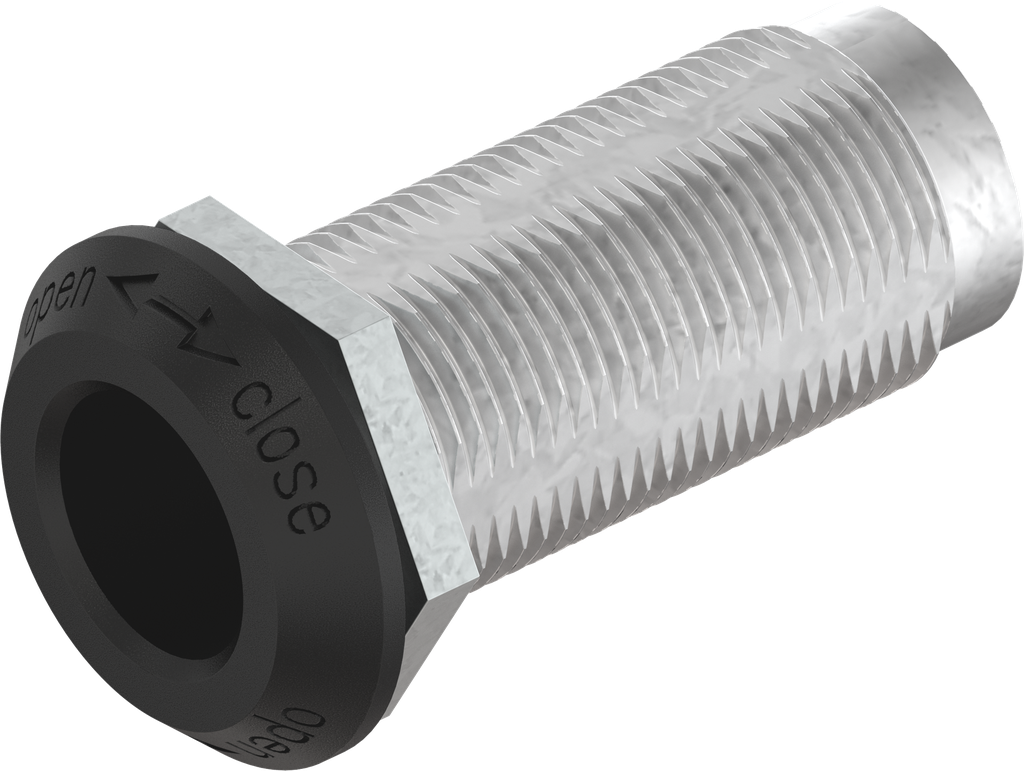

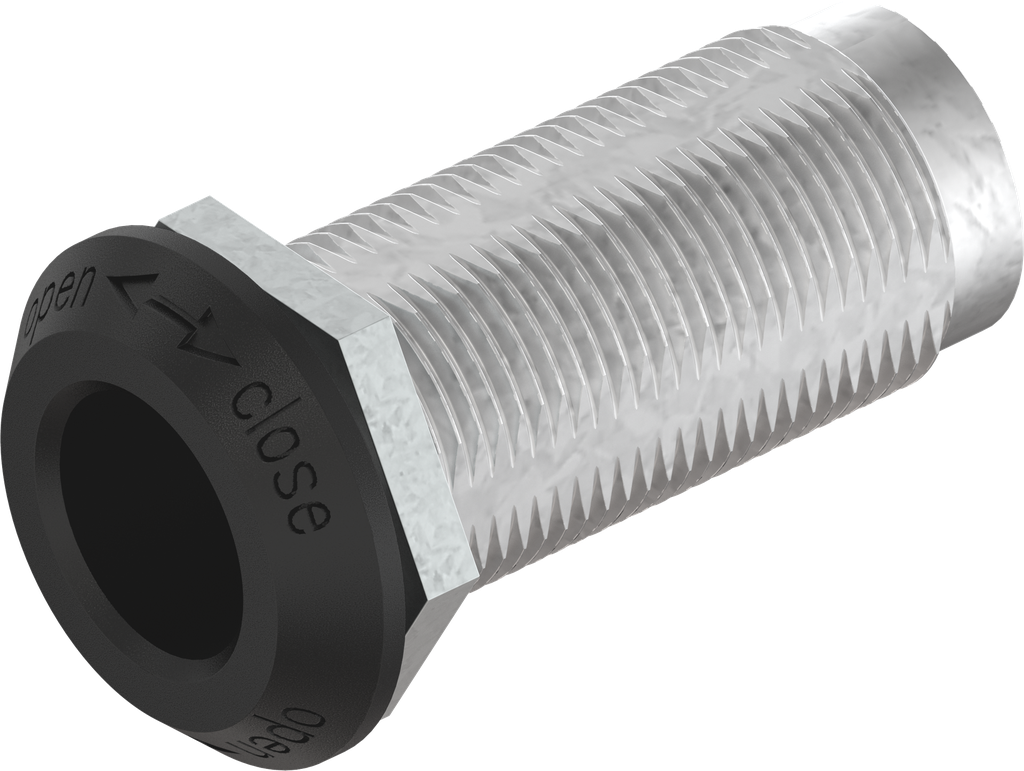

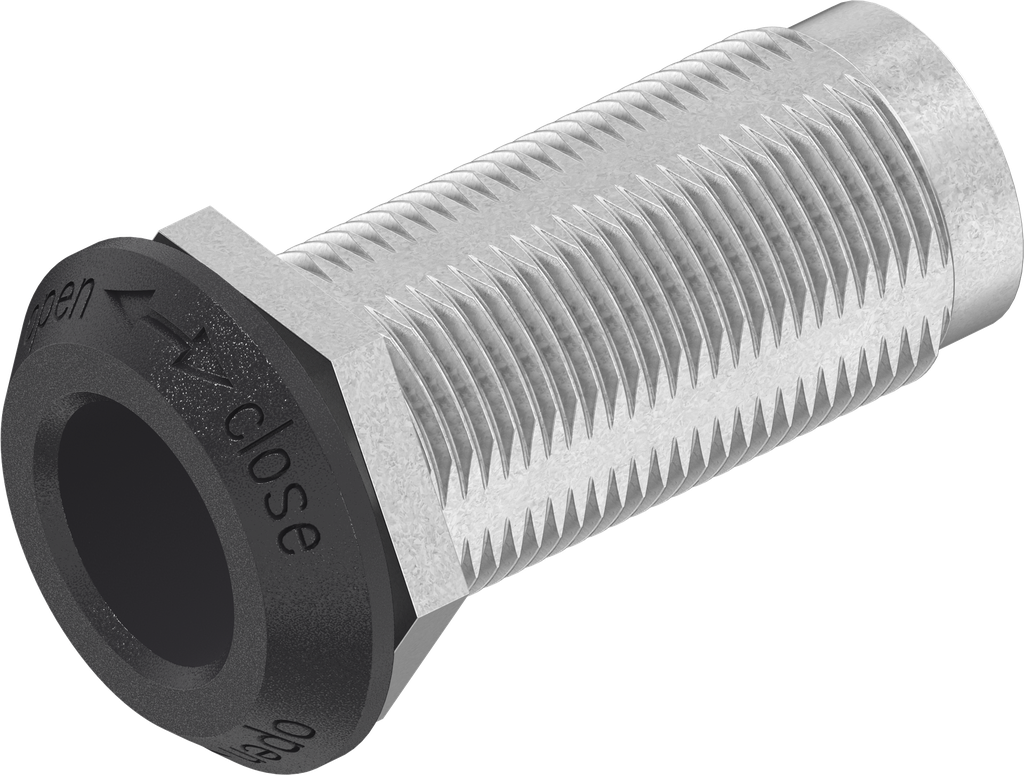

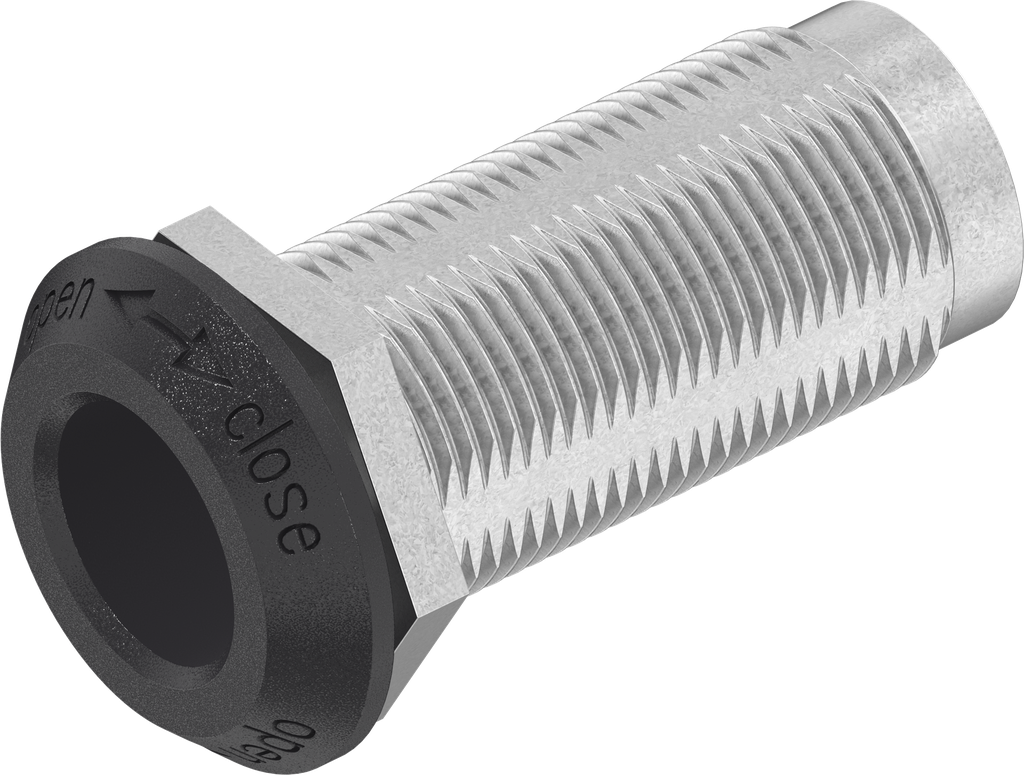

Housing for stepped cam, Zinc die black powder-coated; 1000-U234

https://www.emka.com/products/1000-u234 https://www.emka.com/web/image/product.template/205483/image_1920?unique=47e3854

with nut


    This combination does not exist.

    Inside the sealing Left Right


    Product information:

    Housing with 270° stopper

    Key features:

    This product is a modular component of a UL-certified closure.

    Internal Reference: 1000-U234
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-240
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 50 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 40 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Stepped cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    Cam
    O-ring and flat seal
    Dust cap - Finger pull
    Quarter turn accessories
    Assembly

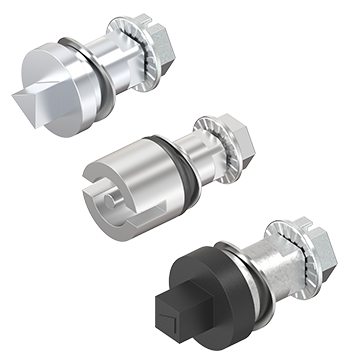

    Insert
