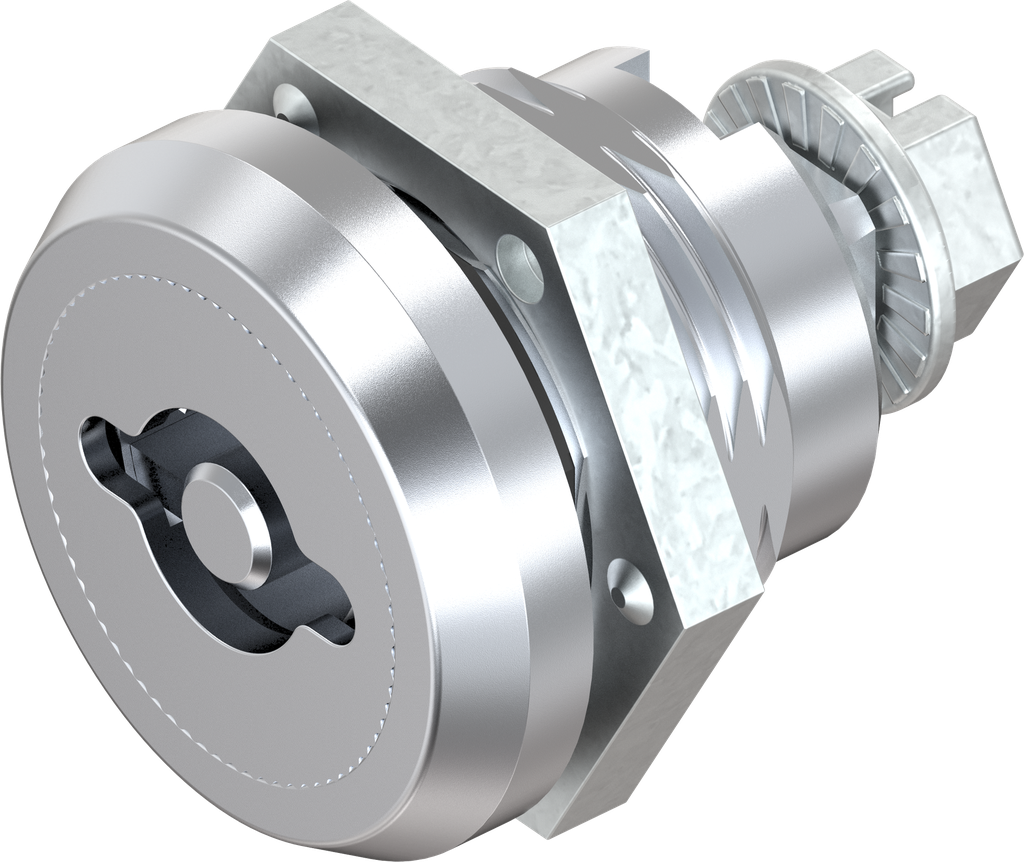

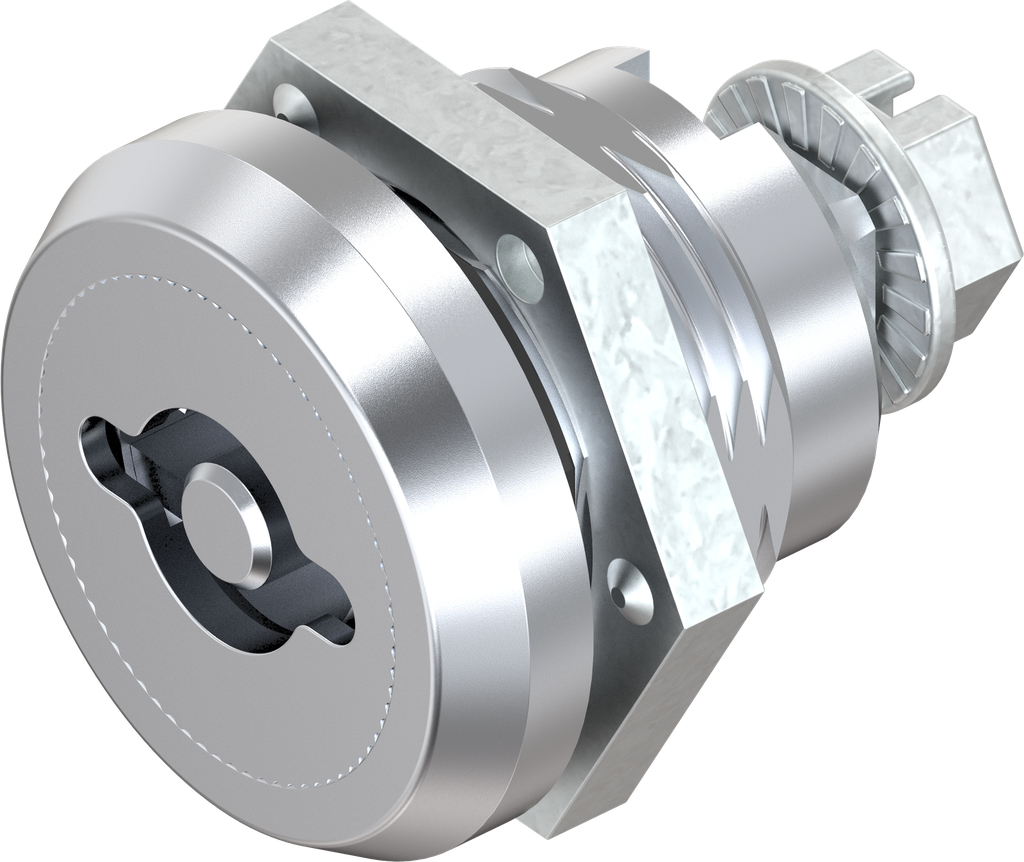

Safety quarter turn double bit 5, right version, Brass and zinc die chrome-plated; 1000-U206-01
with earthing nut
Product information:
Safety quarter turn:
The safety quarter turn is of a vibration-proof design. Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required. Keyhole for double bit according to key DIN 43668.
Function:
Push cam back using insert.
Assembly instruction:
Only available with pre-assembled cam.
Internal Reference:
1000-U206-01
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-320
Material of the module :
Brass and zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Double bit 5
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Housing Head Shape:
Round
Housing Head Size:
28 x 6 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Right
Locking components:
Cam
Quarter turn types:
Safety quarter turn
