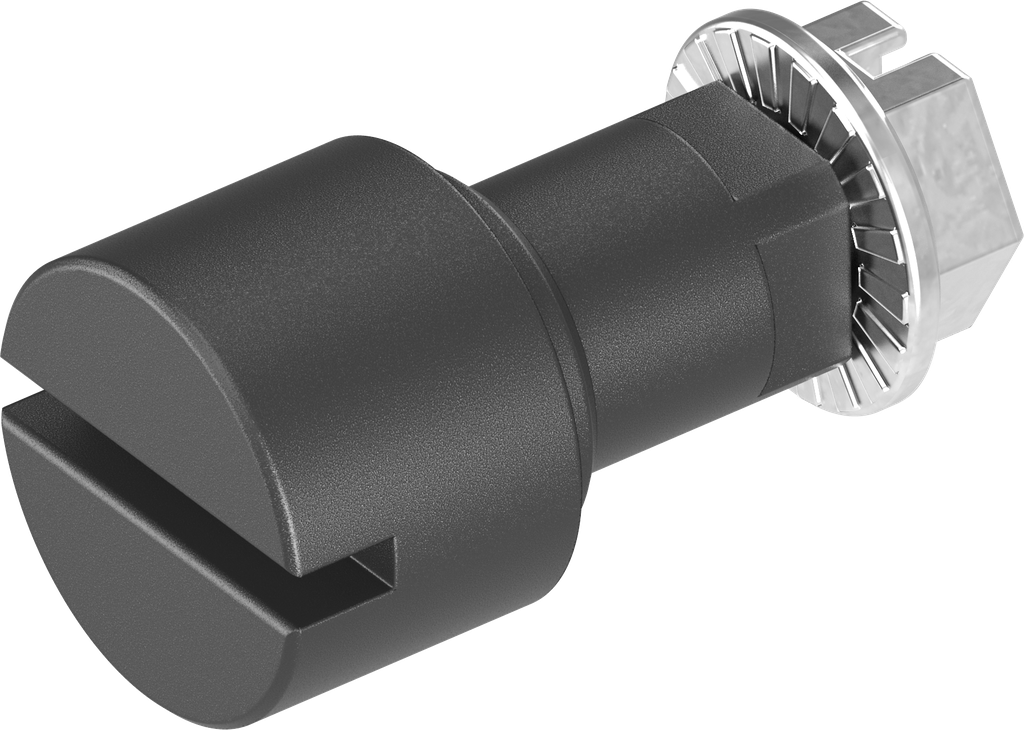

Insert slot 2 x 4, Polyamide 66 GF 50 black
Insert triangular 6.5 CNOMO, Zinc die chrome-plated
Assembly instruction:
In case of assembly by the customer the insert must be lubricated (vaseline).
Internal Reference:
1000-U196-N2
Product Type:
Insert
Program:
1000
Catalog sheet:
1B-120
Material of the module :
Polyamide 66 GF 50
Surface of the module:
black
Number of Possible Locking Points:
1 point, 2 points, 3 point
Insert for:
Insert for housing, classic
Type of actuation:
Slot 2 x 4
For GH measure:
18 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Metric
No Specifications
