Insert double bit 5, Polyamide 66 GF 50 black
Insert double bit 5, Polyamide 66 GF 50 black
Insert triangular 9, Zinc die chrome-plated
Insert triangular 9, Zinc die chrome-plated

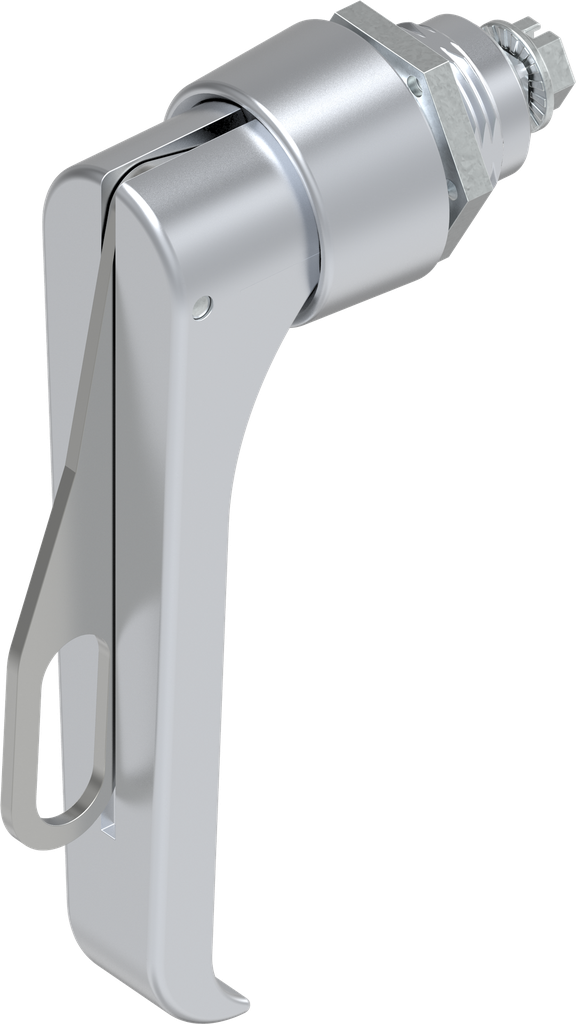

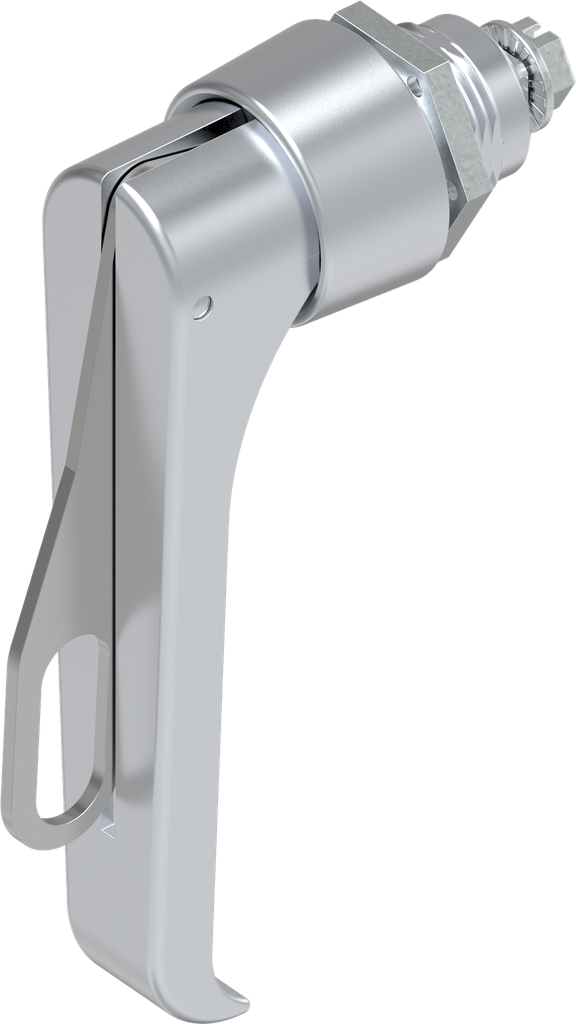

L-handle quarter turn for padlock, Zinc die chrome-plated; 1000-U189

https://www.emka.com/products/1000-u189 https://www.emka.com/web/image/product.template/60008/image_1920?unique=9ca62ad

with earthing nut

    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 65 Left Right
    Contact Us

    Function:

    Attention:
    L-handle is locked when a padlock is fitted.
    Internal Reference: 1000-U189
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-620
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round
    Housing Head Size: 32 x 17 mm
    GH Mass: 18 mm
    Handle Art: L-handle
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Padlock
    Door Version : Left,Right
    Locking components: Cam
    Padlock Art: Padlock with shackle dimension Ø 10
    Quarter turn types: Quarter turn with handle,Quarter turn for padlock
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Assembly
    Rod control
    Other latch
    Here you can find the product data sheets and CAD files of this product
