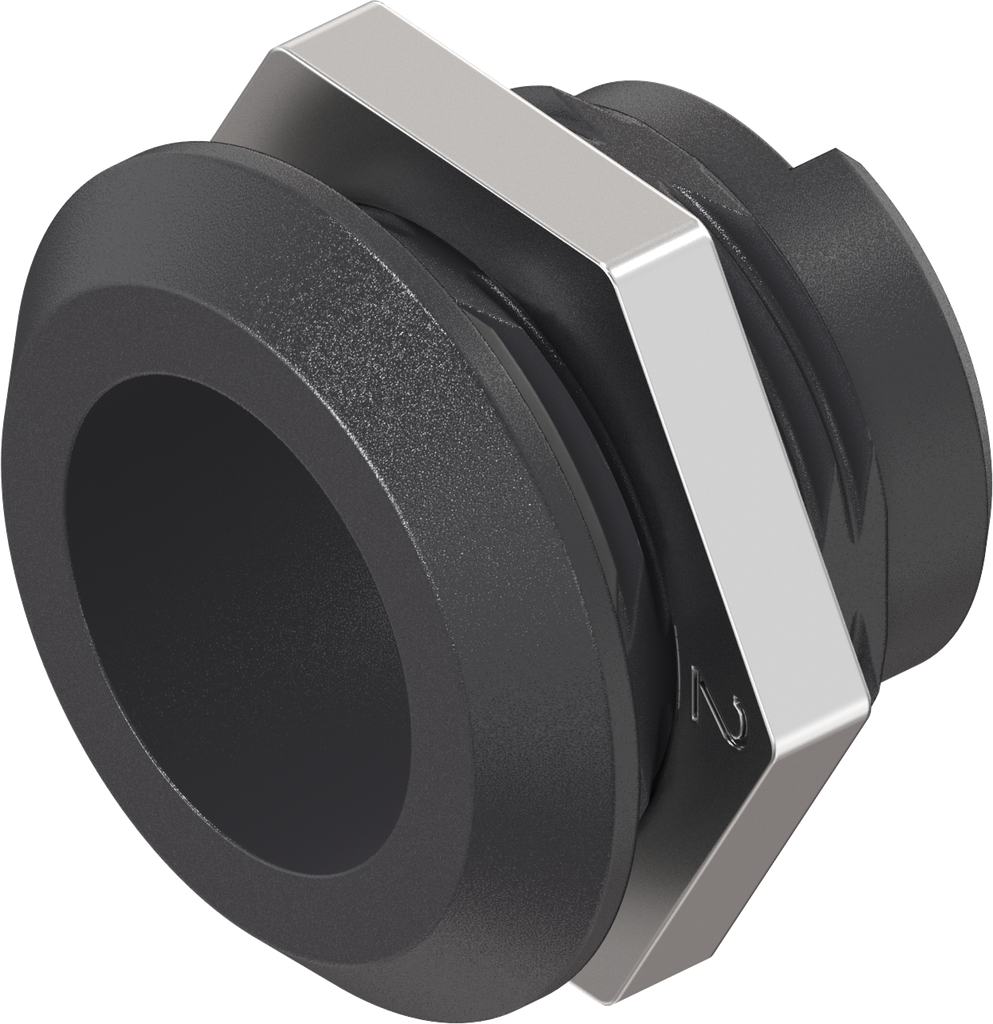

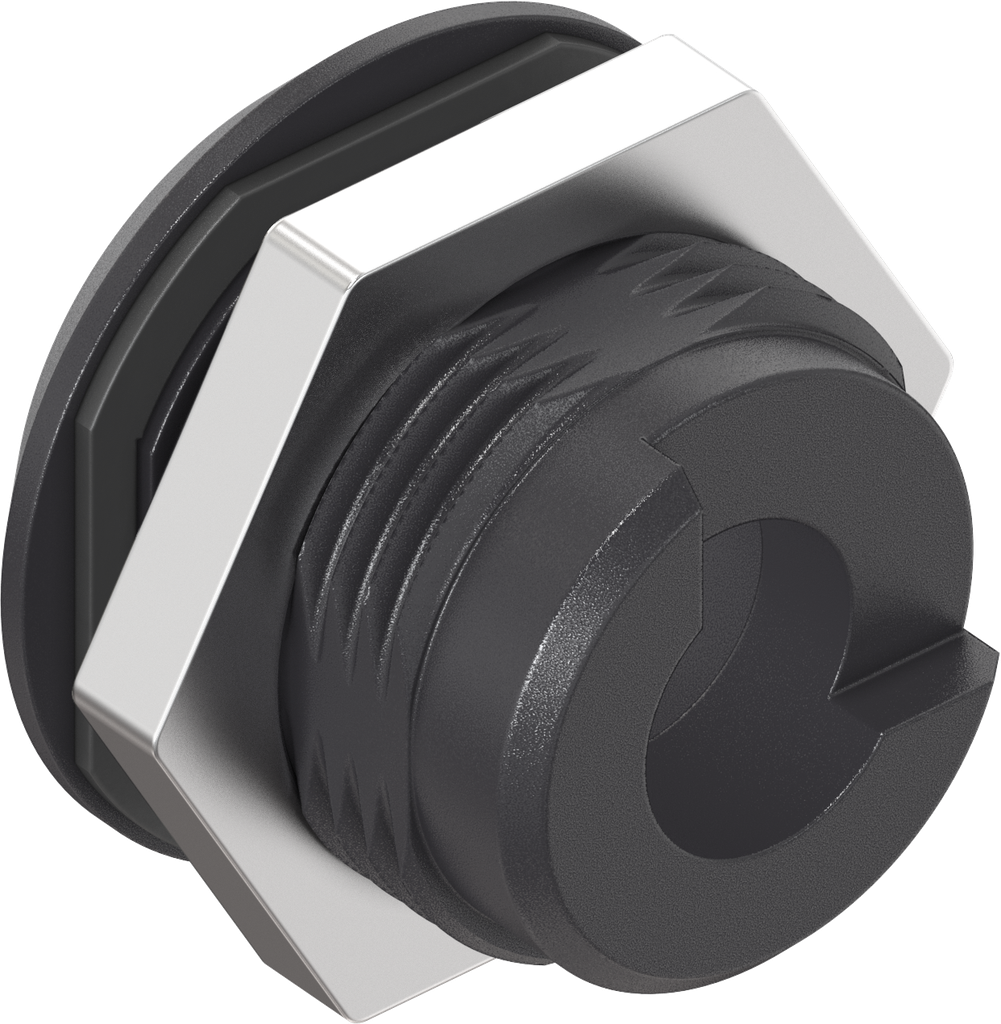

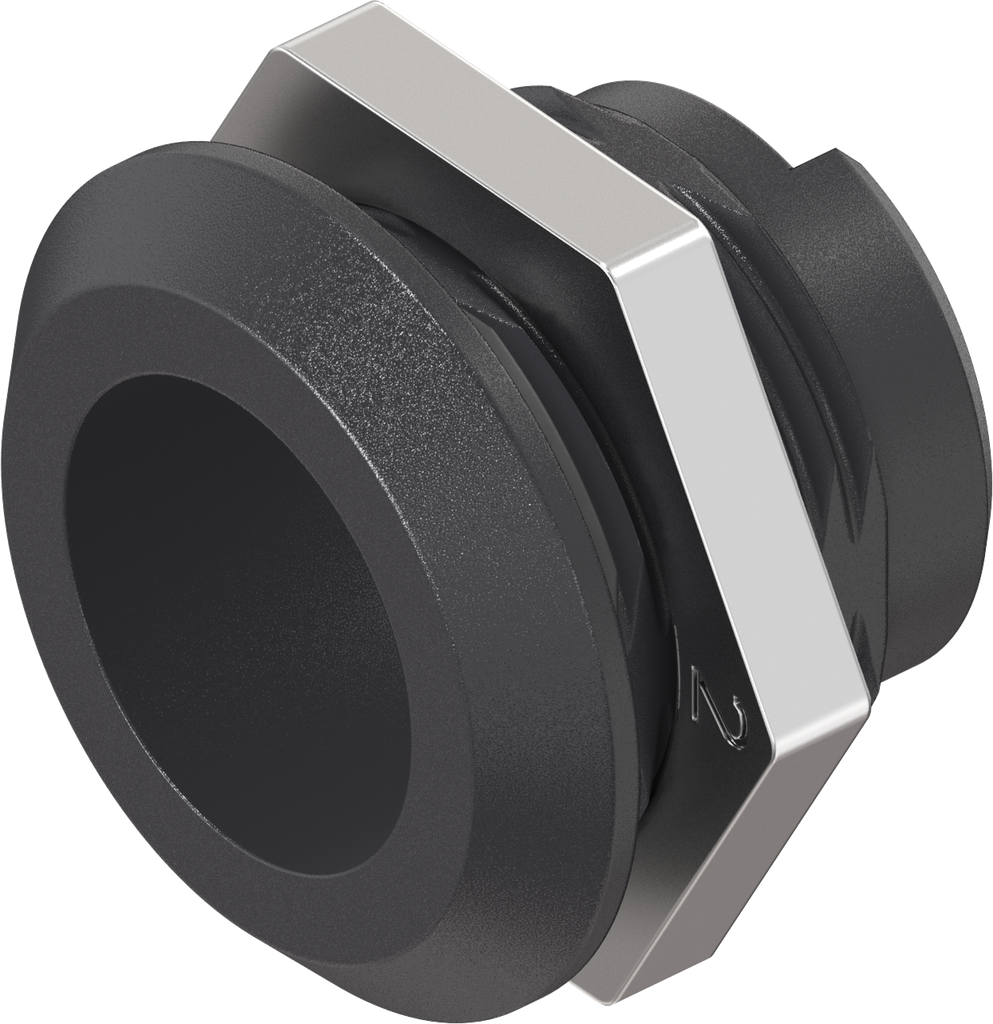

Housing, Polyamide GF black; 1000-U156
with flat seal and stainless steel nut
Internal Reference:
1000-U156
Product Type:
Housing
Program:
1000
Material of the module :
Polyamide GF
Surface of the module:
black
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

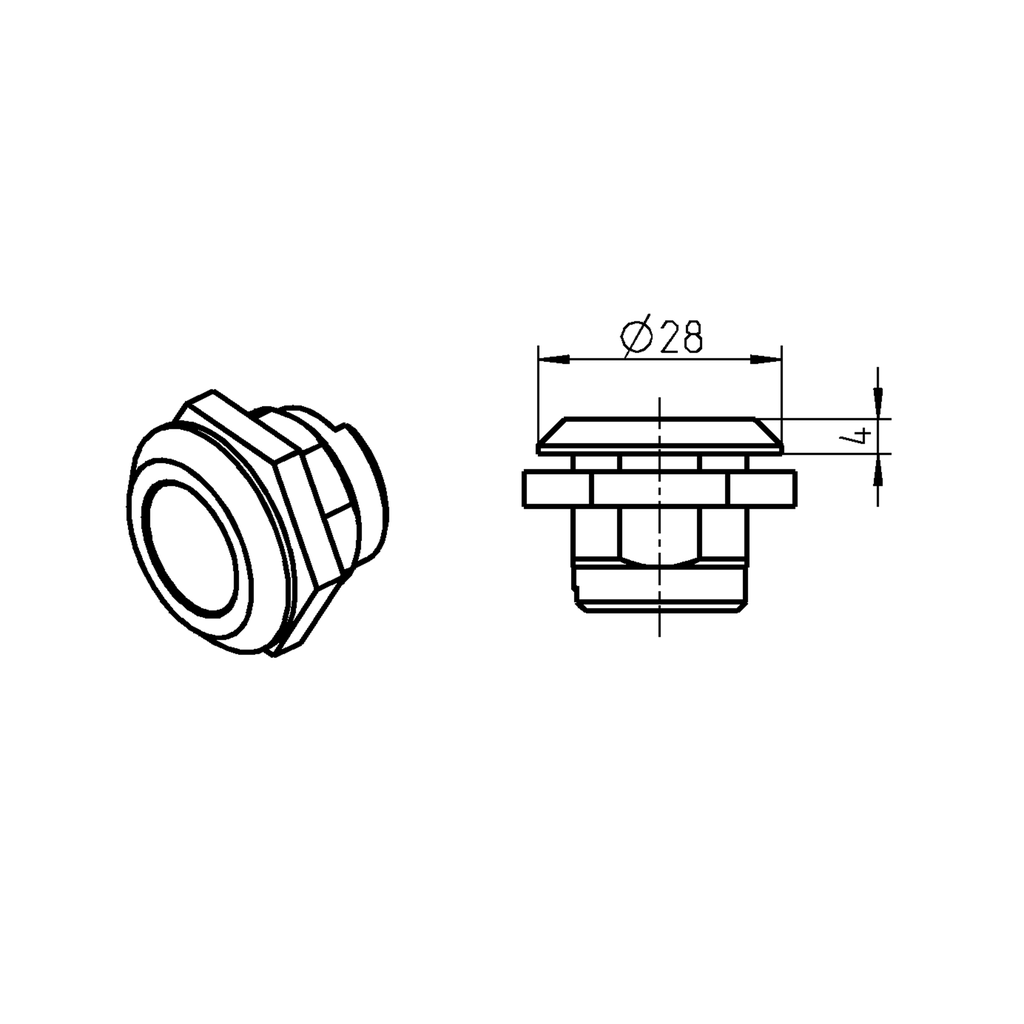

Housing Head Size:
28 x 4 mm
GH Mass:
18 mm

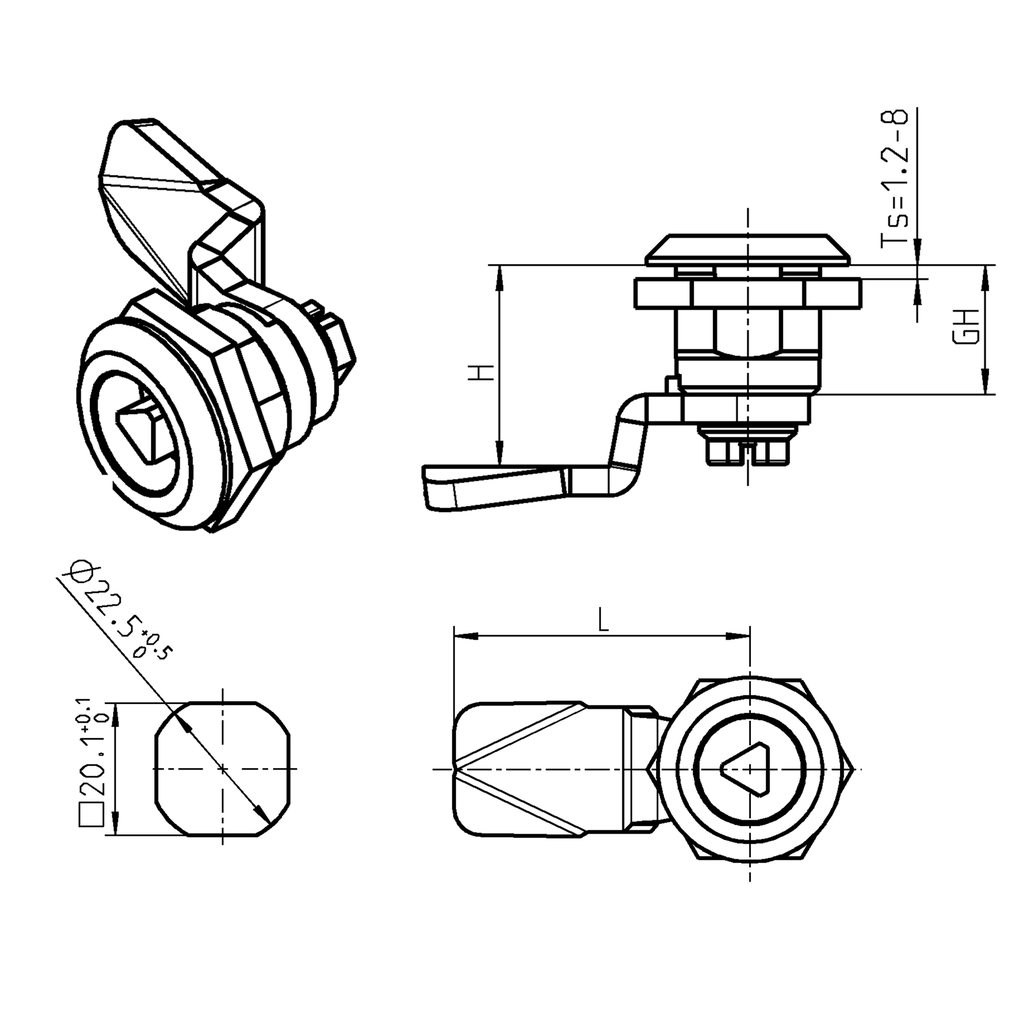

Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
