Wing knob quarter turn, keyed different, Stainless steel AISI 316
Insert double bit 3, Stainless steel AISI 303
Key features:
Dieses Produkt ist modularer Bestandteil eines UL-zertifizierten Verschlusses.
Internal Reference:
1000-U155-GBD
Standards:
Protection class IP 65
Barcode:
1000-U00155-0000GBD

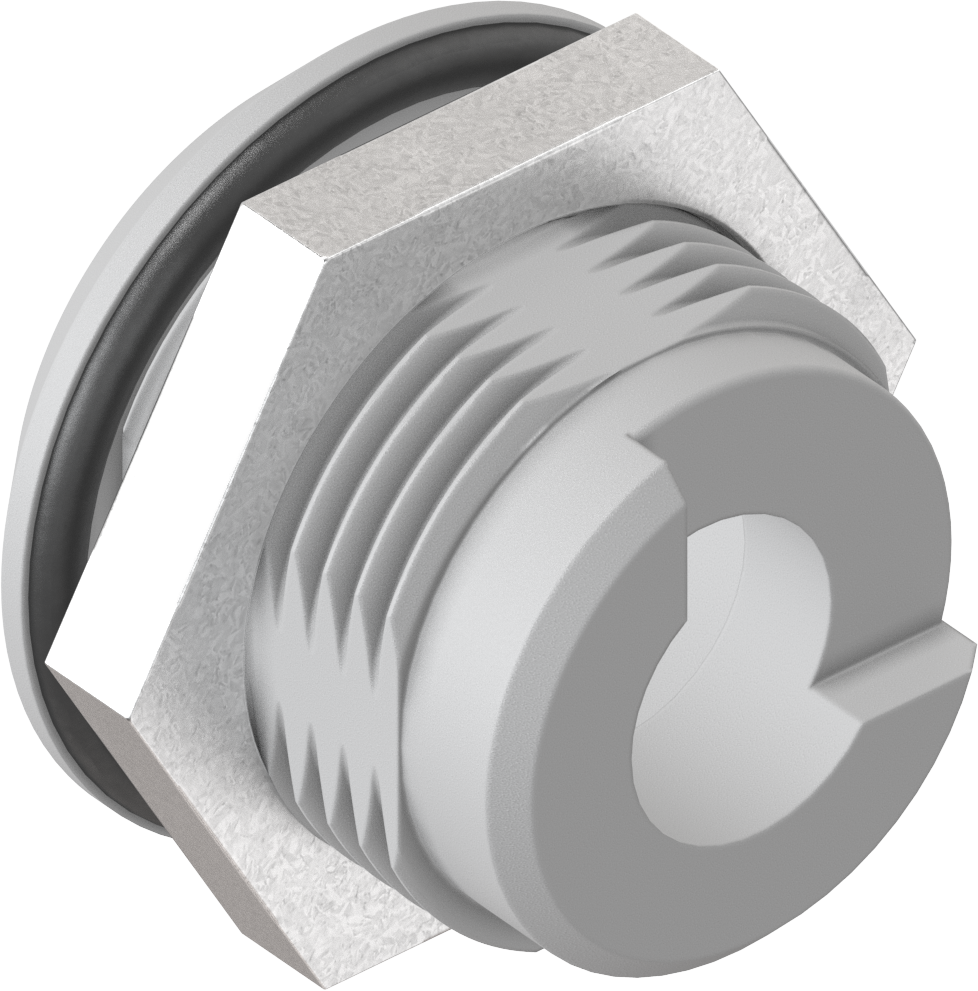

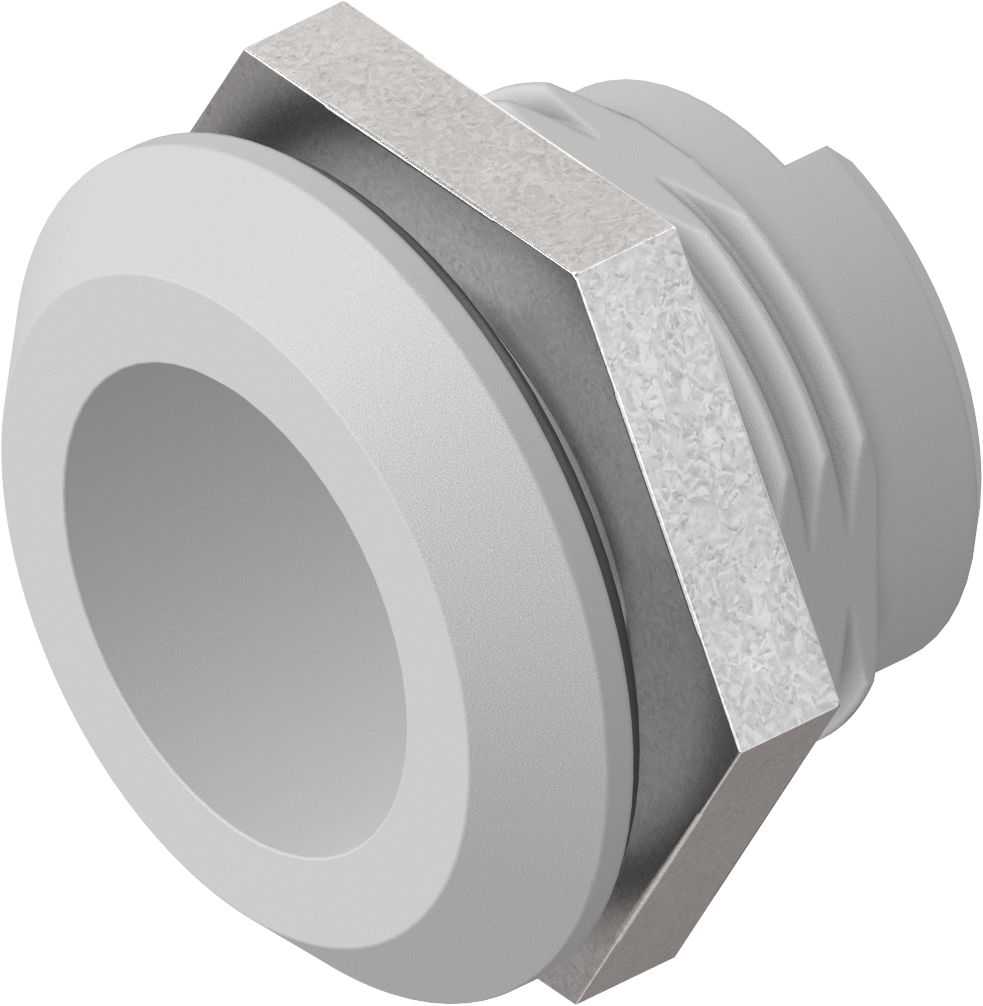

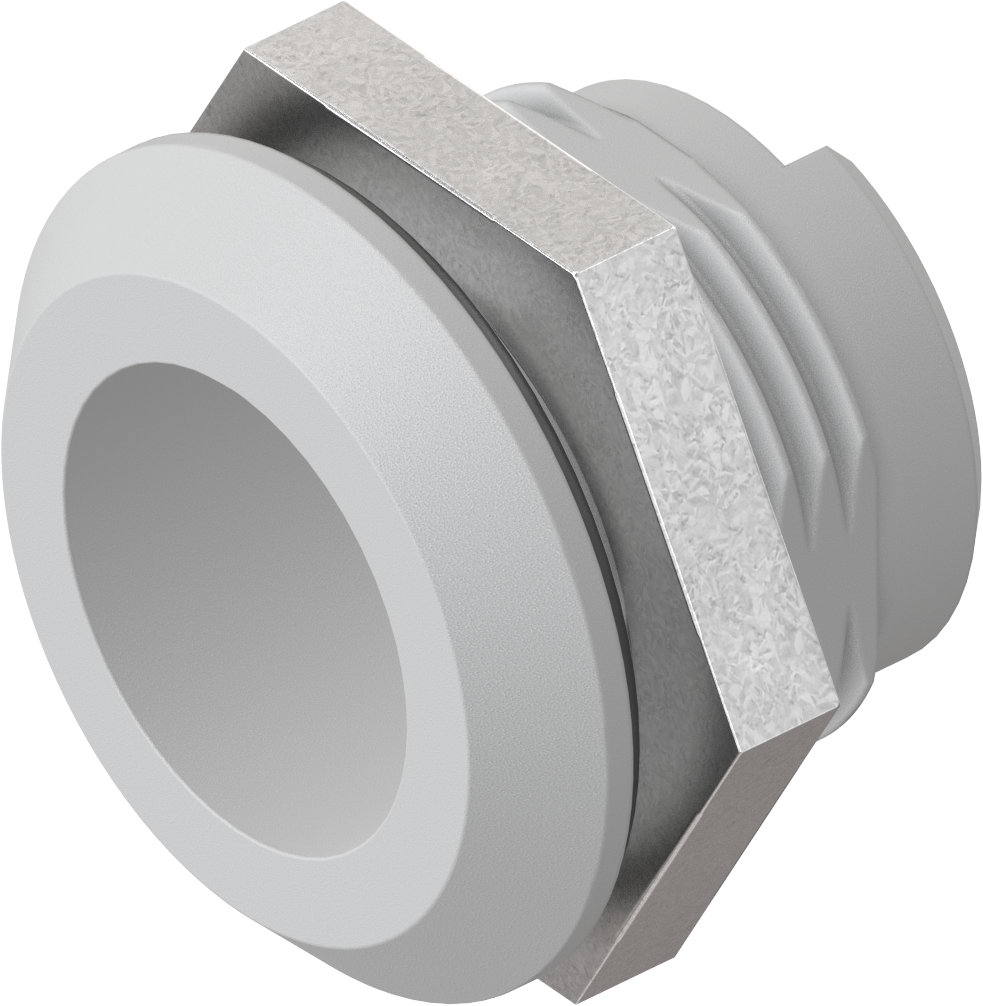

Product Type:
Housing
Program:
1000
Material of the module :
Polyamide GF
Surface of the module:
light grey
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing

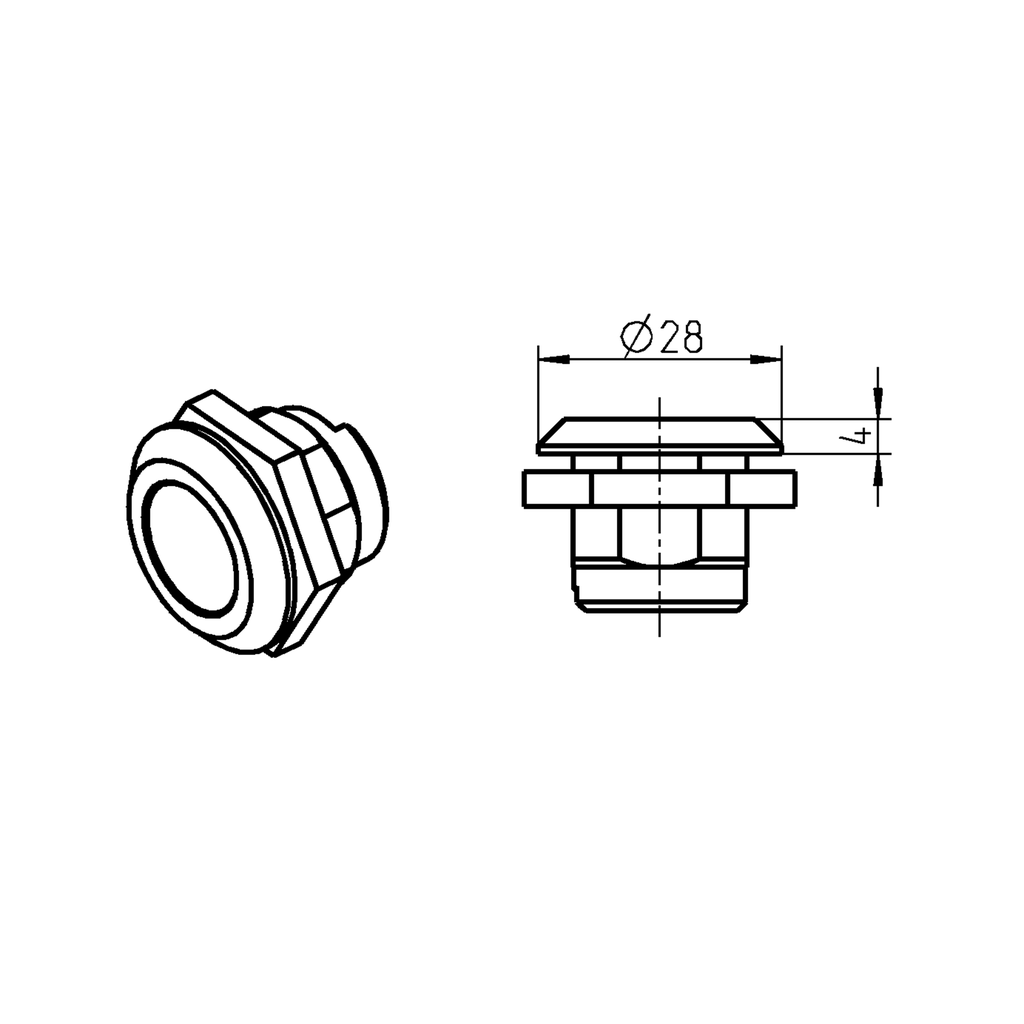

Housing Head Shape:
Round
Housing Head Size:
28 x 4 mm
Foamed gasket:
Yes
GH Mass:
18 mm

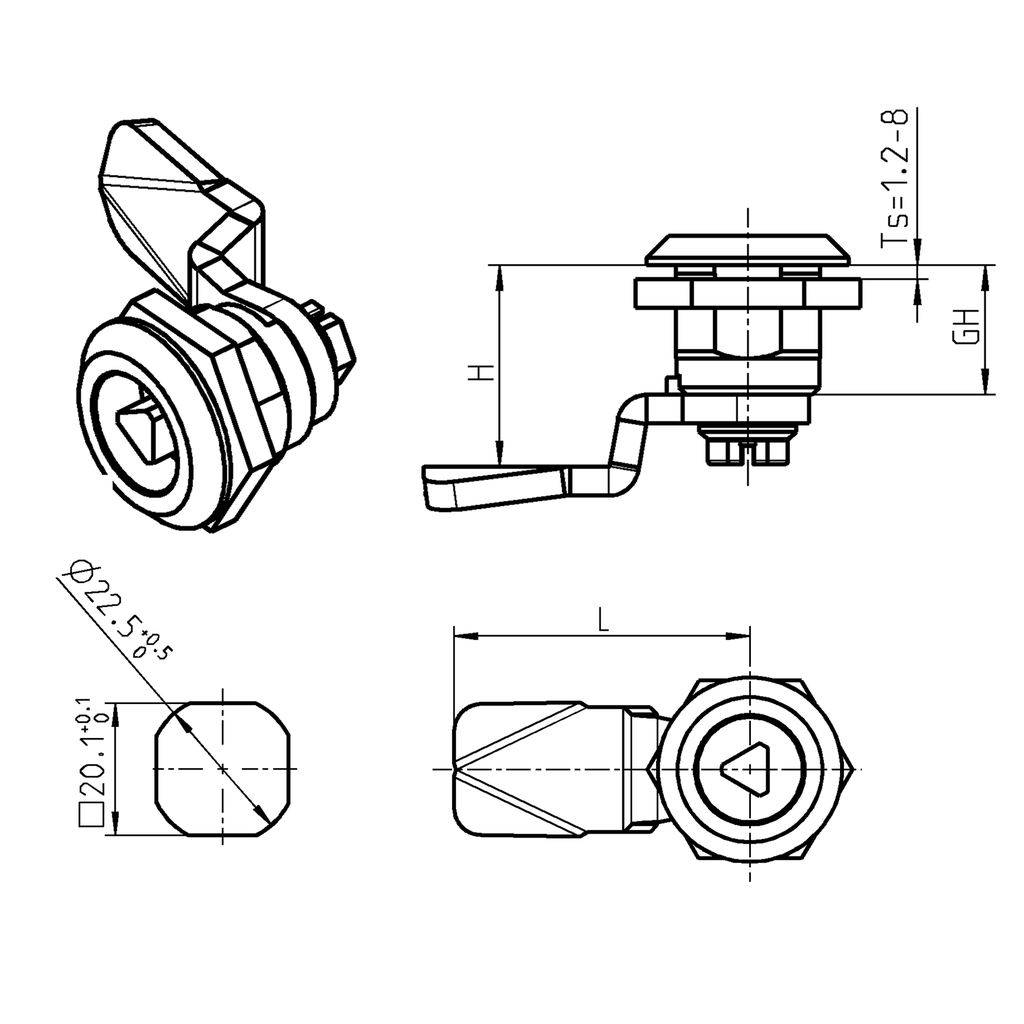

Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
