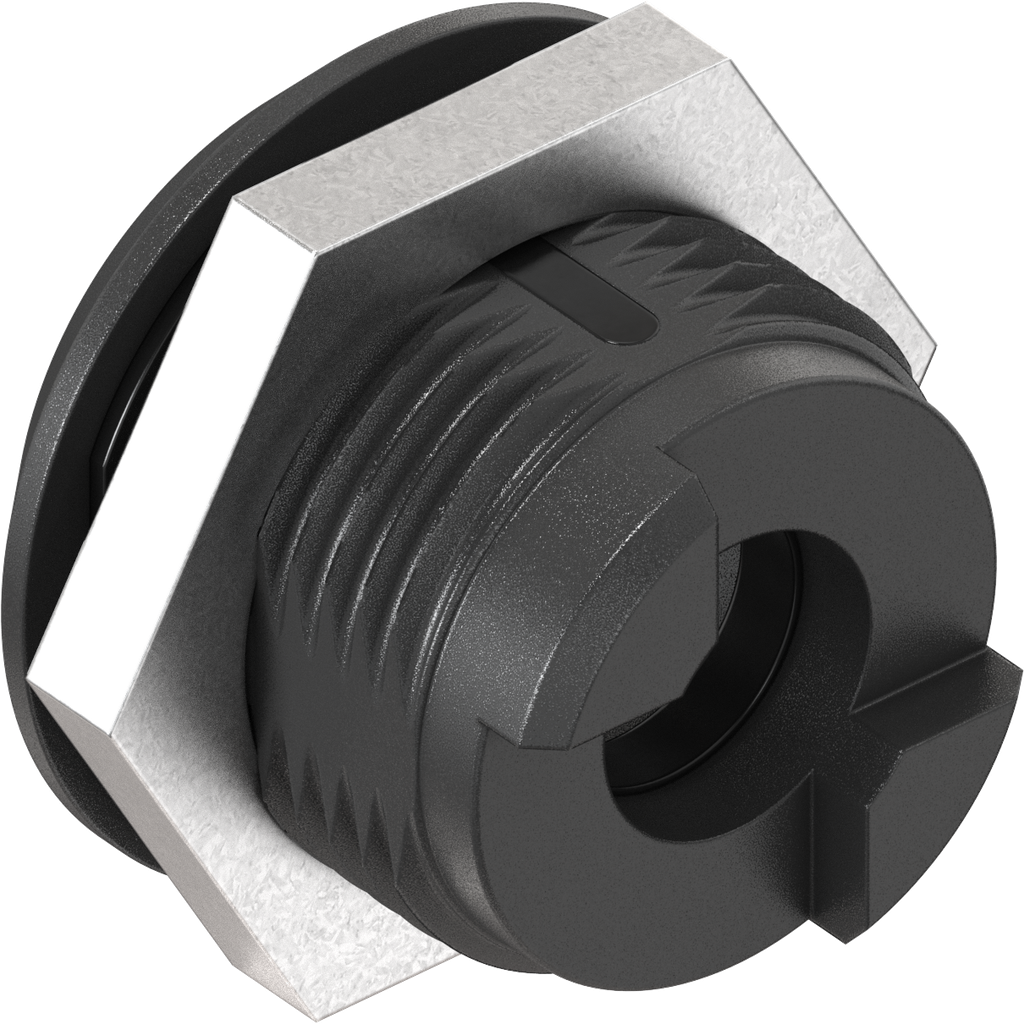

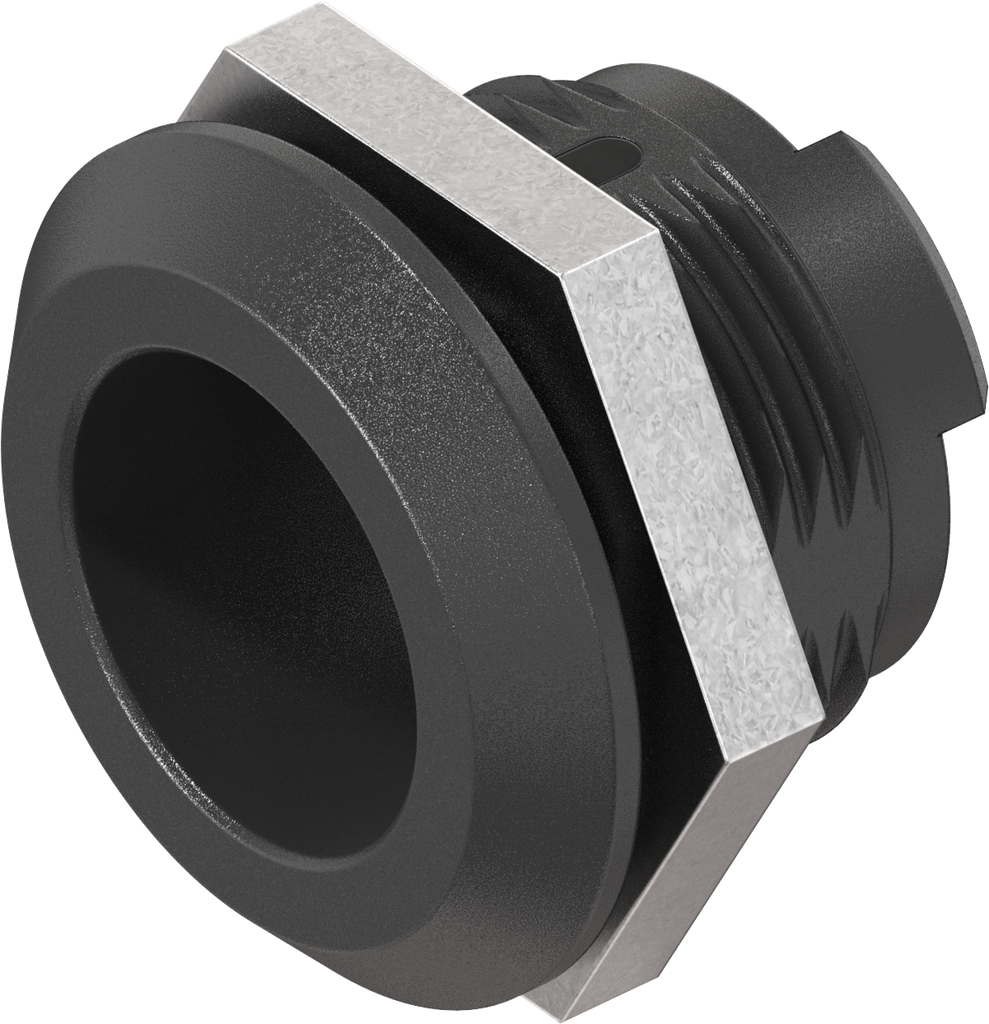

Housing with integrated seal, Polyamide GF black; 1000-U155-D

https://www.emka.com/products/1000-u155-d https://www.emka.com/web/image/product.template/59985/image_1920?unique=100645b

with nut


    This combination does not exist.

    Inside the sealing Protection class IP 65 Left Right


    Assembly instruction:

    Attention:
    In case of assembly by the customer the insert must be lubricated (Vaseline).

    Internal Reference: 1000-U155-D
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Article with property rights: Yes
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing

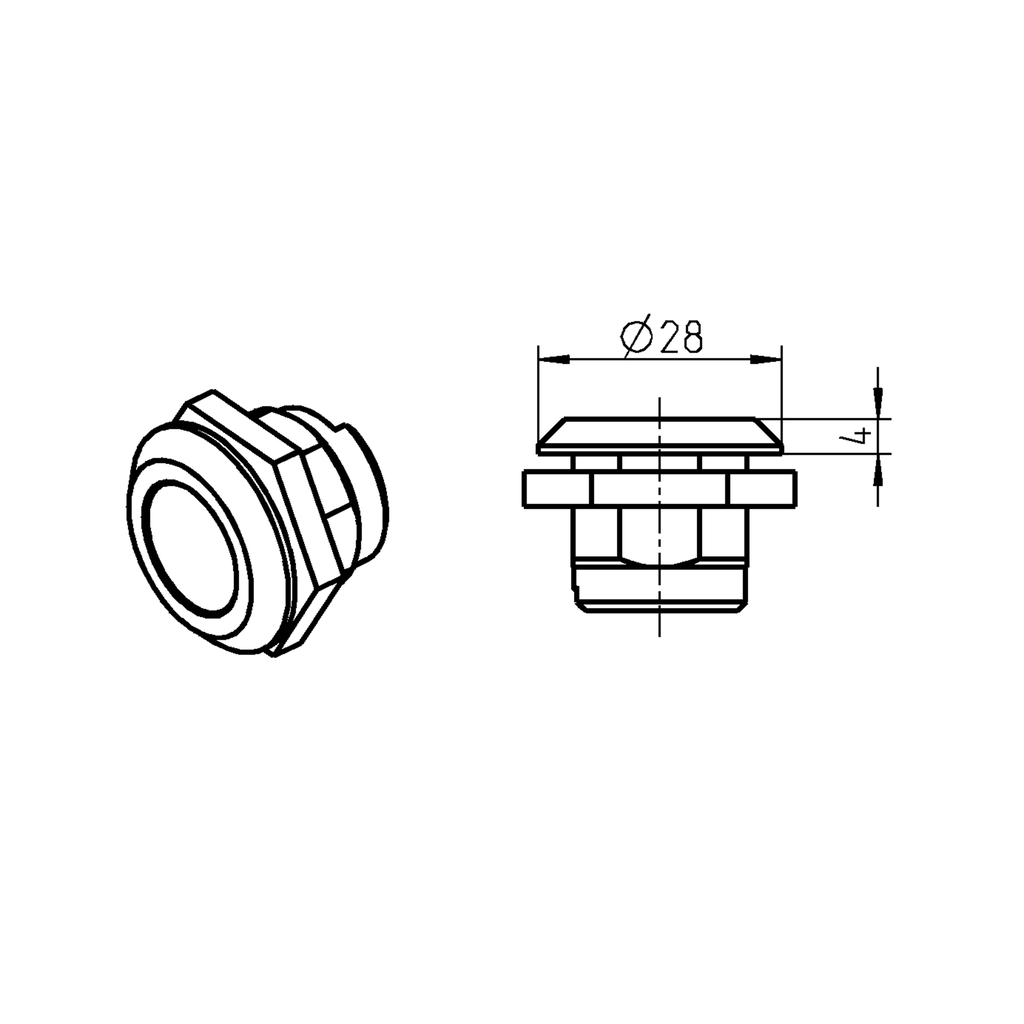

    Housing Head Shape: Round
    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Integrated seal: Yes
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
