Wing knob quarter turn, keyed different, Zinc die chrome-plated
Wing knob quarter turn, keyed different, Zinc die chrome-plated
Housing with integrated seal, Polyamide GF black
Housing with integrated seal, Polyamide GF black

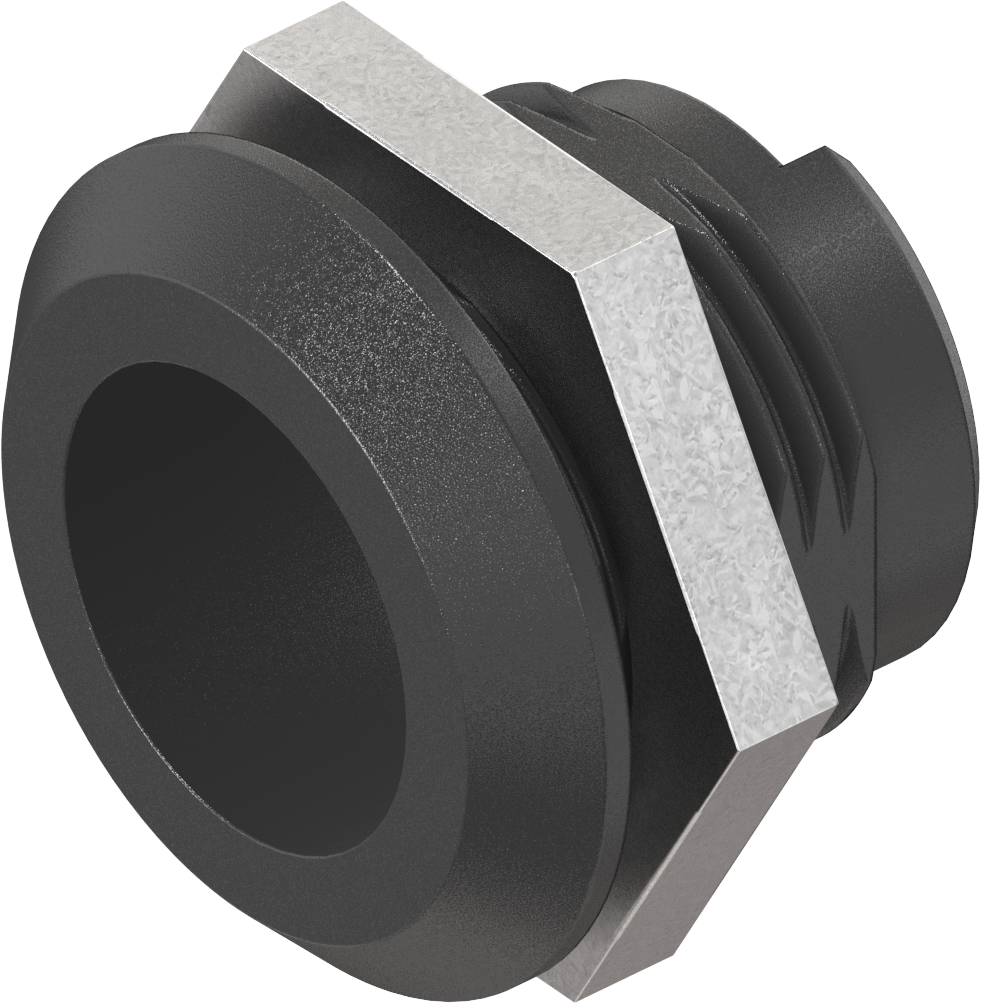

Housing, Polyamide GF V0 black; 1000-U155

https://www.emka.com/products/1000-u155 https://www.emka.com/web/image/product.template/59984/image_1920?unique=136b490

with nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us

    Key features:

    This product is a modular component of a UL-certified closure.
    Internal Reference: 1000-U155
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-140
    Material of the module : Polyamide GF V0
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    O-ring and flat seal
    Dust cap - Finger pull
    Assembly

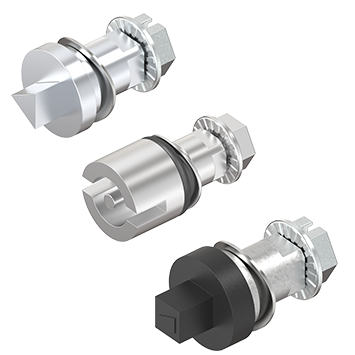

    Insert
    Rod control
    Here you can find the product data sheets and CAD files of this product
