Housing foamed, Stainless steel AISI 303
Housing foamed, Stainless steel AISI 303
Insert square 7, Stainless steel AISI 303
Insert square 7, Stainless steel AISI 303

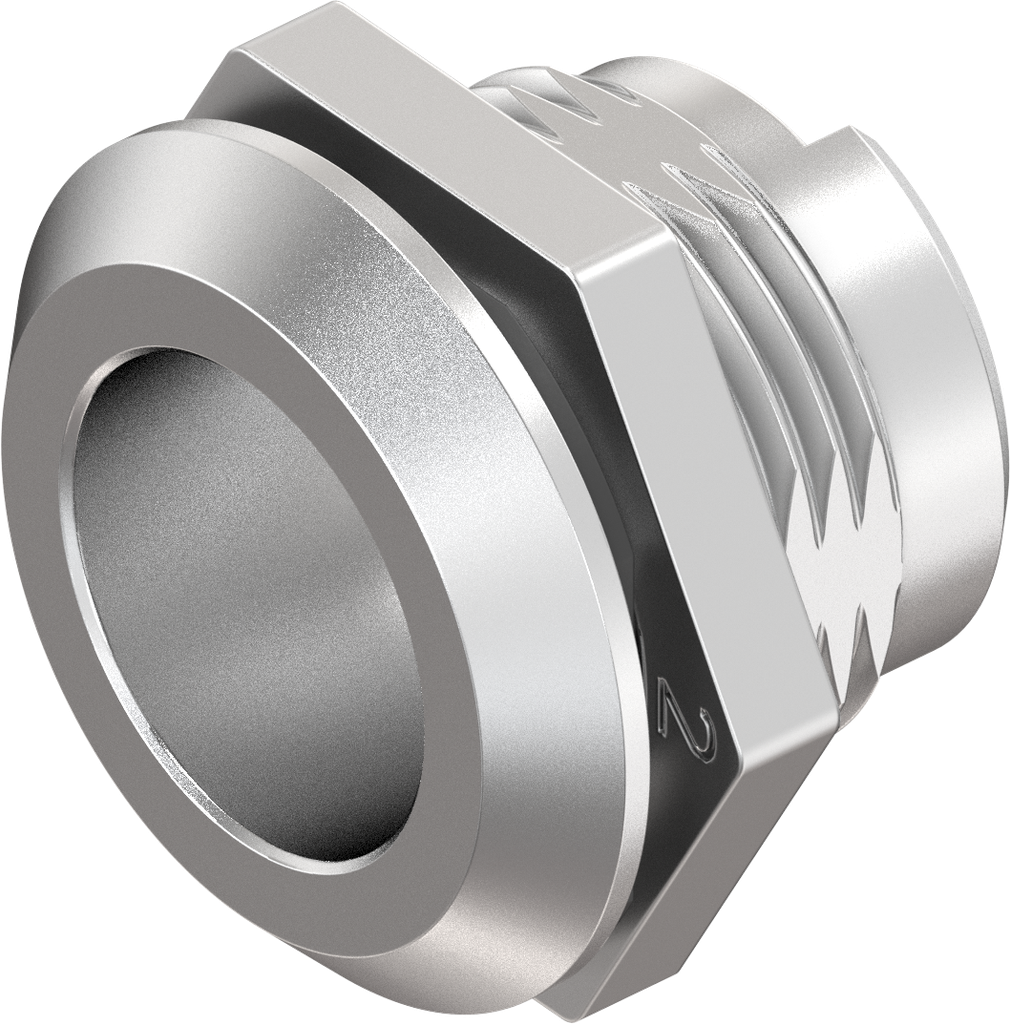

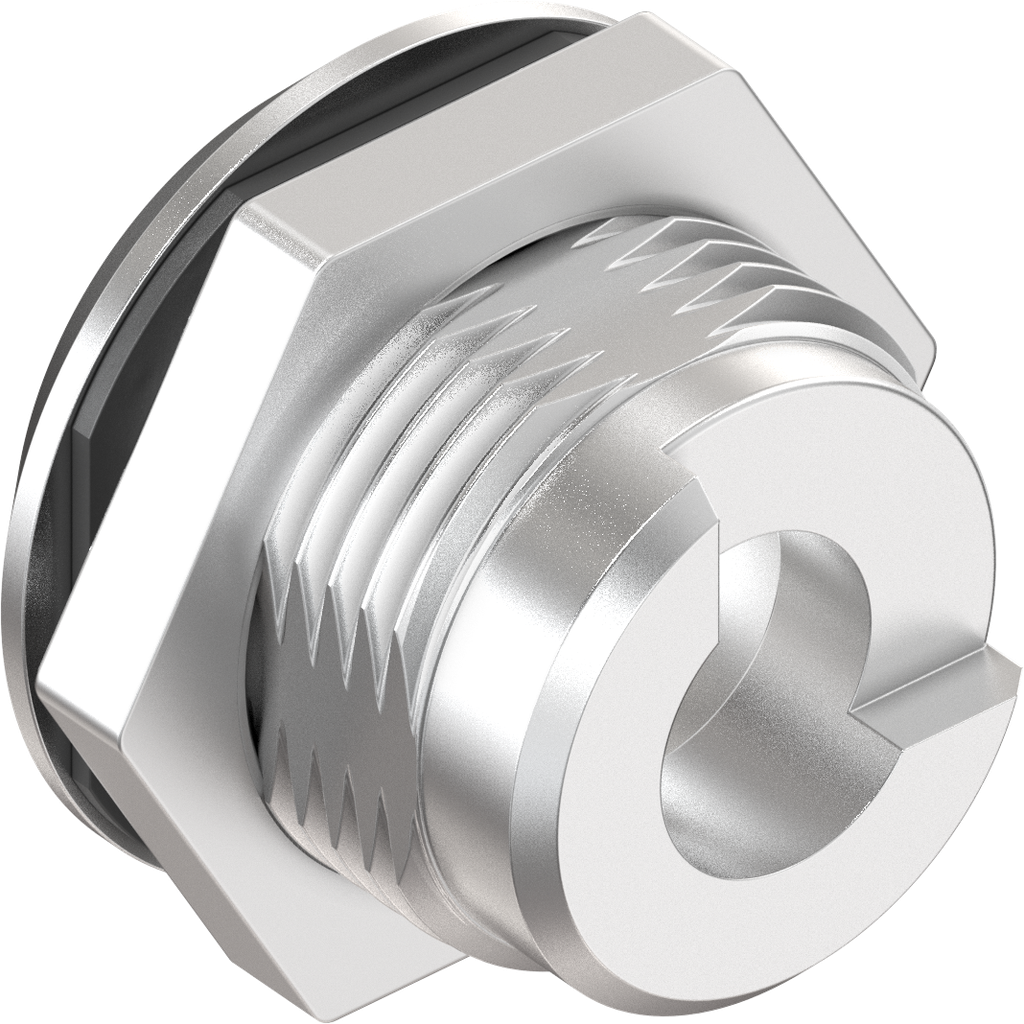

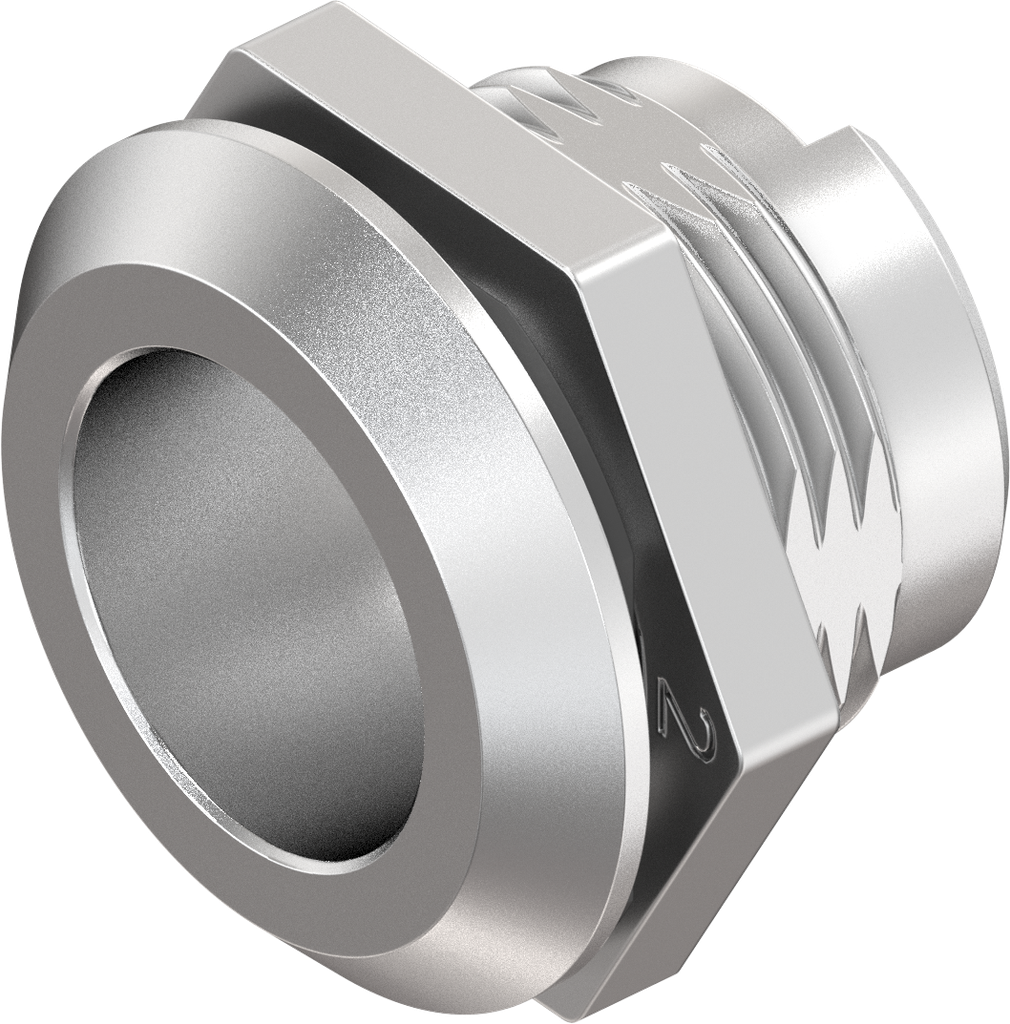

Housing, Stainless steel AISI 303; 1000-U134-S

https://www.emka.com/products/1000-u134-s-housing-stainless-steel-aisi-303-59965 https://www.emka.com/web/image/product.template/59965/image_1920?unique=d829284

with flat seal and stainless steel nut

    This combination does not exist.

    Inside the sealing Left Right
    Internal Reference: 1000-U134-S
    Barcode: 1000-u00134-000000S
    Product Type: Housing
    Program: 8031
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

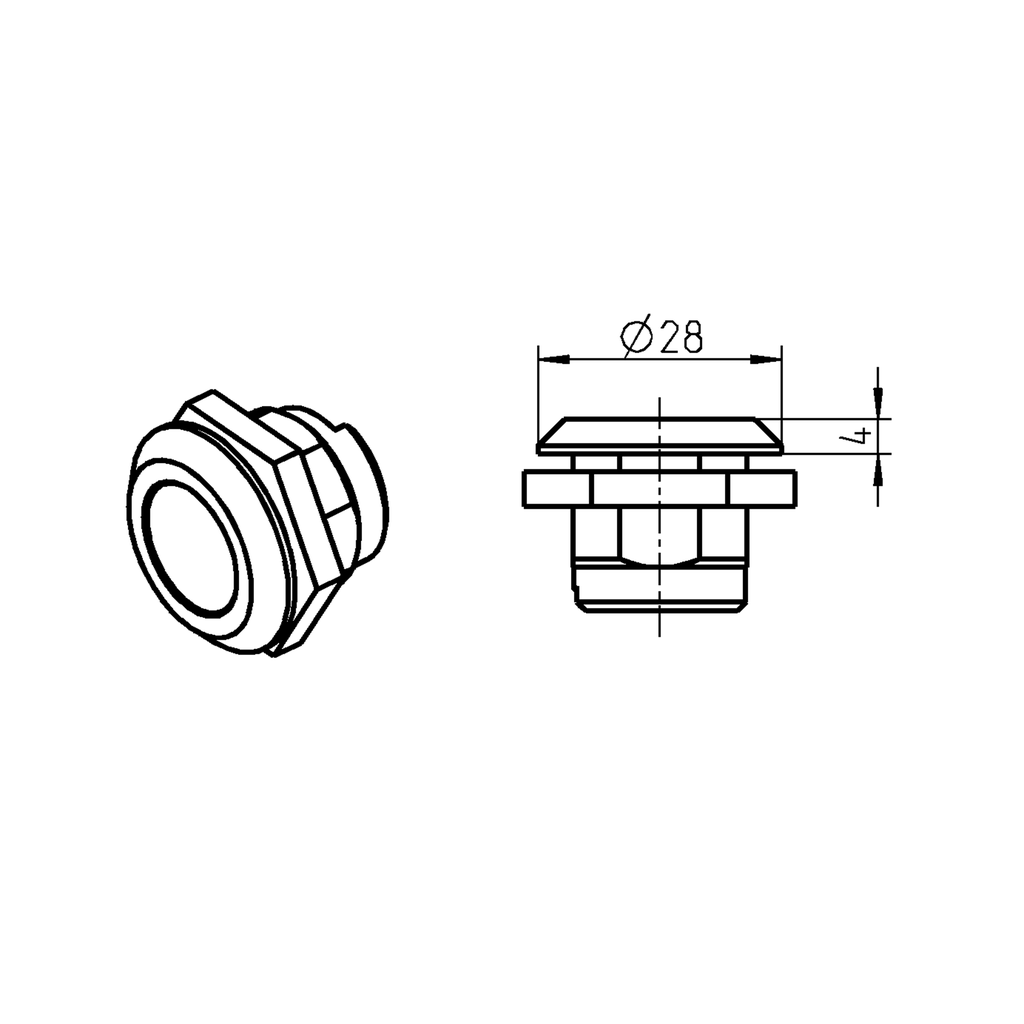

    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    O-ring and flat seal

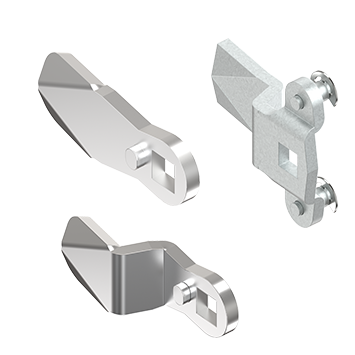

    Cam
    Quarter turn accessories
    Dust cap - Finger pull
    Rod control

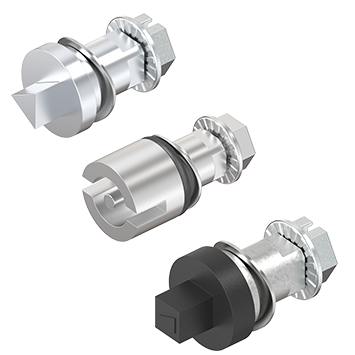

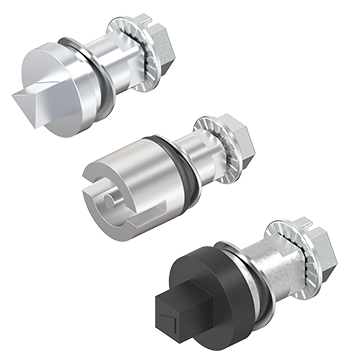

    Insert
