T-handle quarter turn, keyed EK 333, Zinc die chrome-plated
T-handle quarter turn, keyed EK 333, Zinc die chrome-plated
T-handle quarter turn, non-keyed, Zinc die chrome-plated
T-handle quarter turn, non-keyed, Zinc die chrome-plated

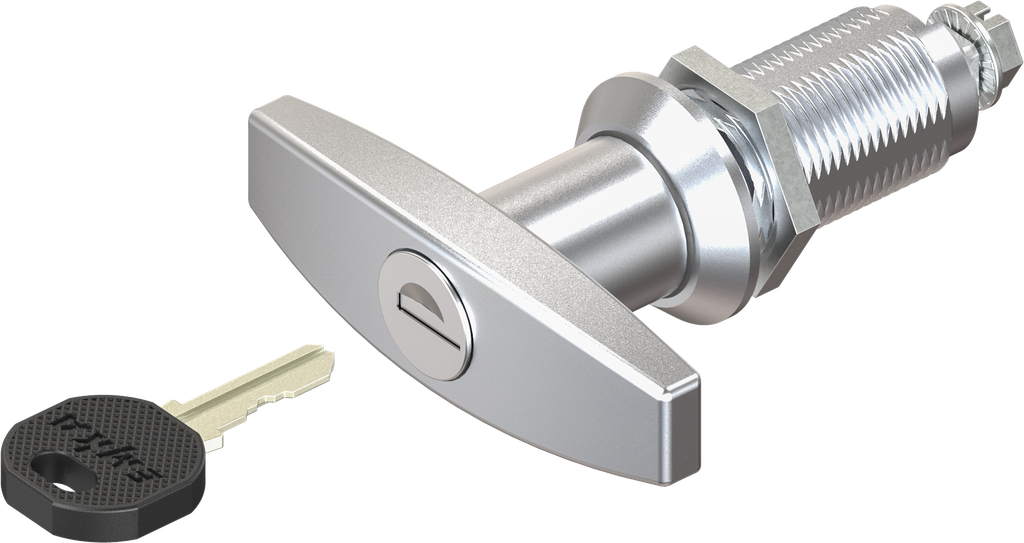

T-handle quarter turn, keyed different, Zinc die chrome-plated; 1000-U127

https://www.emka.com/products/1000-u127 https://www.emka.com/web/image/product.template/205377/image_1920?unique=5c36b68

with earthing nut

This product has no valid combination.



Product information:

Key removable in both positions.

Internal Reference: 1000-U127
Product Type: Quarter turn
Program: 1000
Catalog sheet: 1B-560
Material of the module : Zinc die
Surface of the module: chrome-plated
Number of Possible Locking Points: 1 point, 2 points, 3 point
Fixing type of housing : nut fixing
Mounting Positions : Inside the sealing
Grounding possible: Yes
Housing Head Shape: Round
Housing Head Size: 32 x 6 mm
GH Mass: 40 mm
Handle Art: T-handle
Suitable for door thickness from: 1.50 mm
Suitable for door thicknesses up to: 30 mm
Round Cylinder Type: EMKA EK, differently keyed
Locking set: Round cylinder
Door Version : Left,Right
Locking components: Cam
Quarter turn types: Quarter turn with handle,Quarter turn with cylinder
No Specifications
View All Products
Cam
Quarter turn accessories
Assembly
Rod control
Keys

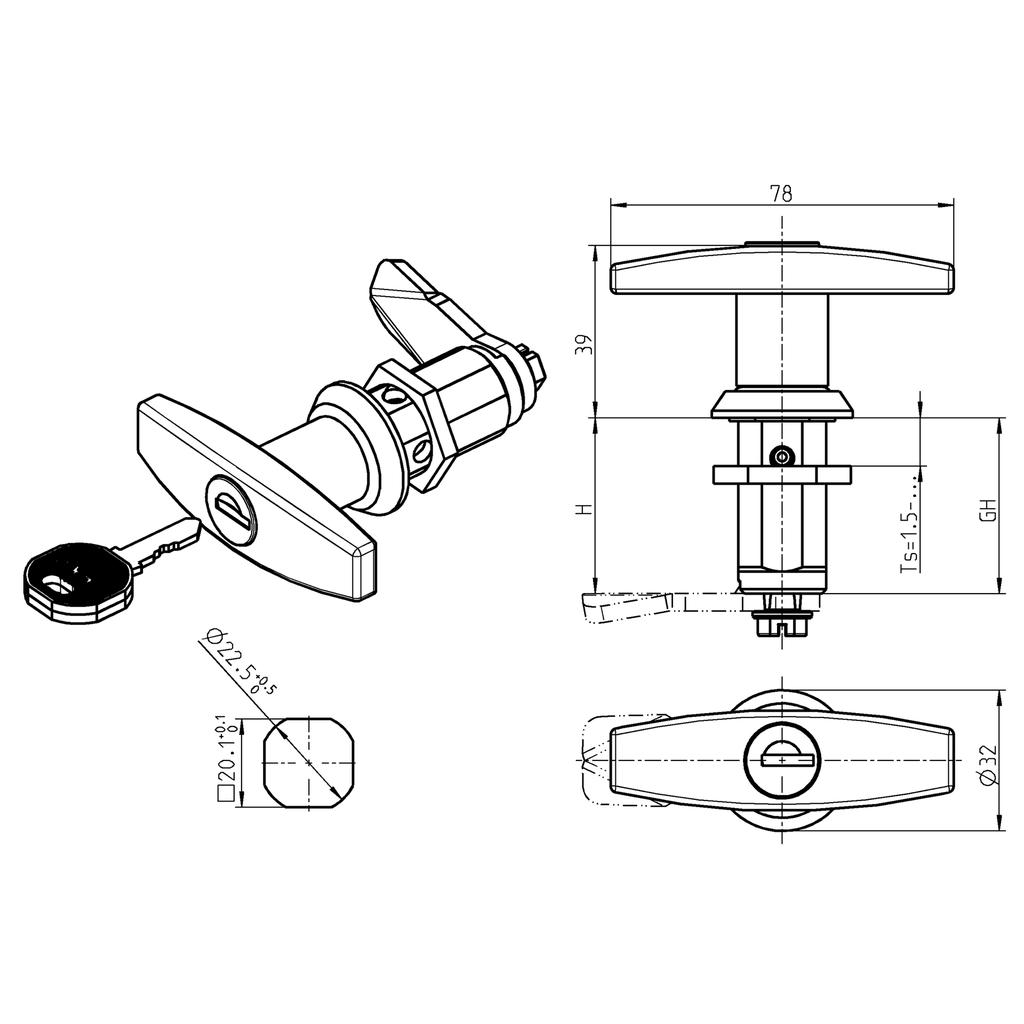

Here you can find the product data sheets and CAD files of this product
