T-handle quarter turn, keyed EK 333, Stainless steel AISI 316
T-handle quarter turn, keyed EK 333, Stainless steel AISI 316
T-handle quarter turn, keyed different, Stainless steel AISI 316
T-handle quarter turn, keyed different, Stainless steel AISI 316

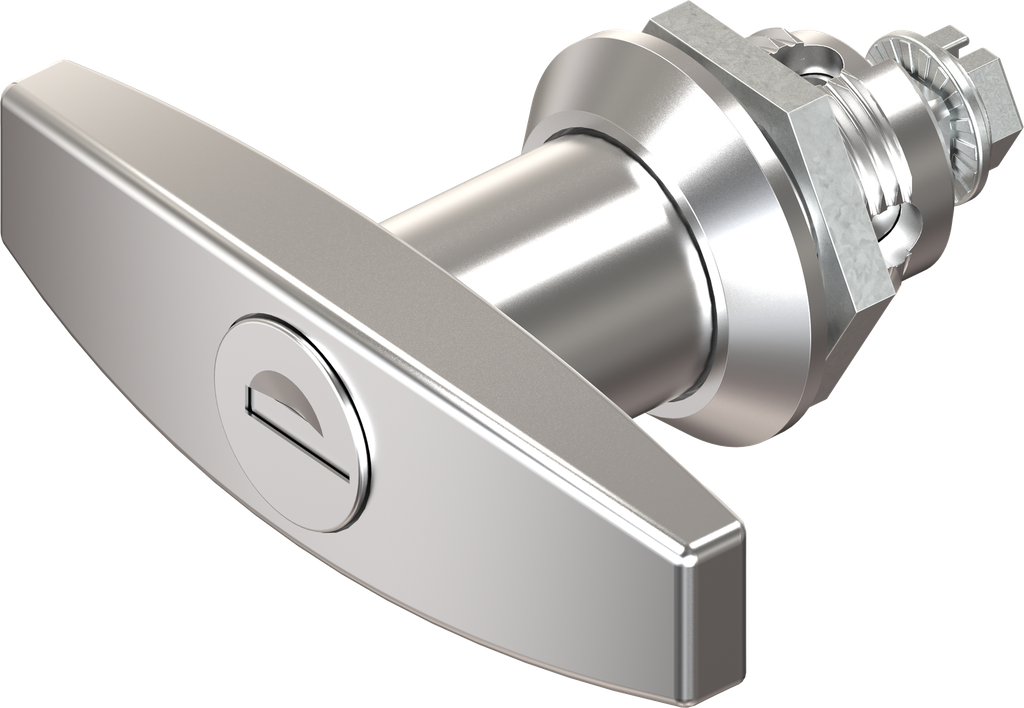

T-handle quarter turn, keyed different, Zinc die chrome-plated; 1000-U11

https://www.emka.com/products/1000-u11 https://www.emka.com/web/image/product.template/59887/image_1920?unique=1b7fde6

with nut

    This combination does not exist.

    Inside the sealing Protection class IP 65 Left Right
    Contact Us

    Product information:

    Key removable in both positions.
    Internal Reference: 1000-U11
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-560
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    GH Mass: 18 mm
    Handle Art: T-handle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    Round Cylinder Type: EMKA EK, differently keyed
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle,Quarter turn with cylinder
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Assembly
    Rod control
    Keys
    Here you can find the product data sheets and CAD files of this product
