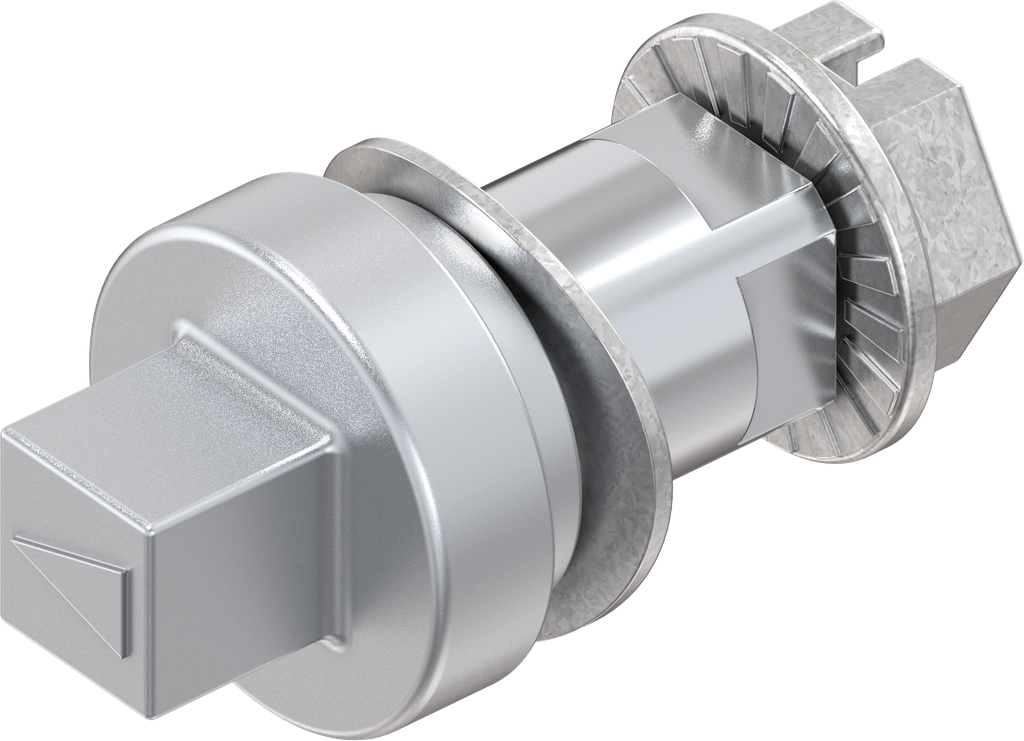

Insert square 7, Zinc die NATO olive powder coated smooth silky gloss
Insert square 8, Zinc die chrome-plated
Key features:
This product is a modular component of a UL-certified closure.
Internal Reference:
1000-U1-ID
Barcode:
1000-U00001-00000id
Product Type:
Insert
Program:
1000
Material of the module :
Zinc die
Surface of the module:
matt chromed
Number of Possible Locking Points:
1 point, 2 points, 3 point
Insert for:
Insert for housing, classic,Insert for housing and for padlock,Insert for housing for flush mounting, classic,Insert for housing for door lock, prominent
Type of actuation:
Square 7 with arrow
For GH measure:
18 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Metric
