Compression latch square 8 with OPEN - CLOSED indicator, left version, Stainless steel AISI 316 pickled and passivated

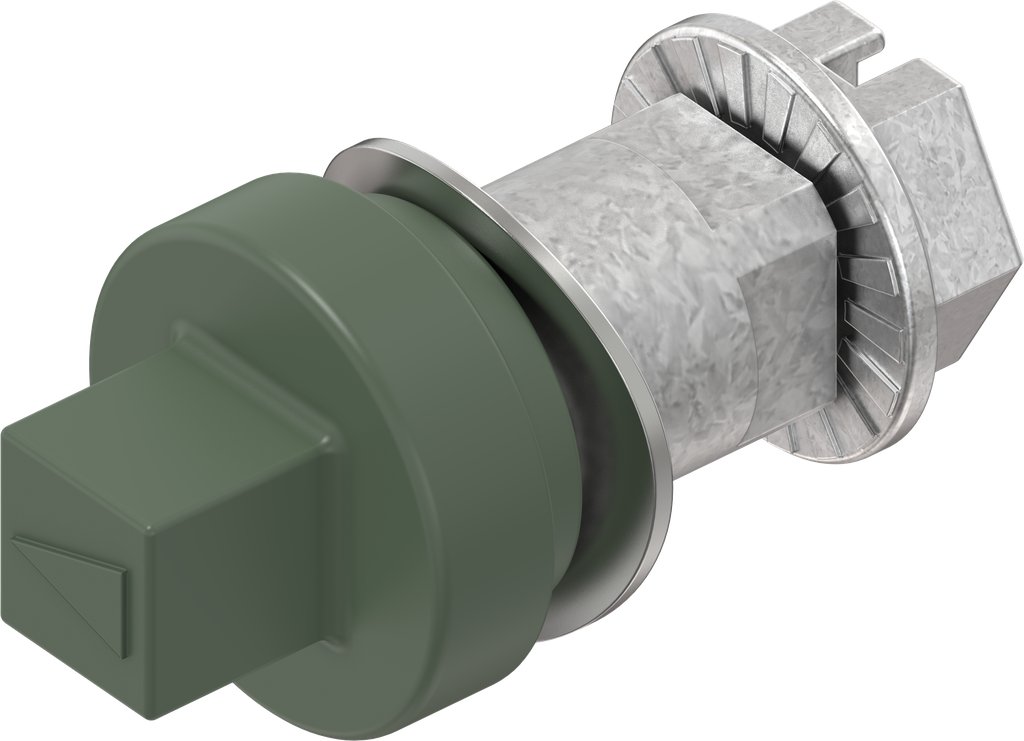

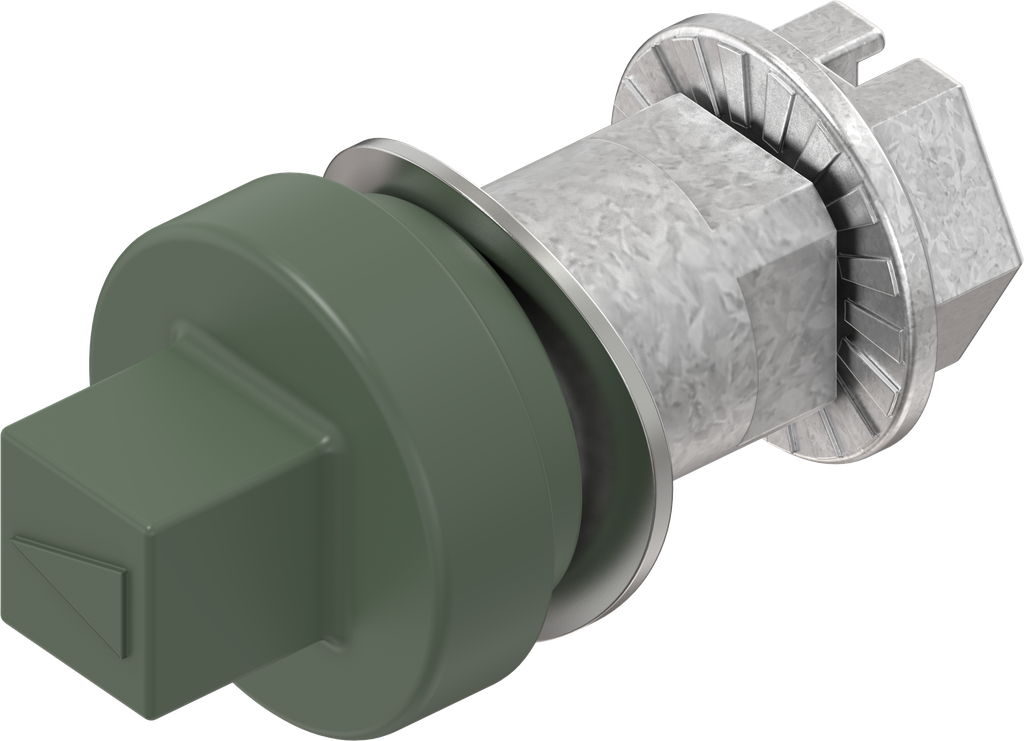

Insert square 7, Zinc die NATO olive powder coated smooth silky gloss
Insert square 7, Zinc die NATO olive powder coated; 1000-U1-GA
No stock item, please ask for availability
Key features:
Dieses Produkt ist modularer Bestandteil eines UL-zertifizierten Verschlusses.
Internal Reference:
1000-U1-GA
Barcode:
1000-U00001-00000ga
Product Type:
Insert
Program:
1000
Material of the module :
Zinc die
Surface of the module:
NATO olive powder coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Insert for:
Insert for housing, classic,Insert for housing and for padlock,Insert for housing for flush mounting, classic,Insert for housing for door lock, prominent
Type of actuation:
Square 7 with arrow
For GH measure:
18 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Metric
No Specifications
