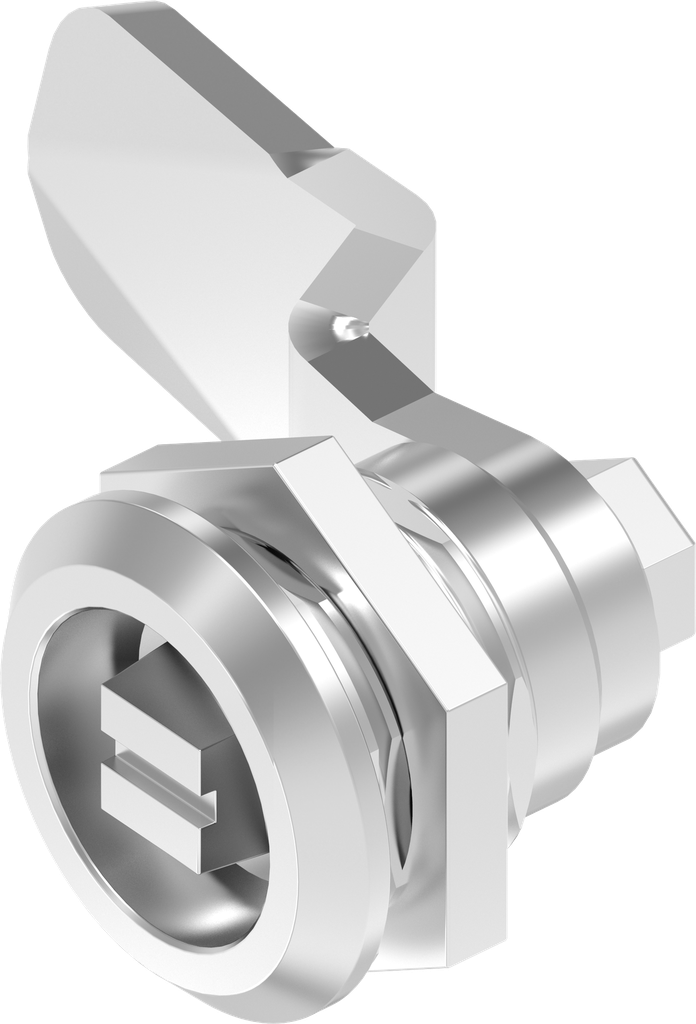

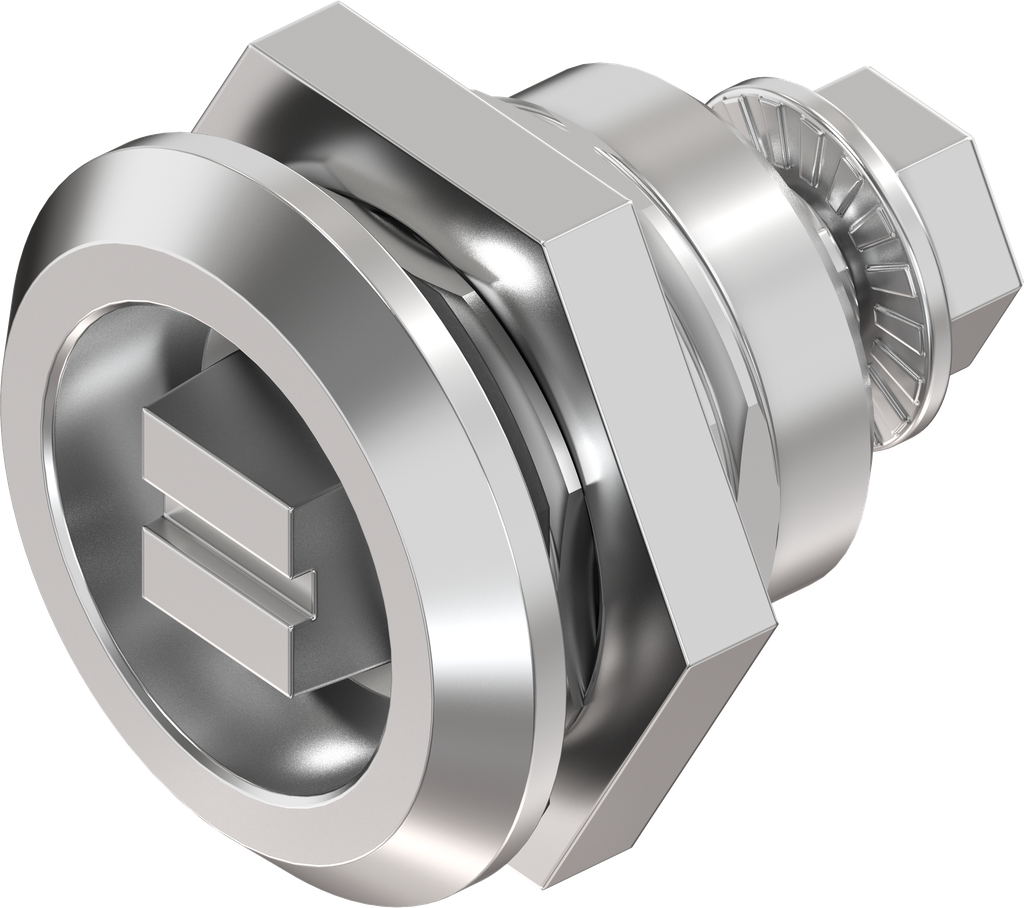

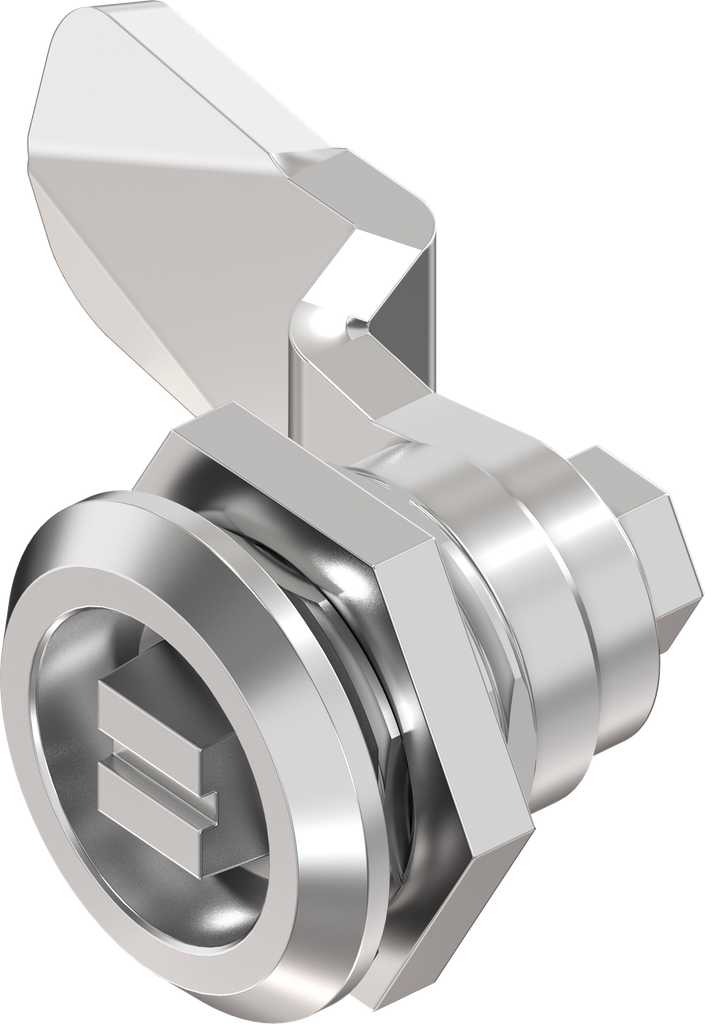

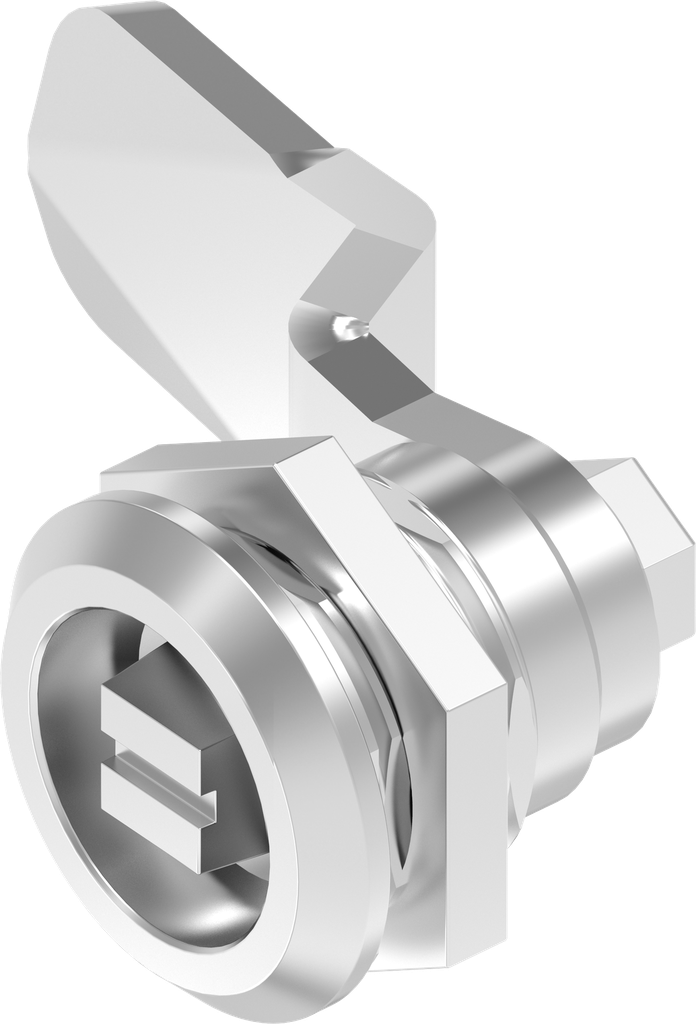

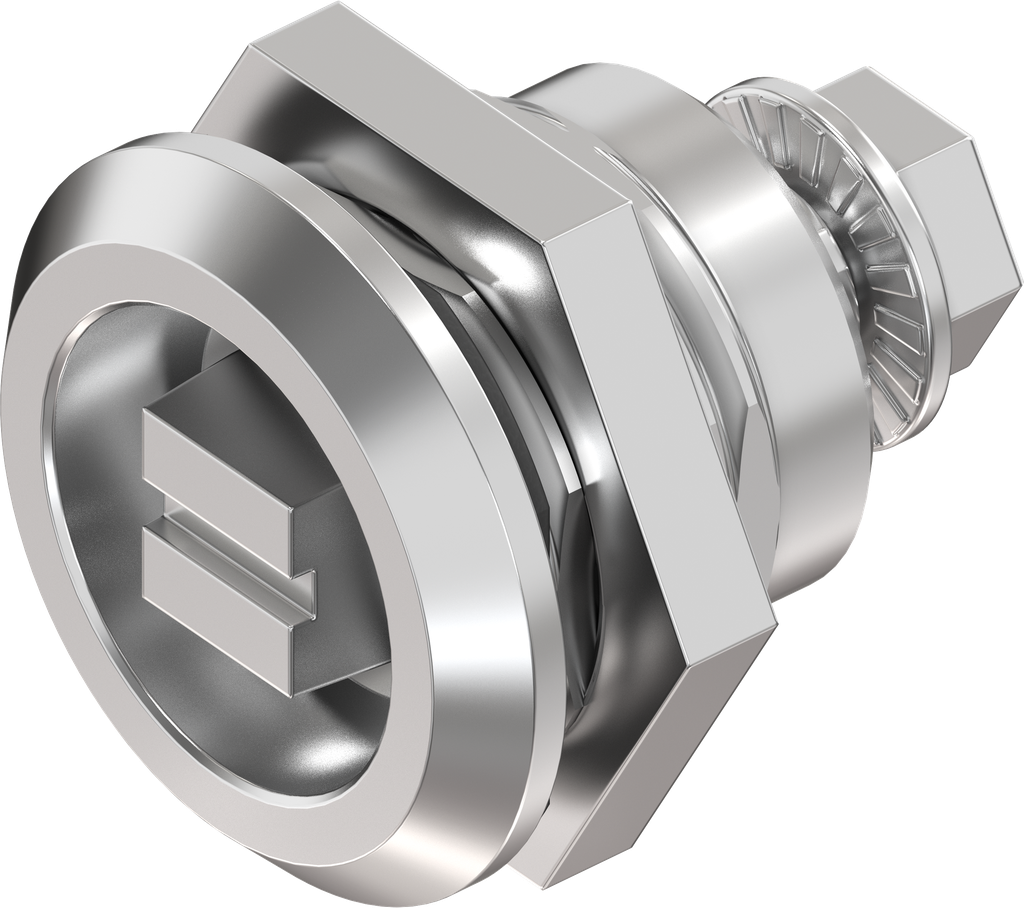

Safety quarter turn version railway with marking, Stainless steel AISI 304; 1000-SU821
with stainless steel nut
Product information:
Safety quarter turn:The safety quarter turn is of a vibration-proof design.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-SU821
Standards:
Protection class IP 65, DIN EN 61373 (shock and vibration testing), ⓘ An article of the same design was tested, DIN EN 45545-3 class E30 (fire protection)
Barcode:
1000-SU0821-0000000
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 304
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 9 with slot 1 x 2, railway version
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

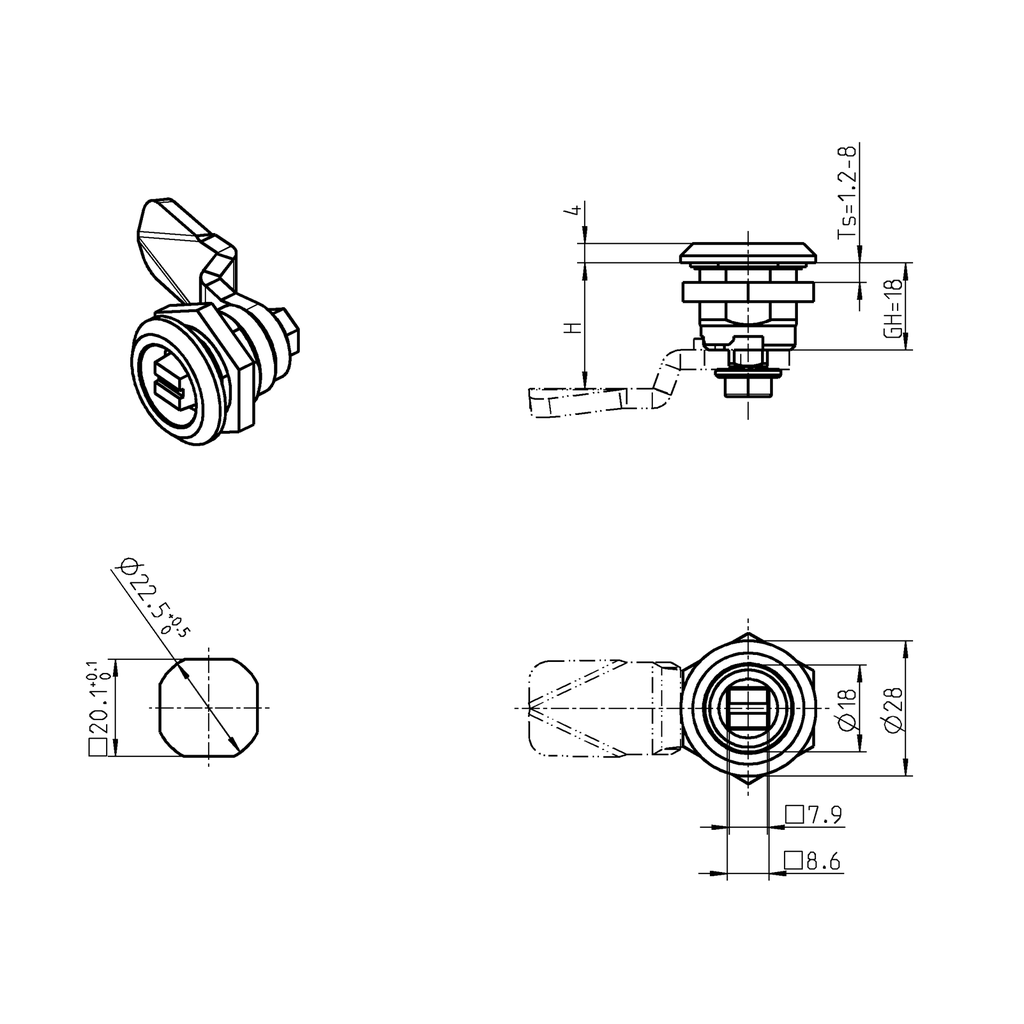

Housing Head Size:
28 x 4 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Safety quarter turn
