Vibration-resistant quarter turn railway version, Stainless steel AISI 316
Vibration-resistant quarter turn square 8 with marking, Stainless steel AISI 316

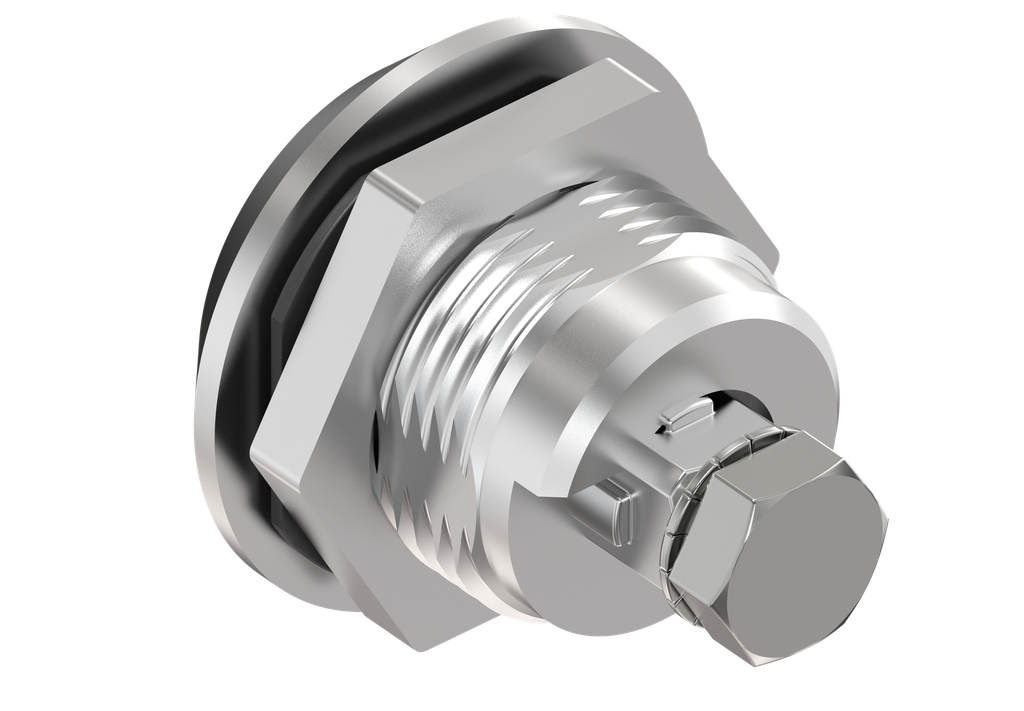

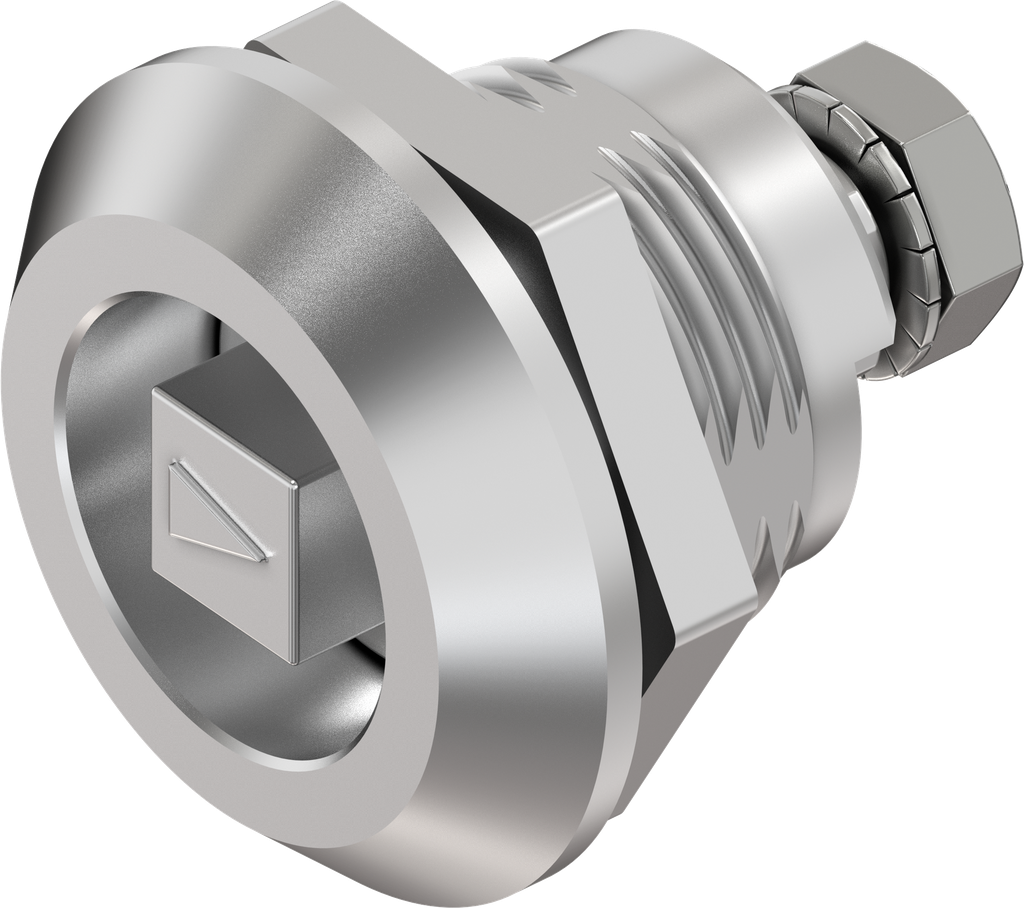

Vibration-resistant quarter turn square 8 with arrow, Stainless steel AISI 316; 1000-SU1381
with nut
Internal Reference:
1000-SU1381
Standards:
Protection class IP 69K, DIN EN 45545-3 class E60 (fire protection), DIN EN 61373 (shock and vibration testing), ⓘ An article of the same design was tested
Barcode:
1000-SU1381-0000000
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 316
Surface of the module:
magnetisch poliert
Number of Possible Locking Points:
1 point, 2 points, 3 point
Article with property rights:
Yes
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

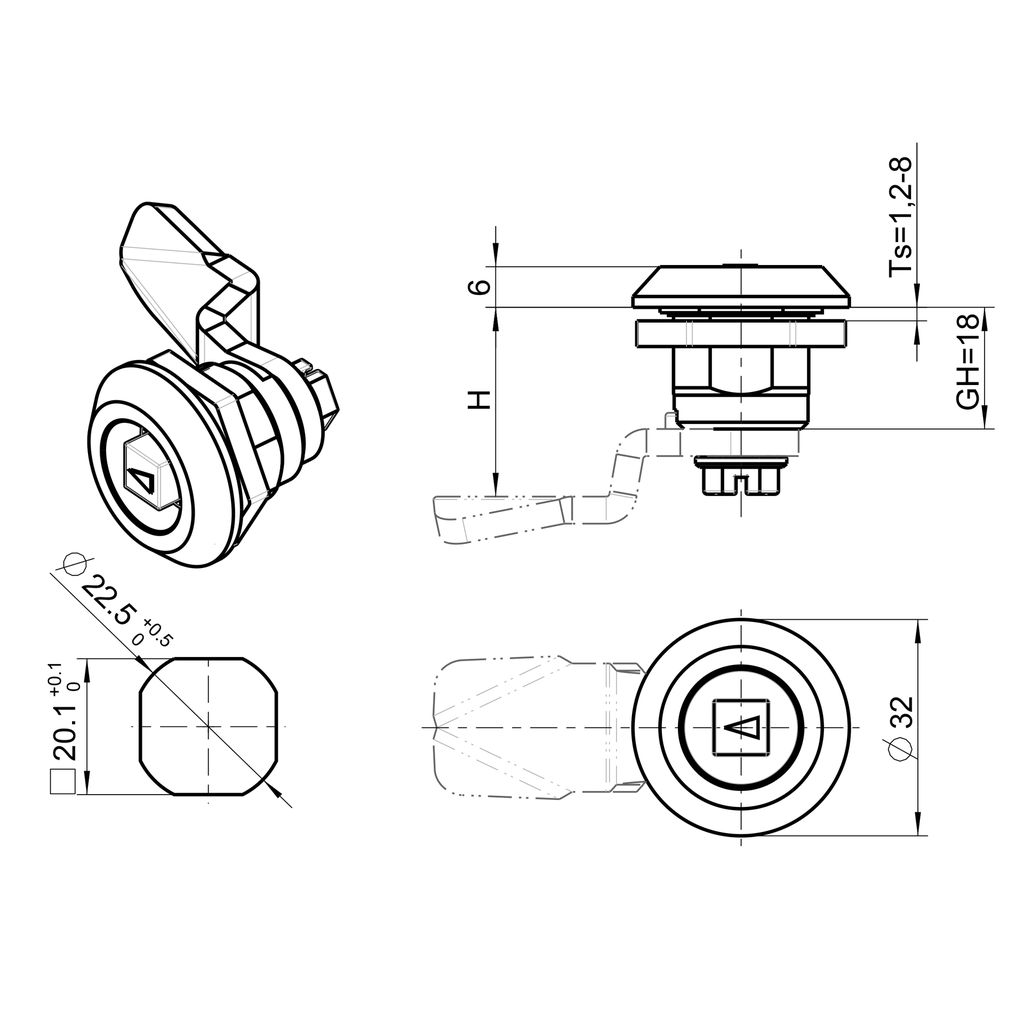

Housing Head Size:
32 x 6 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Vibration-resistant quarter turn
