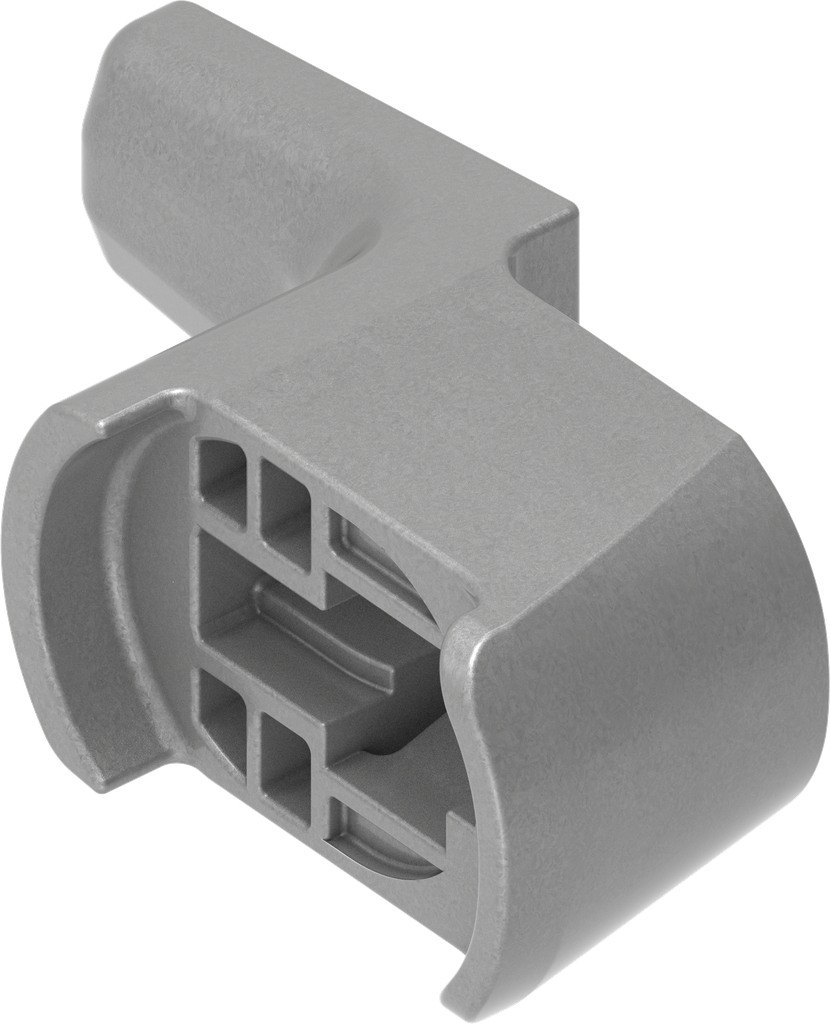

Snap-in cam H = 24 mm, Polyamide GF black
Snap-in cam H = 22 mm, Polyamide GF black
Product Benefits:
- Cost savings due to assembly without tools within seconds
- Smooth operation (no inner rotation due to design)
- Snap-in cam with safety cap
- Self-sealing design for highest protection requirements (design immanent)
- Increased safeguarding against overwinding
- Standard cut out
- Patented
Product information:

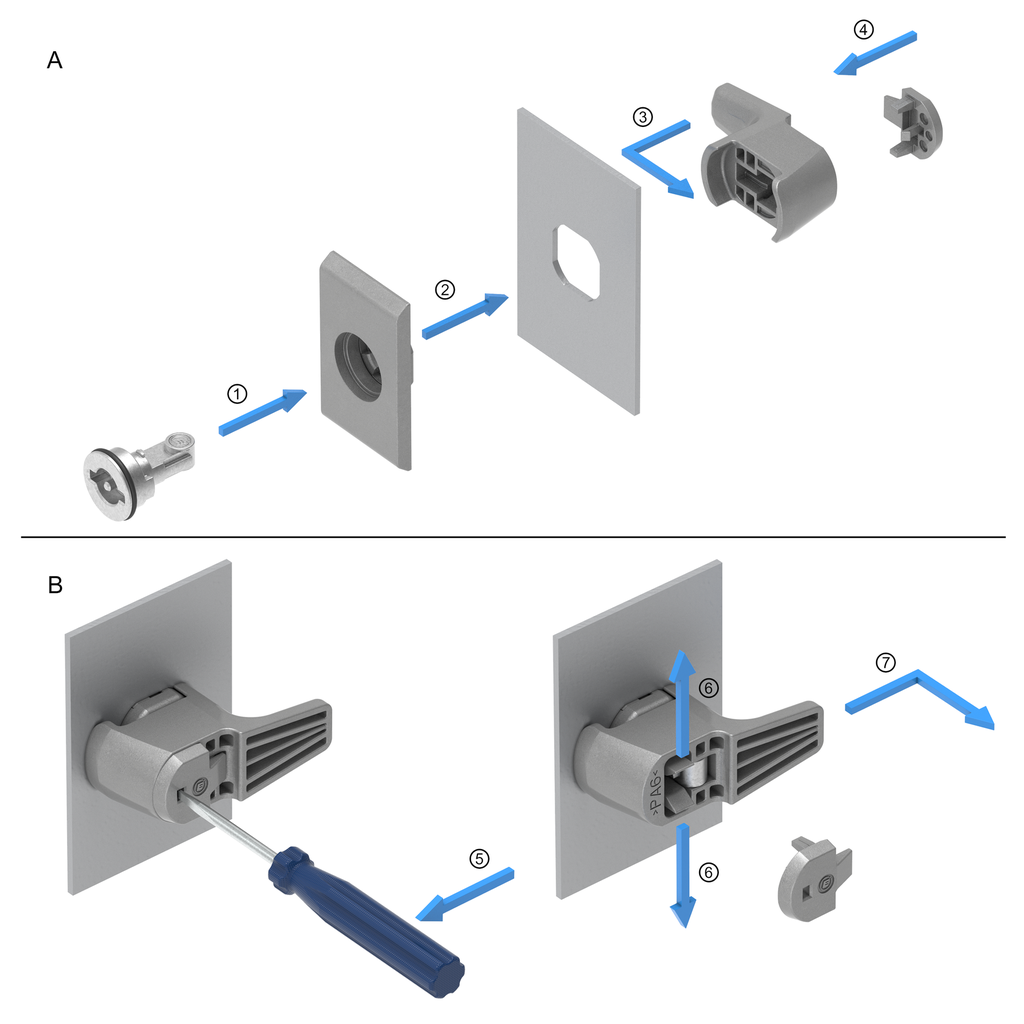

A = Assembly: example right-hand version
B = Disassembly
Internal Reference:
1000-601-CX
Product Type:
Cam
Material:
Polyamide GF
Program:
1000
Surface:
silver grey metallic
Catalog sheet:
1B-170
Number of Possible Locking Points:
1 point
Mounting Positions :
Inside the sealing

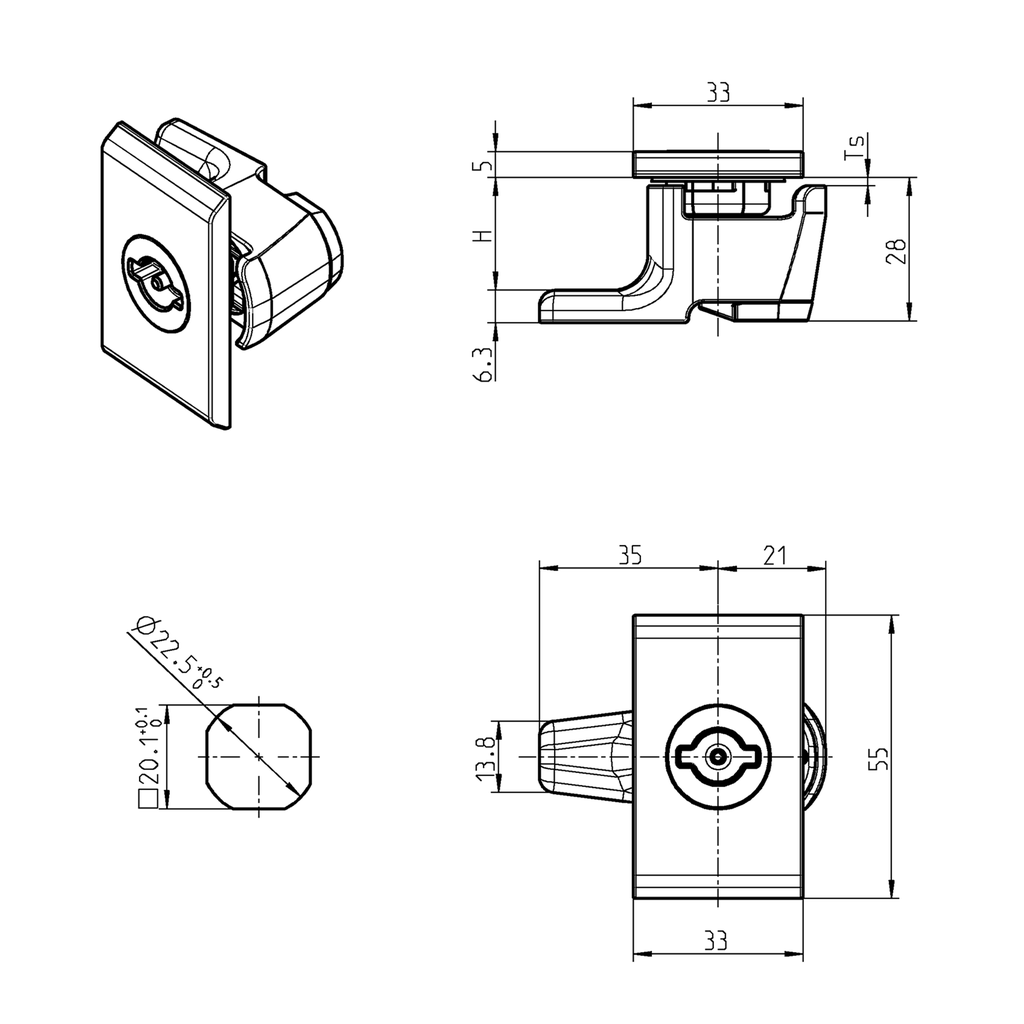

Dimension H:
18 mm
Compression Value :
2 mm
Dimension L:
35 mm
Spoon:
Yes
Quarter turn types:
Quarter turn with simple insert,Quarter turn for assembly without tools
No Specifications
