Snap-in cam H = 18 mm, Polyamide GF black
Snap-in cam H = 18 mm, Polyamide GF black
Snap-in cam H = 22 mm, Polyamide GF black
Snap-in cam H = 22 mm, Polyamide GF black

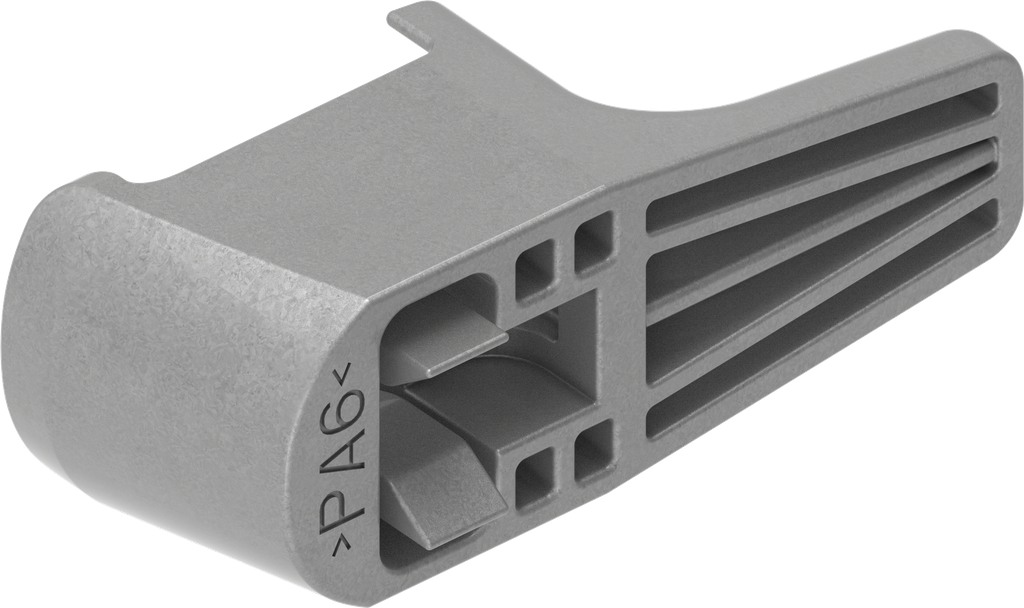

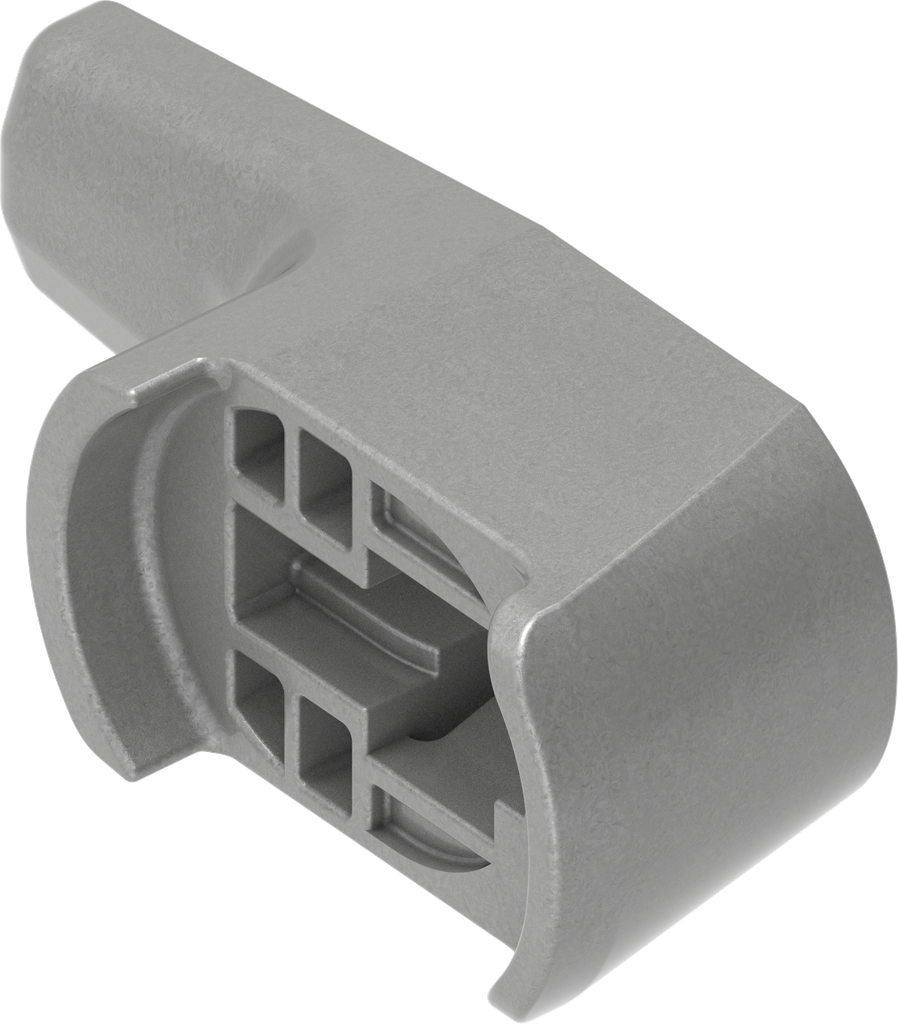

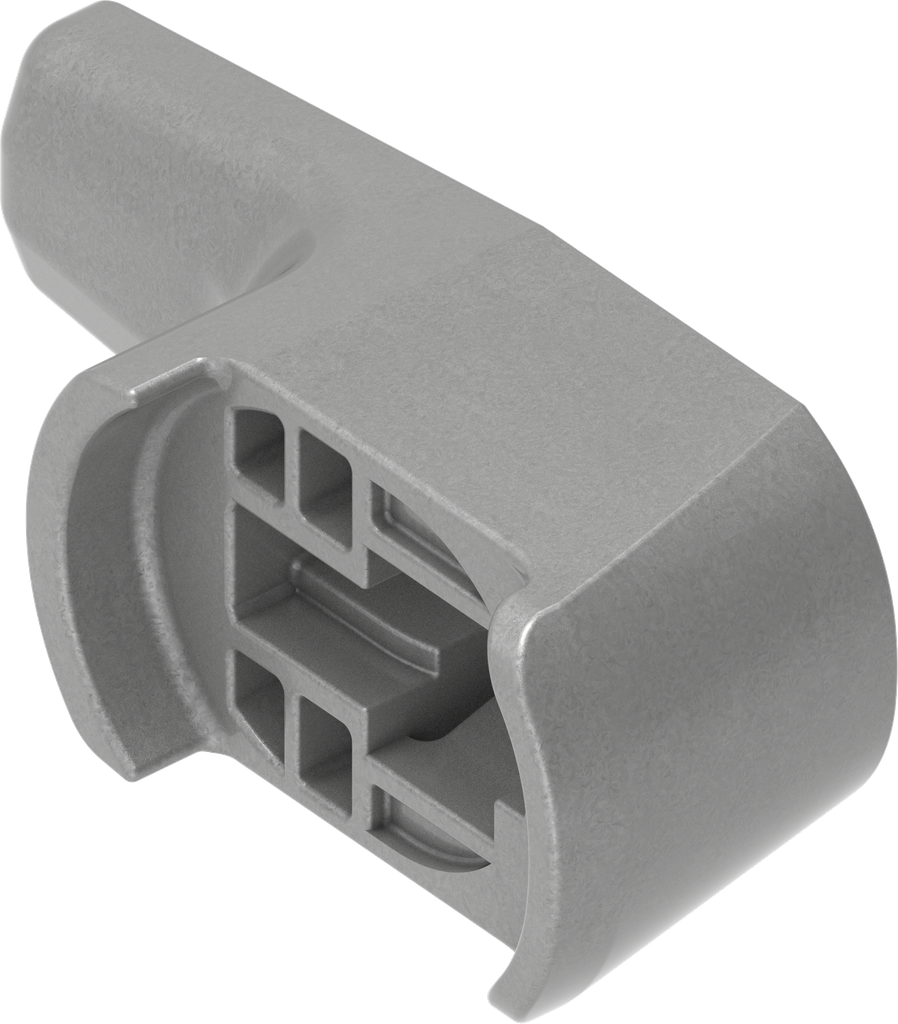

Snap-in cam H = 18 mm, Polyamide GF silver grey metallic; 1000-593-CX

https://www.emka.com/products/1000-593-cx https://www.emka.com/web/image/product.template/200568/image_1920?unique=79f3c84

for Ts = 2.5 - 3.0 mm


    This combination does not exist.

    Inside the sealing Protection class IP 65


    Product Benefits:

    • Cost savings due to assembly without tools within seconds
    • Smooth operation (no inner rotation due to design)
    • Snap-in cam with safety cap
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Product information:

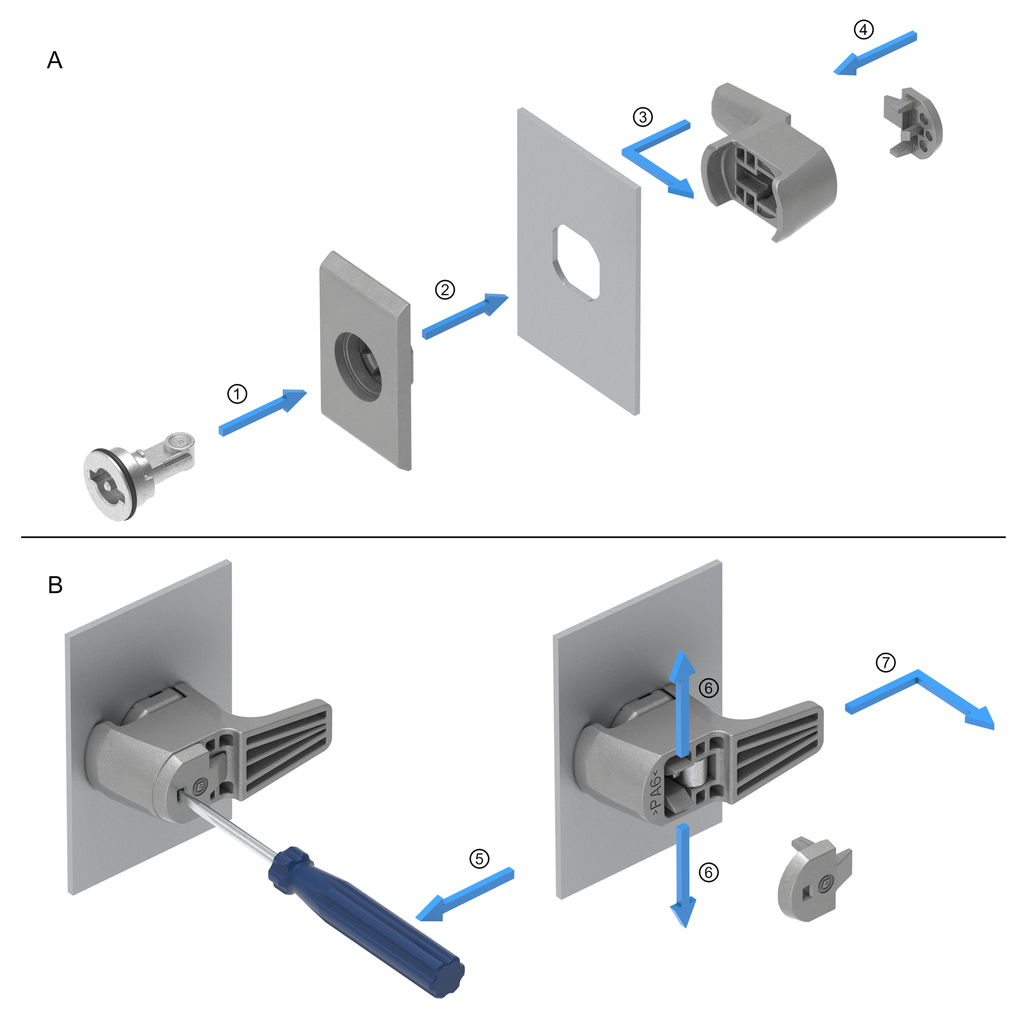

    A = Assembly: example right-hand version
    B = Disassembly

    Internal Reference: 1000-593-CX
    Product Type: Cam
    Material: Polyamide GF
    Program: 1000
    Surface: silver grey metallic
    Catalog sheet: 1B-170
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Dimension H: 18 mm
    Compression Value : 2 mm
    Dimension L: 35 mm
    Spoon: Yes
    Quarter turn types: Quarter turn with simple insert,Quarter turn for assembly without tools
    No Specifications
    View All Products
    Quarter turn accessories

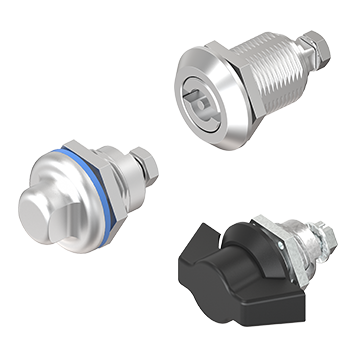

    Quarter turn
