T-handle cap, Polyethylene black
T-handle cap, Polyethylene black

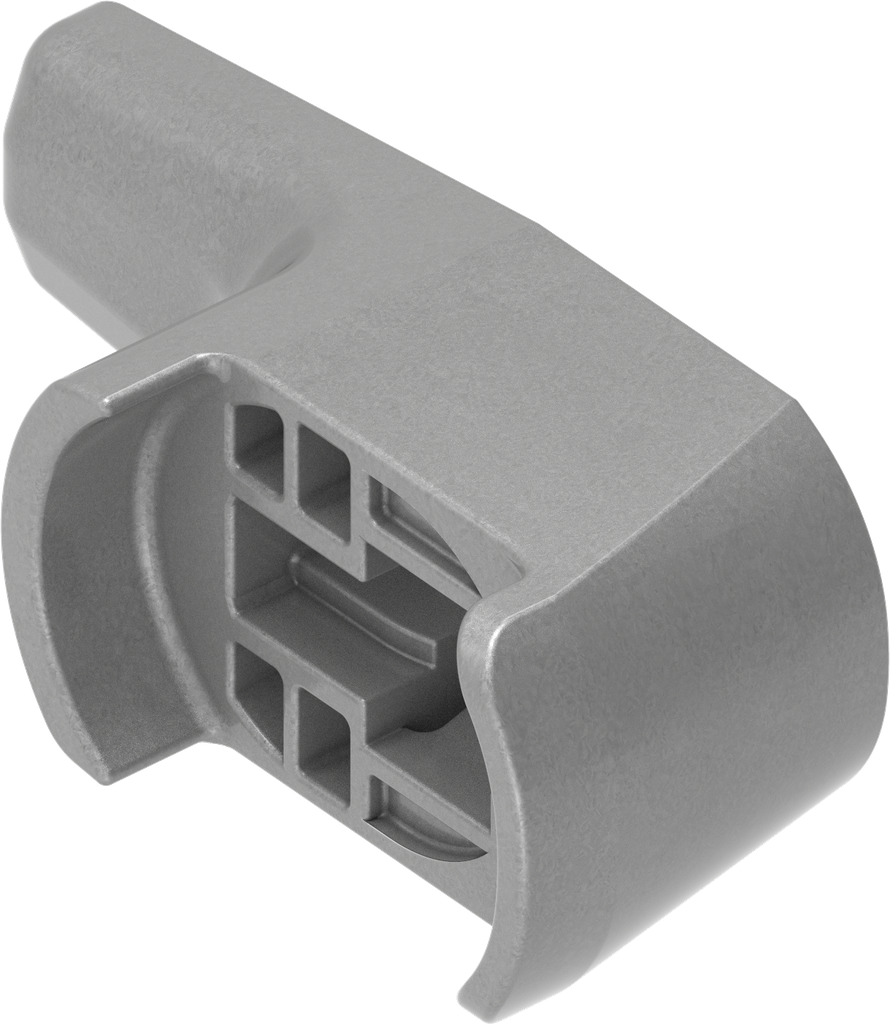

Snap-in cam H = 18 mm, Polyamide GF silver grey metallic
Snap-in cam H = 18 mm, Polyamide GF silver grey metallic

Snap-in cam H = 18 mm, Polyamide GF silver grey metallic; 1000-590-CX

https://www.emka.com/products/1000-590-cx https://www.emka.com/web/image/product.template/200559/image_1920?unique=2458744

for Ts = 1.0 - 1.5 mm

    This combination does not exist.

    Inside the sealing Protection class IP 65
    Contact Us

    Product Benefits:

    • Cost savings due to assembly without tools within seconds
    • Smooth operation (no inner rotation due to design)
    • Snap-in cam with safety cap
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Product information:

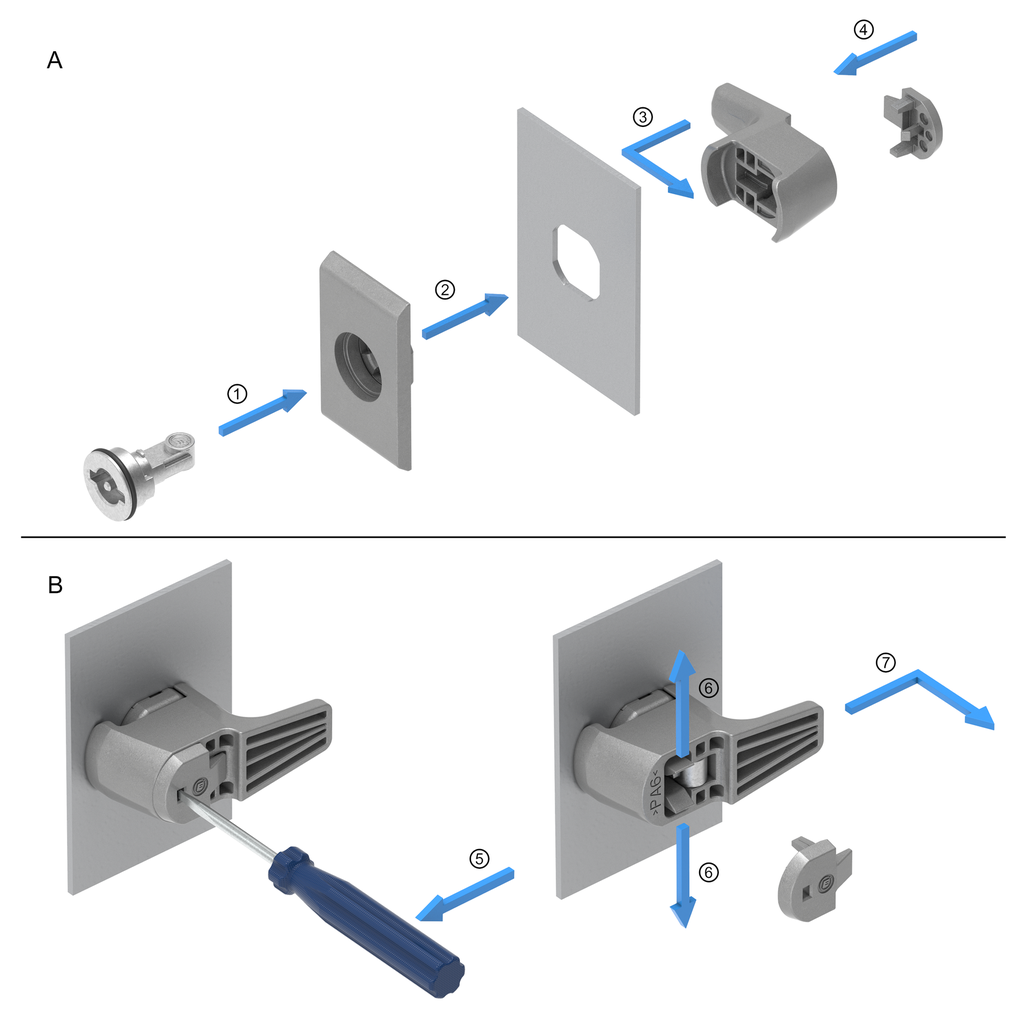

    A = Assembly: example right-hand version
    B = Disassembly
    Internal Reference: 1000-590-CX
    Product Type: Cam
    Material: Polyamide GF
    Program: 1000
    Surface: silver grey metallic
    Catalog sheet: 1B-170
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing

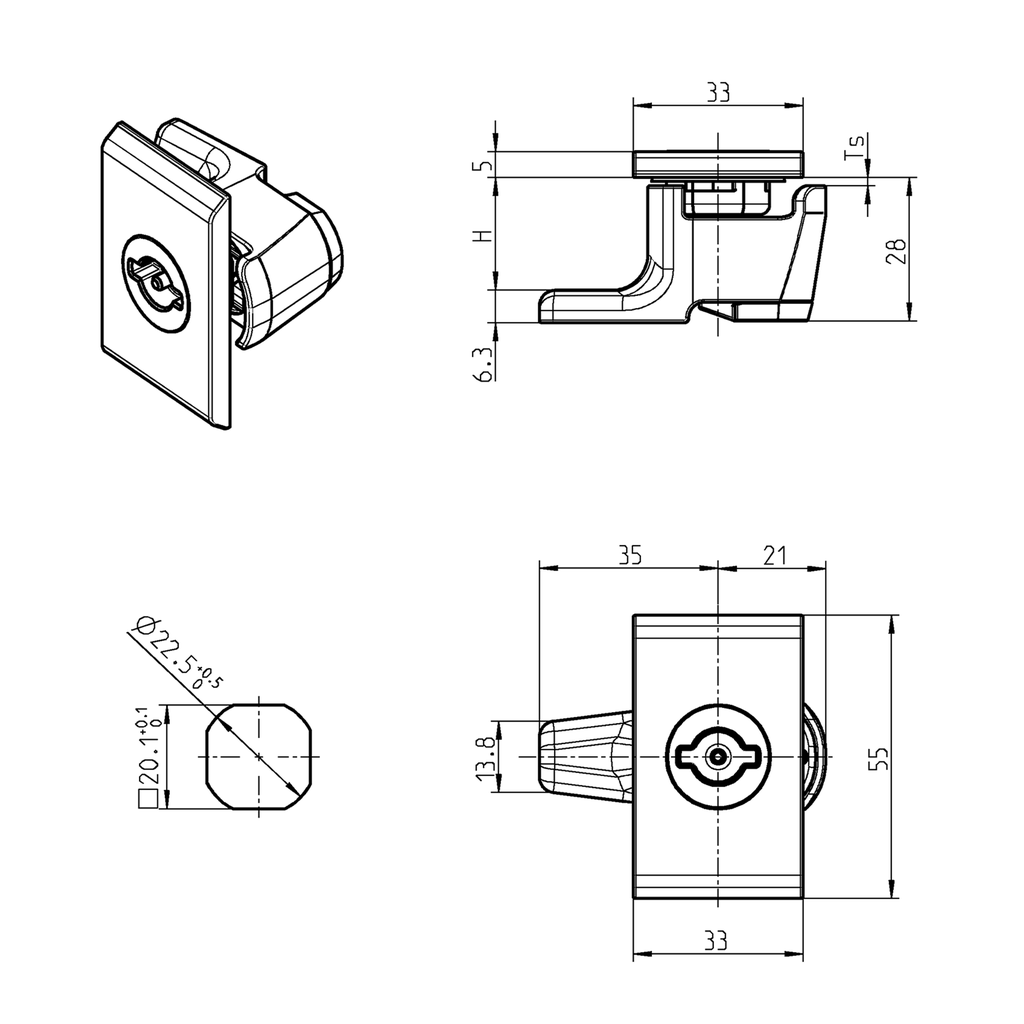

    Dimension H: 18 mm
    Compression Value : 2 mm
    Dimension L: 35 mm
    Spoon: Yes
    Quarter turn types: Quarter turn with simple insert,Quarter turn for assembly without tools
    No Specifications
    View All Products
    Quarter turn accessories
    Quarter turn
    Insert
    Here you can find the product data sheets and CAD files of this product
