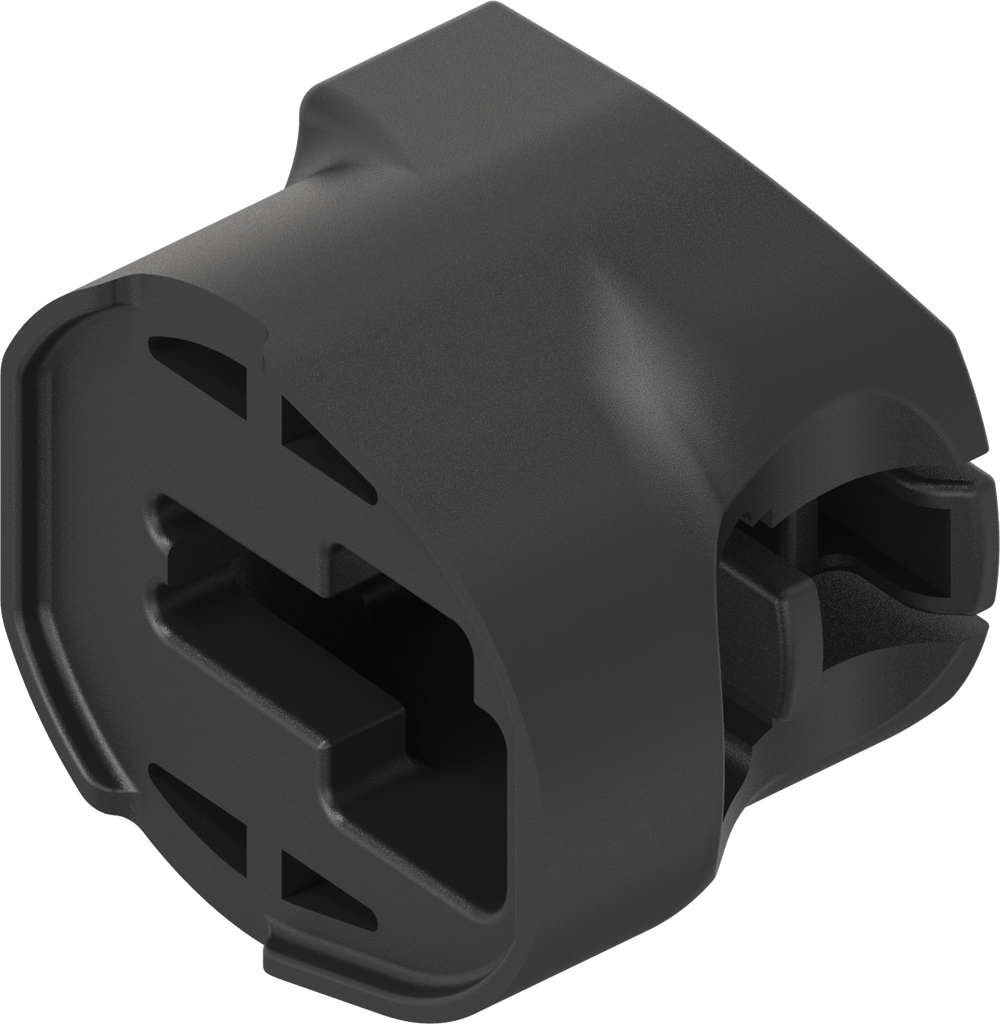

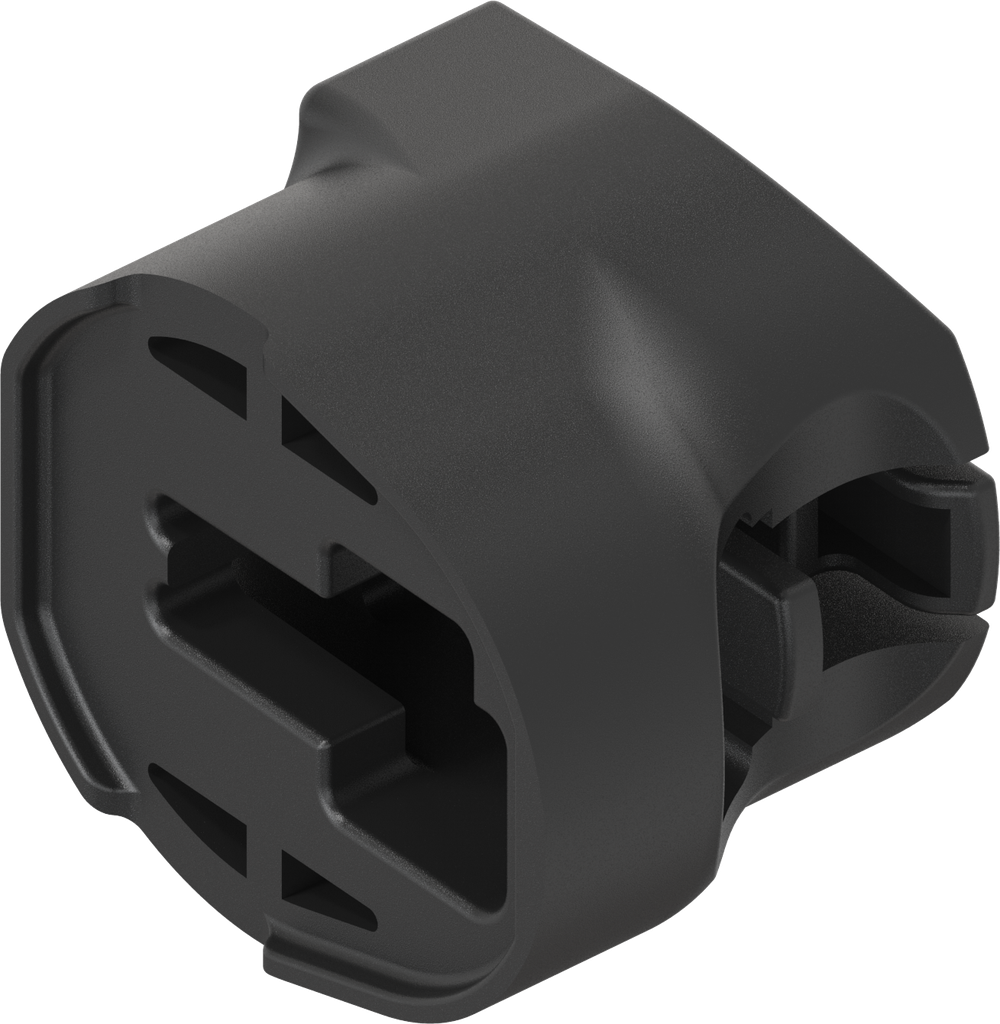

Click-in housing for Ts = 1 - 1.5 mm, Polyamide GF black; 1000-551-01

• Cost savings due to assembly and disassembly without tools within seconds
• Optionally available with polyamide or steel cam
• Suitable for many standard cams
• Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
• Smooth operation (no inner rotation due to design)
• Self-sealing design for highest protection requirements (design immanent)
• Increased safeguarding against overwinding
• Standard cut out
• Patented

Door gauge incl. surface coating

A = Assembly
① = Insert the insert part into the cut out
② = Place the click-in housing and shift it laterally
③ = Insert the cam into the click-in housing acoustic and visual verification of clicking in place of click-in housing

B = Disassembly
④ = Lift locking arm of the cam
⑤ = Pull out the cam of the click-in housing
⑥ = Lift locking arm of the click-in housing
⑦ = Shift the click-in housing laterally and remove it

• Assembly door stop on the right:
  Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing.
• Assembly door stop on the left:
  Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
