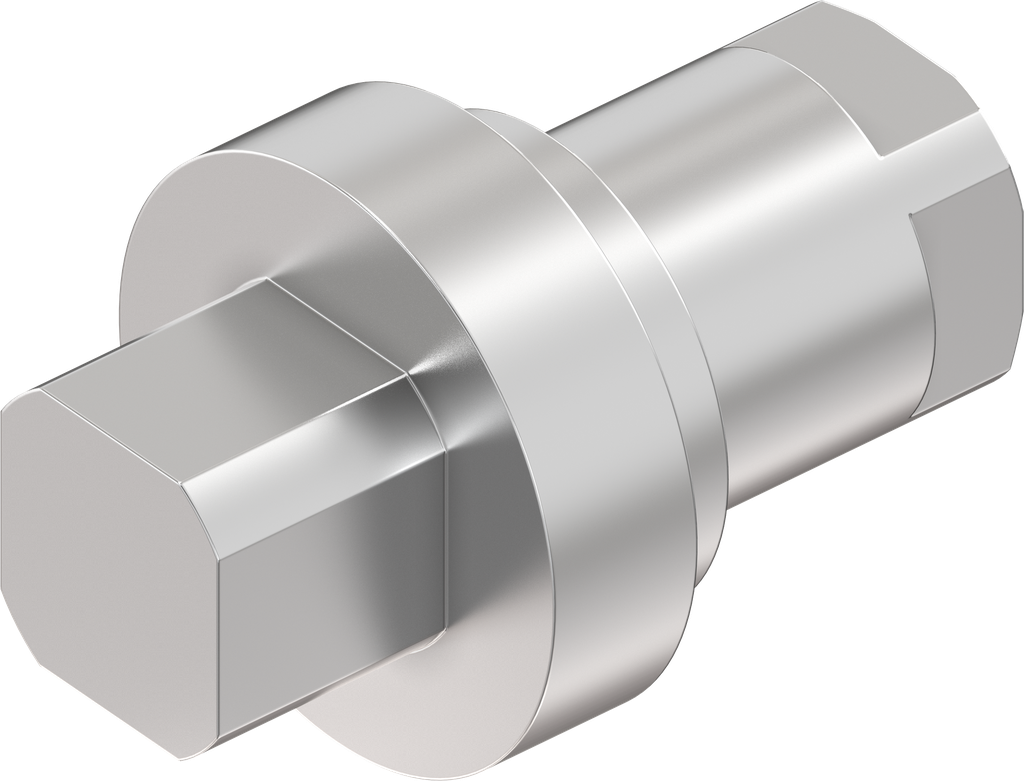

Insert square 8, Stainless steel AISI 303; 1000-140-01PF

https://www.emka.com/products/1000-140-01pf https://www.emka.com/web/image/product.template/59214/image_1920?unique=407e7b3

    This combination does not exist.

    Internal Reference: 1000-140-01PF
    Barcode: 1000-000140-00001PF
    Product Type: Insert
    Material: Stainless steel AISI 303
    Program: 1000
    Insert for: Insert for housing, classic
    Type of actuation: Square 8
    For GH measure: 18 mm
    Thread specification: M6 x 10
    O-ring position: Hub
    Screw Fastening: Metric
    No Specifications
    View All Products
    O-ring and flat seal
    Housing
    Washer
    Screw
    Keys
    Here you can find the product data sheets and CAD files of this product
