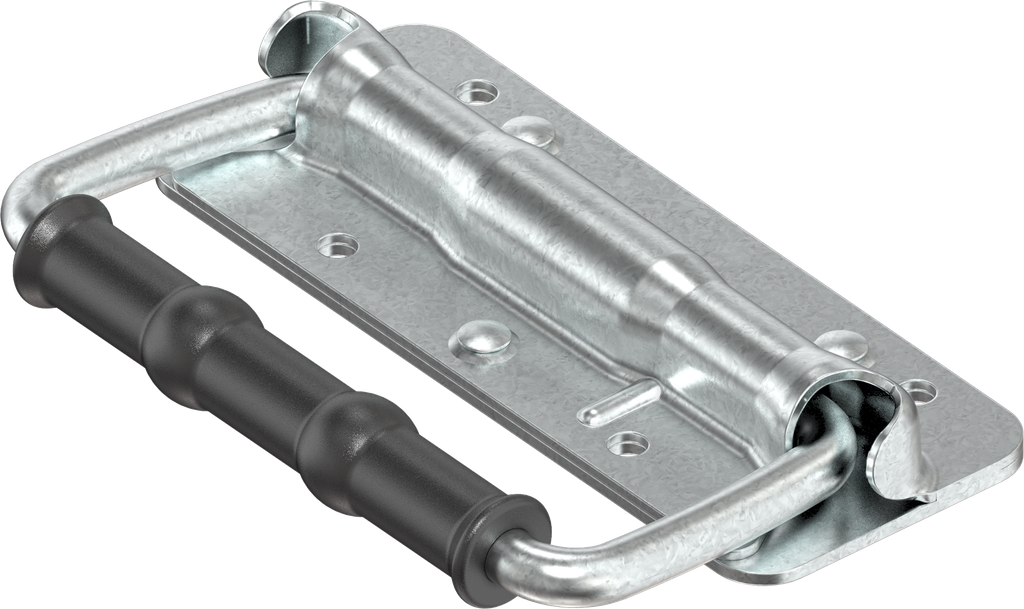

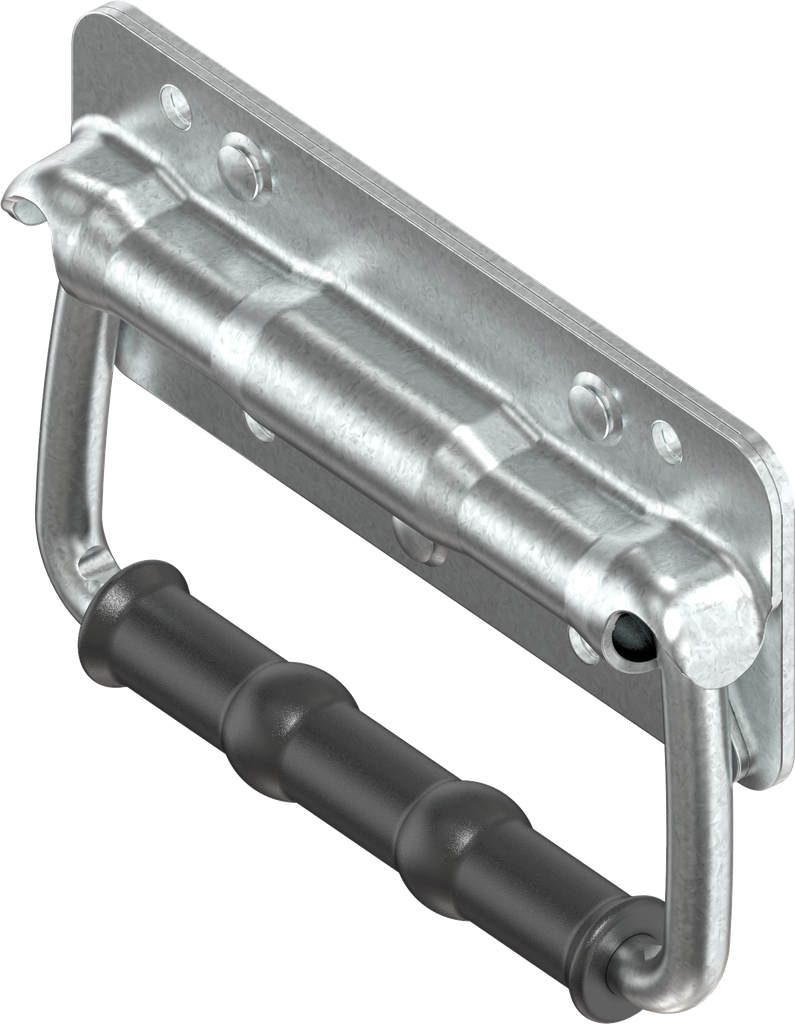

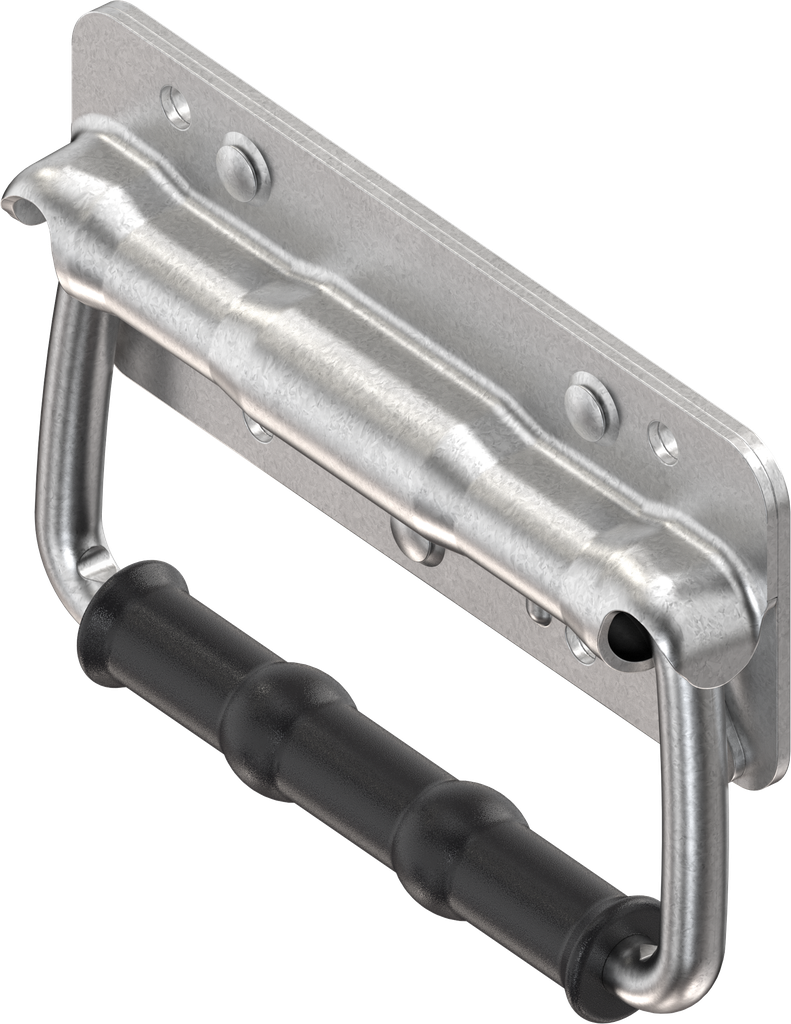

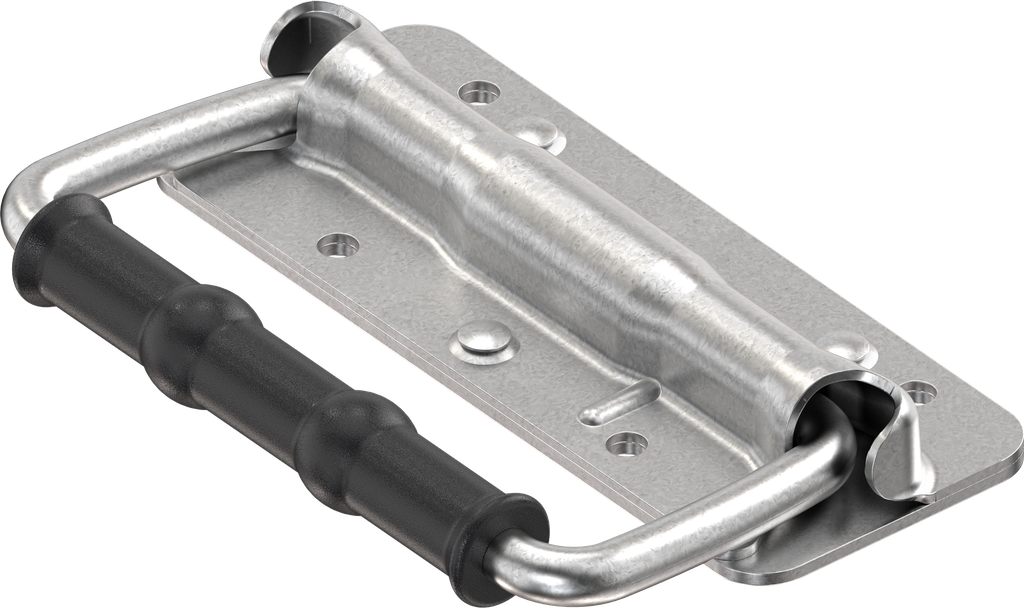

Chest handle with piano wire torsion spring, Steel zinc-plated DS plus top coat; 6040-U53-JQ

https://www.emka.com/products/6040-u53-jq https://www.emka.com/web/image/product.template/298196/image_1920?unique=252bc64

    This combination does not exist.

    Contact Us
    Internal Reference: 6040-U53-JQ
    Product Type: Handle
    Program: 6040
    Catalog sheet: 6B-180
    Material of the module : Steel
    Surface of the module: zinc-plated DS plus top coat
    Fixing type of handle: screw-on from outside,rivetable
    Handle Art(2): Chest handle spring-loaded
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6B-180
    CAD file | 6040-U53-JQ_igs
    CAD file | 6040-U53-JQ_stp
