Swinghandle Agent E Wireless with RFID card reader 13.56 kHz, Zinc die white aluminium powder-coated and polyamide GF black
Holder for emergency hammer, Polypropylene grey powder-coated
Product information:

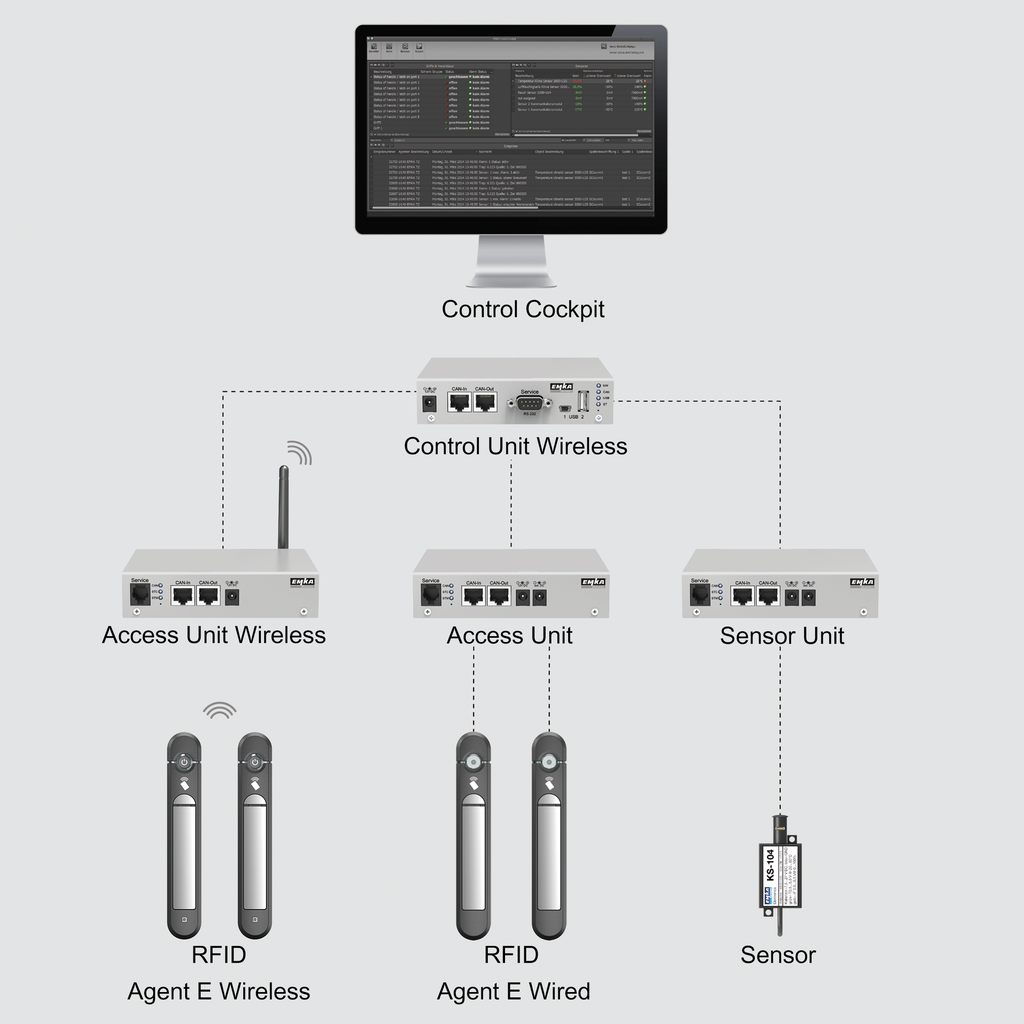

- In combination with a Control Unit Wireless up to 1,200 Agent E Wireless handles can be administered under one IP address with one Access Unit Wireless.
- To improve the range of the wireless signal max. 15 further Access Units Wireless can be connected to the Access Unit Wireless.
- Frequency 868 MHz (Europe) or 922 MHz (USA, Singapore)
Power supply: 12 ... 24 VDC, 200 mA
RS 485 ports: 2 for connecting further Access Units Wireless
CAN bus ports: 2
Operating temperature: +5 ... +45 °C
Dimensions (L x B x H): 126 x 135 x 33 mm
Scope of delivery: assembly bracket
Wireless versions for other countries on request
Internal Reference:
3000-U980-02
Product Type:
ELM - Access Unit
Program:
3000
Stand-Alone or networked system :
Networked solution
Connected Solution:
Access control and monitoring system
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
