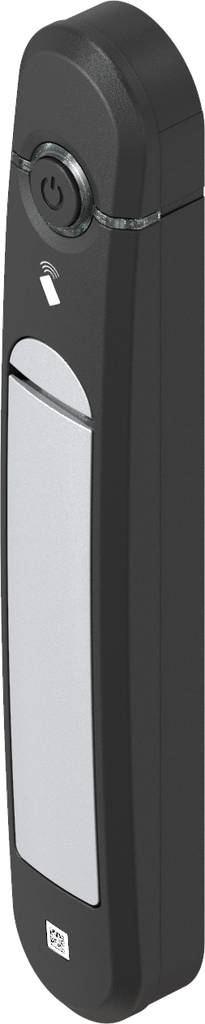

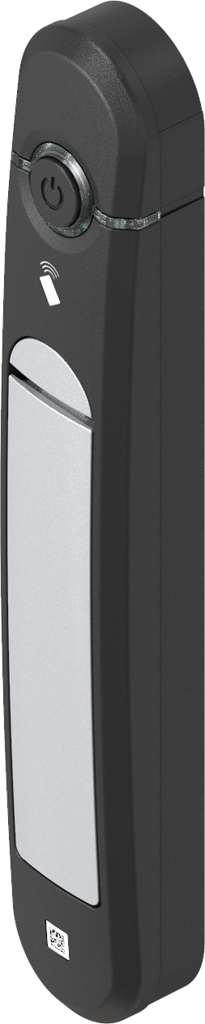

Swinghandle Agent E Wireless with RFID card reader 13.56 kHz, Zinc die white aluminium powder-coated and polyamide GF black; 3000-U911-42

https://www.emka.com/products/3000-u911-42 https://www.emka.com/web/image/product.template/235914/image_1920?unique=9e3a735

for cam


    This combination does not exist.

    Inside the sealing Left Right


    Product information:

    Wireless version for all EU countries plus Switzerland and Norway

    Features

    • Wireless communication for data exchange via wireless network with Access Units Wireless (industry standard depending on country regulation)
    • One Control Unit Wireless can actuate via Access Units Wireless up to 1,200 handles Agent E Wireless in one wireless network
    • Authentication via 13.56 MHz RFID cards Remote opening is always possible in addition

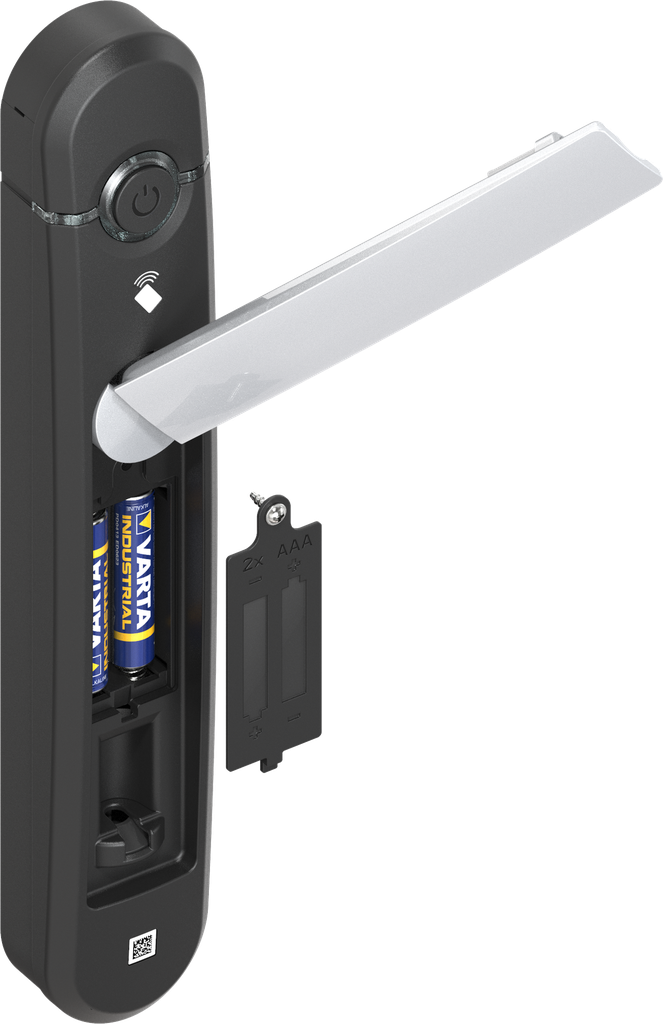

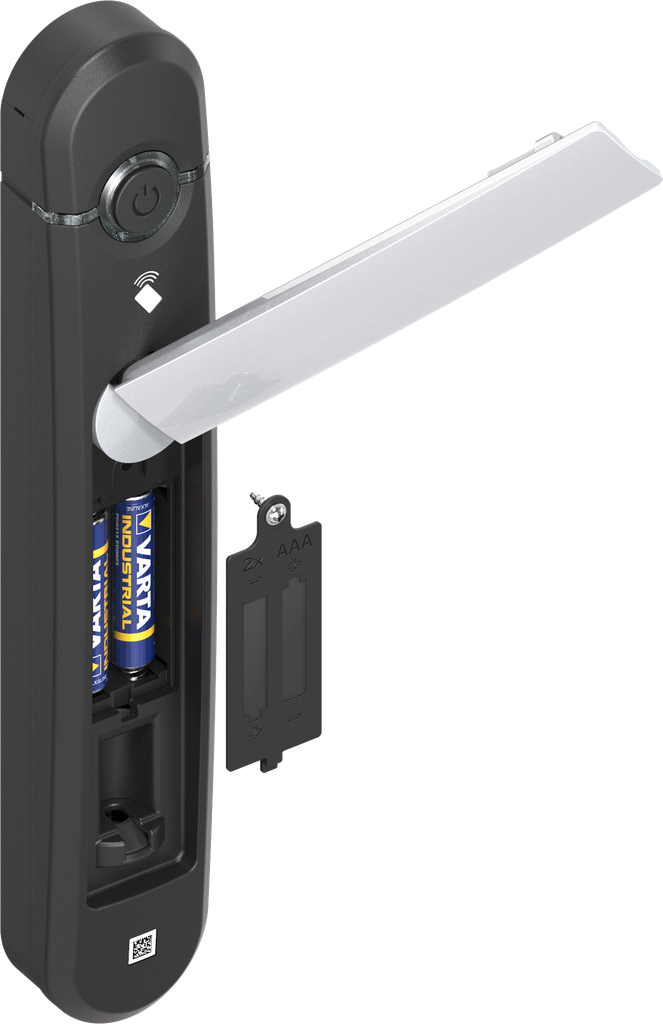

    • Extremely energy-efficient battery operation (service life of battery min. 3 years)
    • Optionally, 4-eye principle for authentication with 2 authorised cards
    • The handle has a connection option for one door contact

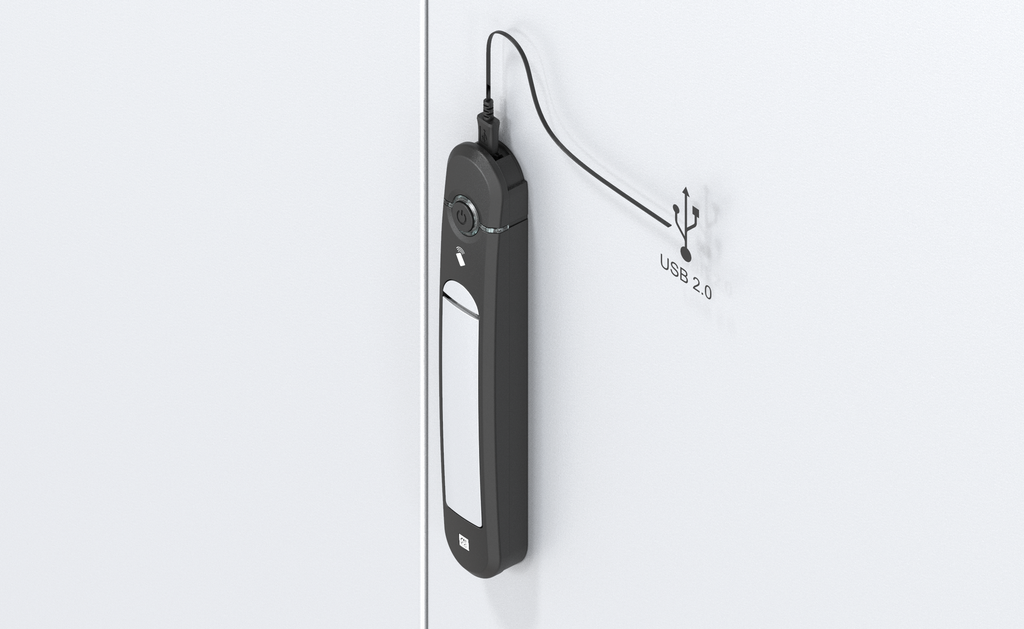

    • An emergency power function is possible by using the integrated USB port
    • Agent E Wireless is most suitable for retrofitting due to its wireless mounting
    • The installation in cabinets of different manufacturers is solved with various adapters On request
    • Wireless versions for other countries possible on request

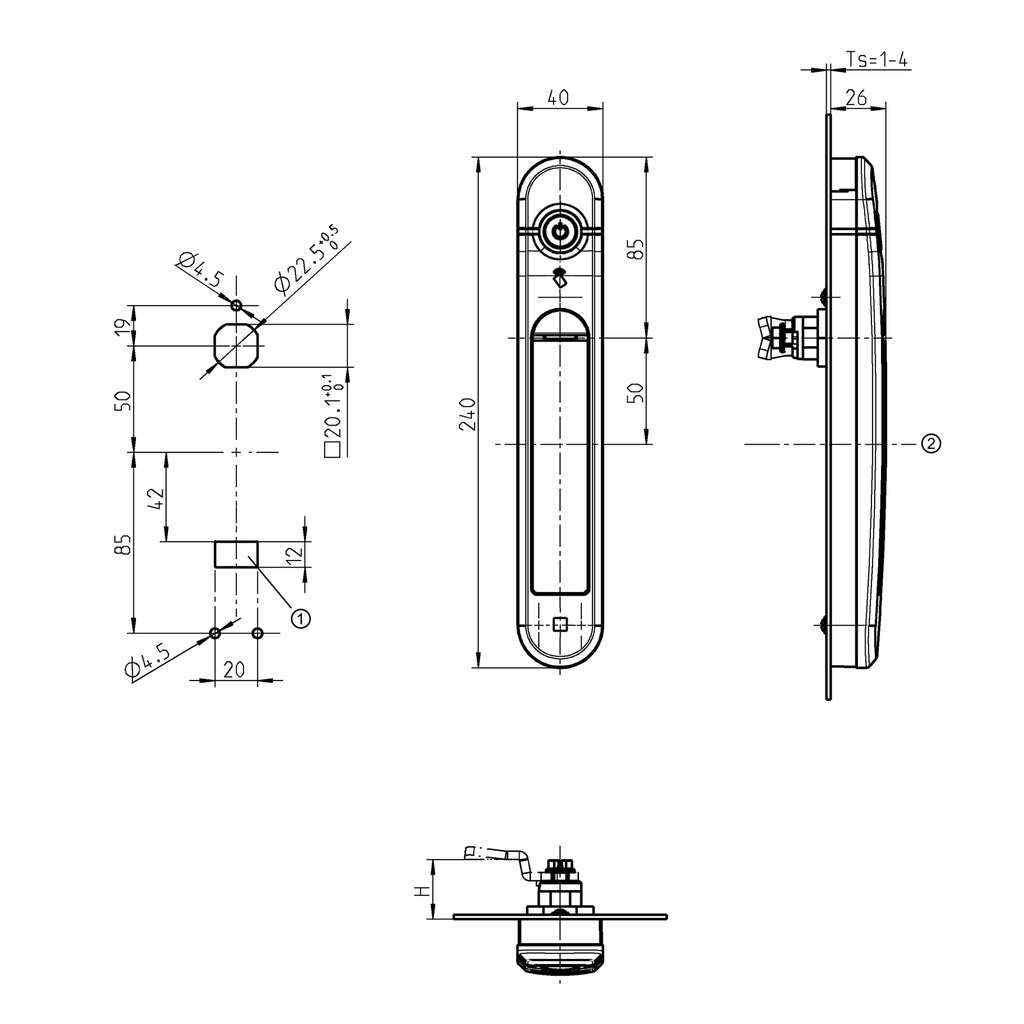

    1 = Required for door contact
    2 = Door centre

    Key features:

    The Agent E Wireless is as yet the only swinghandle based on wireless communication. Due to its wireless and thus cost-saving mounting it is most suitable for retrofitting in data centres.
    The authentication is done via RFID. A highly-efficient power management guarantees a long battery life.

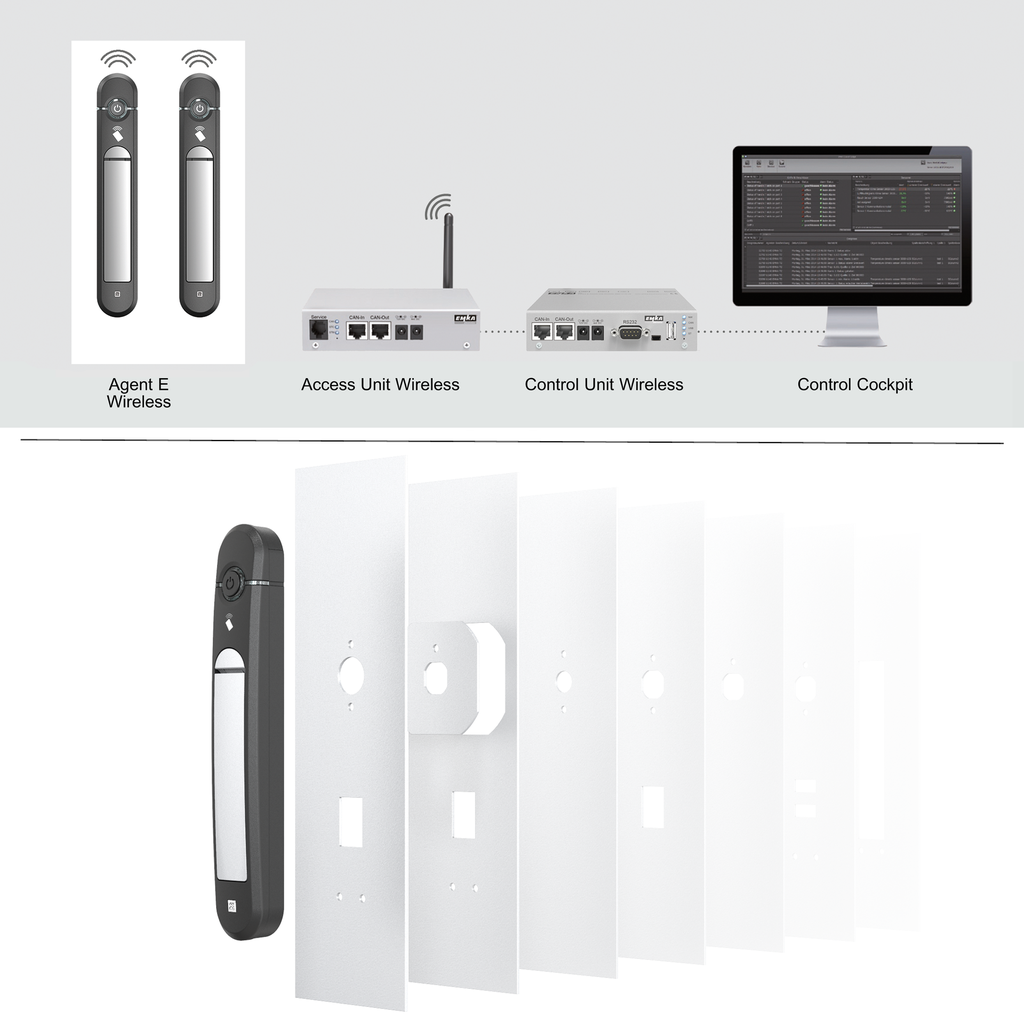

    Per Control Unit Wireless max. 16 Access Units Wireless ≘ max. 1,200 handles Agent E Wireless.

    Internal Reference: 3000-U911-42
    Product Type: Swinghandle, Lifthandle
    Program: 3000
    Catalog sheet: 3N-120
    Material of the module : Zinc die white aluminium powder-coated and polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Number of Locking: One locking set
    Article with property rights: Yes
    Mounting Positions : Inside the sealing
    GH Mass: 18 mm
    Handle Art(1): Swinghandle
    Emergency opening: Yes
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 4 mm
    RFID card reader: Wireless with RFID 13.56 MHz
    Locking set: Electromechanical release
    Swivel Handle: 26 mm
    Pan Handle Length: 240 mm
    Door Version : Left,Right

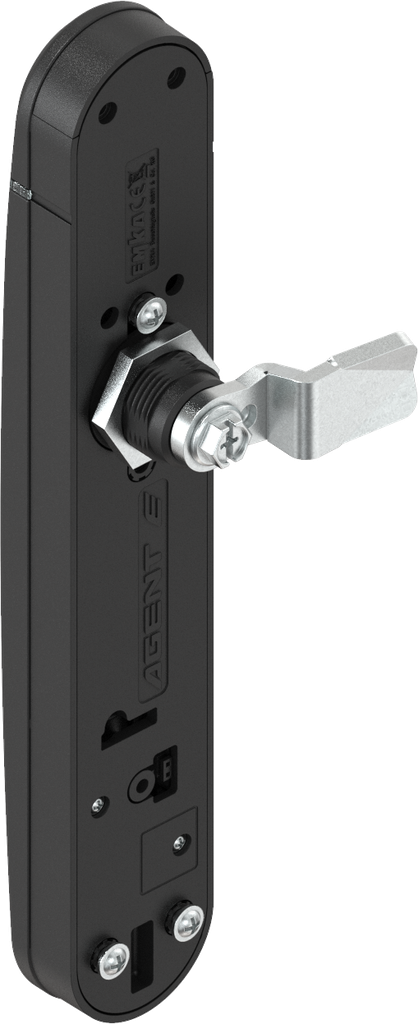

    Locking components: Cam
    No Specifications
    View All Products
    Electronic components
    Cam
    Rod control
    ELM - Access Unit
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3N-120
    Product data sheet
    CAD file | 3000-U911-42_igs
    CAD file | 3000-U911-42_stp
