Swinghandle Agent E Wired with RFID card reader 13.56 kHz, Zinc die white aluminium powder-coated and polyamide GF black
Swinghandle Agent E Wireless with RFID card reader 13.56 kHz, Zinc die white aluminium powder-coated and polyamide GF black

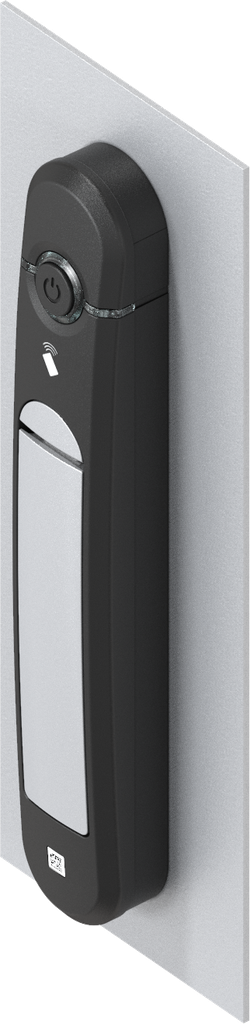

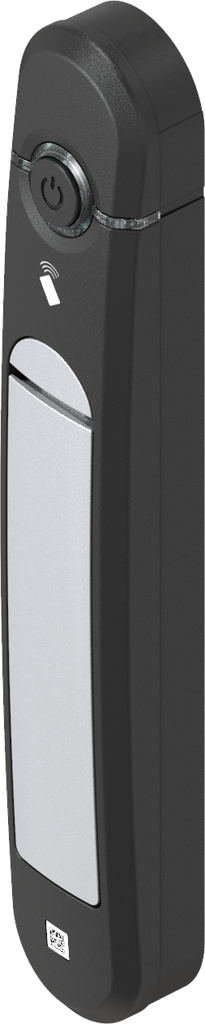

Swinghandle Agent E Wireless with RFID card reader 13.56 kHz, Zinc die white aluminium powder-coated and polyamide GF black; 3000-U911-41
for rod control
Product information:
Wireless version for all EU countries plus Switzerland and Norway
Features

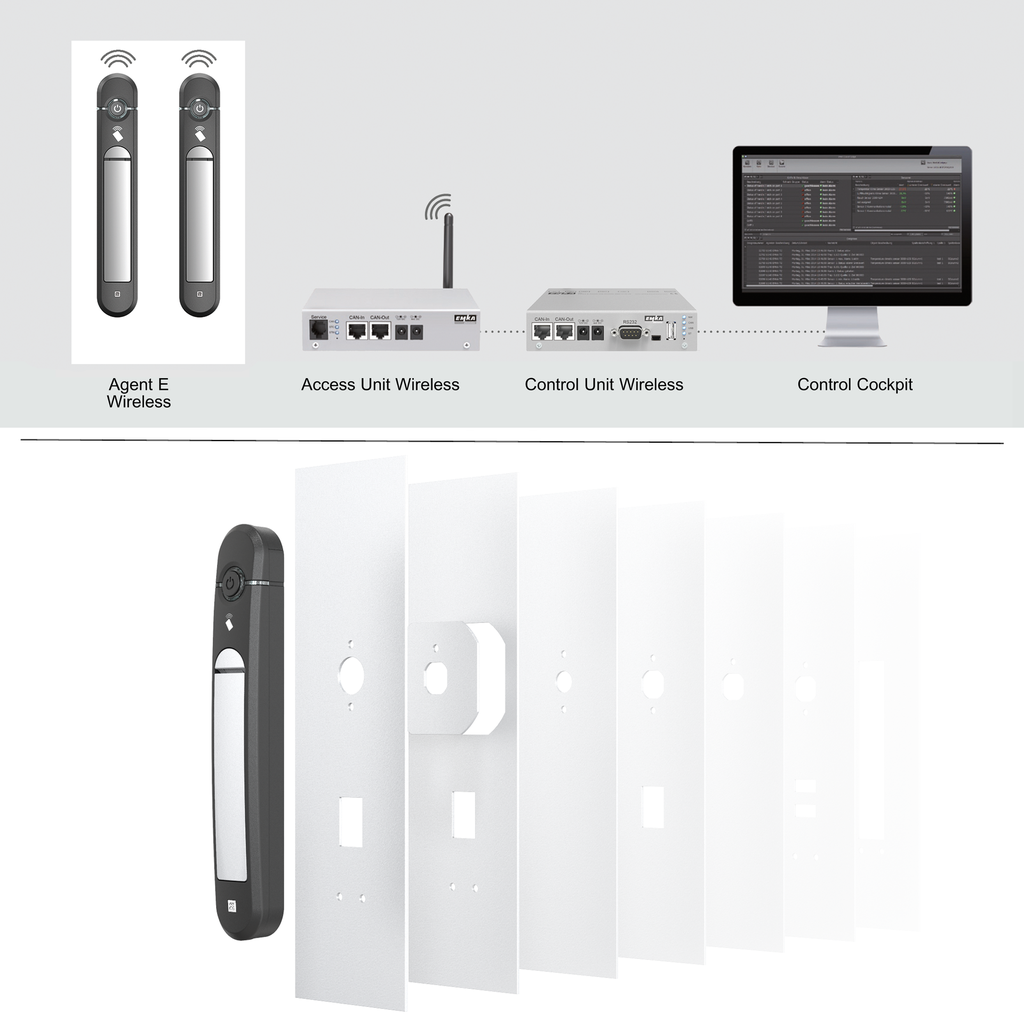

- Wireless communication for data exchange via wireless network with Access Units Wireless (industry standard depending on country regulation)
- One Control Unit Wireless can actuate via Access Units Wireless up to 1,200 handles Agent E Wireless in one wireless network
- Authentication via 13.56 MHz RFID cards Remote opening is always possible in addition

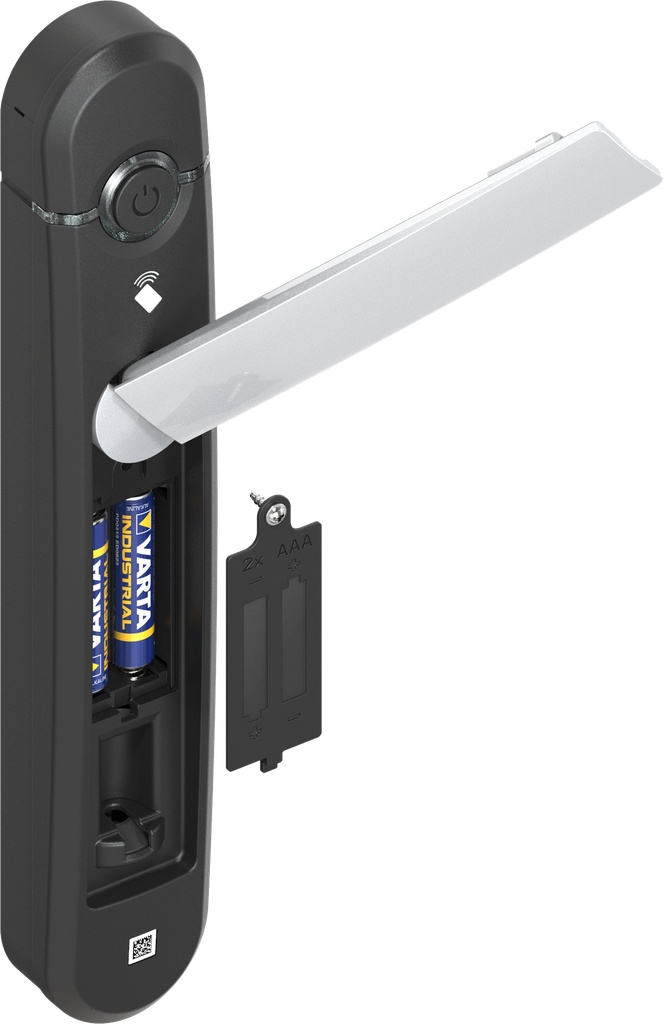

- Extremely energy-efficient battery operation (service life of battery min. 3 years)
- Optionally, 4-eye principle for authentication with 2 authorised cards
- The handle has a connection option for one door contact

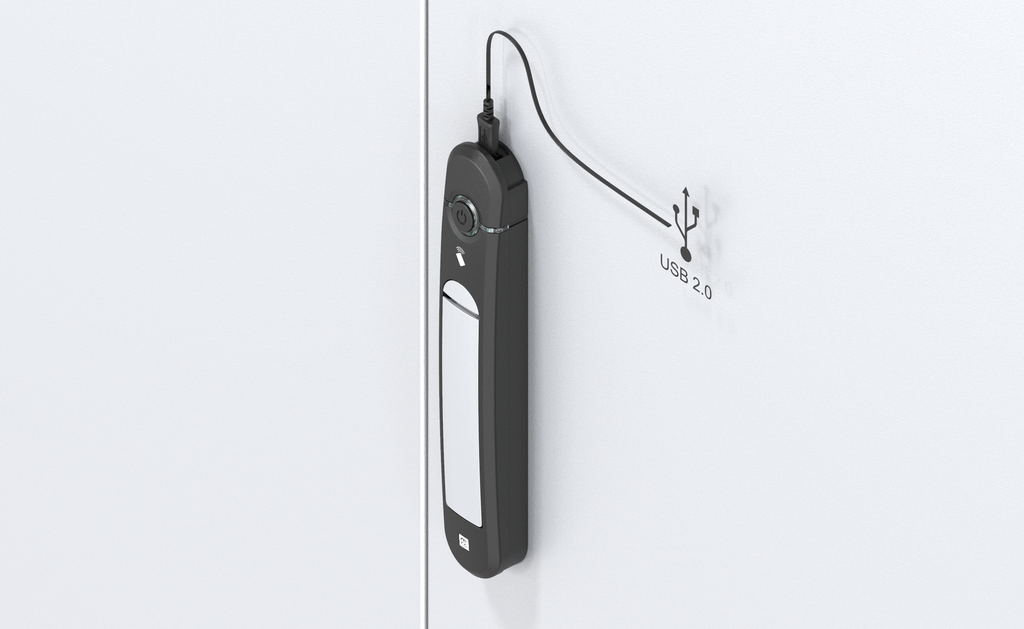

- An emergency power function is possible by using the integrated USB port
- Agent E Wireless is most suitable for retrofitting due to its wireless mounting
- The installation in cabinets of different manufacturers is solved with various adapters On request
- Wireless versions for other countries possible on request

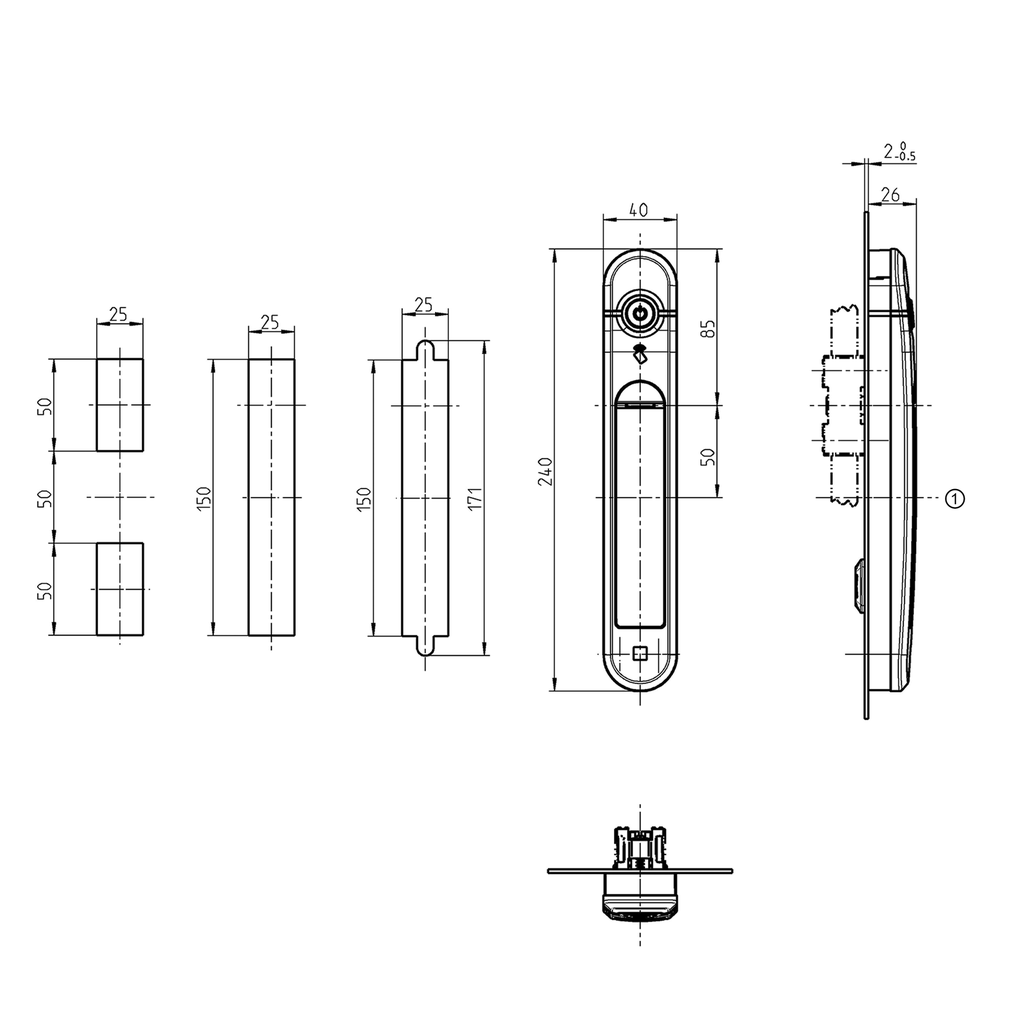

1 = Door centre
Key features:
The Agent E Wireless is as yet the only swinghandle based on wireless communication. Due to its wireless and thus cost-saving mounting it is most suitable for retrofitting in data centres.
The authentication is done via RFID. A highly-efficient power management guarantees a long battery life.
Per Control Unit Wireless max. 16 Access Units Wireless ≘ max. 1,200 handles Agent E Wireless.
Akeneo Note:
Cut out of choice
Internal Reference:
3000-U911-41
Product Type:
Swinghandle, Lifthandle
Program:
3000
Catalog sheet:
3N-120
Material of the module :
Zinc die white aluminium powder-coated and polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Article with property rights:
Yes
Mounting Positions :
Inside the sealing,Outside the sealing
Handle Art(1):
Swinghandle
Emergency opening:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
RFID card reader:
Wireless with RFID 13.56 MHz
Locking set:
Electromechanical release
Swivel Handle:
26 mm
Pan Handle Length:
240 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right

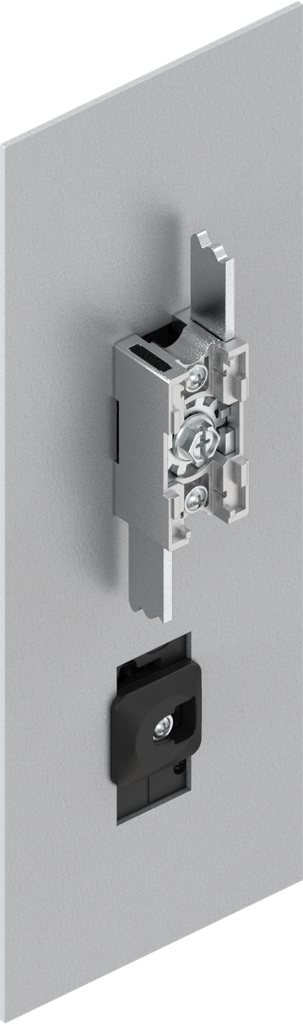

Locking components:
Rod control,Bearing bush with cam
