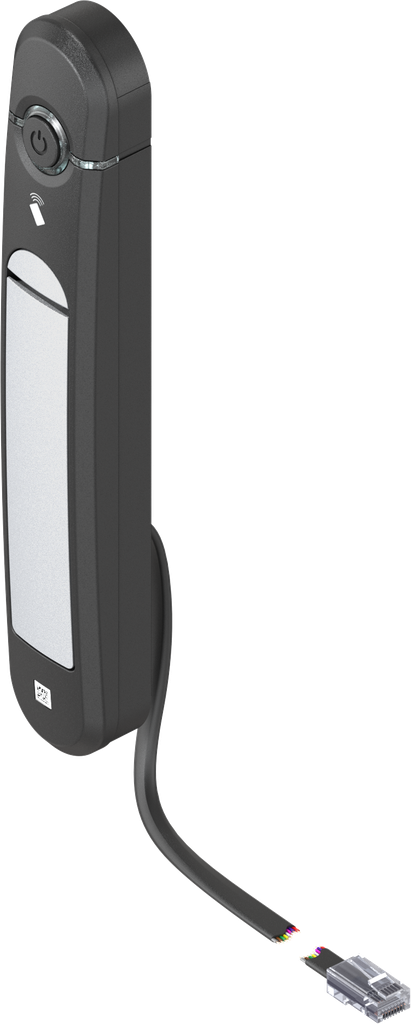

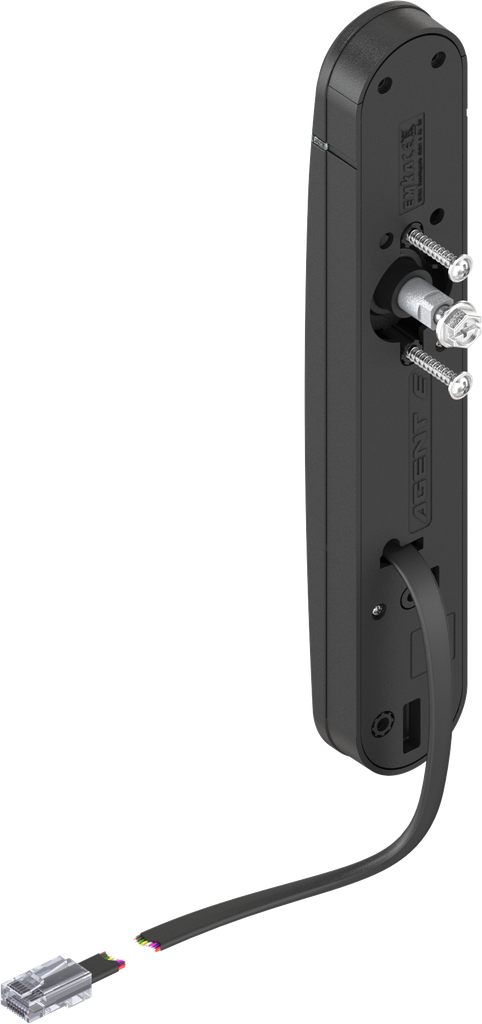

Swinghandle Agent E Wired with RFID card reader 13.56 kHz, Zinc die white aluminium powder-coated and polyamide GF black
Swinghandle Agent E Wired with RFID card reader 13.56 kHz, Zinc die white aluminium powder-coated and polyamide GF black; 3000-U910-41
for rod control
Product information:
Features
- Authentication via 13.56 MHz RFID cards
- The Wiegand interface for standardized transmission of RFID card data enables integration into third-party systems
- All handles have a connection option for one door contact

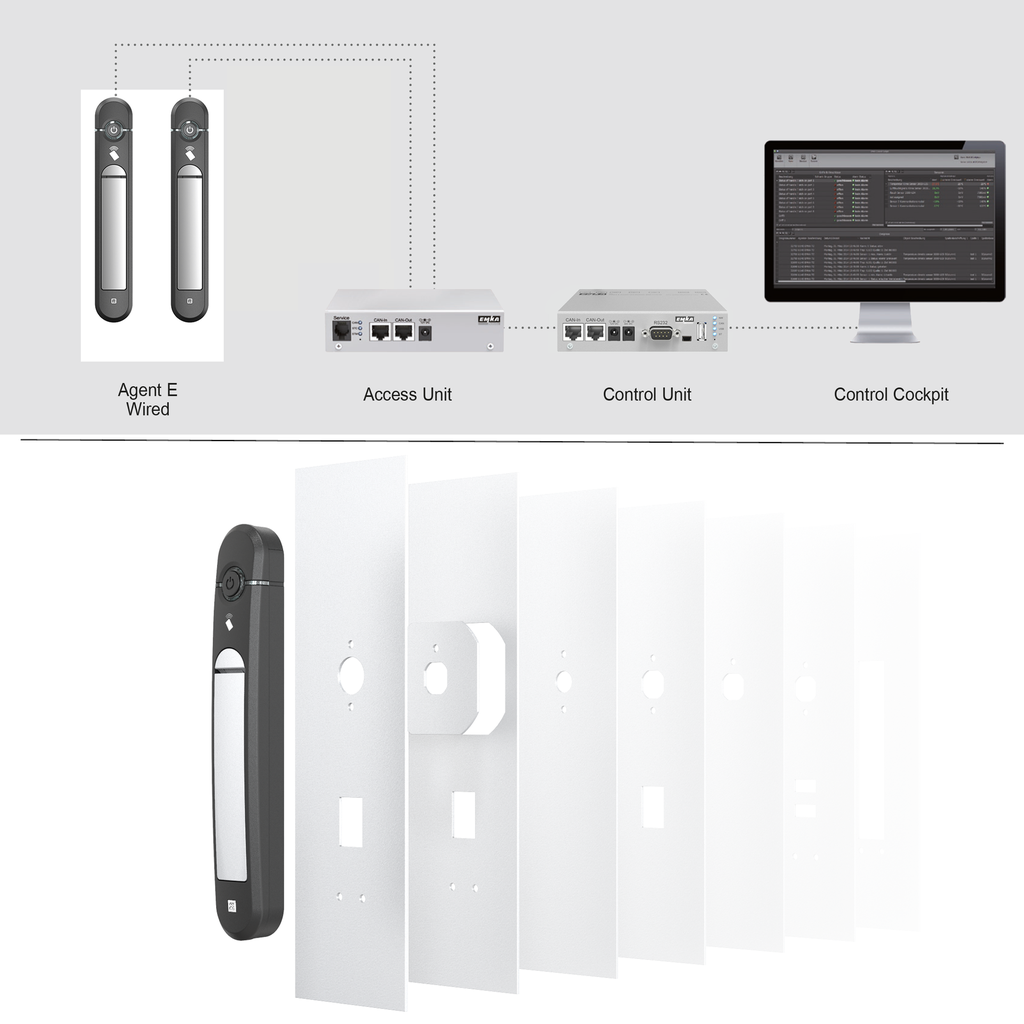

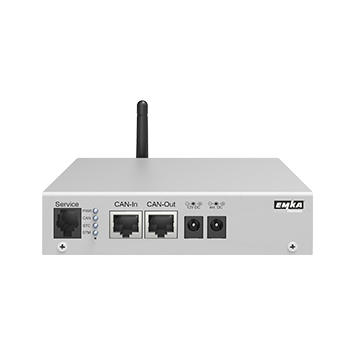

- Integration into EMKA ELM systems via Access Unit 3000-U47-02

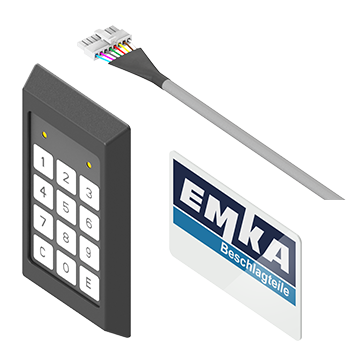

- 2-factor authentication with pin code (keypad see 3000-U08-02) and RFID card

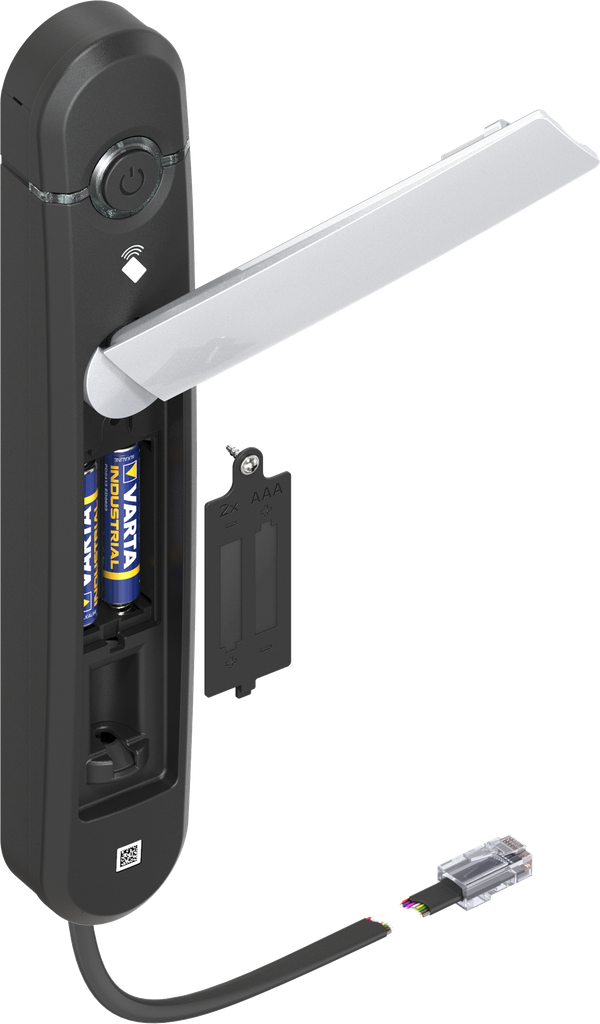

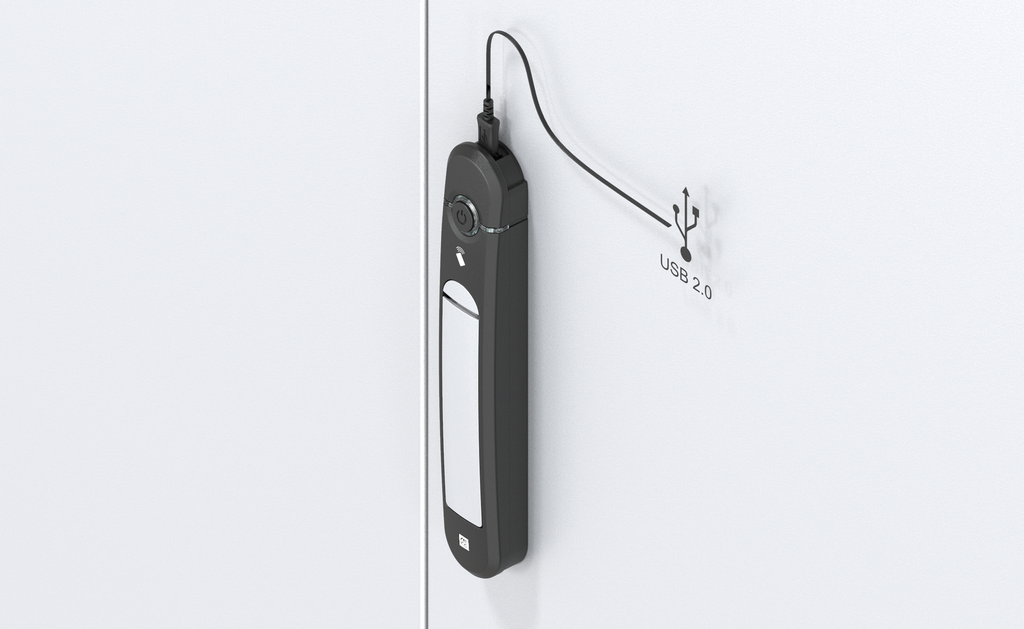

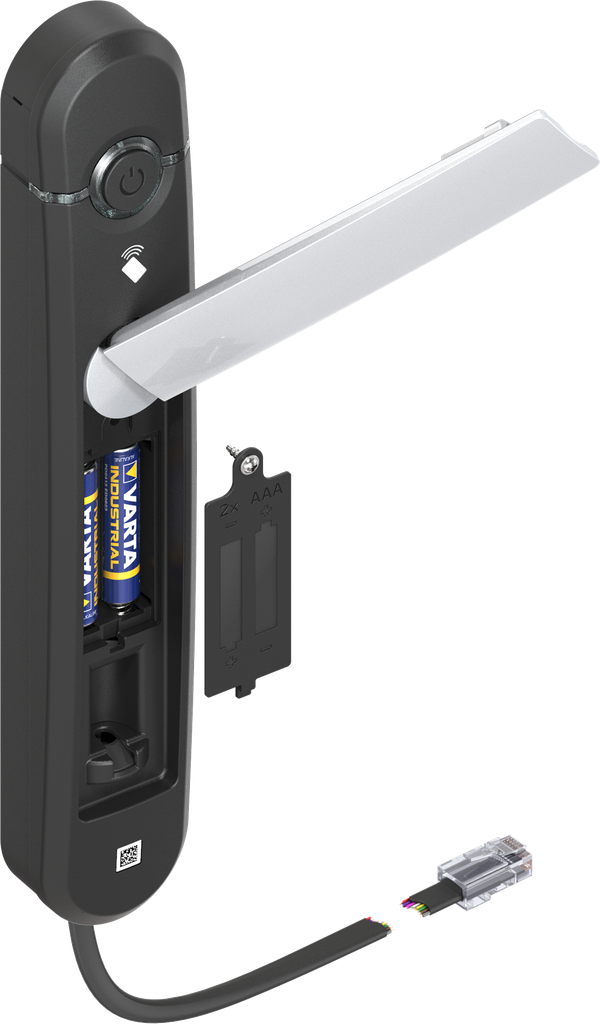

- Emergency opening via integrated USB port
- Installation in cabinets of different manufacturers is solved with various adapters (on request)

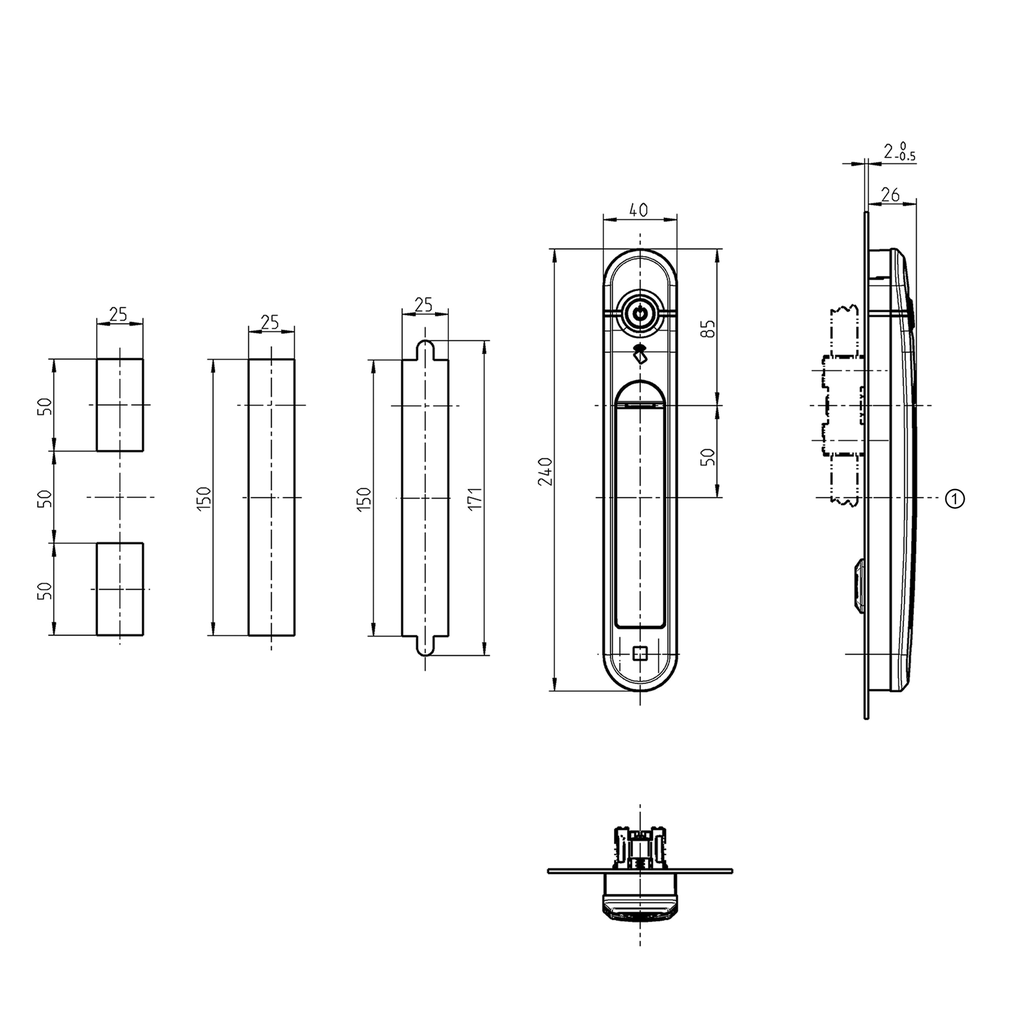

1 = Center door
Key features:

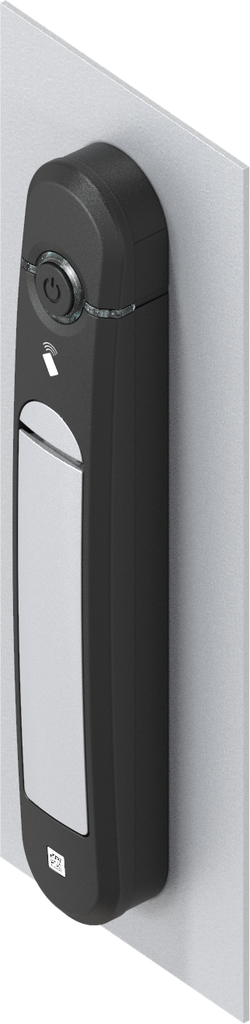

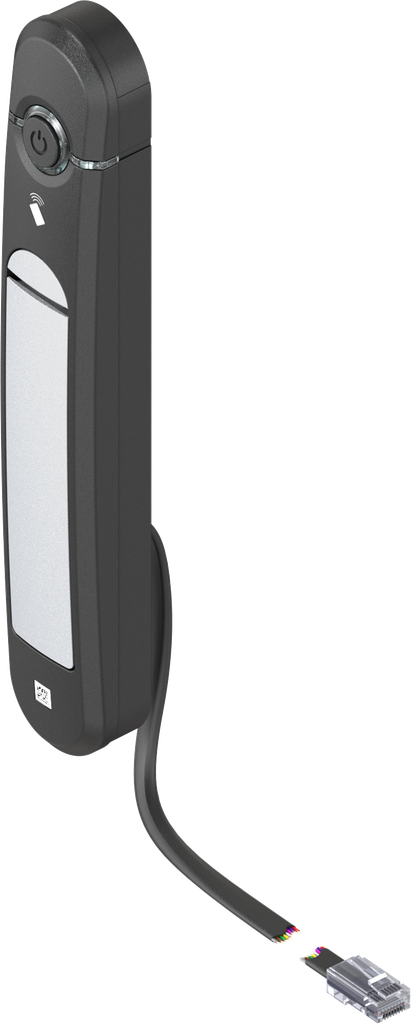

The Agent E Wired is the wired version of the electromechanical swinghandle program. It consists of a wired Agent E handle with integrated card reader for 13.56 MHz RFID cards. The handle is opened by presenting an authorized RFID card and pressing the opening button. It enables a central and complete logging of events. Authentication takes place via RFID card.
Akeneo Note:
Cut out by choice by means of various adapters.
Internal Reference:
3000-U910-41
Product Type:
Swinghandle, Lifthandle
Program:
3000
Material of the module :
Zinc die white aluminium powder-coated and polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Article with property rights:
Yes
Mounting Positions :
Inside the sealing,Outside the sealing
Handle Art(1):
Swinghandle
Emergency opening:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
RFID card reader:
Wired with RFID 13.56 MHz
Locking set:
Electromechanical release
Swivel Handle:
26 mm
Pan Handle Length:
240 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Rod control,Bearing bush with cam
