Swinghandle Agent E Stand-Alone with RFID card reader 13.56 MHz, Zinc die white aluminium powder-coated and polyamide GF black
Swinghandle Agent E Stand-Alone with RFID card reader 13.56 MHz, Zinc die white aluminium powder-coated and polyamide GF black
Swinghandle Agent E Stand-Alone with RFID card reader 13.56 MHz, Zinc die white aluminium powder-coated and polyamide GF black; 3000-U910-22
for cam
Product information:
Features

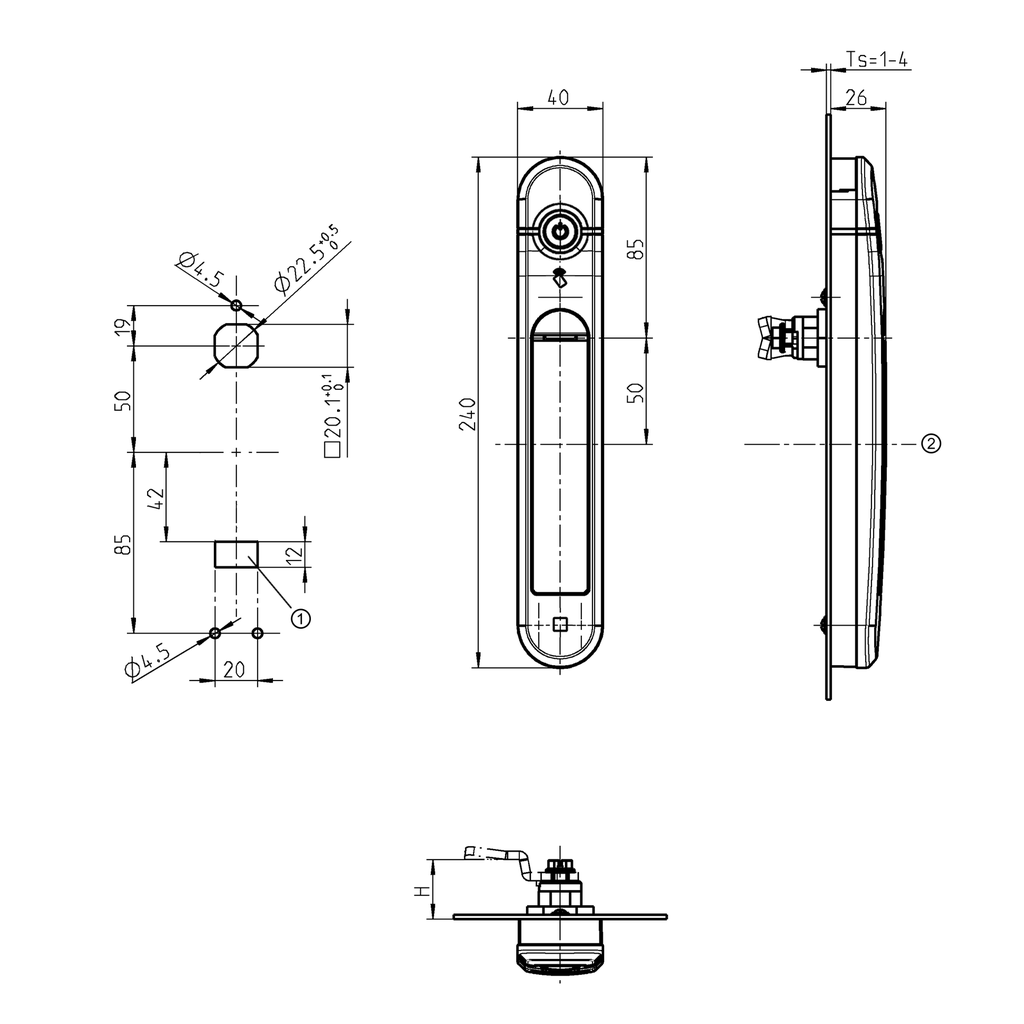

1 = Door contact
2 = Door centre
Key features:
Agent E RFID Stand-alone

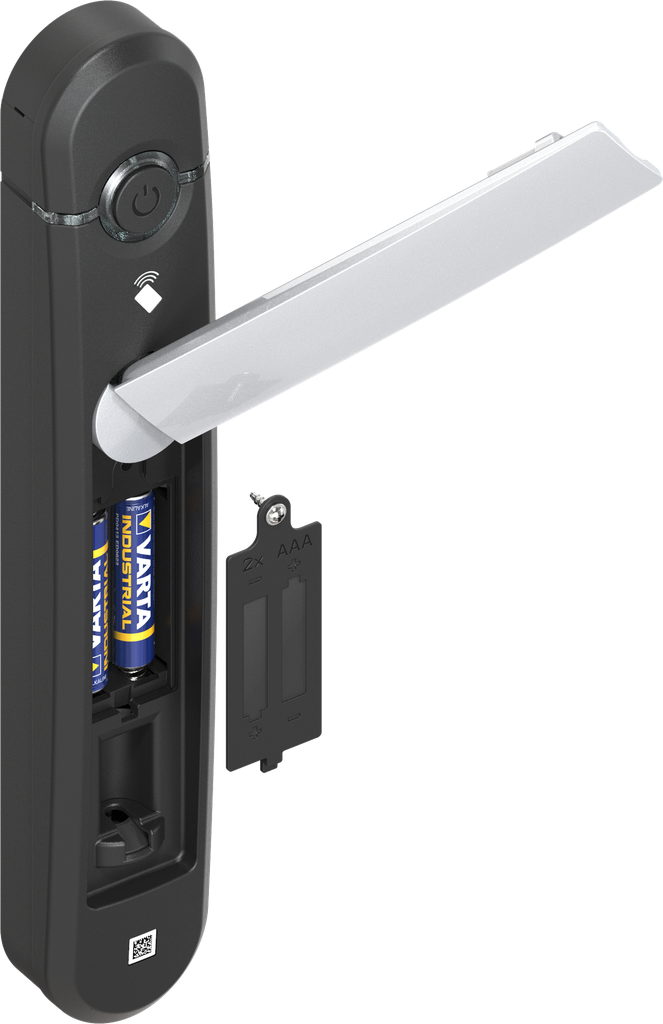

This version consists of a battery-operated Agent E handle with
integrated card reader for 125 kHz or 13.56 MHz RFID cards.
By scanning an authorised RFID card, the handle will open.
Easy configuration via software.
This handle does not require any external wiring.
Max. 128 RFID cards per handle.

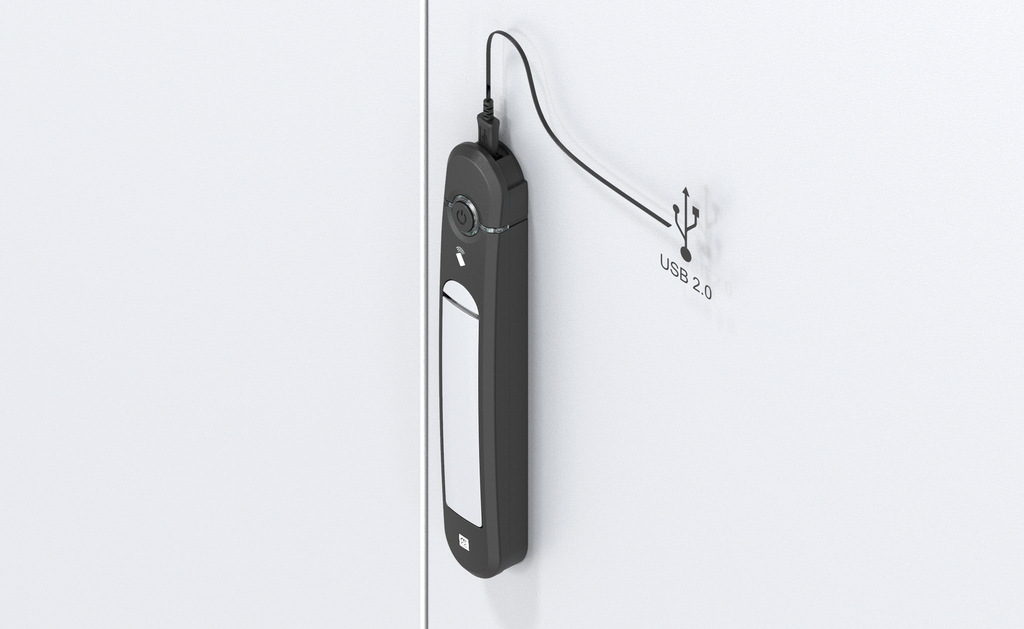

Card management via USB using software tool.
Internal Reference:
3000-U910-22
Product Type:
Swinghandle, Lifthandle
Program:
3000
Catalog sheet:
3N-130
Material of the module :
Zinc die white aluminium powder-coated and polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Article with property rights:
Yes
Mounting Positions :
Inside the sealing,Outside the sealing
GH Mass:
18 mm
Handle Art(1):
Swinghandle
Emergency opening:
Yes
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
4 mm
RFID card reader:
Stand-Alone with RFID 13.56 MHz
Locking set:
Electromechanical release
Swivel Handle:
26 mm
Pan Handle Length:
240 mm
Door Version :
Left,Right
Locking components:
Cam
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
