Escutcheon with L-handle, keyed different, Polyamide black and zinc die black powder-coated
Counterplate for chest handle, Steel zinc-plated DS plus top coat

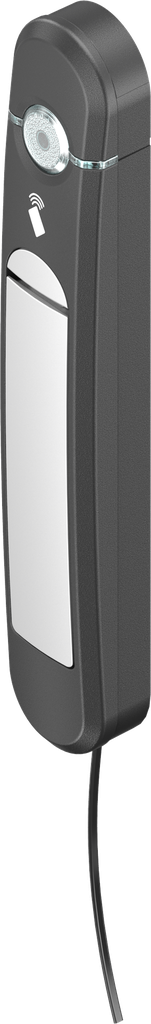

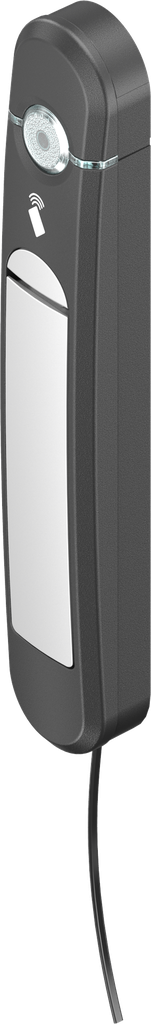

Swinghandle Agent E Wired with RFID card reader 125 kHz, Zinc die white aluminium powder-coated and polyamide GF black; 3000-U900-31
for rod control
Product information:
Features
- Authentication via 125 kHz RFID cards. Remote opening is always possible in addition
- Optionally 4-eye principle for authentication with 2 authorised cards
- The handle has one connection option for one door contact
- In combination with the Access Unit, the middle LED in the sensor field can be actuated to signal possible malfunctions in the cabinet, such as increased temperature

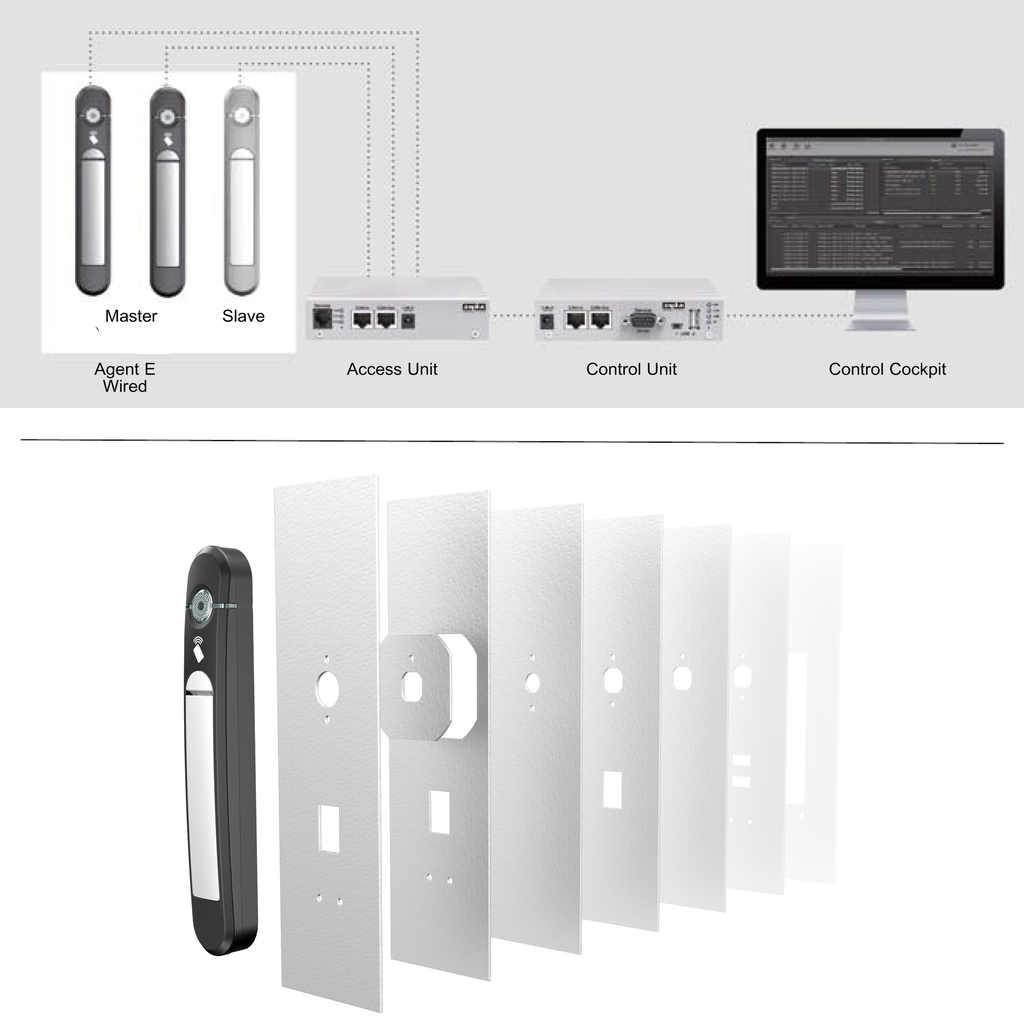

- Two handles Agent E Wired can be connected to one Access Unit
- Max. 32 Access Units ≘ max. 64 handles Agent E Wired can be administered by one Control Unit

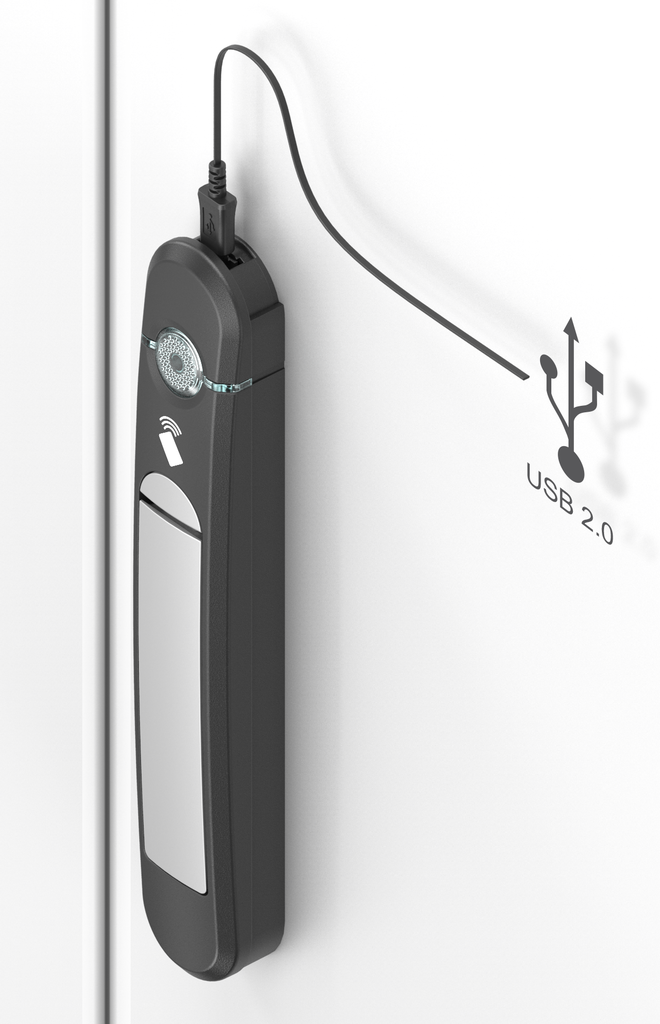

- An emergency power function is possible by using the integrated USB port
- the installation in racks of different manufacturers is solved with various adapters On request

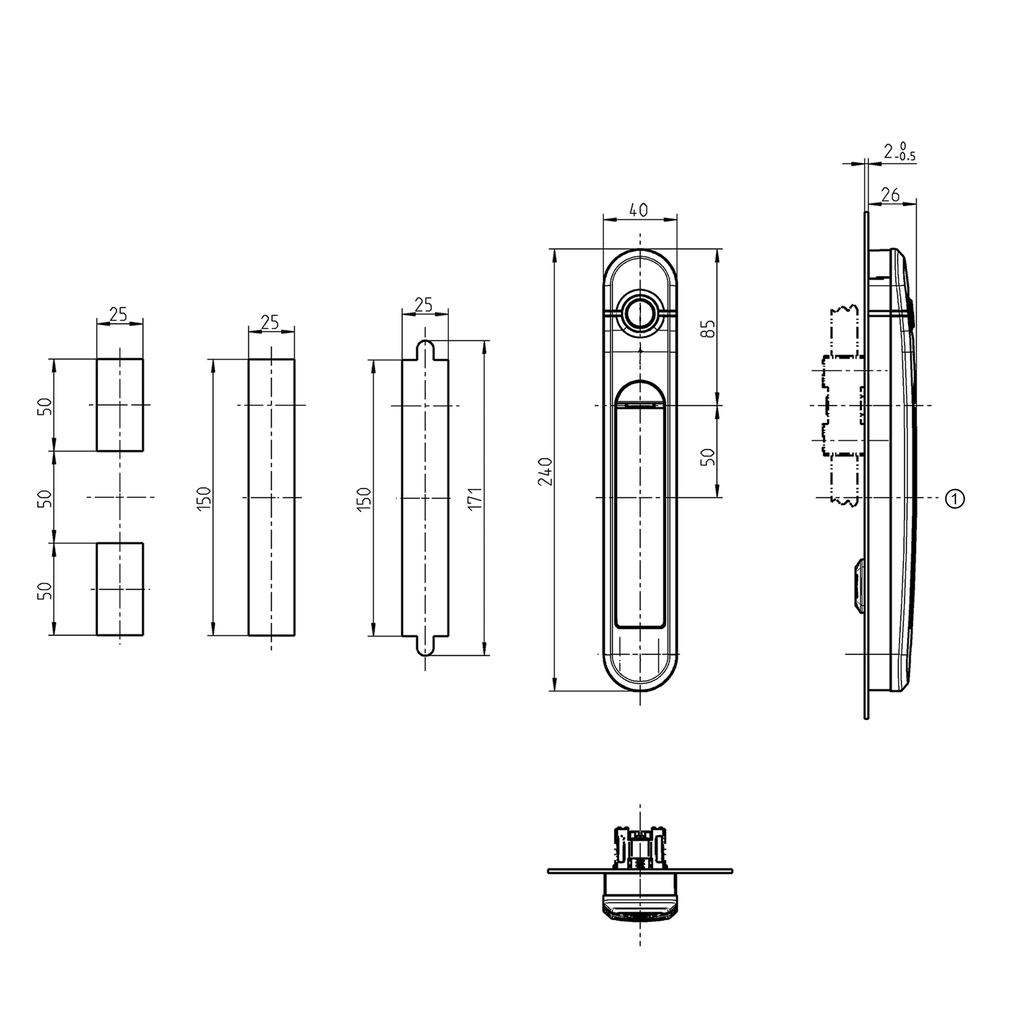

① = Door centre
② = Door contact
③ = Door centre
Key features:
Agent E Wired is the cabled version of the electromechanical swinghandle program. It enables a central and complete logging of events. The personified access is effected securely and conveniently via RFID card reader.
Order / Calculation example:
The RFID transponder cars must be ordered separately
Akeneo Note:
Cut out of choice
Internal Reference:
3000-U900-31
Product Type:
Swinghandle, Lifthandle
Program:
3000
Material of the module :
Zinc die white aluminium powder-coated and polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Article with property rights:
Yes
Mounting Positions :
Inside the sealing,Outside the sealing
Handle Art(1):
Swinghandle
Emergency opening:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
RFID card reader:
Wireless with RFID 125 kHz
Locking set:
Electromechanical release
Swivel Handle:
26 mm
Pan Handle Length:
240 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Rod control,Bearing bush with cam
No Specifications
