Adapter for Agent E for furniture doors, Stainless steel AISI 303
Control module for handles with locking system unit;

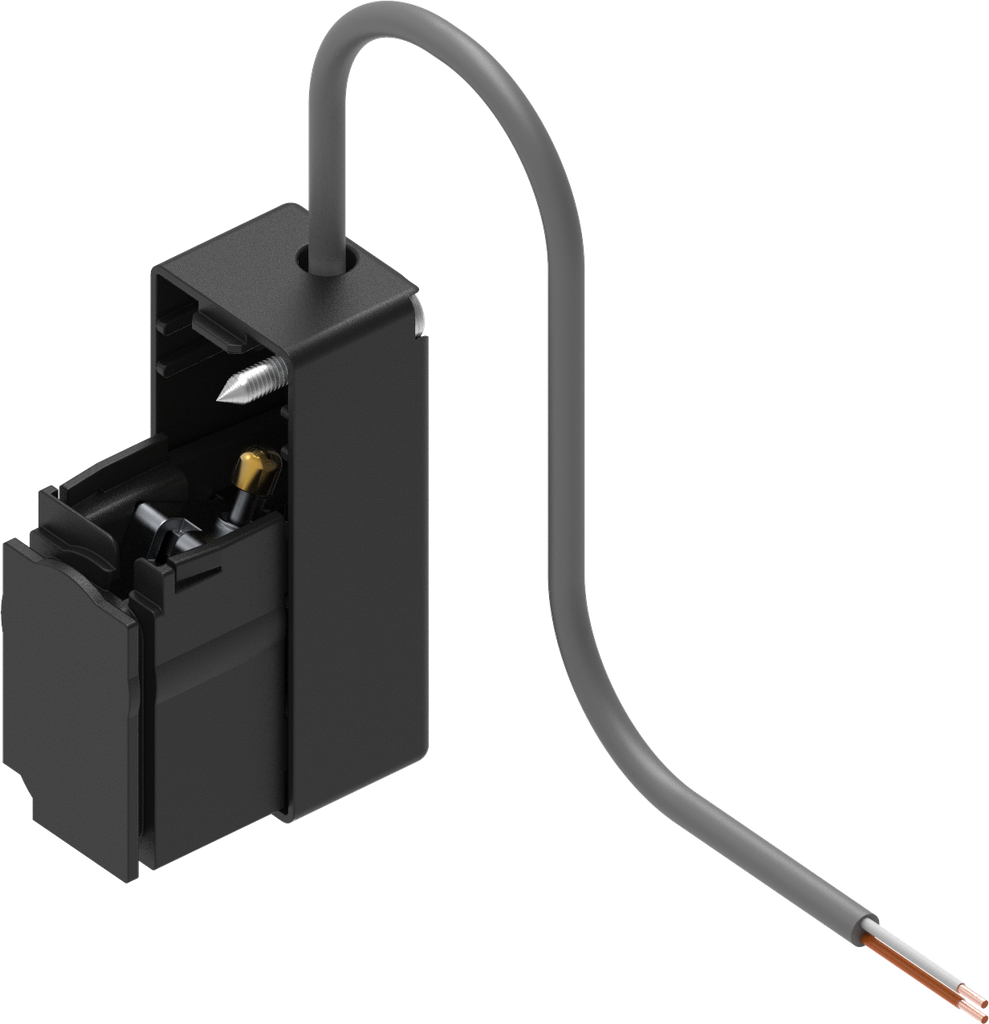

Locking system unit, Polyamide GF black; 3000-U5
for spring-loaded swinghandles with modular technology
Product information:
- This locking set is activated via the control module of the stand-alone versions for spring-loaded handles 3000-U07
- This locking set is used for opening spring-loaded handles. It is used instead of a mechanical set with push button or locking cylinder
Control: Via control module 3000-U7
Switching power of the contact: max. 48 VDC, 0.5 A
Scope of delivery: connection cable 3 m
Internal Reference:
3000-U5
Product Type:
Locking set
Program:
3000
Material of the module :
Polyamide GF
Surface of the module:
black
Stand-Alone or networked system :
Stand-Alone solution
Lock system building block:
with solenoid for Stand-Alone solution
