Access Unit for 2 handles and / or card readers Legic®; 3000-U47-08

https://www.emka.com/products/3000-u47-08 https://www.emka.com/web/image/product.template/235804/image_1920?unique=8ce1281


    This combination does not exist.

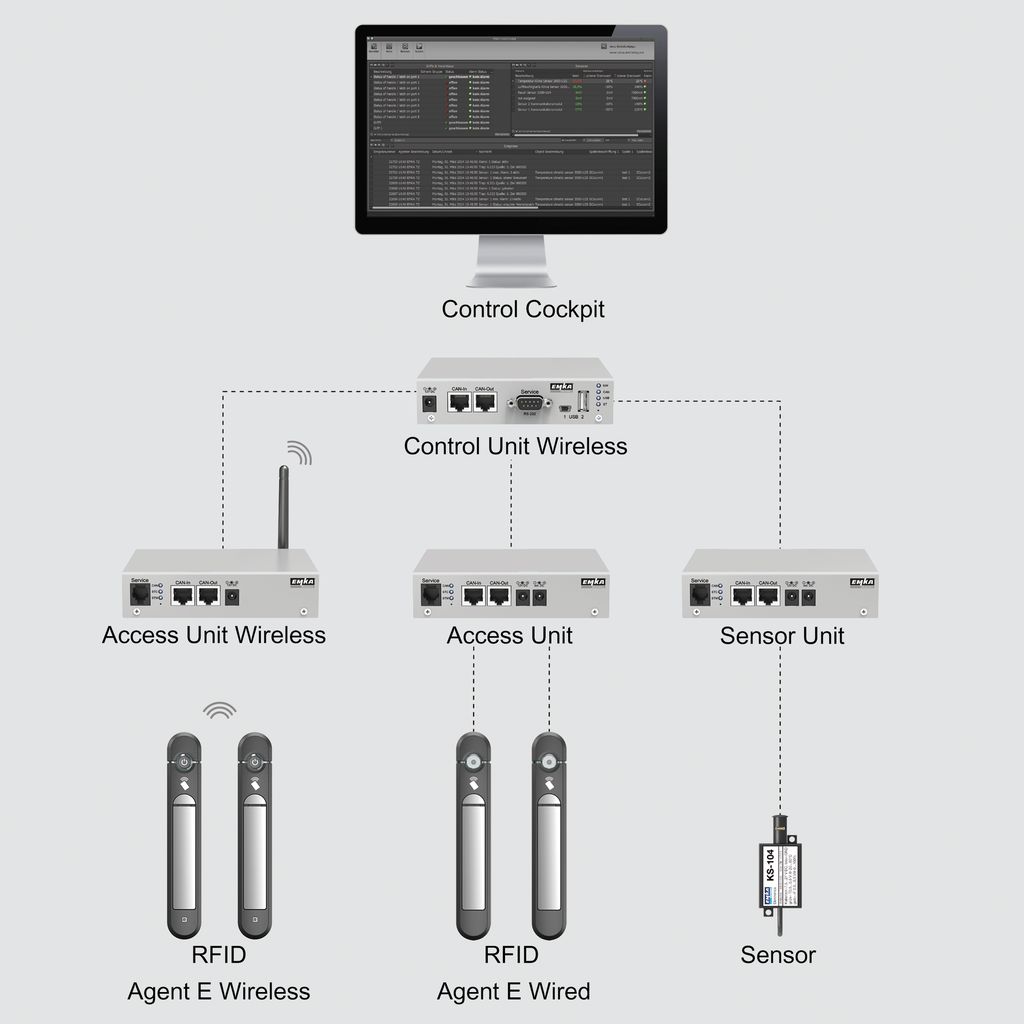

    Networked solution


    Product information:

    • Direct connection of 2 series Agent E Wired swinghandles
    • Control of the central LED in the handle via terminal block on the rear side
    • Alternatively, connection of 2 electromechanical locks and 2 external card readers
    • Max. 32 Access Units er Control Unit Wireless
    • Administration of up to 64 handles via one IP address

    Power supply: 12 ... 24 VDC, 200 mA + outputs

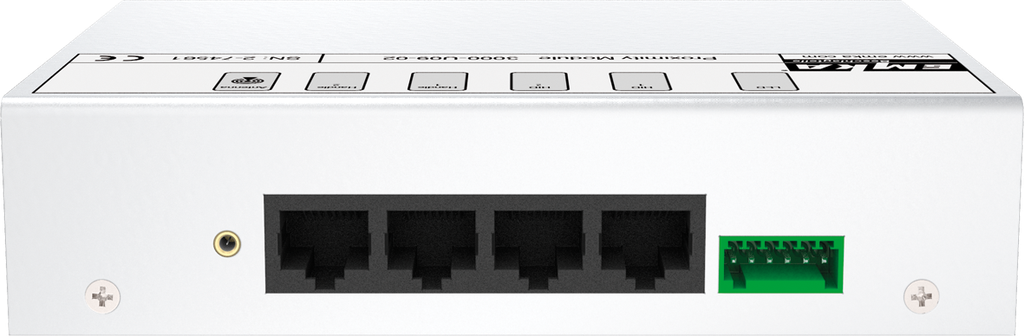

    Handle outputs: 2 (RJ45), max. 12 V / 1,000 mA, or
    Max. 24 V / 500 mA per output
    Port for card reader: 1 (pin terminal) Legic®

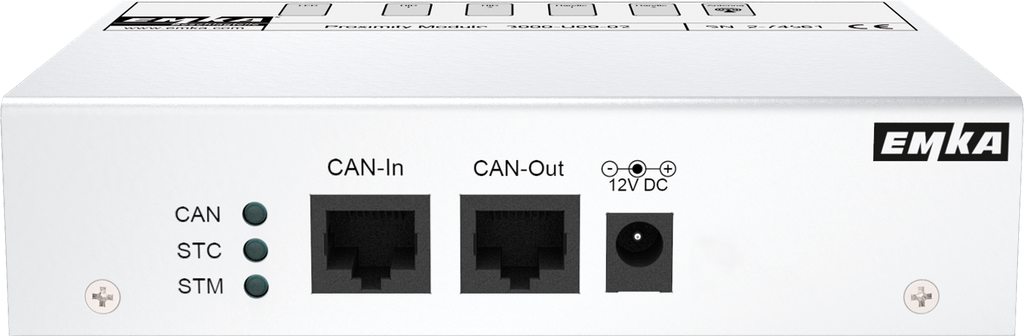

    CAN bus ports: 2
    Operating temperature: +5 ... +45 °C
    Dimensions (L x B x H): 107 x 135 x 33 mm
    Scope of delivery: Reading antenna with two RFID cards; Assembly bracket

    Internal Reference: 3000-U47-08
    Product Type: ELM - Access Unit
    Program: 3000
    Stand-Alone or networked system : Networked solution
    Connected Solution: Access control and monitoring system
