Card reader with keypad, Zinc die electropolished

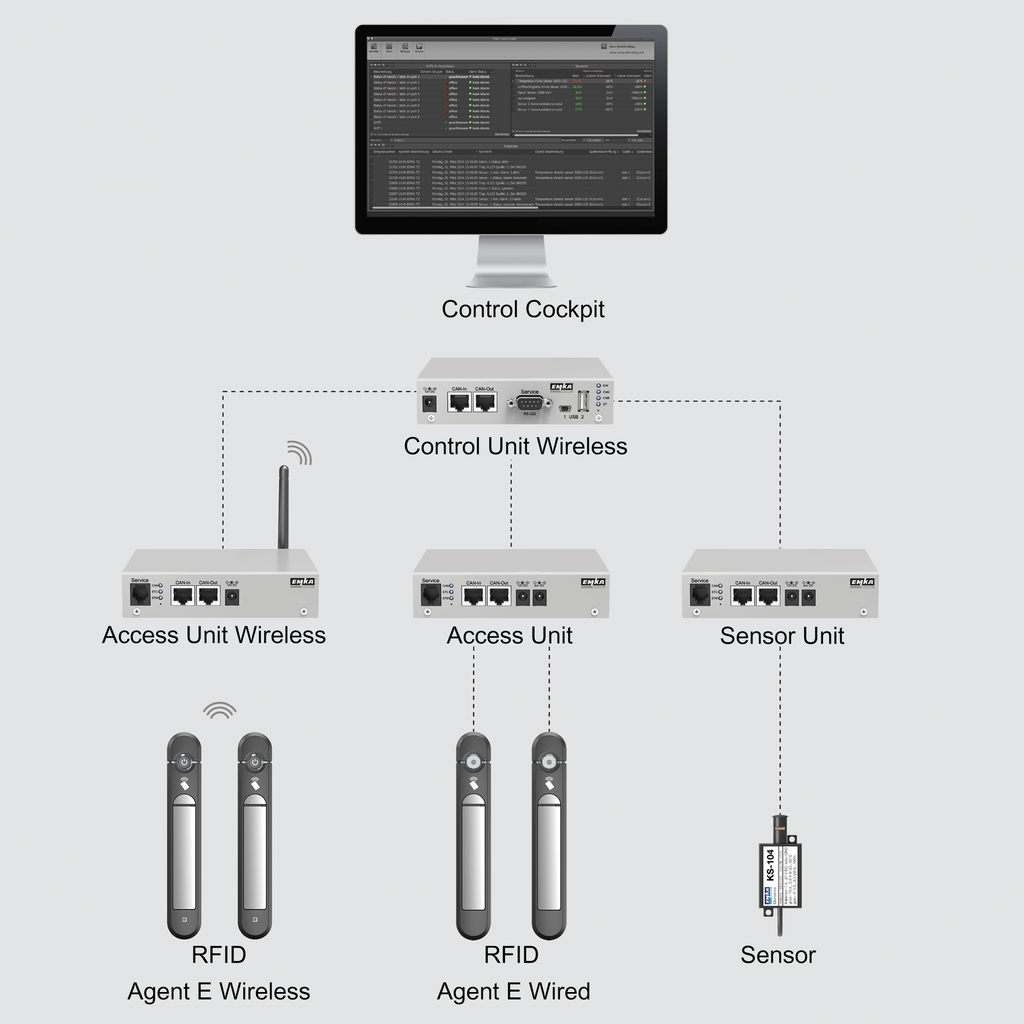

EMKA Control Cockpit, basic package for 2 systems (Control Unit);
Product information:
- Direct connection of 2 series Agent E Wired swinghandles
- Control of the central LED in the handle via terminal block on the rear side
- Alternatively, connection of 2 electromechanical locks and 2 external card readers
- Max. 32 Access Units er Control Unit Wireless
- Administration of up to 64 handles via one IP address
Power supply: 12 ... 24 VDC, 200 mA + outputs
Handle outputs: 2 (RJ45), max. 12 V / 1,000 mA, or
Max. 24 V / 500 mA per output
Ports for card readers: 2 (RJ45), HID
Relay outputs: 2 (max. 10 VDC, 1 mA)
CAN bus ports: 2
Operating temperature: +5 ... +45 °C
Dimensions (L x B x H): 107 x 135 x 33 mm
Scope of delivery: Assembly bracket
Internal Reference:
3000-U47-02
Product Type:
ELM - Access Unit
Program:
3000
Stand-Alone or networked system :
Networked solution
Connected Solution:
Access control and monitoring system
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
