Door contact with screw connection;

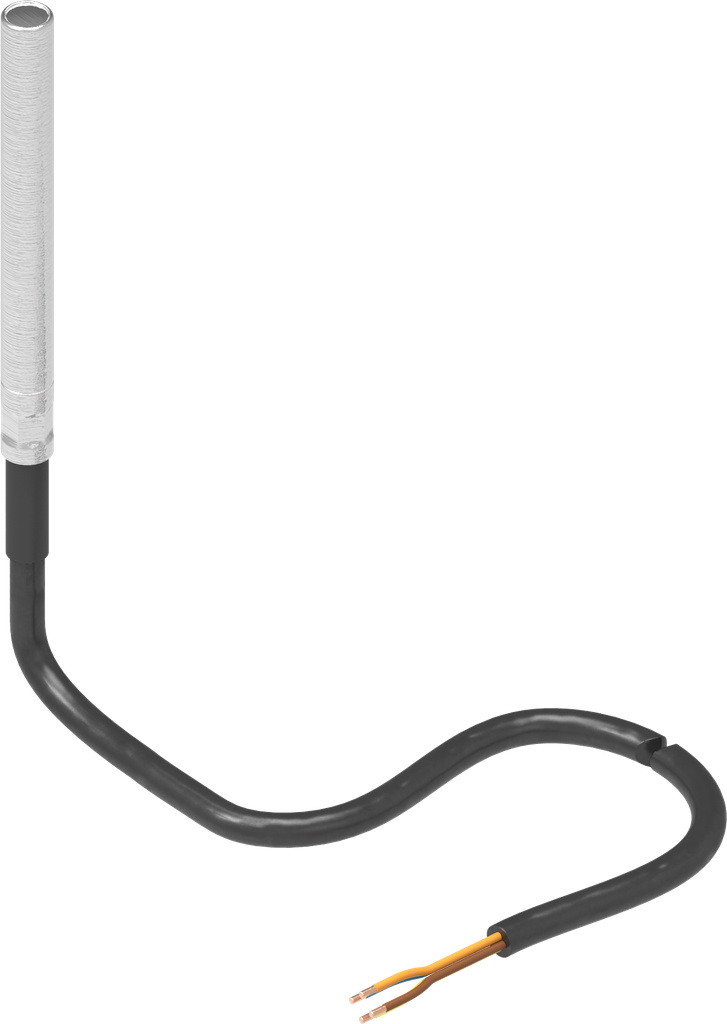

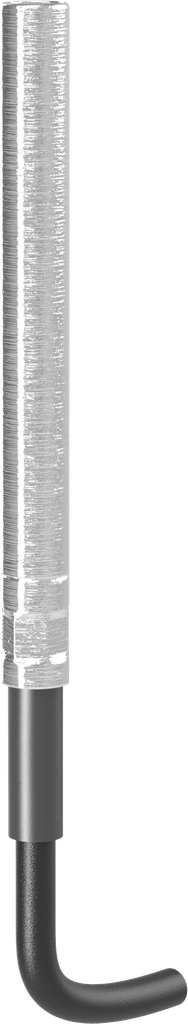

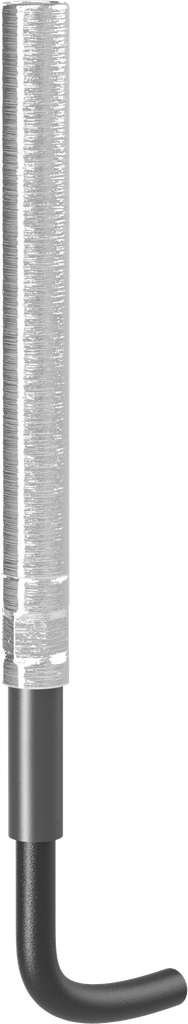

Temperature sensor with plug for sensor unit;
Product information:
- The analog climate sensor measures the temperature of the environment
- The senor is connected to the Sensor Unit 3000-U13-0X and occupies one input of this unit
Operating voltage: +12 V ±10 % (supplied by the system)
Current consumption: approx. 0.8 mA
Measuring range temperature: –50 ...150 °C
Deviation: < 2 %
Input voltage at -50 °C: 0.25 V
Output voltage at 150 °C: 4.75 V
Dimensions diameter x L: Ø 6 mm x 50 mm
Cable length: 2 m
Housing stainless steel
Internal Reference:
3000-U39
Product Type:
ELM - Temperature sensor
Program:
3000
Sensor:
Temperature sensor
Stand-Alone or networked system :
Networked solution
Connected Solution:
Access control and monitoring system
