Climatic sensor for temperature and humidity with plug for sensor unit;
Door contact with open cable ends;

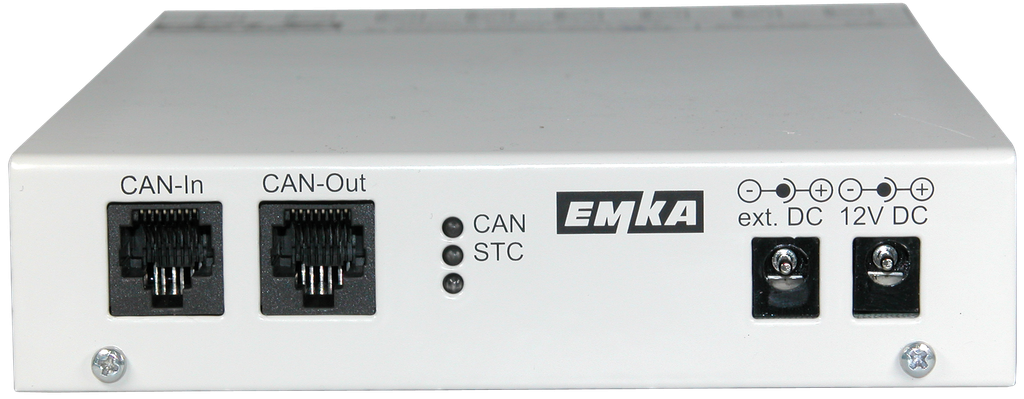

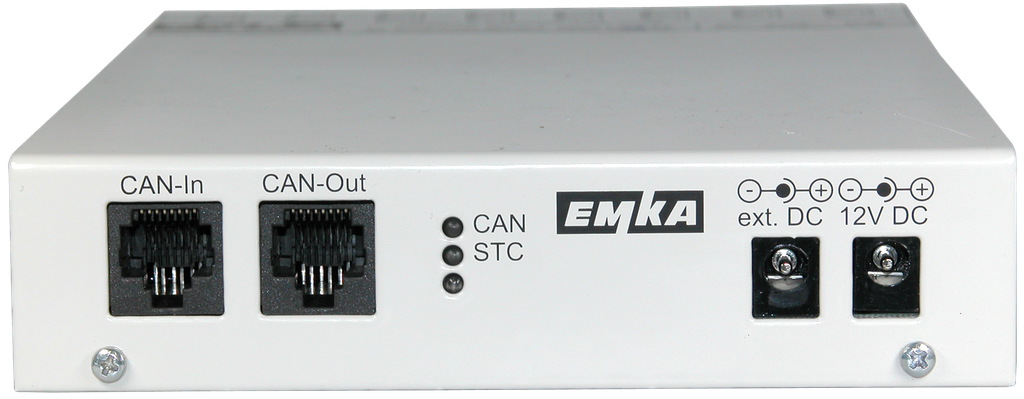

Product information:

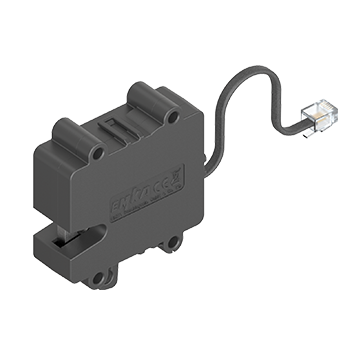

- This module can control up to 8 single-point latches or handles with locking set 3000-U150-01 or swinghandles of the 1150 Program and import 8 status contacts.
- Simultaneous activation of several locks is possible. In this case it is recommended to connect one power supply unit to each control module.

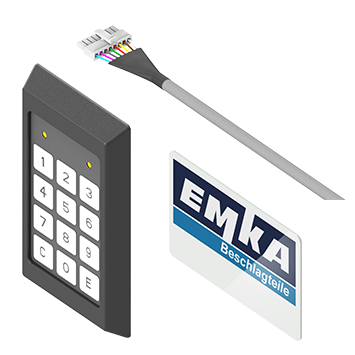

- The opening signal for the respective lock is triggered by keypad, card or the EMKA Control Cockpit management software.
- The states (open / closed) of locking systems, doors and side panels can be analysed via the existing inputs.

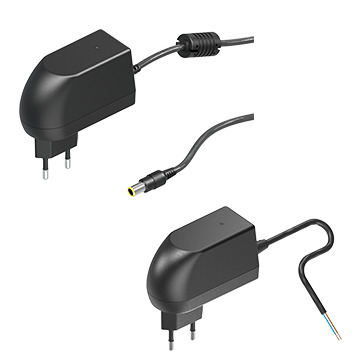

- In order to supply locking systems with 24 V operating voltage an additional power supply unit can be connected to the input „ext. DC“ on the front side.

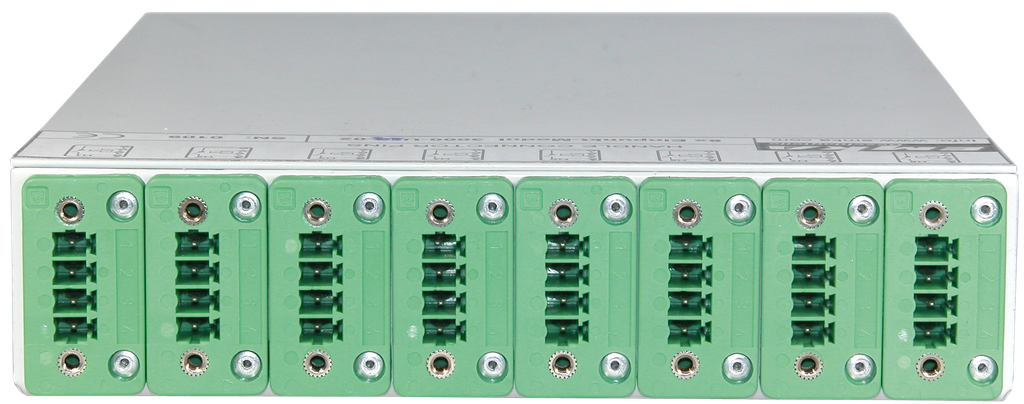

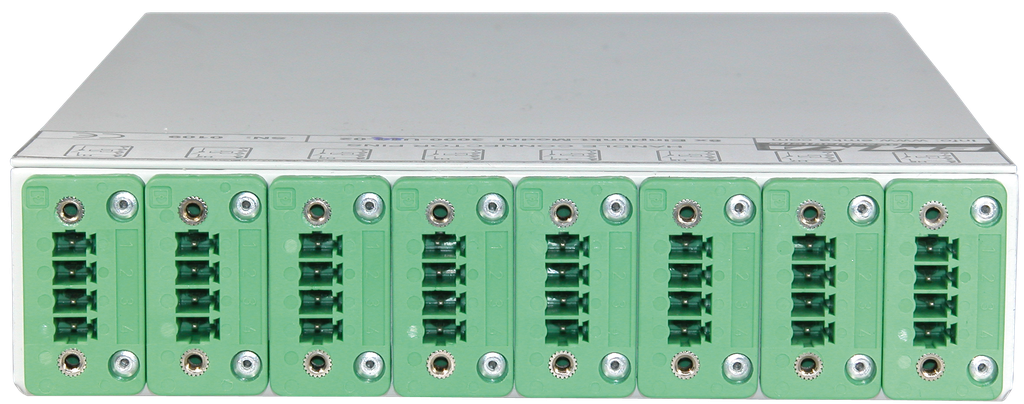

Handle outputs: 8, max. 12 V / 1,000 mA, or max. 24 V / 500 mA per output
Maximum current: 2,000 mA
CAN bus ports: 2
Operating temperature: +5 ... +45 °C
Dimensions (L x B x H): 235 x 135 x 33 mm
Scope of delivery: Assembly bracket
Internal Reference:
3000-U32-02
Product Type:
ELM - Locking Unit
Program:
3000
Stand-Alone or networked system :
Networked solution
Connected Solution:
Access control and monitoring system
