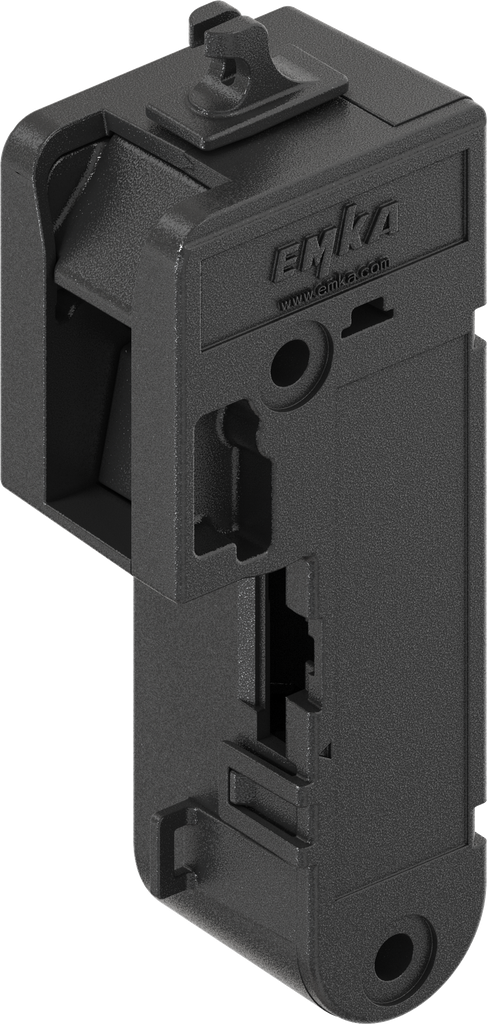

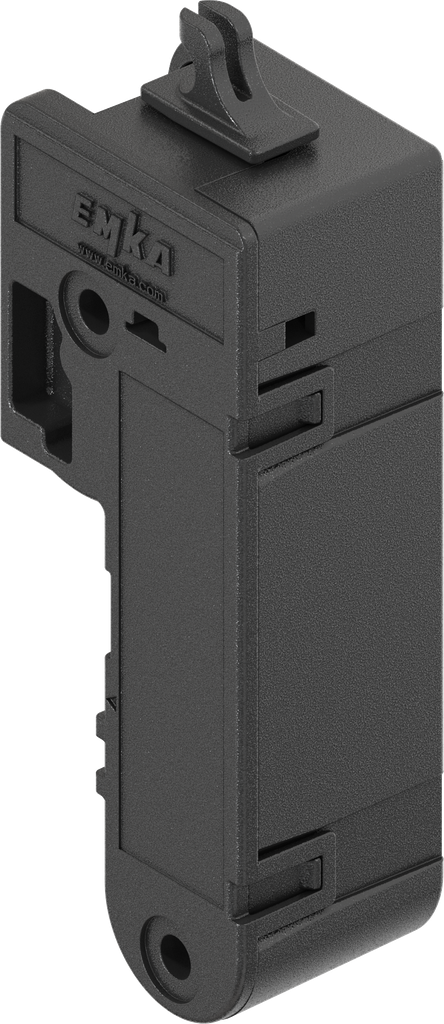

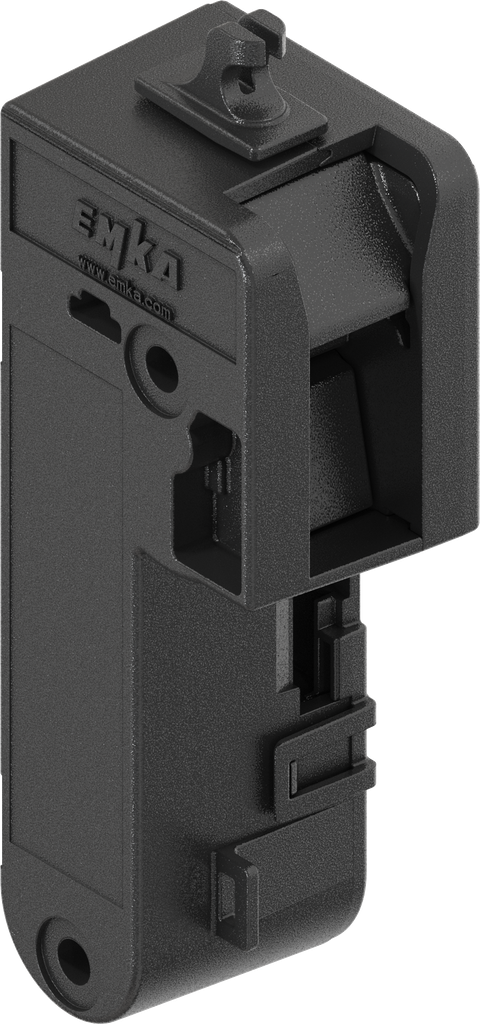

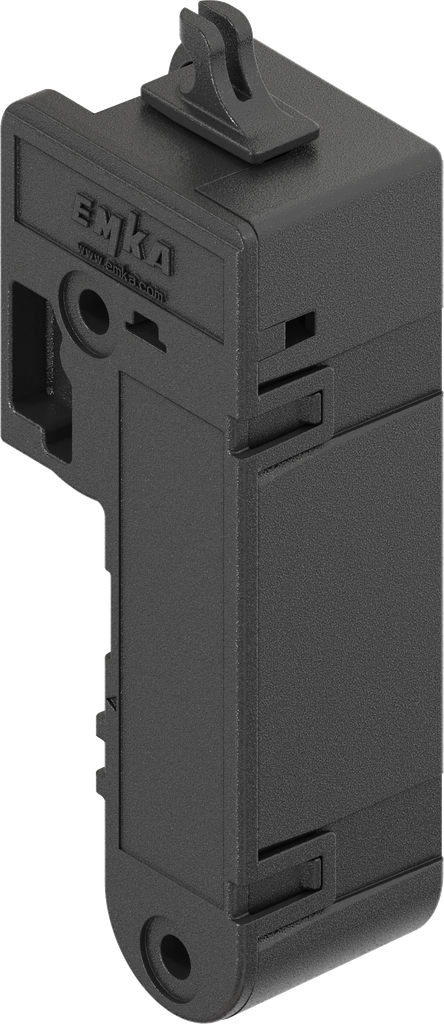

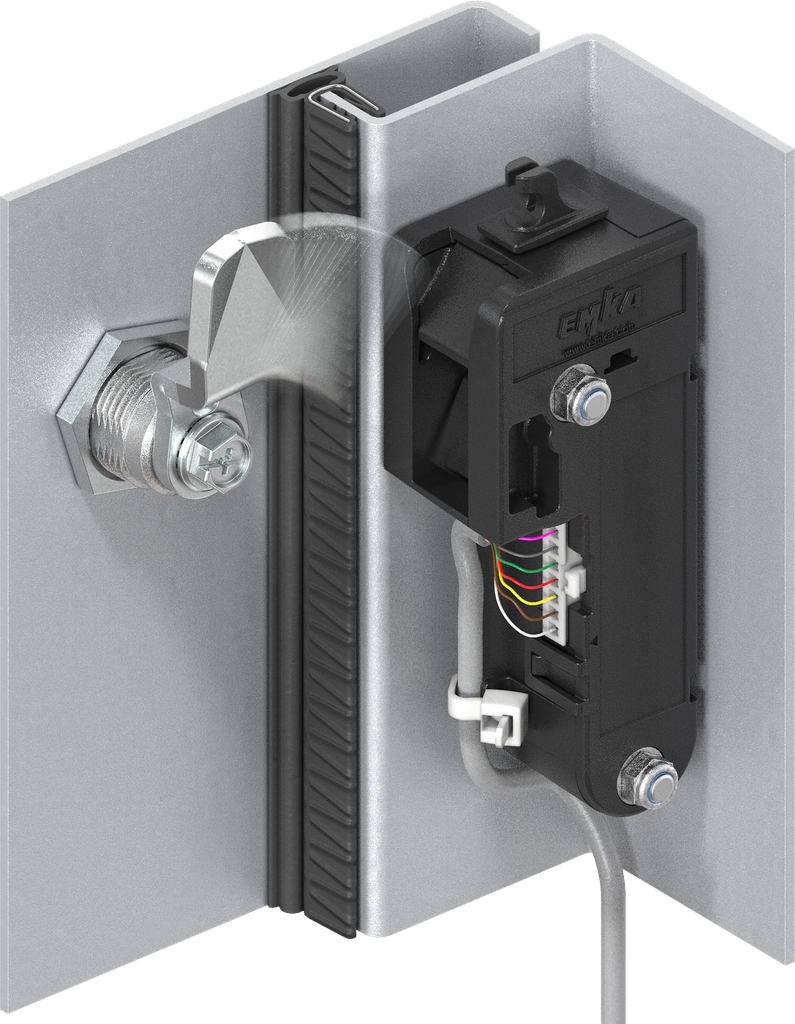

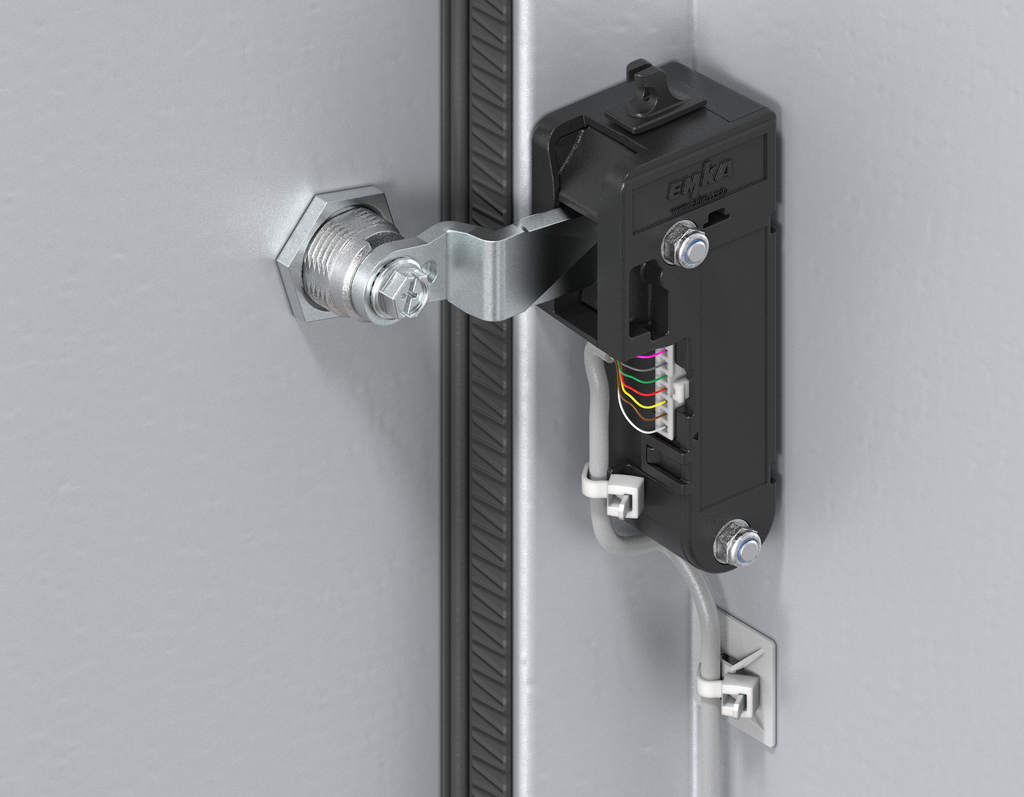

eCam Safety, electromechanical cam lock with status feedback, Polyamide GF black; 3000-U304-04

The electromechanical cam lock eCam is used in different application areas as locking system which is invisible from die outside. The following versions are available: Basic: Cam lock without status feedback, certified according to UL508 Basic Plus: Cam lock with status feedback, certified according to UL508 Open collector output A1 indicates if the cam is engaged in the catch Energy store: Cam lock with status feedback and automatic unlock of catch in case of power failure, certified according to UL508 Open collector output A1 indicates if the cam is engaged in the catch Safety: Type-tested as interlock device (position switch) type 1 according to EN ISO 14119 (Machinery Directive) and as "monitoring device with performance level d" according to EN ISO 13849 Broad supply voltage range from 9 ... 32 V Open collector output for remote monitoring of the lock status Emergency opening in case of power failure possible via Bowden cable Power supply: 9 ... 32 VDC, max. 100 mA, stand-by 3 mA Output signals: Open collector (max. 30 V, 50 mA) Cams L = 45 Bowden cable holder Catch Surface for adhesive tape Loop for cable tie Control input V - V + Output A1 Door contact A1 Door contact A2

• Basic: Cam lock without status feedback, certified according to UL508
• Basic Plus: Cam lock with status feedback, certified according to UL508
  Open collector output A1 indicates if the cam is engaged in the catch
• Energy store: Cam lock with status feedback and automatic unlock of catch in case of power failure, certified according to UL508
  Open collector output A1 indicates if the cam is engaged in the catch
• Safety: Type-tested as interlock device (position switch) type 1 according to EN ISO 14119 (Machinery Directive) and as "monitoring device with performance level d" according to EN ISO 13849
• Broad supply voltage range from 9 ... 32 V
• Open collector output for remote monitoring of the lock status

Emergency opening in case of power failure possible via Bowden cable
Power supply: 9 ... 32 VDC, max. 100 mA, stand-by 3 mA
Output signals: Open collector (max. 30 V, 50 mA)

Cams L = 45

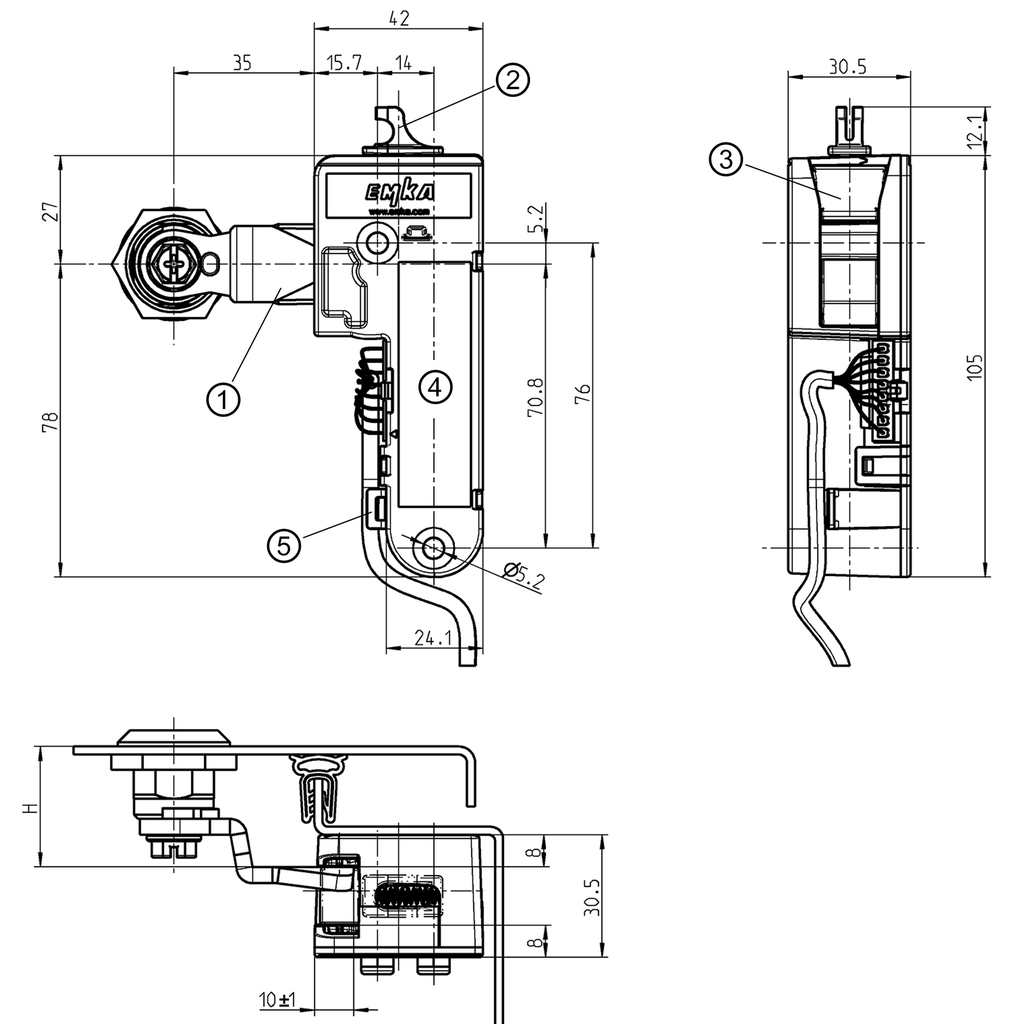

1. Bowden cable holder
2. Catch
3. Surface for adhesive tape
4. Loop for cable tie

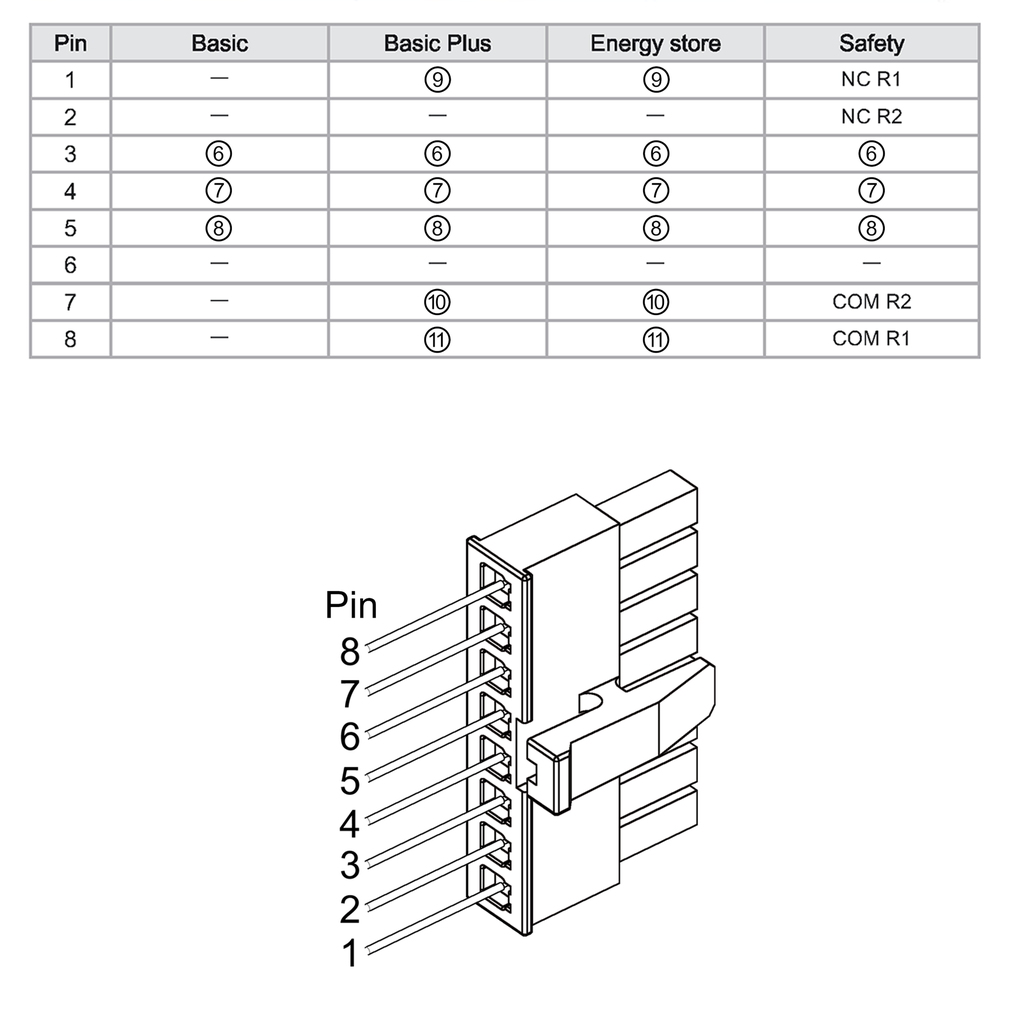

5. Control input
6. V -
7. V +
8. Output A1
9. Door contact A1
10. Door contact A2
