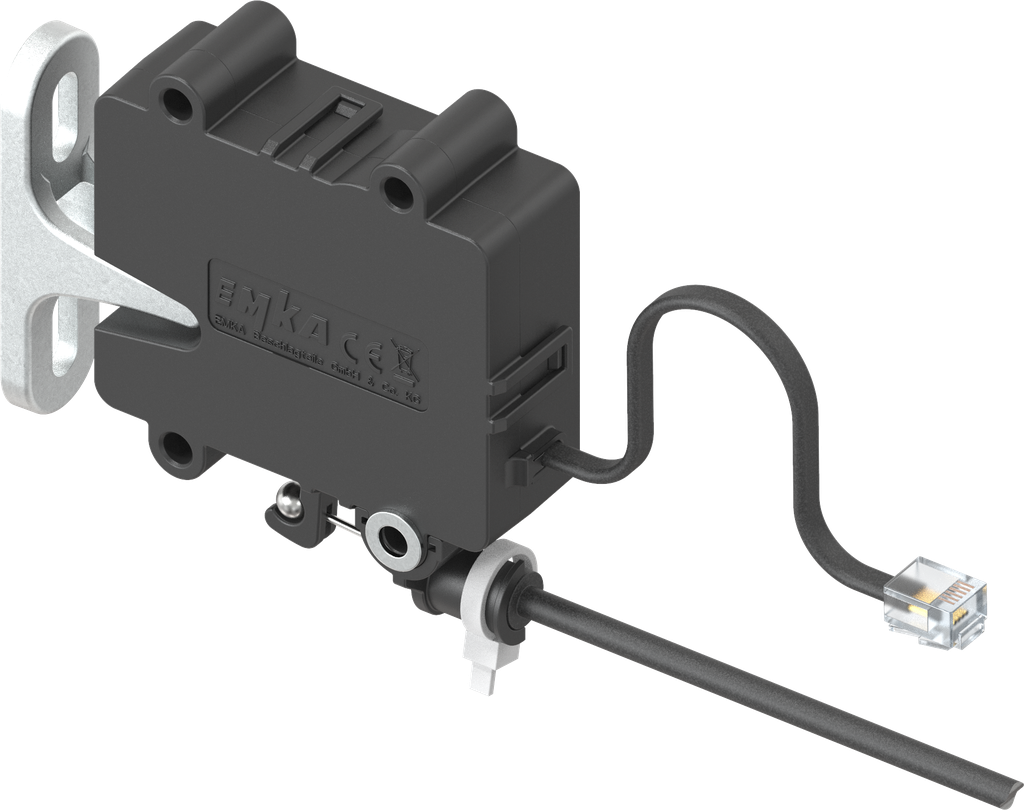

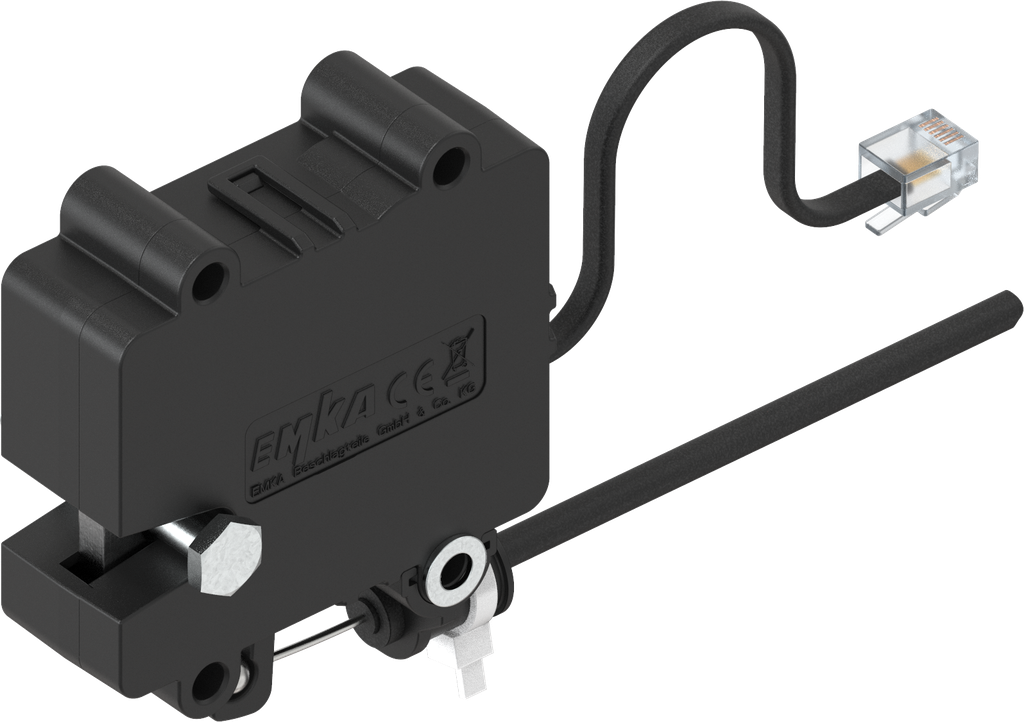

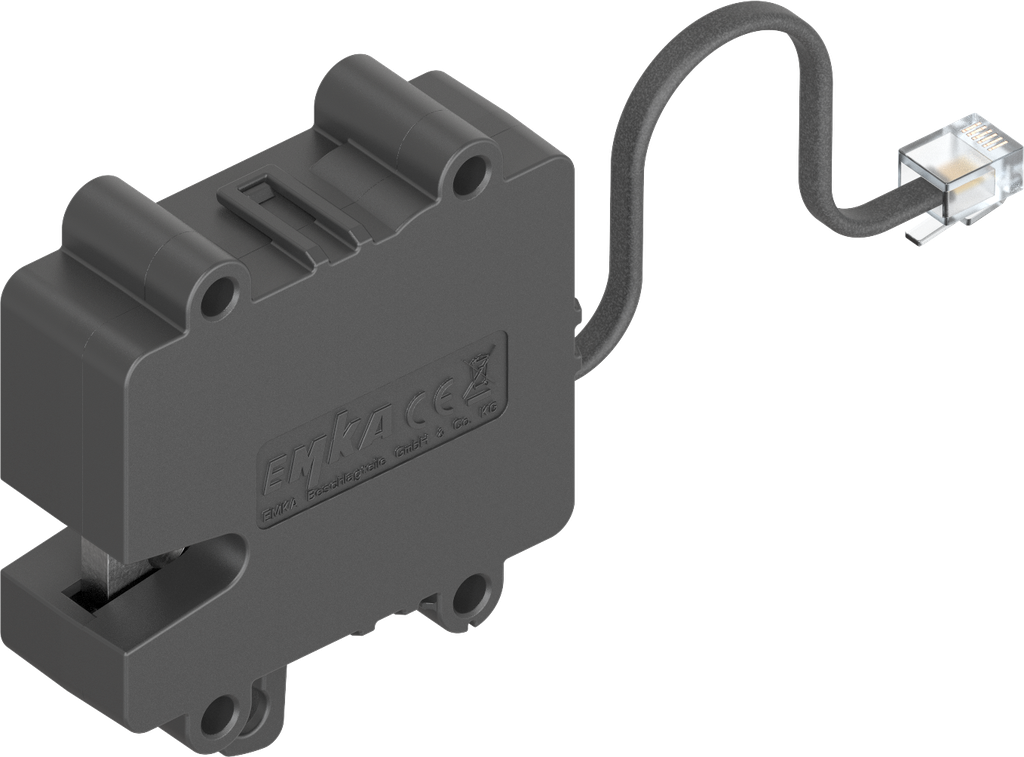

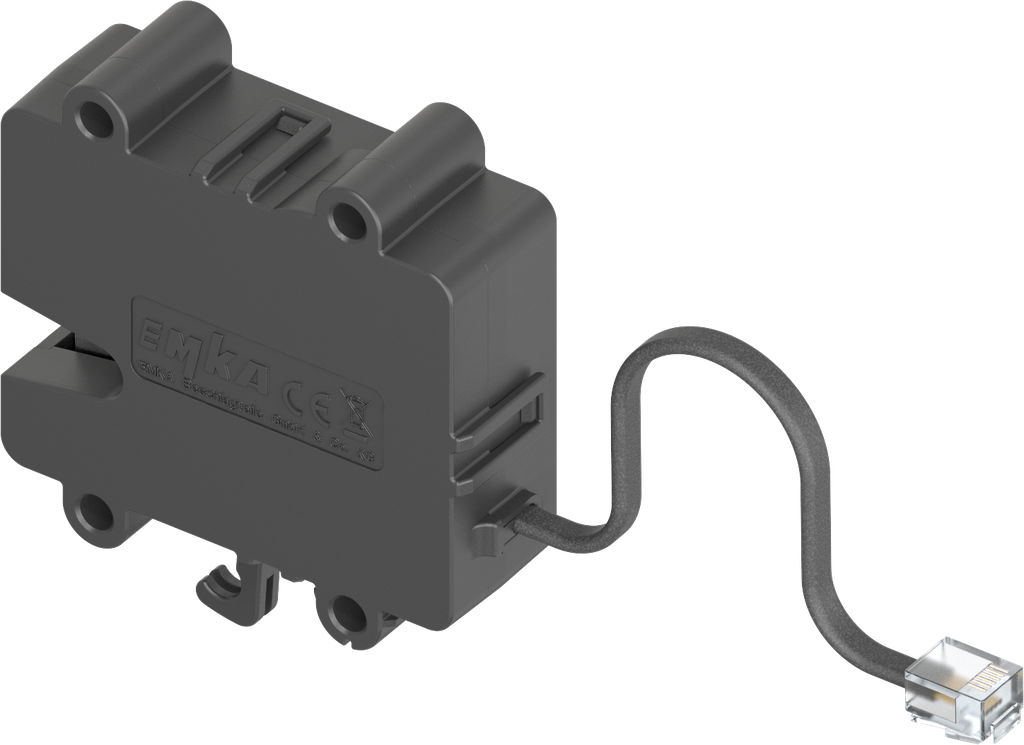

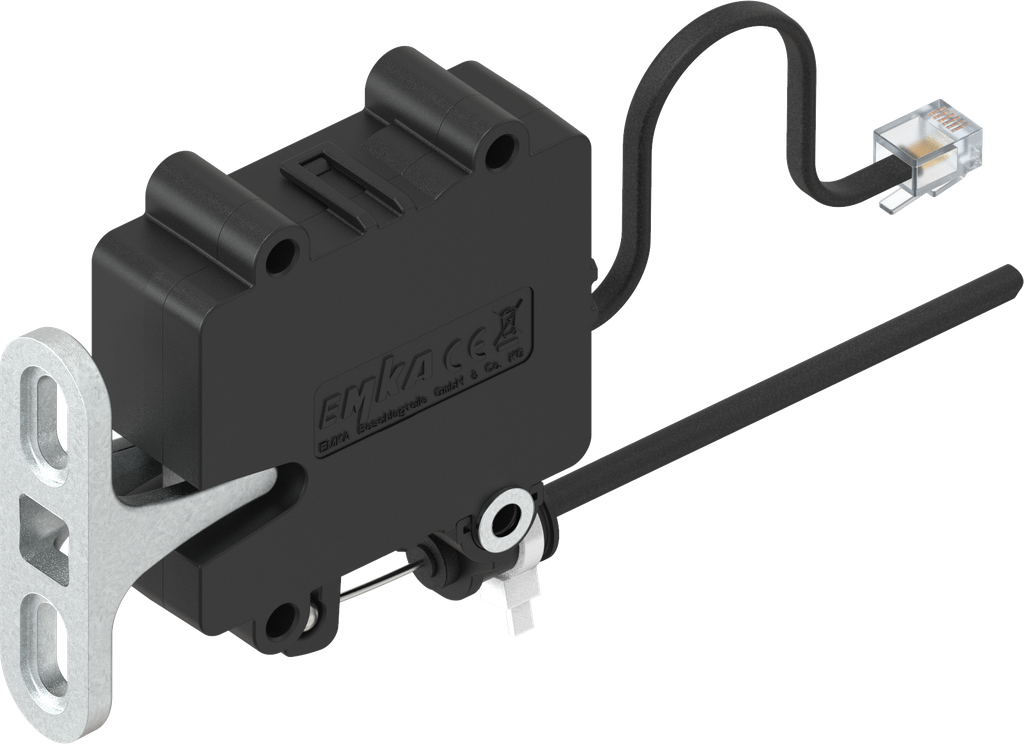

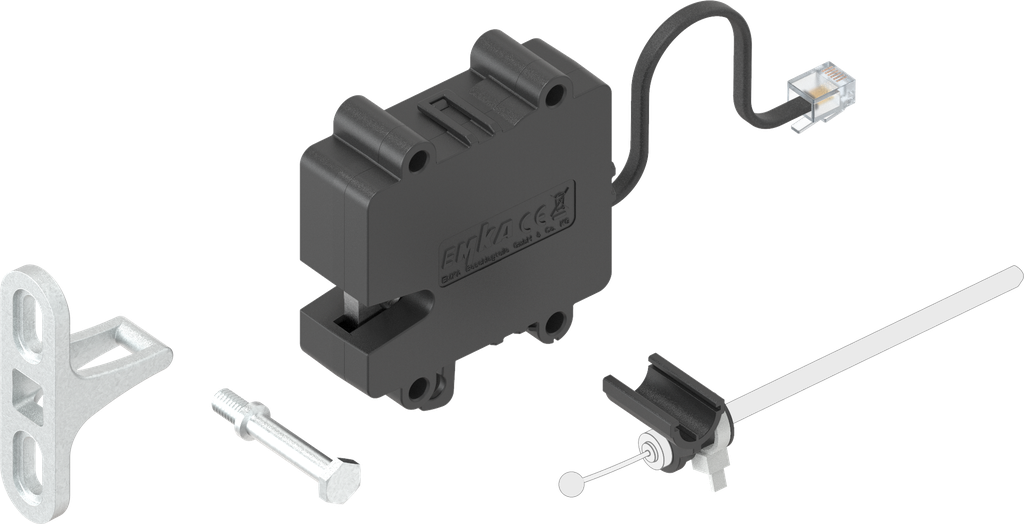

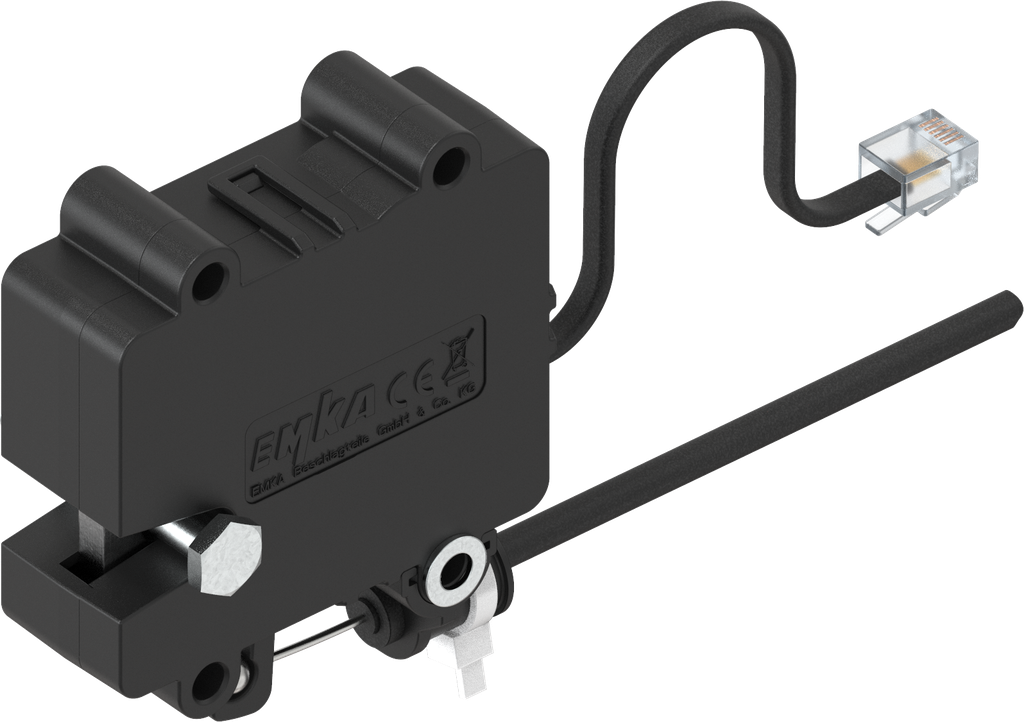

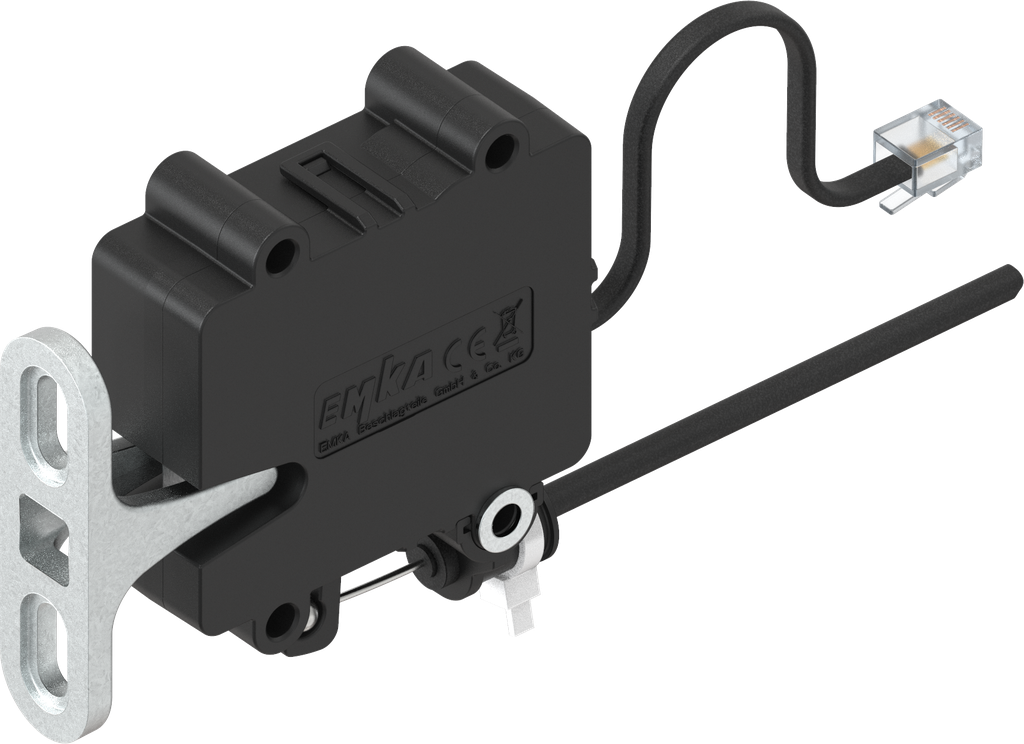

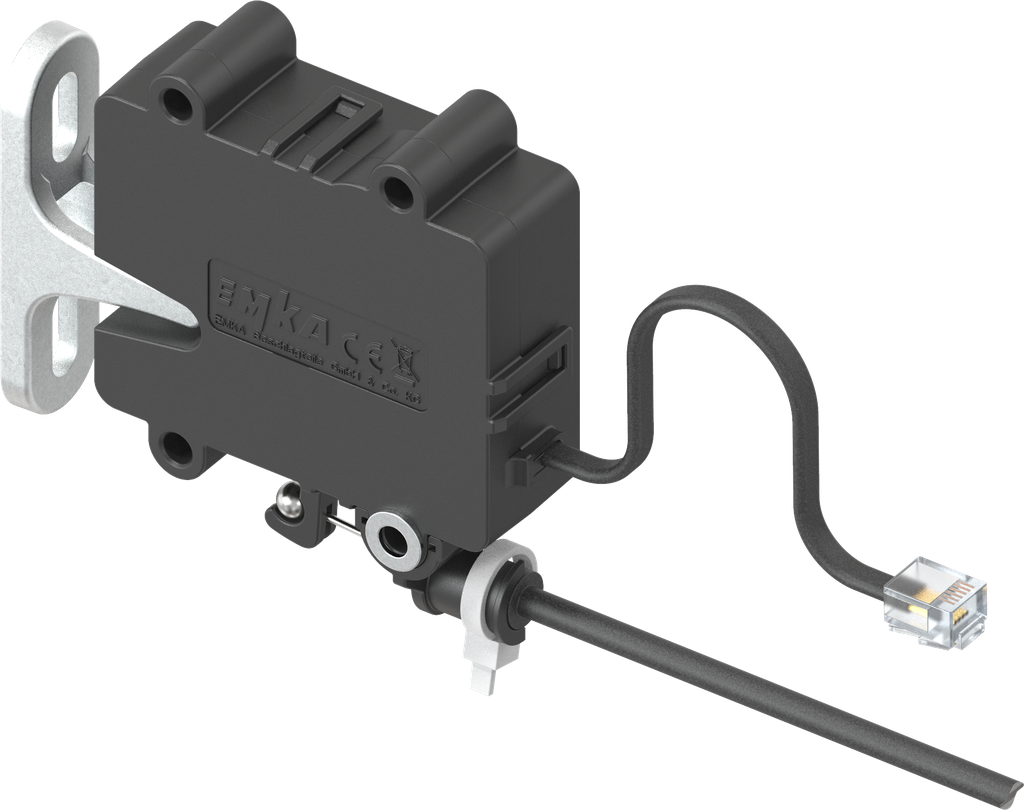

Single-point latch with emergency opening, Basic, Polyamide GF black; 3000-U301-01
Latch opens by switching on the power supply and locks as soon as the door is closed again
Product information:
The single-point latch is used in special application areas as locking system which is invisible from the outside. The following versions are available: – Basic = Latch opens by switching on the power supply and locks as soon as the door is closed again. – Basic delayed Re-Lock = Latch opens by switching on the power supply and remains in the position "open" as long as the power supply is applied. – Energy store = Latch opens when switching off of the power supply (alternative to magnetic locks). – Battery backup = Latch is permanently powered and opened via electrical pulse; protection type IP 56. Broad supply voltage range of 9 ... 32 V Potential-free switch for remote monitoring of the state/door state Emergency opening in case of power failure possible via Bowden cable Connection possible to Locking Unit 3000-U32-x or Access Unit 3000-U47-x; Adapter cable optional ATEX / UL-Ex certification 1 = Catch or locking bolt 2 = Lever for mechanical unlocking , e.g. Bowden cable 3 = Bowden cable mounting 4 = Contact 5 = V - 6 = V + 7 = Contact 8 = V - 9 = V - 10 = V - 11 = Release + 12 = Open collector output 13 = V +
- Broad supply voltage range of 9 ... 32 V
- Potential-free switch for remote monitoring of the state/door state
- Emergency opening in case of power failure possible via Bowden cable
- Connection possible to Locking Unit 3000-U32-x or Access Unit 3000-U47-x; Adapter cable optional
- ATEX / UL-Ex certification

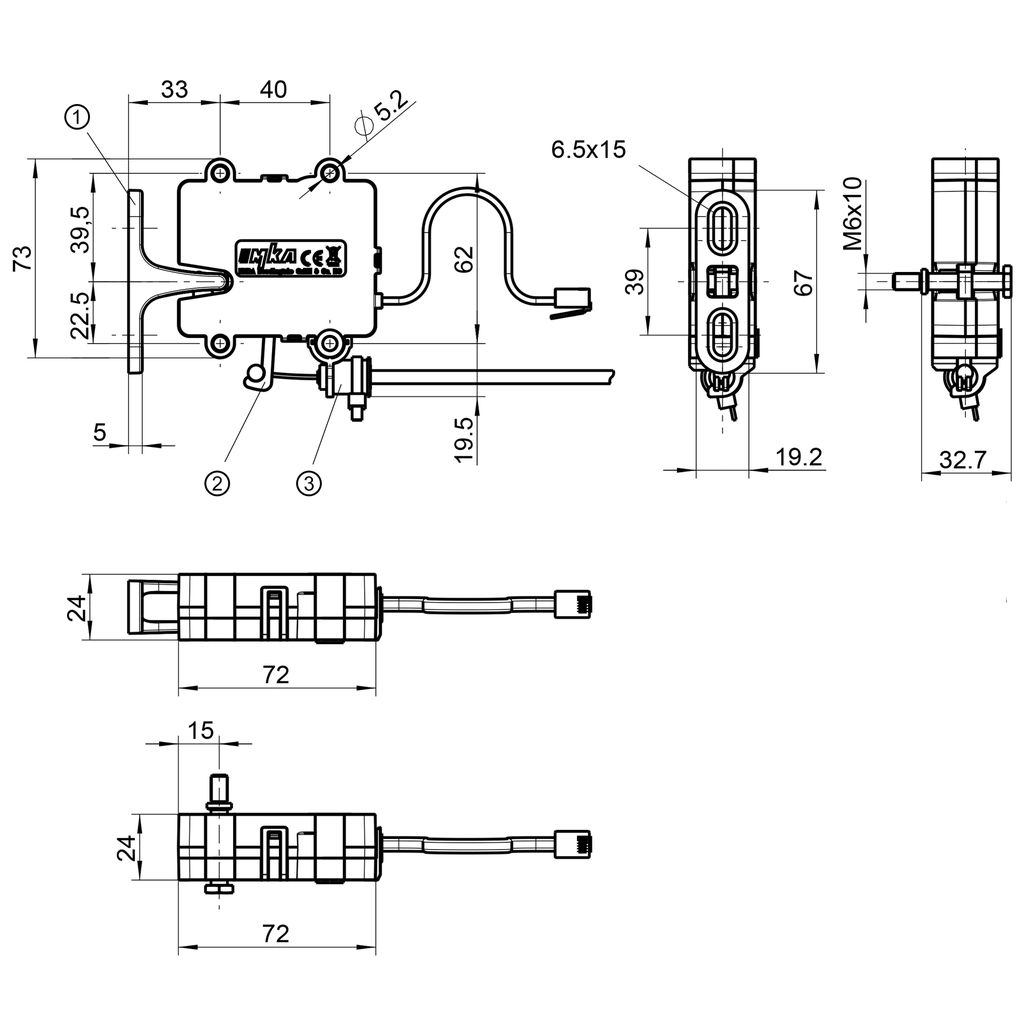

1 = Catch or locking bolt
2 = Lever for mechanical unlocking , e.g. Bowden cable
3 = Bowden cable mounting
4 = Contact
5 = V -
6 = V +
7 = Contact
8 = V -
9 = V -
10 = V -

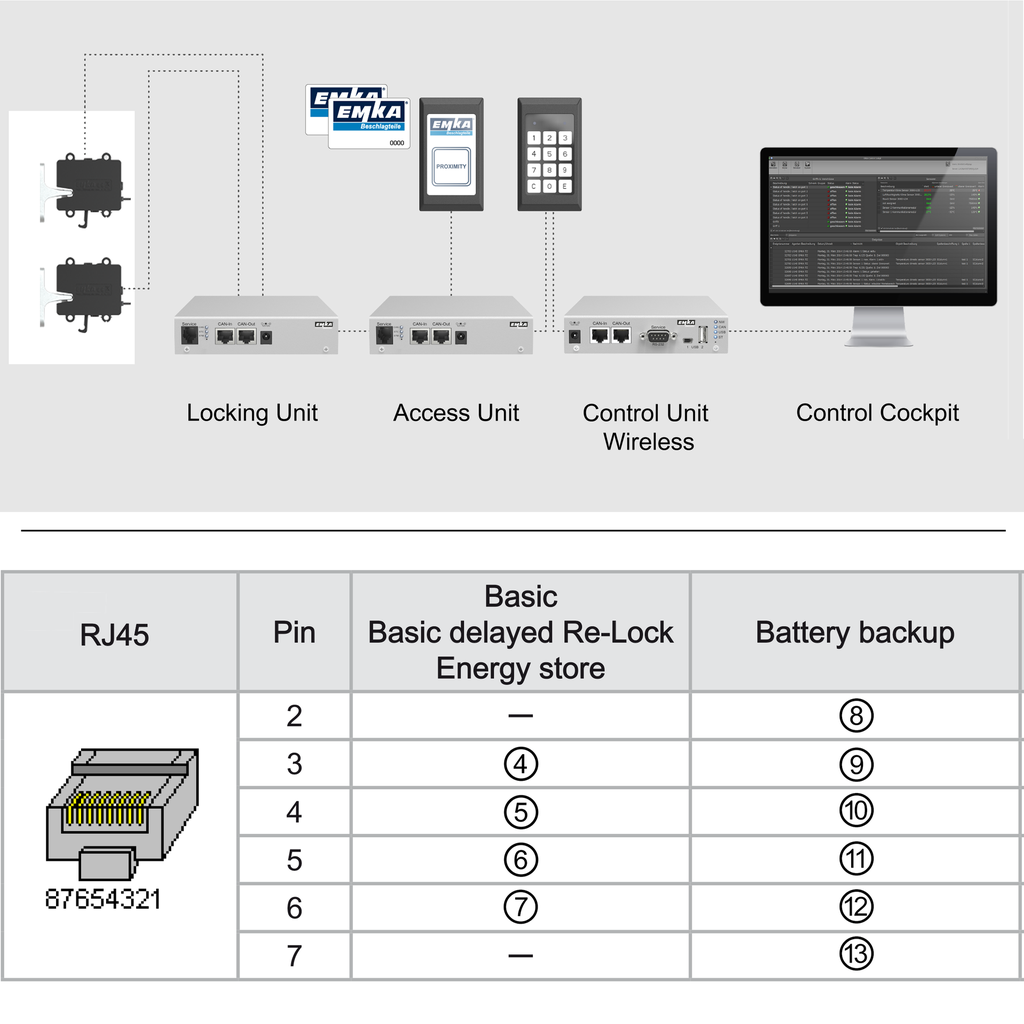

11 = Release +
12 = Open collector output
13 = V +
Assembly instruction:
Per Control Unit Wireless max. 64 Locking Units ≘ max. 512 single-point latches Keypad / Card reader with Access Unit optional
