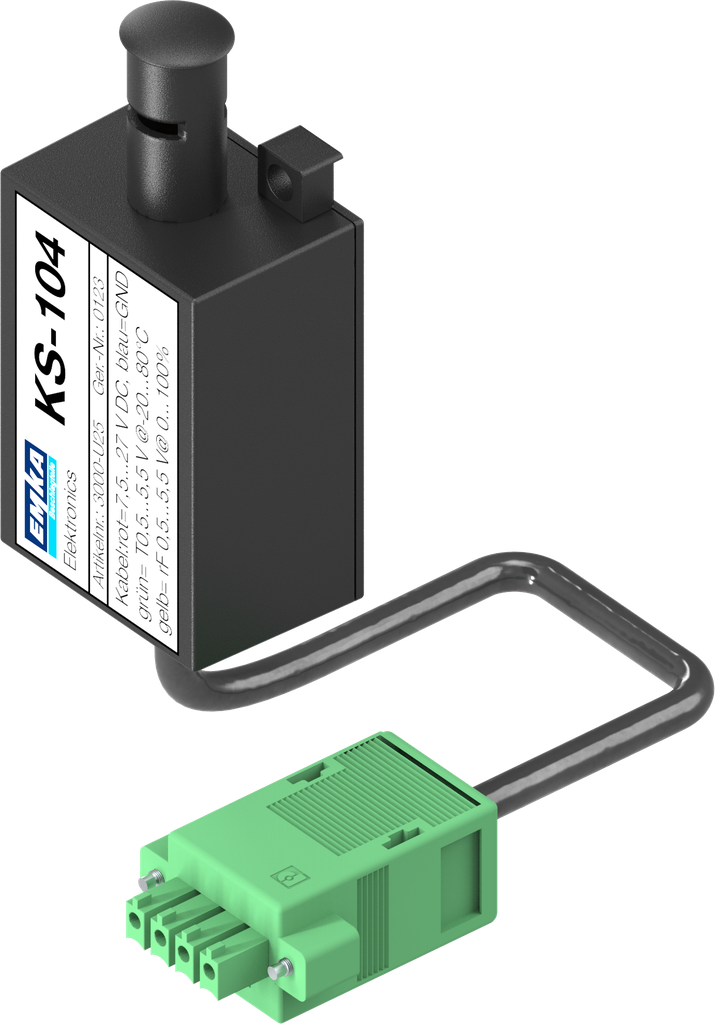

Climatic sensor for temperature and humidity with open cable ends;
Locking unit for 8 releasable handles and single-point latches;
Product information:

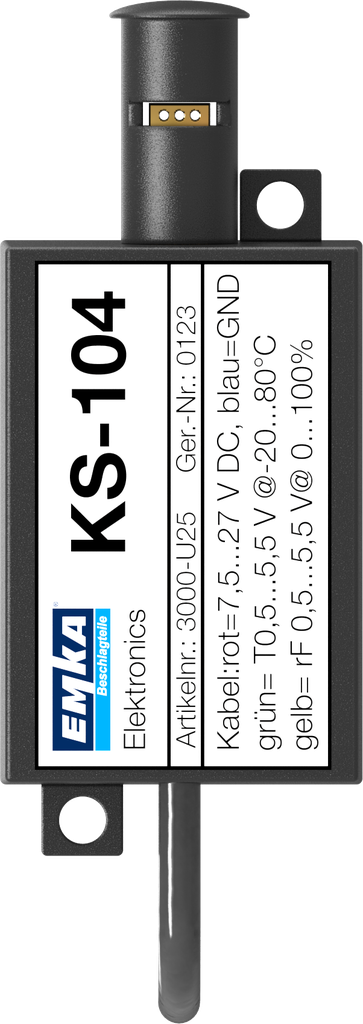

- The analogue climate sensor measures both ambient humidity and temperature.
- The sensor is connected to the 3000-U13-0X sensor module.
Current consumption: approx. 0.8 mA
Measuring range humidity: 0...100 % relative humidity
Deviation: ± 3.5 % (20...80 % relative humidity)
Settling time: < 4 sec.
Output humidity: 0.5 ... 5.5 V
Measuring element: capacitive, (condensation-proof)
Measuring range temperature: –0 ... +80 °C
Deviation: ± 0.5 K at 25 °C
Settling time: < 20 sec
Output temperature: 0.5 ... 5.5 V
Measuring element: semi-conductor
Dimensions L x B x H: 65 x 31 x 22 mm
Cable length: 2 m
Plastic housing with two mounting holes
Internal Reference:
3000-U25-01
Product Type:
ELM - Climatic sensor
Program:
3000
Sensor:
Climatic sensor for temperature and humidity
Stand-Alone or networked system :
Networked solution
Connected Solution:
Access control and monitoring system
