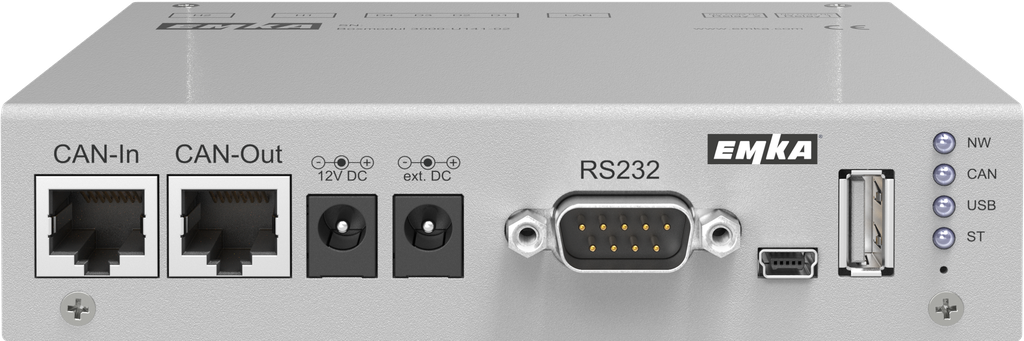

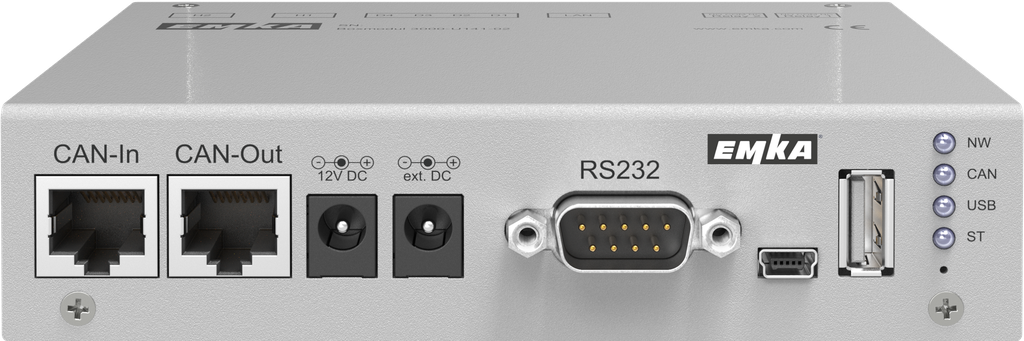

Control Unit Wireless; 3000-U141-02

https://www.emka.com/products/3000-u141-02 https://www.emka.com/web/image/product.template/65774/image_1920?unique=5229fe5

    This combination does not exist.

    Networked solution

    Product information:

    • Central control unit of the EMKA rack management system wired an wireless systems Configuration and control of all connected units via the network interface with a standard web browser or via the EMKA Control Cockpit software Fail-safe and tamper-proof logging of all events in the system with real-time clock and additional memory Time synchronisation via NTP server Two ports for different alarm states at the rear side of the housing Simple integration of the system into superordinate management systems by the transmission protocol SNMP Redundant power supply possible Power supply: 12 ... 24 VDC, 325 mA relay outputs: 2 (30 VDC, max. 1.0 A; 48 VAC, max. 0.5 A) Interfaces: serial RS 232C interface (front side) Network interface: Ethernet, 100 Mbit, RJ45 (rear side) Communication protocols: SNMP 1.0 and 2c CAN bus ports: 2 Operating temperature: +5 ... +45 °C Dimensions (L x B x H): 123 x 140 x 33 mm Scope of delivery: 2 terminating resistors; assembly bracket
    • Configuration and control of all connected units via the network interface with a standard web browser or via the EMKA Control Cockpit software
    • Fail-safe and tamper-proof logging of all events in the system with real-time clock and additional memory
    • Time synchronisation via NTP server
    • Two ports for different alarm states at the rear side of the housing
    • Simple integration of the system into superordinate management systems by the transmission protocol SNMP
    • Redundant power supply possible

    Power supply: 12 ... 24 VDC, 325 mA
    relay outputs: 2 (30 VDC, max. 1.0 A; 48 VAC, max. 0.5 A)
    Interfaces: serial RS 232C interface (front side)
    Network interface: Ethernet, 100 Mbit, RJ45 (rear side)
    Communication protocols: SNMP 1.0 and 2c
    CAN bus ports: 2
    Operating temperature: +5 ... +45 °C
    Dimensions (L x B x H): 123 x 140 x 33 mm
    Scope of delivery: 2 terminating resistors; assembly bracket
    Internal Reference: 3000-U141-02
    Product Type: ELM - Control Unit
    Program: 3000
    Stand-Alone or networked system : Networked solution
    Connected Solution: Access control and monitoring system
