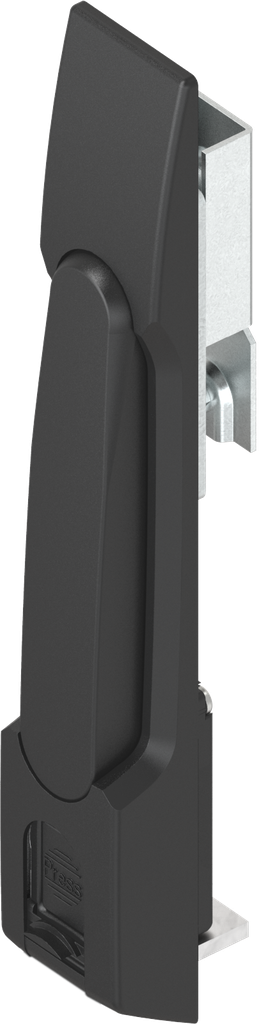

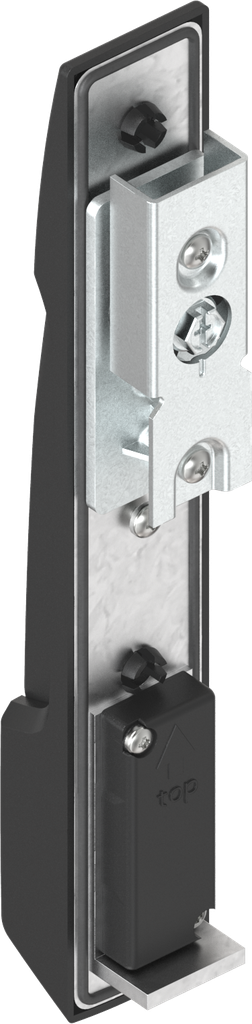

Rod control for flat rods, Zinc die
Door contact cable with with plug for Agent E handle;
Product information:
Rod control on request
Function:
Turn 90° = 16 mm stroke
Internal Reference:
2400-U3
Product Type:
Swinghandle, Lifthandle
Program:
2400
Catalog sheet:
3K-220
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Attachment of the trough:
Screwed
Mounting Positions :
Outside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
With integrated rod control / 3-point cam:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm

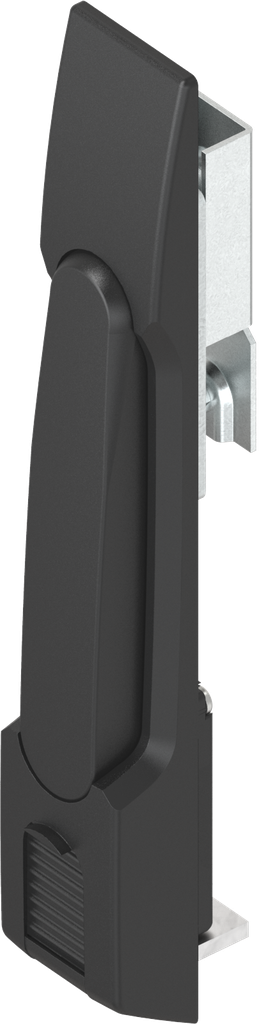

Locking set:
Push button
Locking set modular technology:
Profile half cylinder with cap, A = 30, mounted at the dish,ASSA cylinder with cap, mounted at the dish,KABA cylinder with cap, mounted at the dish,Round cylinder without cap, mounted at the dish,Insert without cap, mounted at the dish
locking set cover:
Yes

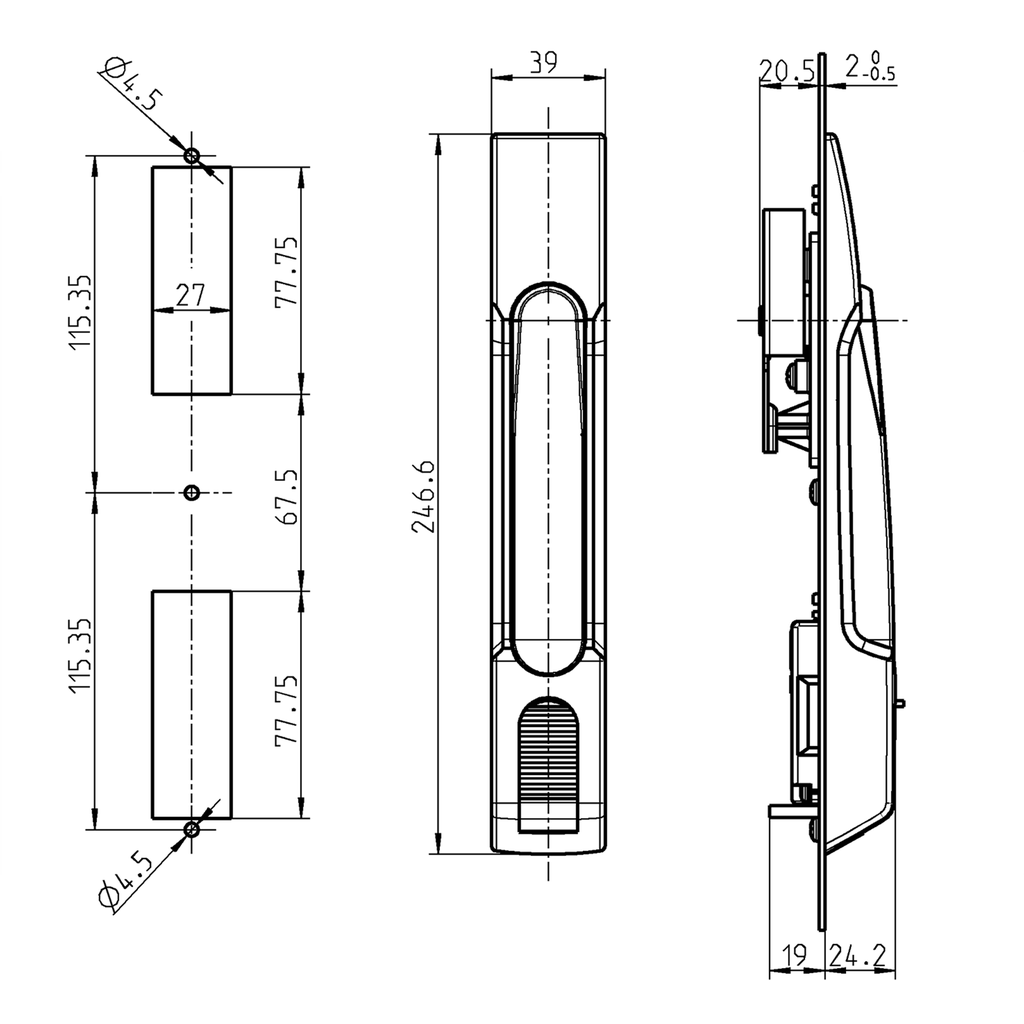

Swivel Handle:
24.2 mm
Pan Handle Length:
246.6 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Integrated rod control
