Adapter for cam and bridge, Zinc die zinc-plated
Adapter for cam and bridge, Zinc die zinc-plated
Swinghandle for locking set, Polyamide GF black
Swinghandle for locking set, Polyamide GF black

Rod with torsion for bottom, Steel zinc-plated; 2400-18-07RA

https://www.emka.com/products/2400-18-07ra-rod-with-torsion-for-bottom-steel-zinc-plated-234784 https://www.emka.com/web/image/product.template/234784/image_1920?unique=b150186

    This combination does not exist.

    No stock item, please ask for availability
    Internal Reference: 2400-18-07RA
    Barcode: 2400-000018-00007ra
    Product Type: Rod
    Material: Steel
    Program: 2400
    Surface: zinc-plated
    Catalog sheet: 3ZA-580
    Connecting rod position: Outside the sealing, top or bottom
    Number of Possible Locking Points: 2 points
    Article with property rights: Yes
    C Dimension: 275
    D Dimension: 850
    Flat Bar Outside: Flat rod with torsion
    For Door Height: 1900-2200
    Dimension L: 983.50 mm
    No Specifications
    No Matching Products

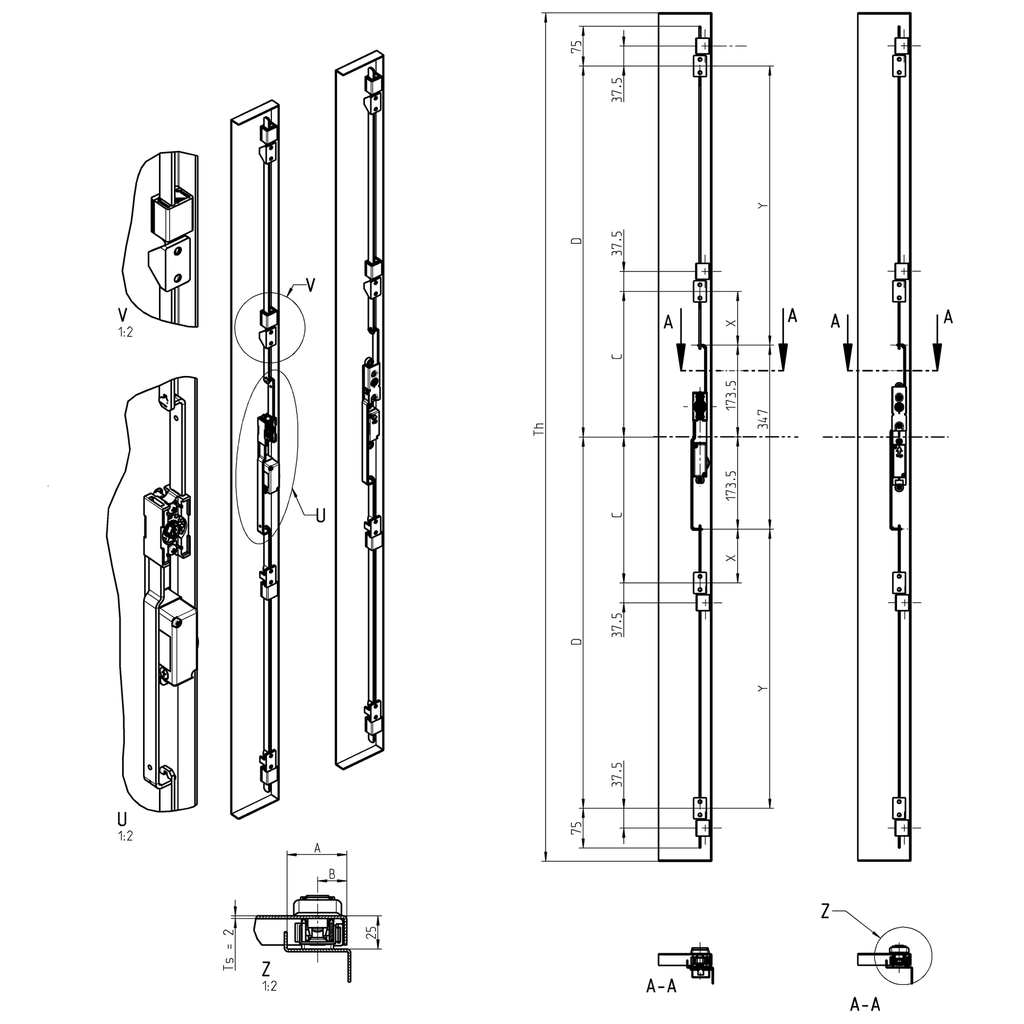

    Here you can find the product data sheets and CAD files of this product
