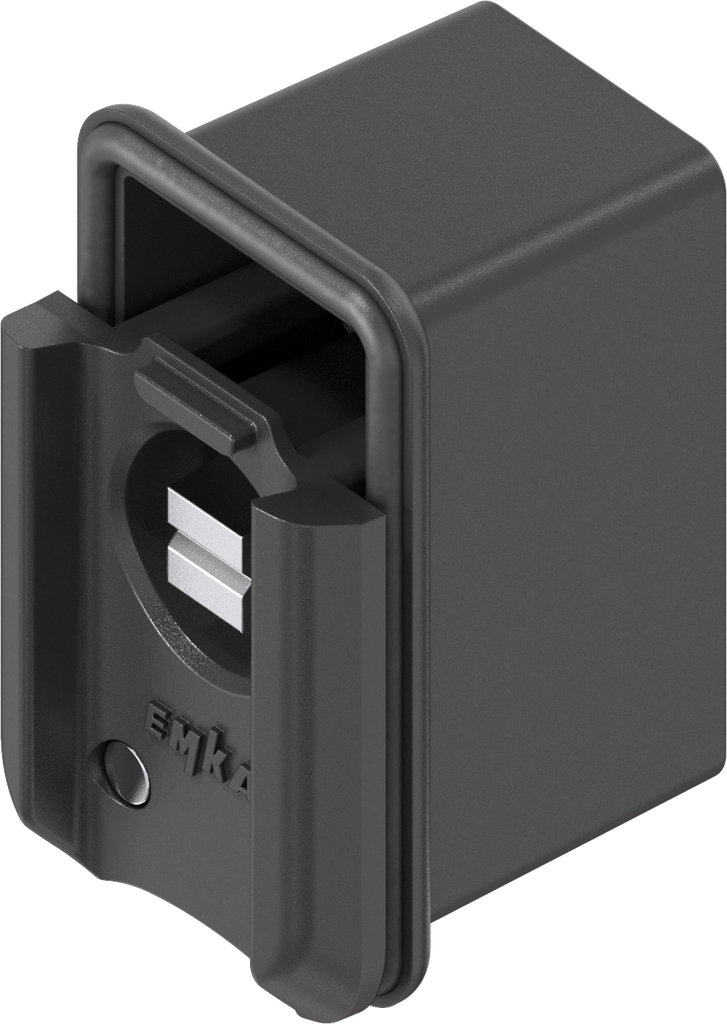

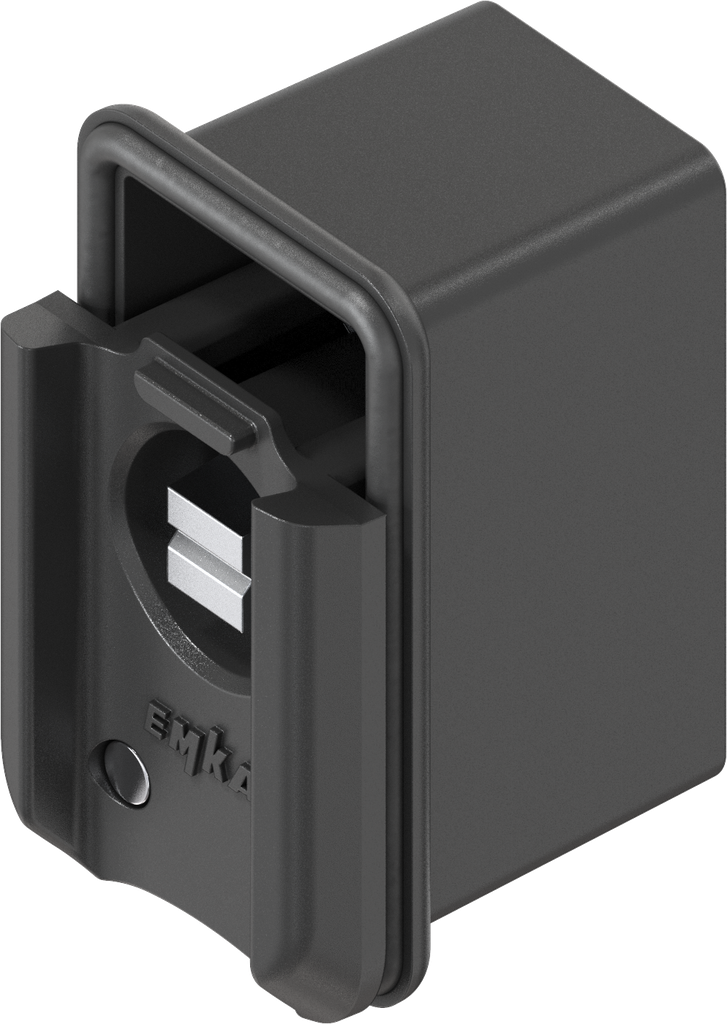

Locking set with insert railway, Zinc die black powder-coated for outdoor use
Product Benefits:
- Flat design Locking system inserts (locking sets) can be easily changed to the front Suitable for standard cut out Permanent magnet holds the cylinder cover Locking set made of zinc die Patent pending
- Locking system inserts (locking sets) can be easily changed to the front
- Suitable for standard cut out
- Permanent magnet holds the cylinder cover
- Locking set made of zinc die
- Patent pending
Assembly instruction:
Easy exchange of the locking sets By removing the two lower screws, the locking set can be easily removed to the front.
Internal Reference:
2225-U60
Product Type:
Locking set
Program:
2225
Catalog sheet:
3J-120
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Type of actuation:
Square 9 with V-slot, railway version
Installation Position of Block:
Dish
Cloak:
Yes
Cap dimension L:
Program 2225 = 32
Locking set:
Insert
