Locking set with insert double bit 3, Zinc die black powder-coated
Locking set with insert double bit 3, Zinc die black powder-coated
Locking set for KABA cylinder type 1036, Zinc die black powder-coated
Locking set for KABA cylinder type 1036, Zinc die black powder-coated

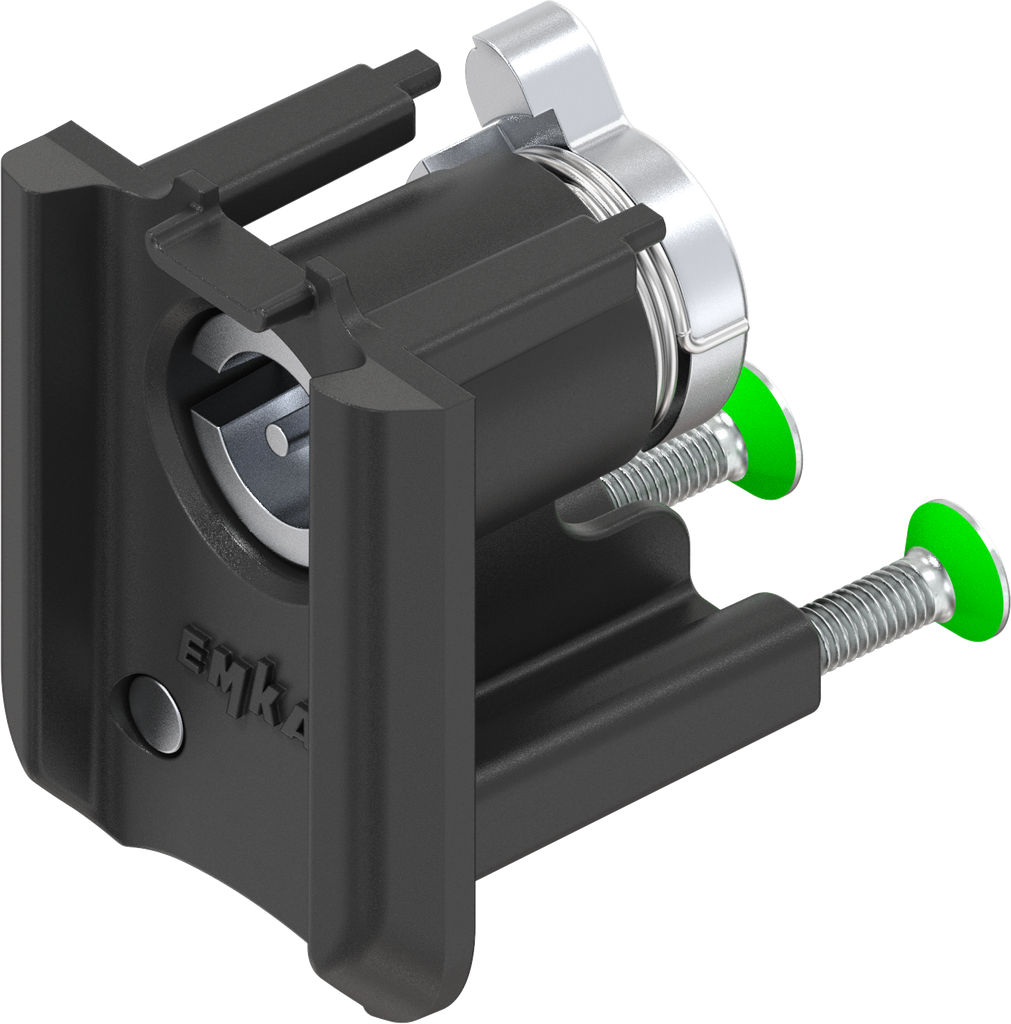

Locking set with insert double bit 3, Zinc die black powder-coated for outdoor use; 2225-U50-01

https://www.emka.com/products/2225-u50-01 https://www.emka.com/web/image/product.template/234683/image_1920?unique=f86255a

for short version

    This combination does not exist.

    Contact Us

    Product Benefits:

    • Flat design Locking system inserts (locking sets) can be easily changed to the front Suitable for standard cut out Permanent magnet holds the cylinder cover Locking set made of zinc die Patent pending
    • Locking system inserts (locking sets) can be easily changed to the front
    • Suitable for standard cut out
    • Permanent magnet holds the cylinder cover
    • Locking set made of zinc die
    • Patent pending

    Assembly instruction:

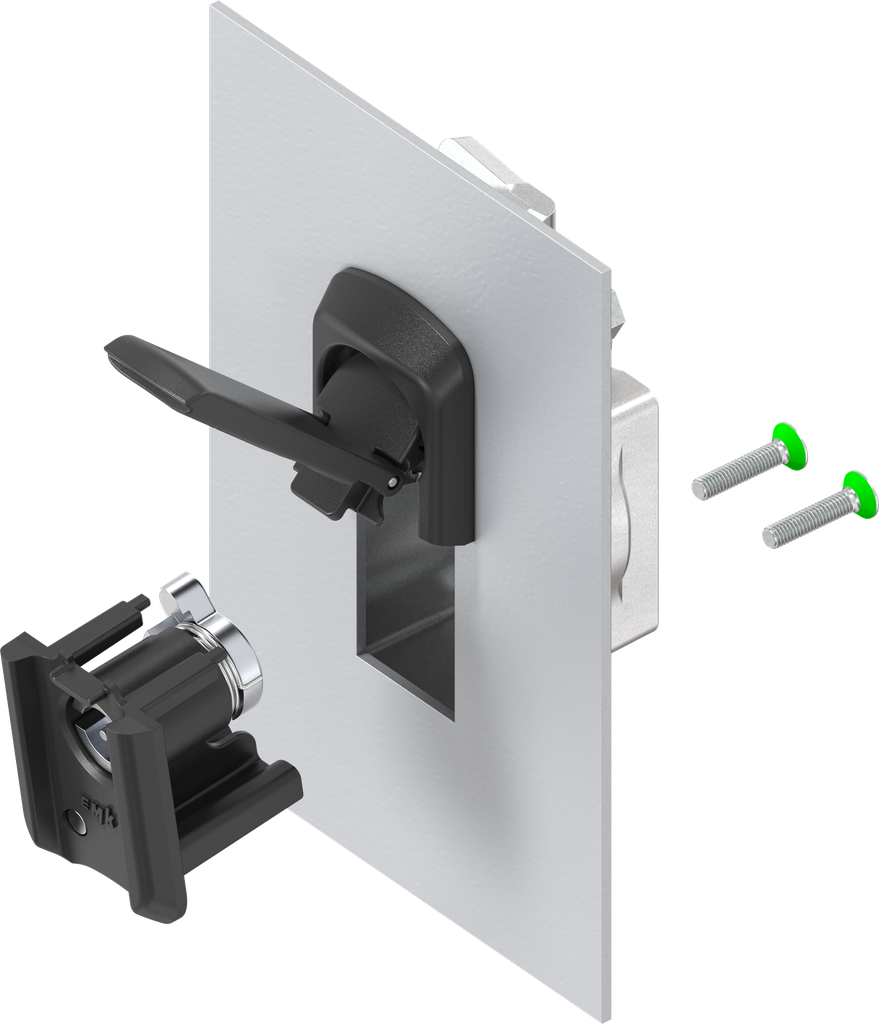

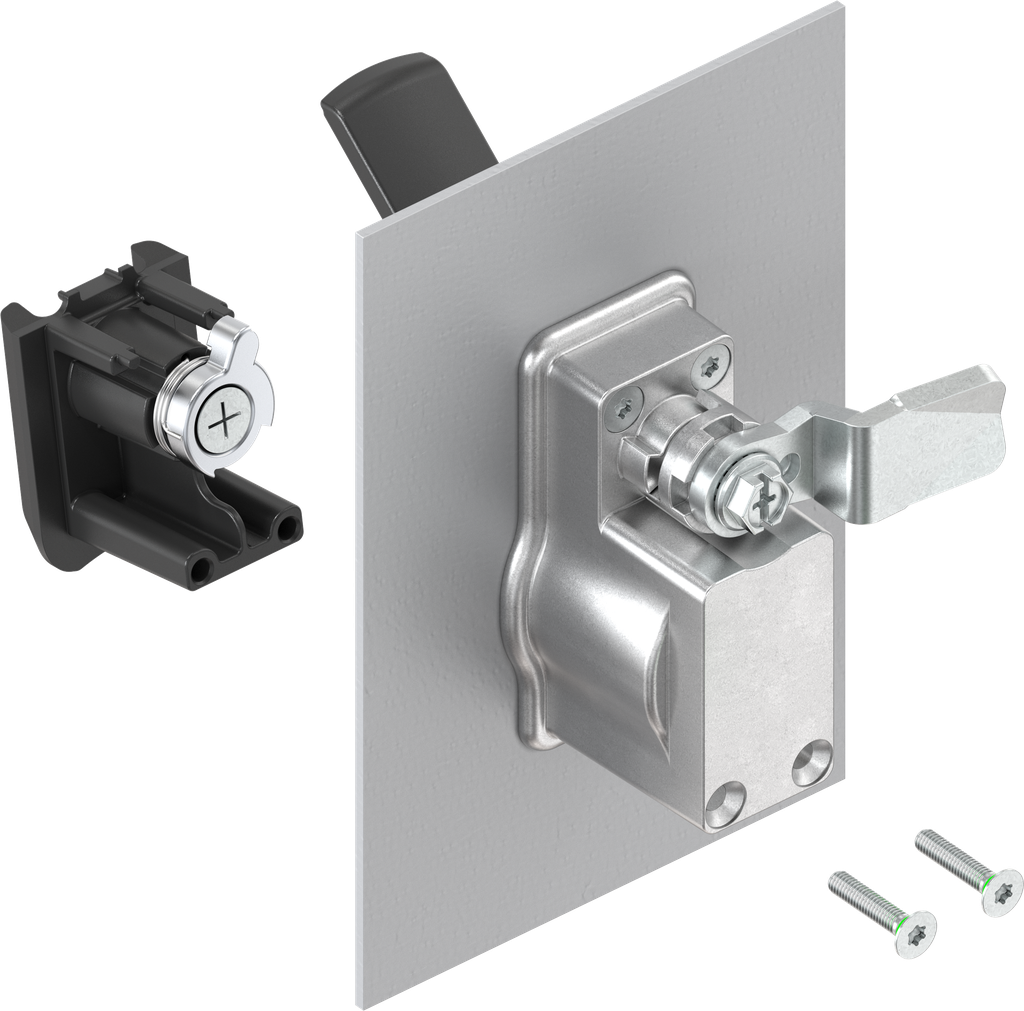

    Easy exchange of the locking sets By removing the two lower screws, the locking set can be easily removed to the front.
    Internal Reference: 2225-U50-01
    Product Type: Locking set
    Program: 2225
    Catalog sheet: 3J-140
    Material of the module : Zinc die
    Surface of the module: black powder-coated for outdoor use
    Article with property rights: Yes
    Type of actuation: Double bit 3
    Installation Position of Block: Dish
    Locking set: Insert
    No Specifications
    View All Products
    Keys
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
