Locking set for profile half cylinder 40, Zinc die black powder-coated for outdoor use

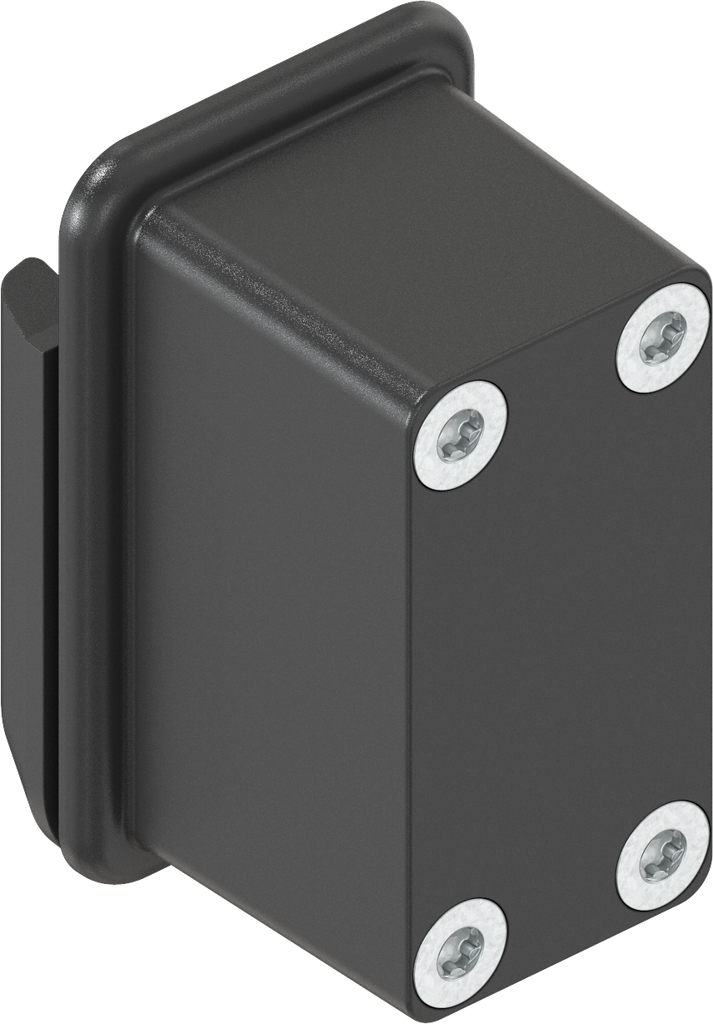

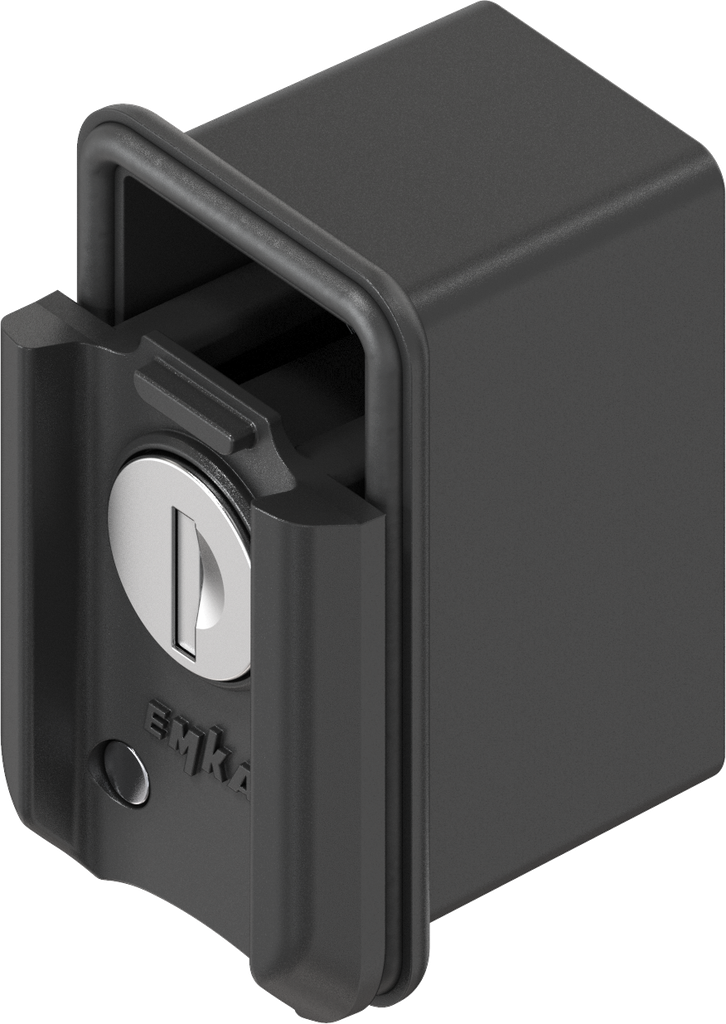

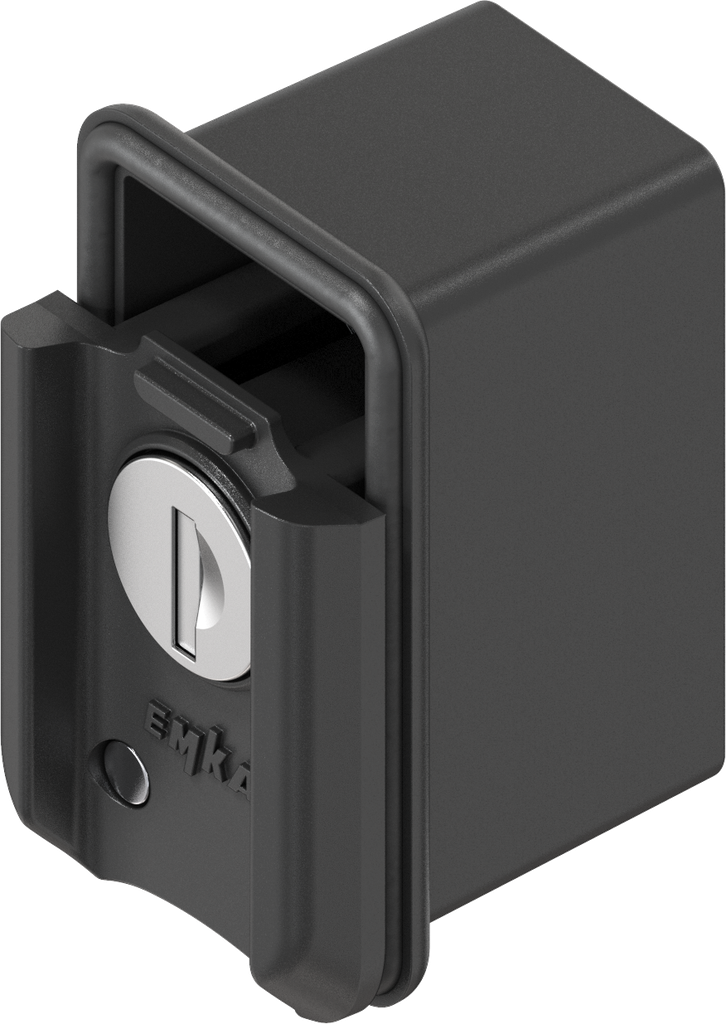

Locking set with round cylinder EK 333, Zinc die black powder-coated for outdoor use
Product Benefits:
- Flat design Locking system inserts (locking sets) can be easily changed to the front Suitable for standard cut out Permanent magnet holds the cylinder cover Locking set made of zinc die Patent pending
- Locking system inserts (locking sets) can be easily changed to the front
- Suitable for standard cut out
- Permanent magnet holds the cylinder cover
- Locking set made of zinc die
- Patent pending
Assembly instruction:

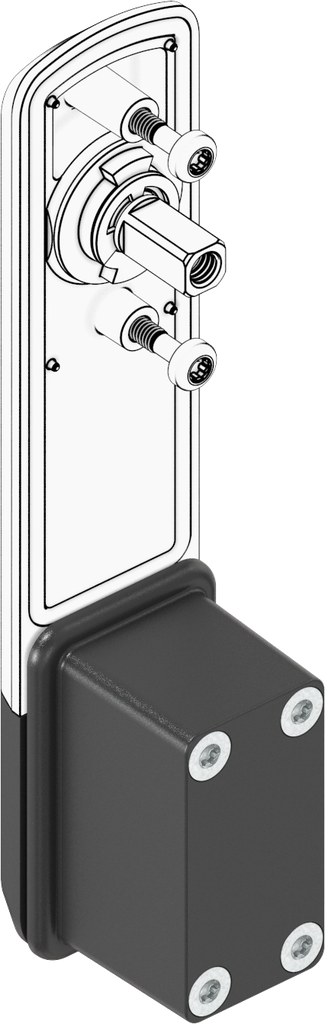

Easy exchange of the locking sets By removing the two lower screws, the locking set can be easily removed to the front.
Internal Reference:
2225-U48
Product Type:
Locking set
Program:
2225
Catalog sheet:
3J-120
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Installation Position of Block:
Dish
Cloak:
Yes

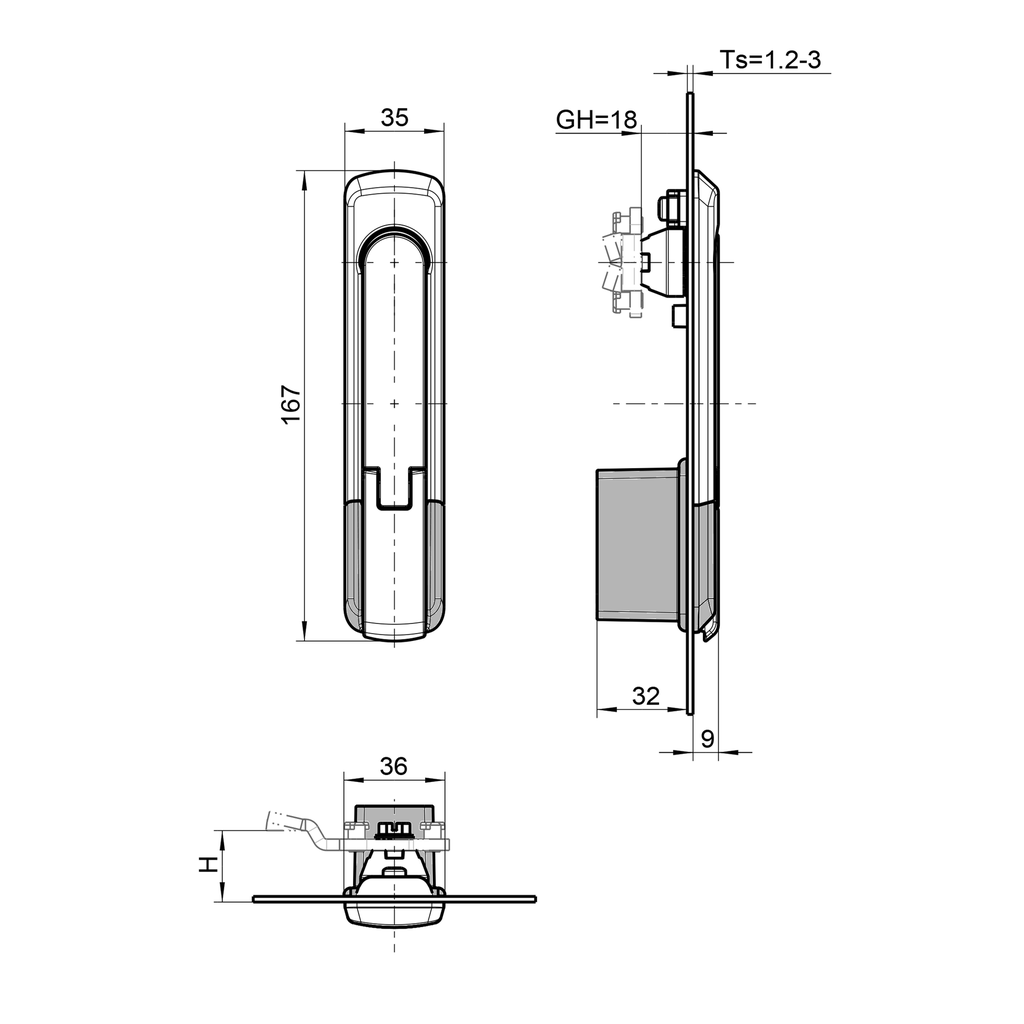

Cap dimension L:
Program 2225 = 32
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder
No Specifications
