Vibration-resistant quarter turn double bit 5, Stainless steel AISI 316

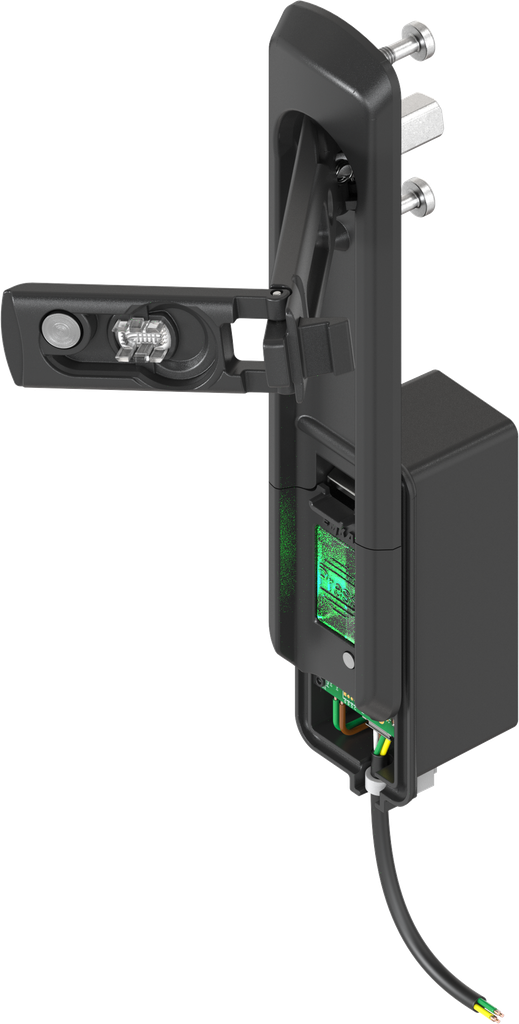

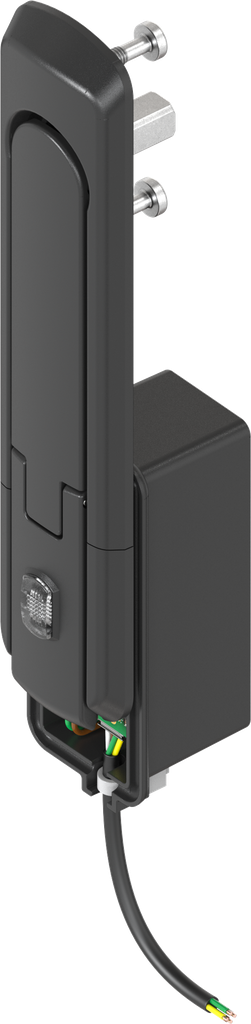

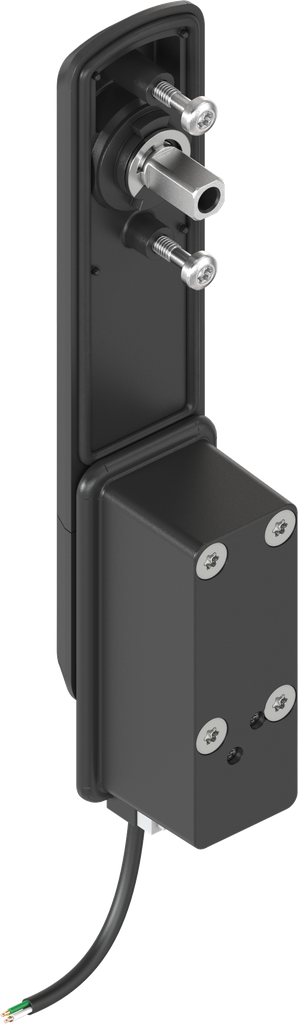

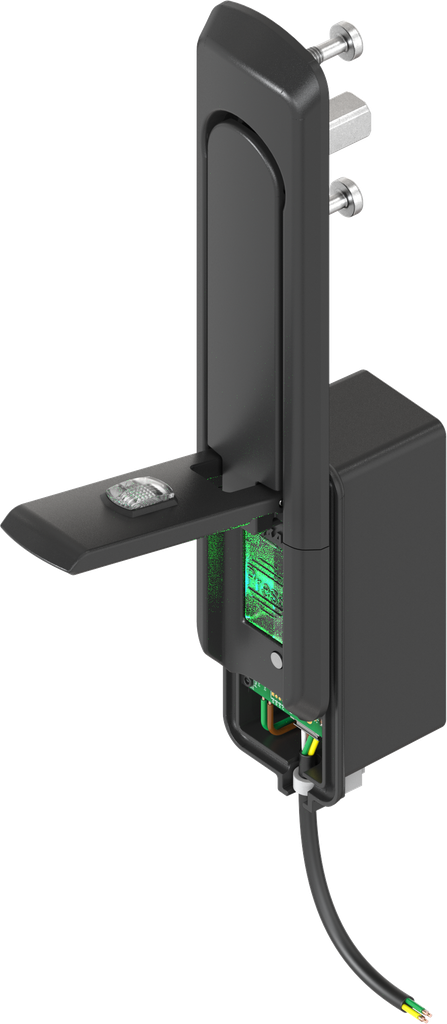

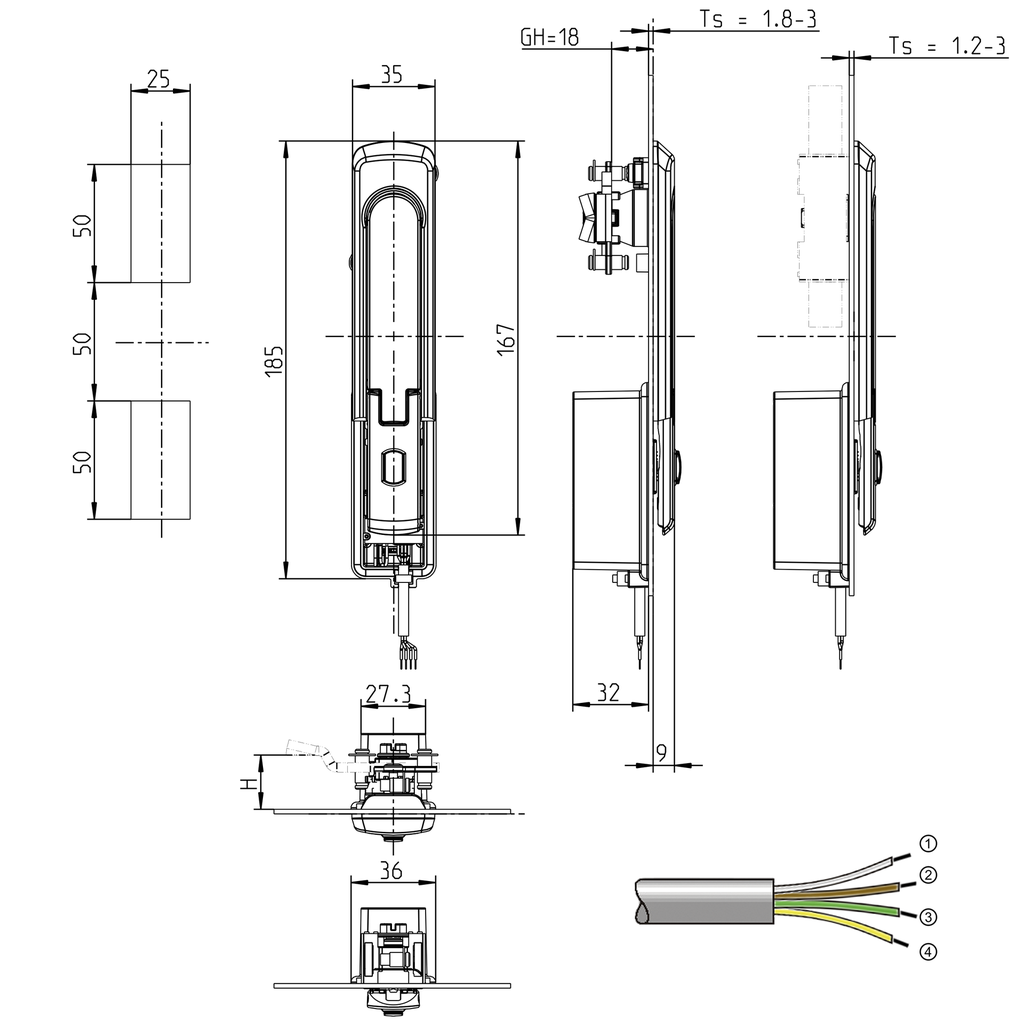

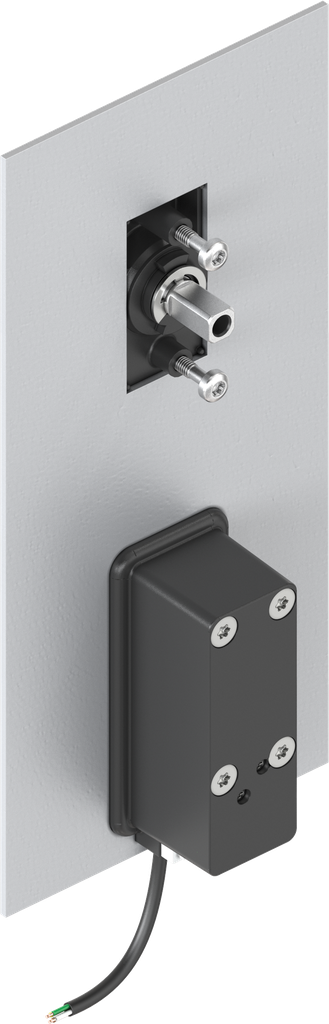

Flat swinghandle with electromechanical release, Zinc die black powder-coated; 2225-U4
with open wire ends
Product Benefits:
- Flat design
- Suitable for standard cut out
- Swinghandle and dish pre-assembled
- Permanent magnet holds the insert cover
- Integrated scratch protection prevents surface damage
- Swinghandle, locking set and adapter for cam made of zinc die
Product information:
① = white (+), 12 V② = brown (-), 0 V
③ = green contact
④ = yellow contact
Cable length 3 m
Reed switch 30 V DC max. 0.5 A
Power-on time 100% (unlimited)
This handle is suitable for locking cabinets indoors.

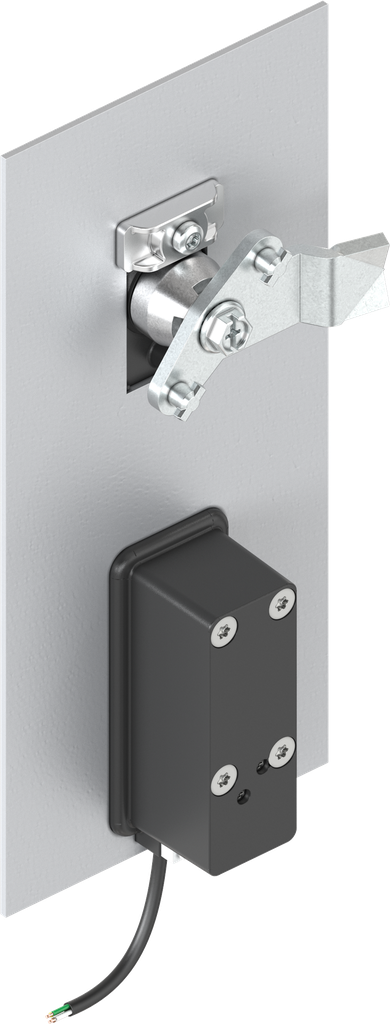

A cam can be used for door thicknesses from 1.8 mm to 3.0 mm.
Function:

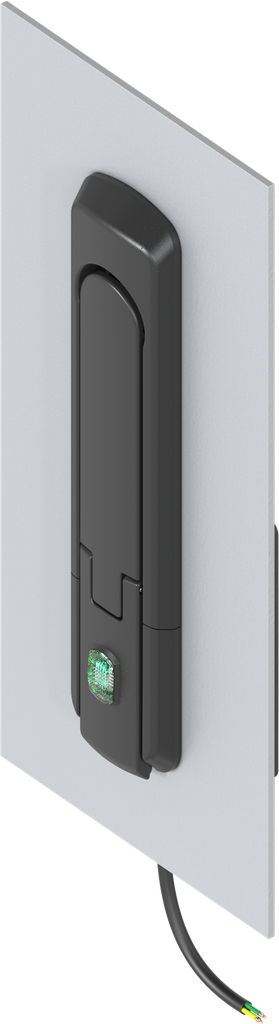

The handle is enabled by applying a 12 V voltage signal. The LED lights up green to indicate that the handle is enabled.

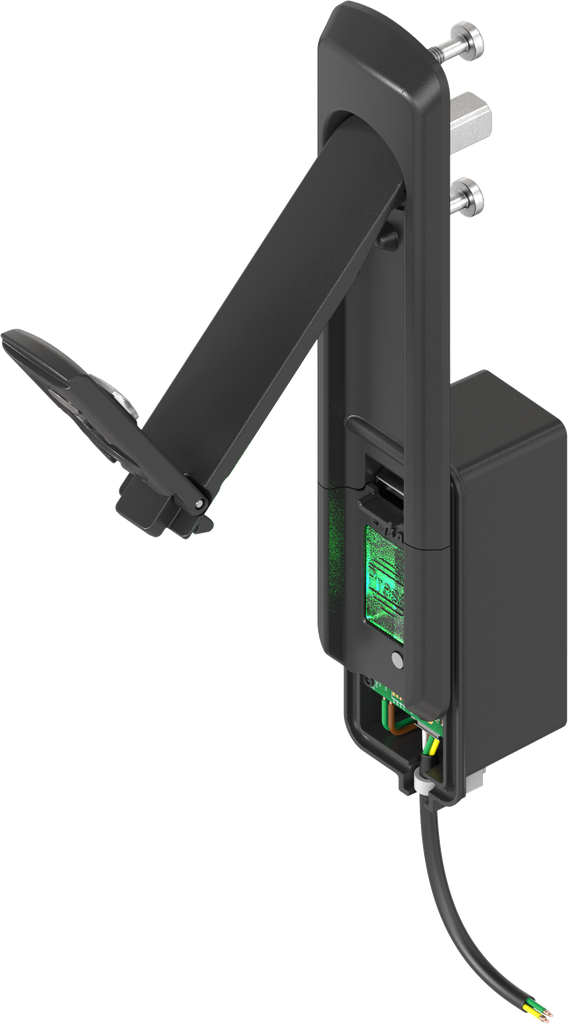

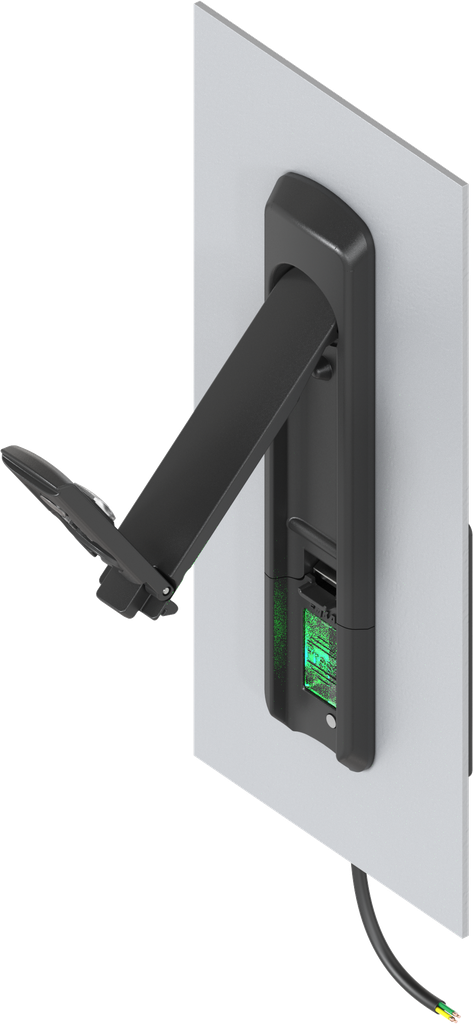

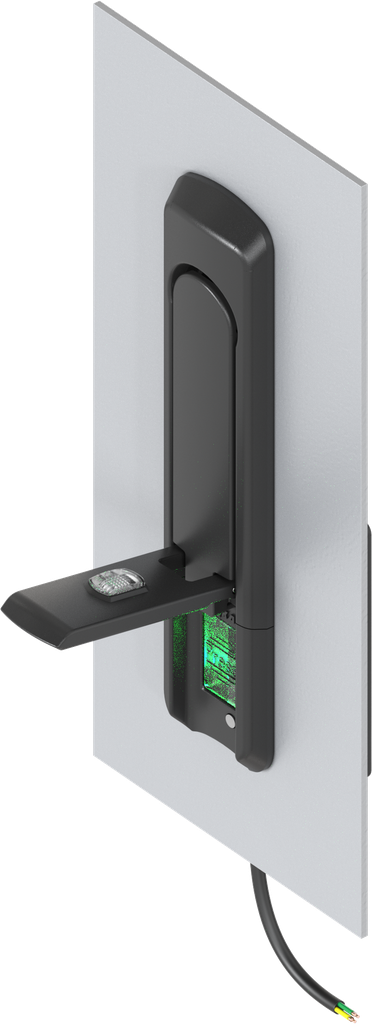

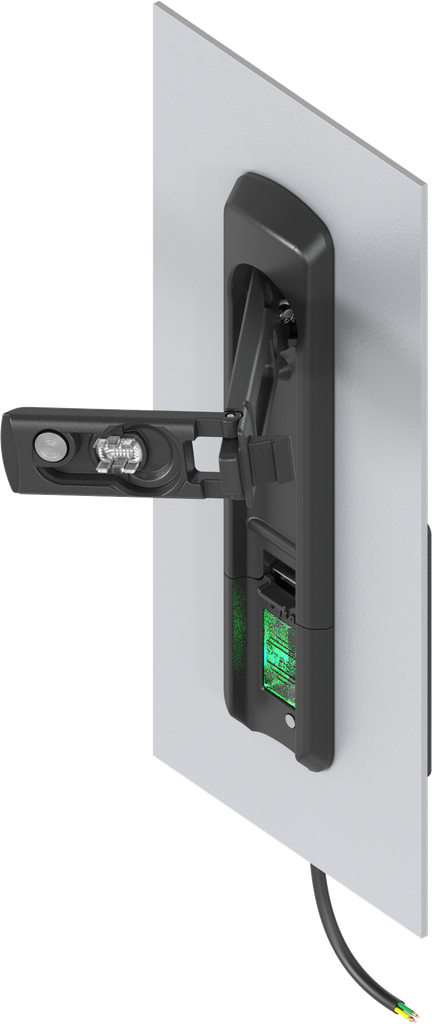

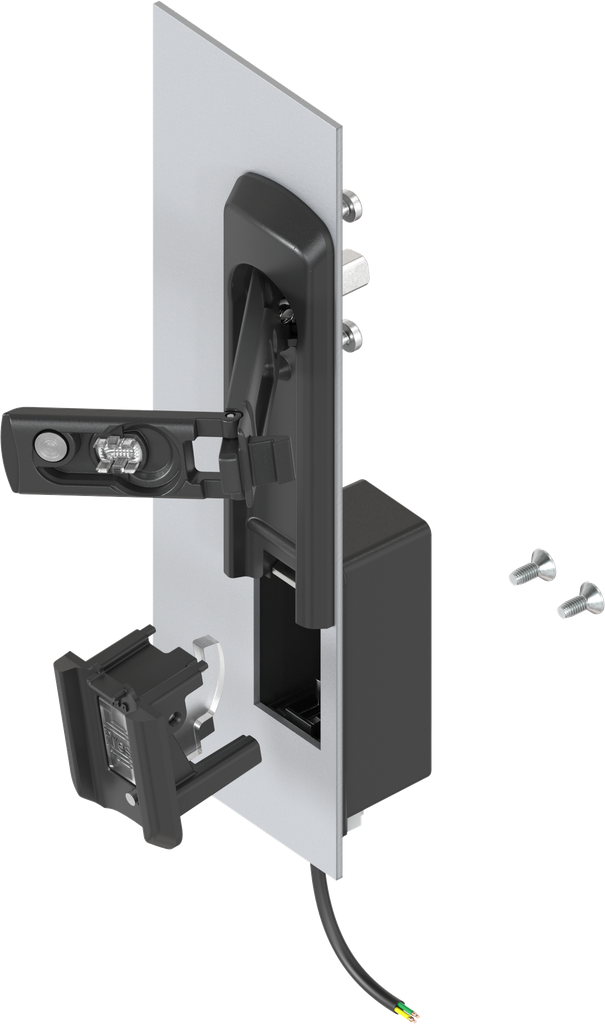

If the push button under the cover is now pressed, the handle pops out of the dish. The door is locked or unlocked by turning the handle. To close, simply press the handle into the dish.
The built-in reed contact is used for remote monitoring of the handle status (swinghandle engaged in the dish or swung out)
Internal Reference:
2225-U4
Standards:
Protection class IP 40
Barcode:
2225-U00004-0000000
Product Type:
Swinghandle, Lifthandle
Program:
3000
Catalog sheet:
3J-130
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Article with property rights:
Yes
Attachment of the trough:
Screwed
Electromechanical Unlocking :
12 V
GH Mass:
18 mm
Consistent convenient swinging:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
3 mm
Locking set:
Push button
locking set cover:
Yes
Swivel Handle:
9 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam,Rod control
