Vibration-resistant quarter turn double bit 5, Stainless steel AISI 316

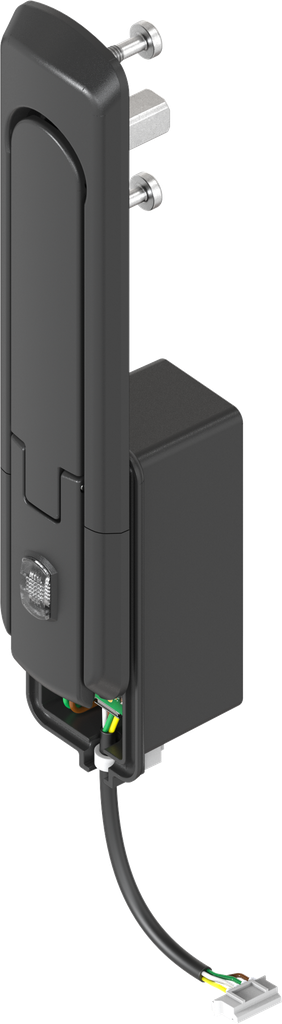

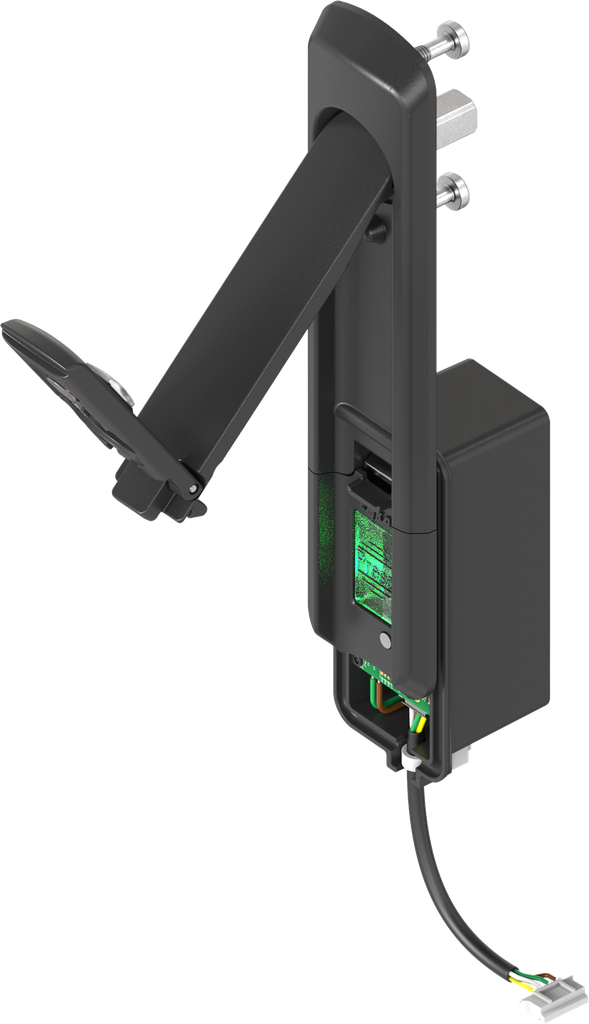

Flat swinghandle with electromechanical release; 2225-U4-01
For use with the Access Unit BLE and EMKA Smart Access Key App
Product Benefits:
- Flat design
- Suitable for standard cut out
- Swinghandle and dish pre-assembled
- Permanent magnet holds the insert cover
- Integrated scratch protection prevents surface damage
- Swinghandle, locking set and adapter for cam made of zinc die
Product information:
JST connector, 6-pin
Cable lengths 3 m
Reed switch 30 V DC max. 0.5 A
This handle is suitable for locking indoor cabinets.
Function:

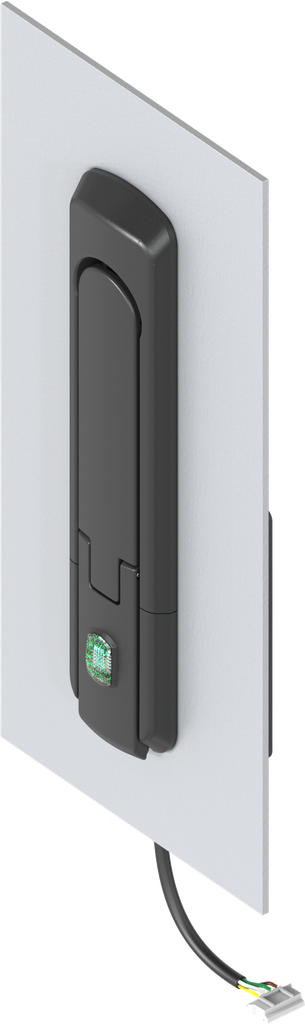

When using the Access Unit BLE and EMKA Smart Access Key app, unlocking is performed in the app. The green LED indicates that the handle is unlocked.

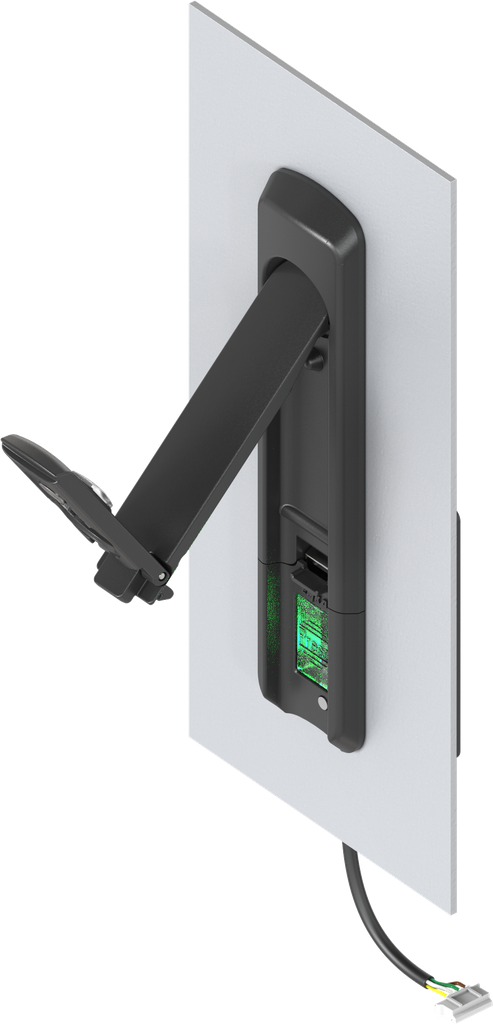

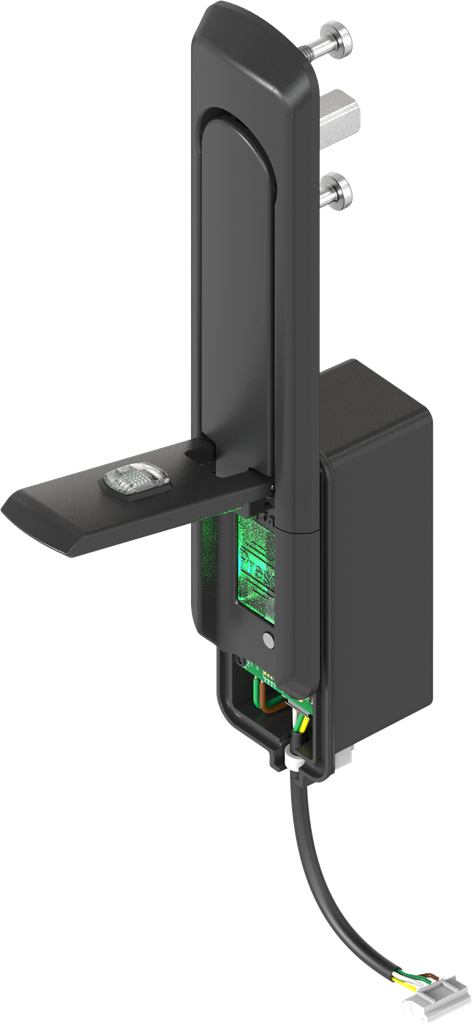

If the push button under the cover is now pressed, the handle pops out of the recess. The door is locked or unlocked by turning the handle. To close, simply press the handle into the dish.
The built-in reed contact is used for remote monitoring of the handle status (swinghandle engaged in the dish or swung out)
Internal Reference:
2225-U4-01
Standards:
Protection class IP 40
Barcode:
2225-U00004-0000001
Product Type:
Swinghandle, Lifthandle
Program:
3000
Number of Possible Locking Points:
1 point, 2 points, 3 point
Article with property rights:
Yes
Attachment of the trough:
Screwed
Mounting Positions :
Inside the sealing
Electromechanical Unlocking :
12 V
GH Mass:
18 mm
Consistent convenient swinging:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
3 mm
Locking set:
Push button
locking set cover:
Yes
Swivel Handle:
9 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right

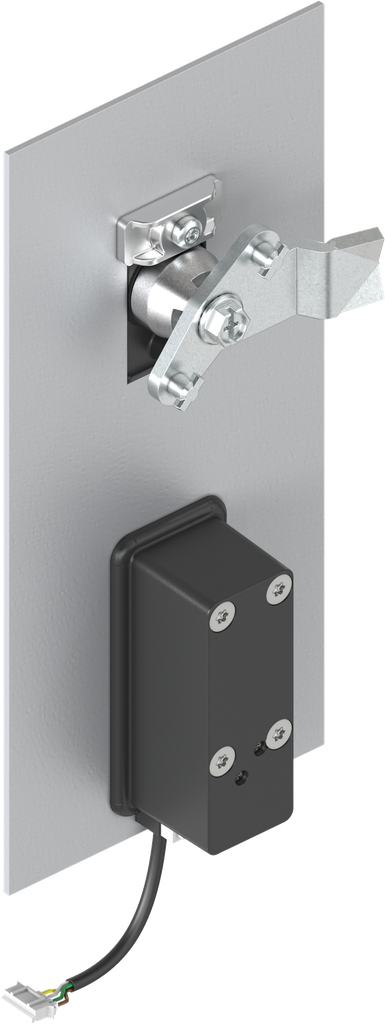

Locking components:
Cam,Rod control
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
