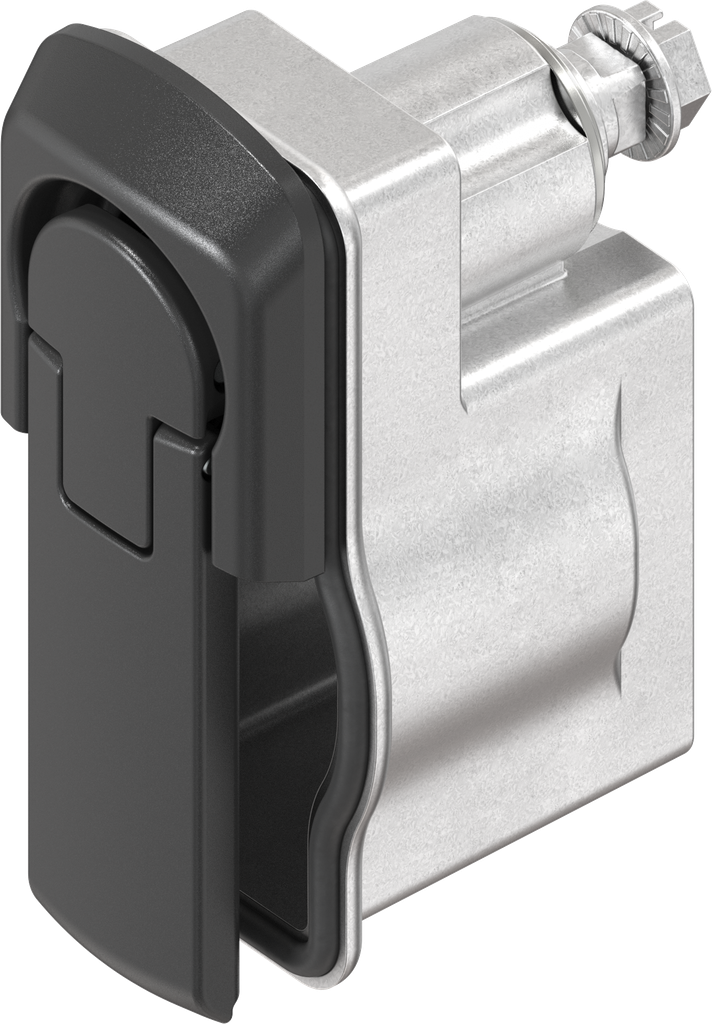

Flat swinghandle for locking set, Zinc die black powder-coated and zinc-plated
Flat swinghandle with compression function for locking set, Zinc die black powder-coated and zinc-plated

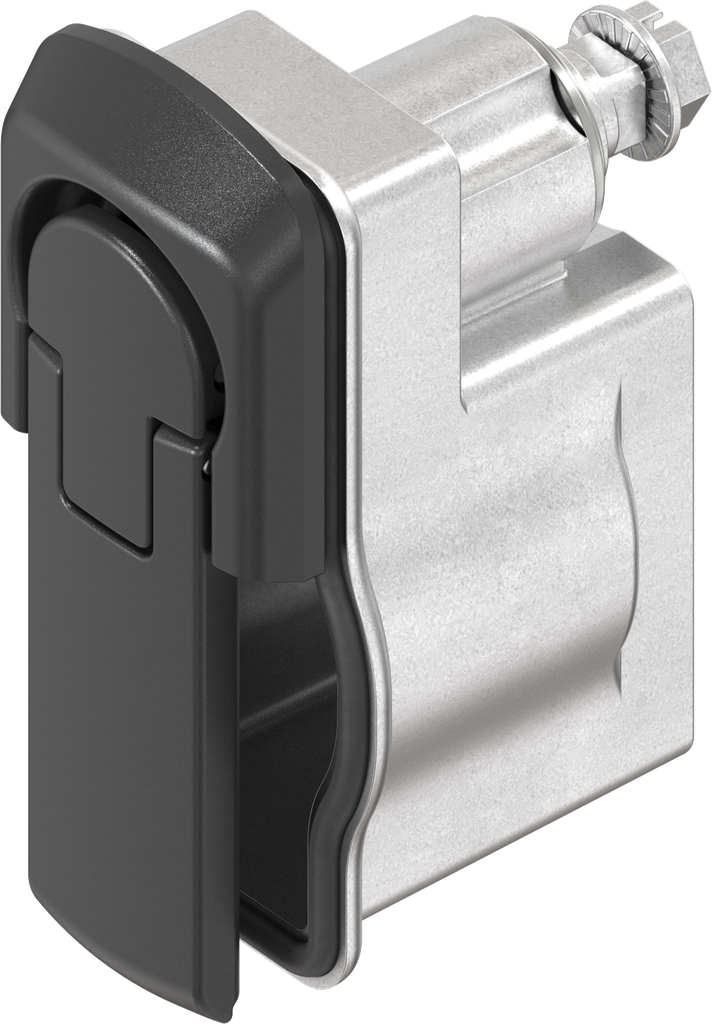

Flat swinghandle with compression function for locking set, Zinc die black powder-coated and zinc-plated; 2225-U3-LI
Left version
Product Benefits:
- Flat design Locking system inserts (locking sets) can be easily changed to the front Swinghandle and dish pre-assembled Permanent magnet holds the cylinder cover Integrated scratch protection prevents surface damage (handle / dish) Swinghandle and locking sets made of zinc die Patent pending
- Locking system inserts (locking sets) can be easily changed to the front
- Swinghandle and dish pre-assembled
- Permanent magnet holds the cylinder cover
- Integrated scratch protection prevents surface damage (handle / dish)
- Swinghandle and locking sets made of zinc die
- Patent pending
Assembly instruction:

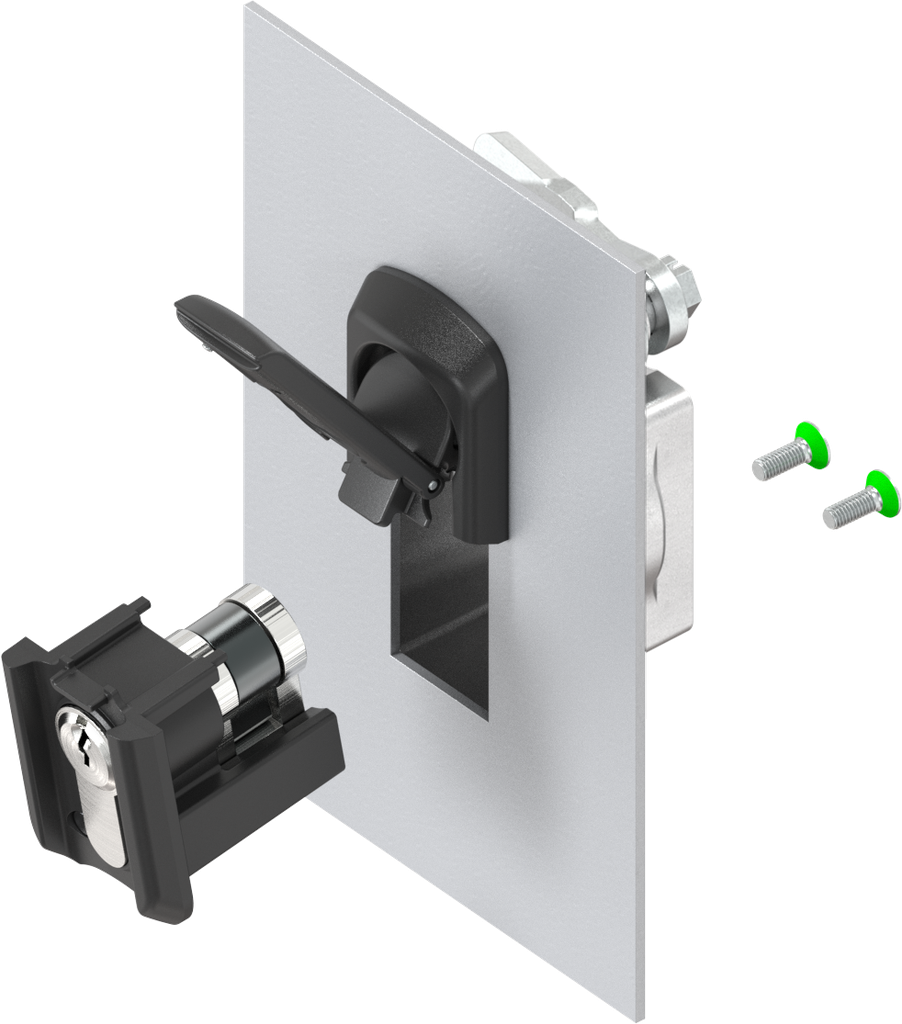

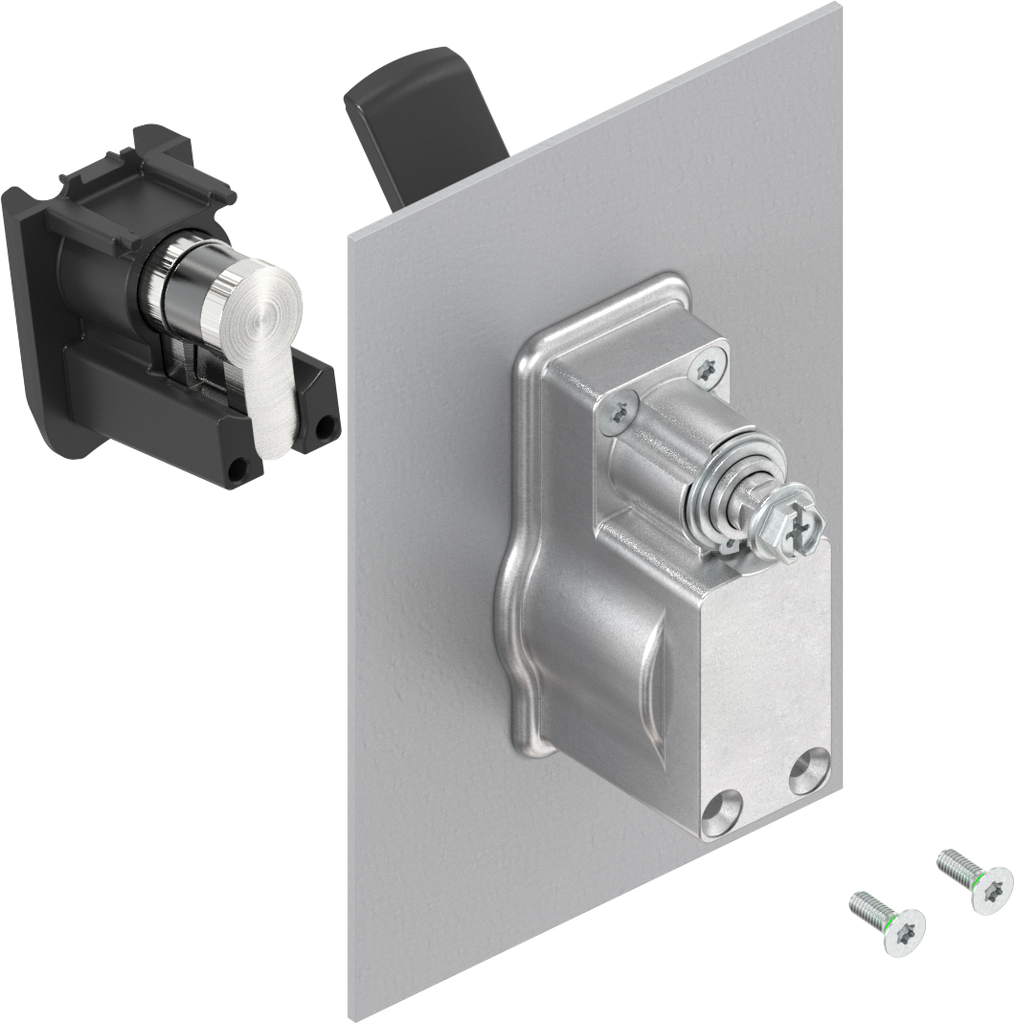

Easy exchange of the locking sets by removing the two lower screws, the locking set can be easily removed to the front.
Internal Reference:
2225-U3-LI
Product Type:
Swinghandle, Lifthandle
Program:
2225
Material of the module :
Zinc die
Surface of the module:
black powder-coated and zinc-plated
Door return variable:
Yes
Number of Possible Locking Points:
1 point
Number of Locking:
One locking set
Article with property rights:
Yes
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
GH Mass:
42 mm
Consistent convenient swinging:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Cloak:
Yes
Cap dimension L:
Program 2225 = 41
Compression Value :
6 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
4 mm
Locking set modular technology:

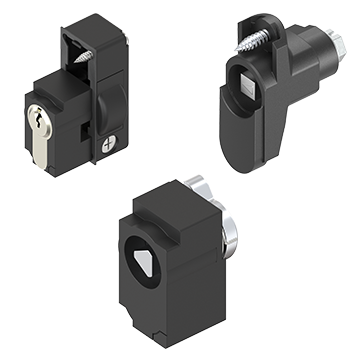

Profile half cylinder with cap, A = 30, mounted at the dish,KABA cylinder with cap, mounted at the dish,Round cylinder with cap, mounted at the dish,Insert with cap, mounted at the dish
locking set cover:
Yes
Shock and vibration testing according to DIN EN 61373:
Yes
Swivel Handle:
9 mm
Pan Handle Length:
89 mm
Door Version :
Left
Locking components:
Cam
