Locking set with insert railway, Zinc die black powder-coated for outdoor use
Locking set with insert railway, Zinc die black powder-coated for outdoor use
Rod guide for flat rod 14 x 3, clip-in, Polyamide GF black
Rod guide for flat rod 14 x 3, clip-in, Polyamide GF black

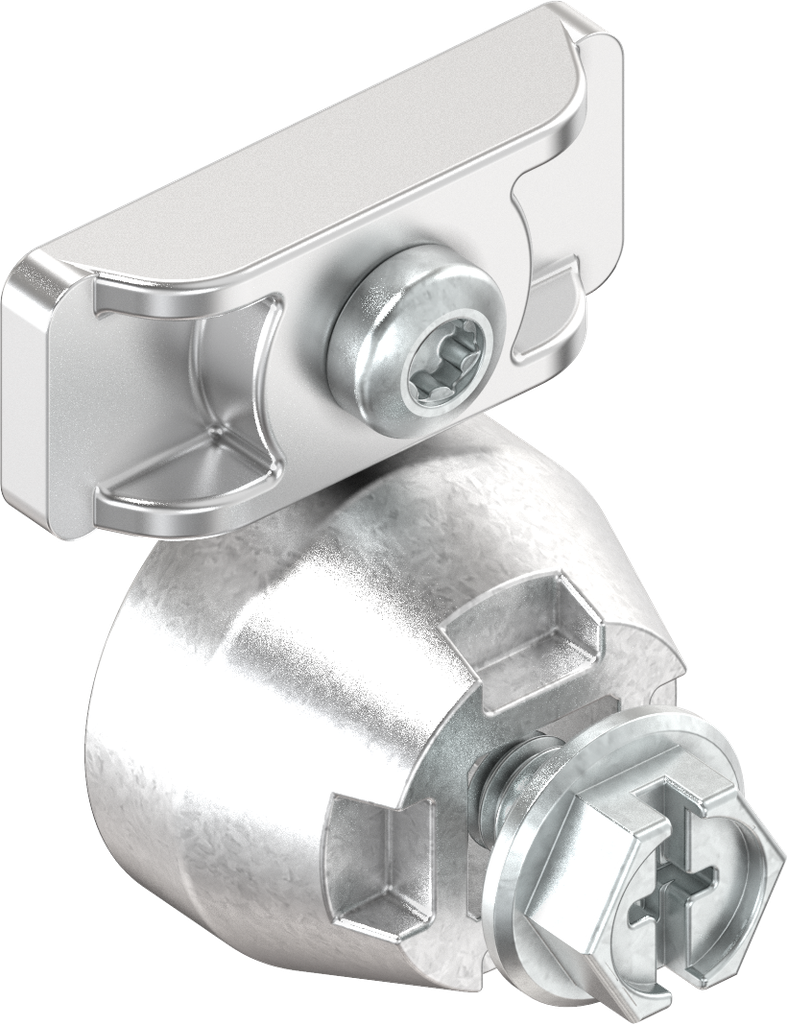

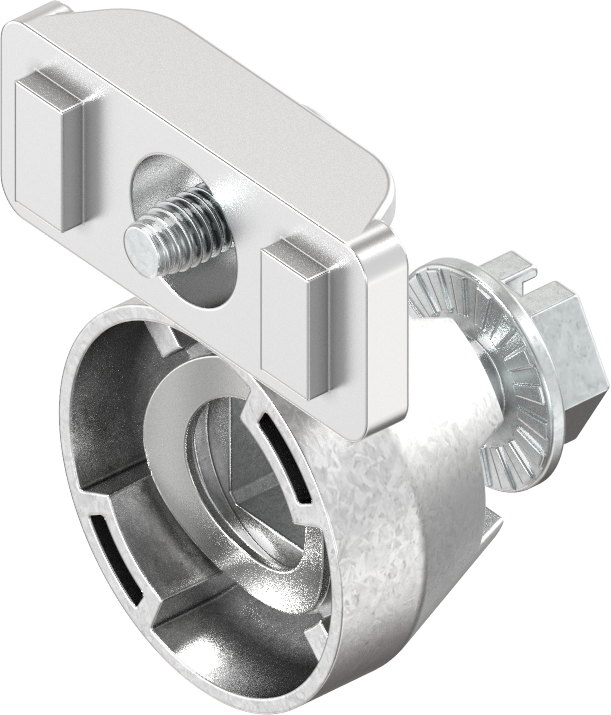

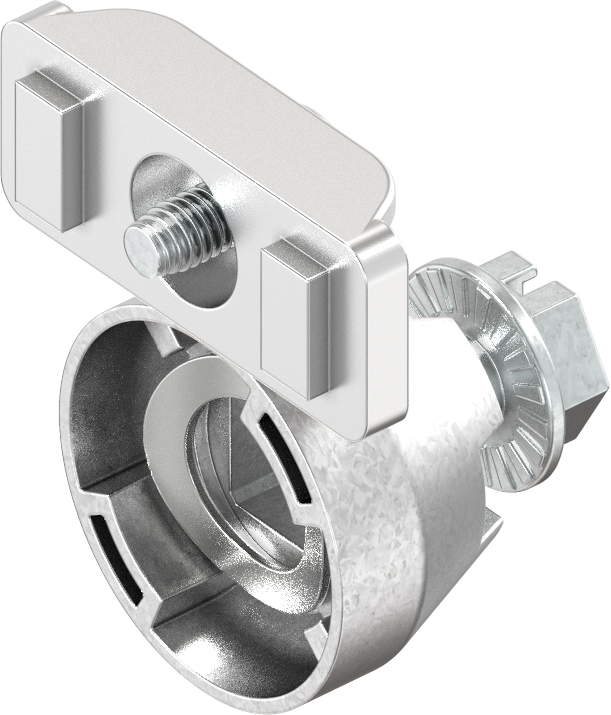

Adapter for cam and bridge, Zinc die zinc-plated; 2225-U101

https://www.emka.com/products/2225-u101 https://www.emka.com/web/image/product.template/234707/image_1920?unique=8561932

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 2225-U101
    Product Type: Adapter
    Program: 2225
    Catalog sheet: 3J-120
    Material of the module : Zinc die
    Surface of the module: zinc-plated
    Adapter type: Adapter for cam for swinghandle
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing

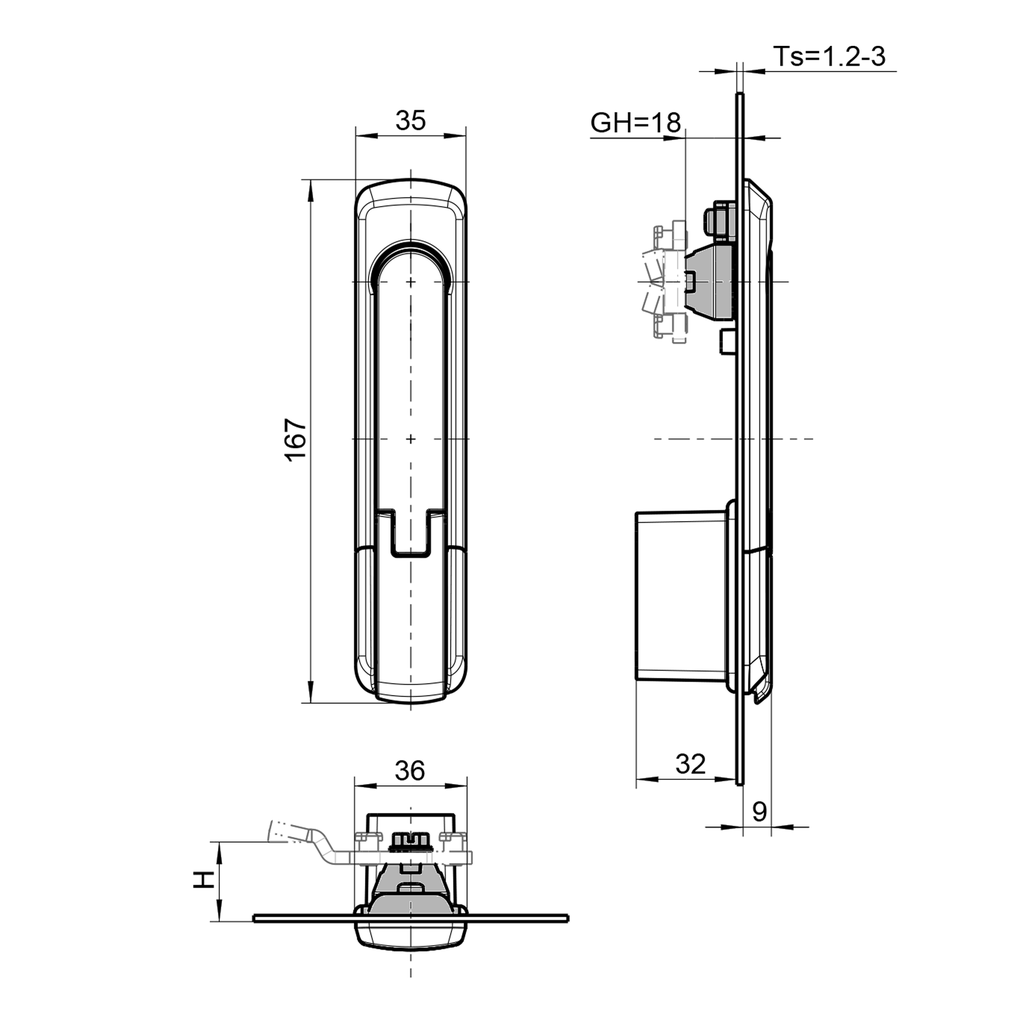

    For GH measure: 18 mm
    No Specifications
    View All Products
    Cam
    Rod control
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
