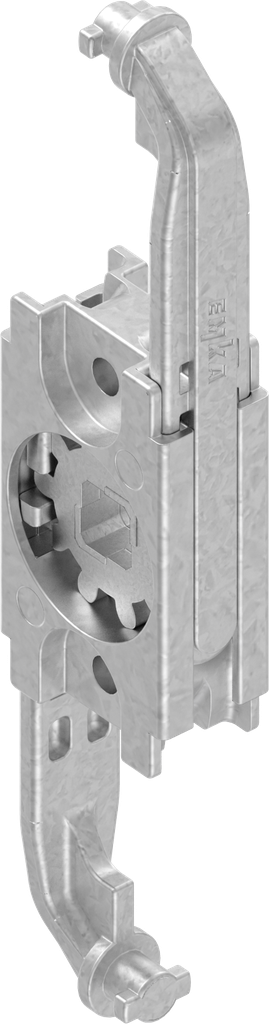

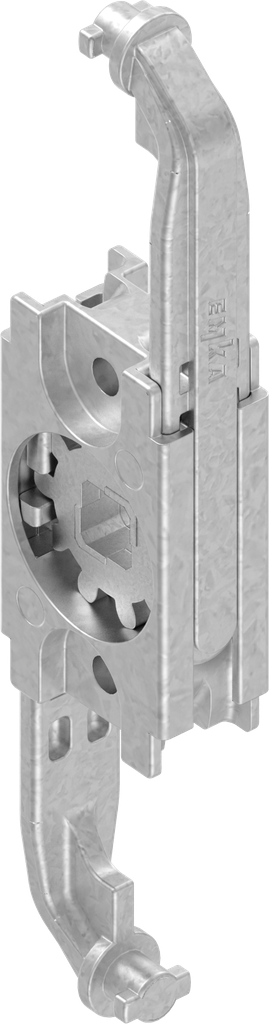

Rod control for flat rods, Zinc die; 2200-U1-C

https://www.emka.com/products/2200-u1-c https://www.emka.com/web/image/product.template/65535/image_1920?unique=7f6946e

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 2200-U1-C
    Product Type: Rod control
    Program: 2200
    Catalog sheet: 3YA-540
    Material of the module : Zinc die
    Rod: Flat rod
    Connection rod mount: Rivet in T-shape, one-piece
    Mounting Positions : Inside the sealing
    Quick assembly of rod: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam
    Rod
    Adapter
    Swinghandle, Lifthandle
    Escutcheon
    Rod control accessories
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3YA-540
    Product data sheet
    CAD file | 2200-U1-C_igs
    CAD file | 2200-U1-C_stp
