Escutcheon 2153 with L-handle, keyed EK 333, Polyamide black and zinc die black powder-coated
Adapter plate for rod control, Zinc die zinc-plated

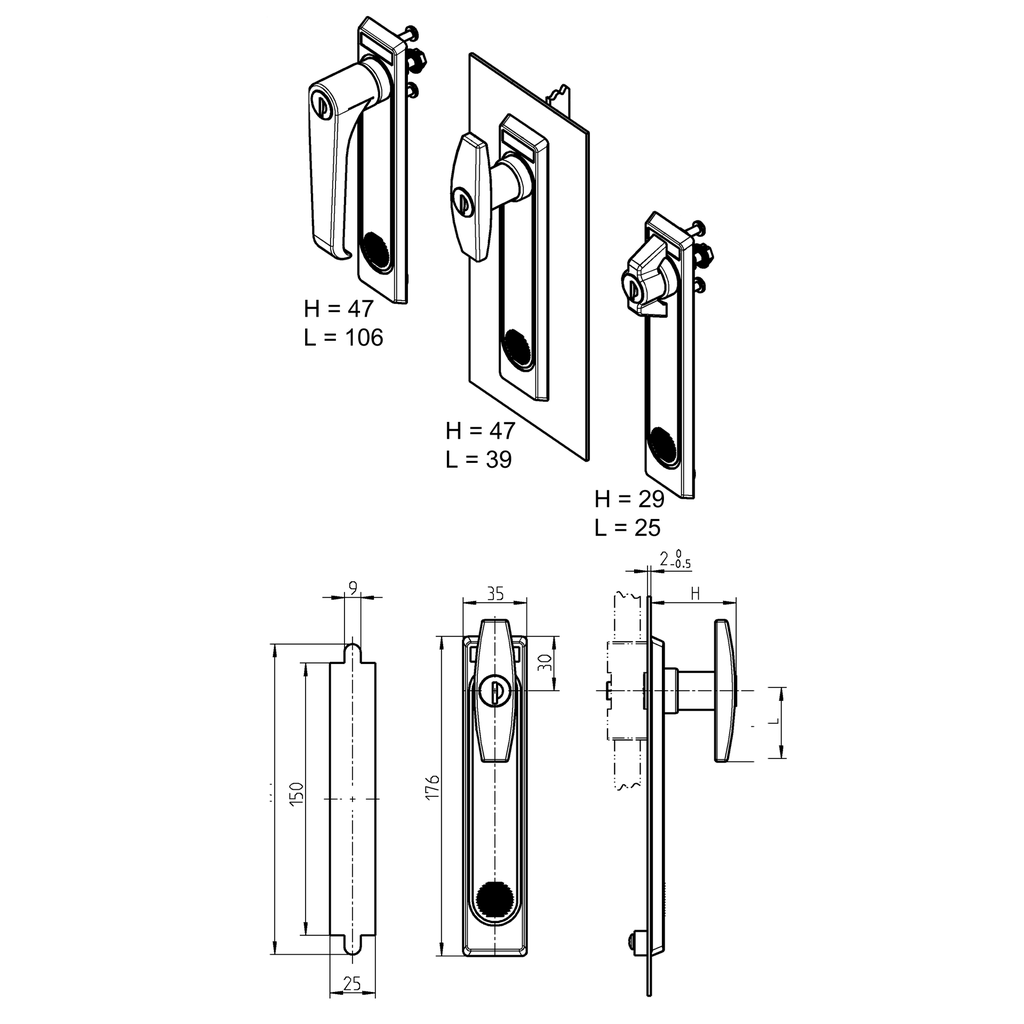

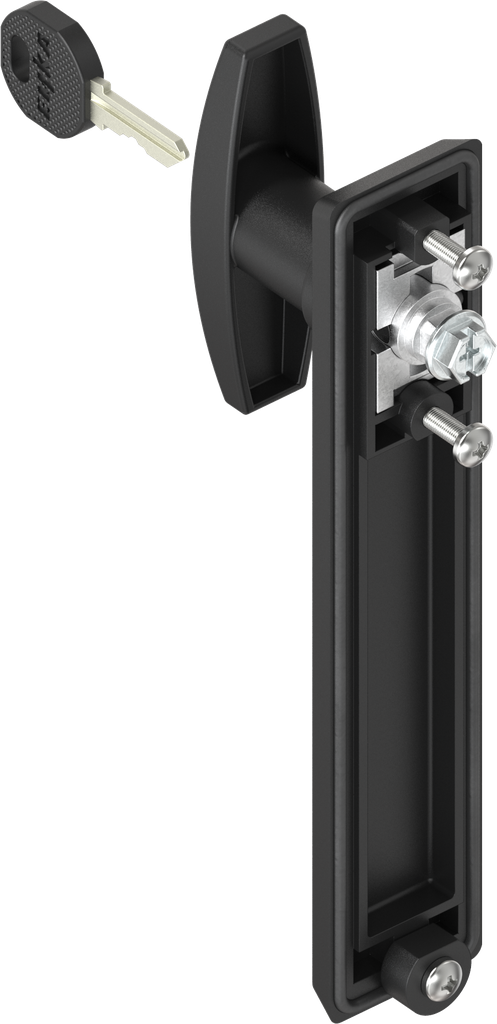

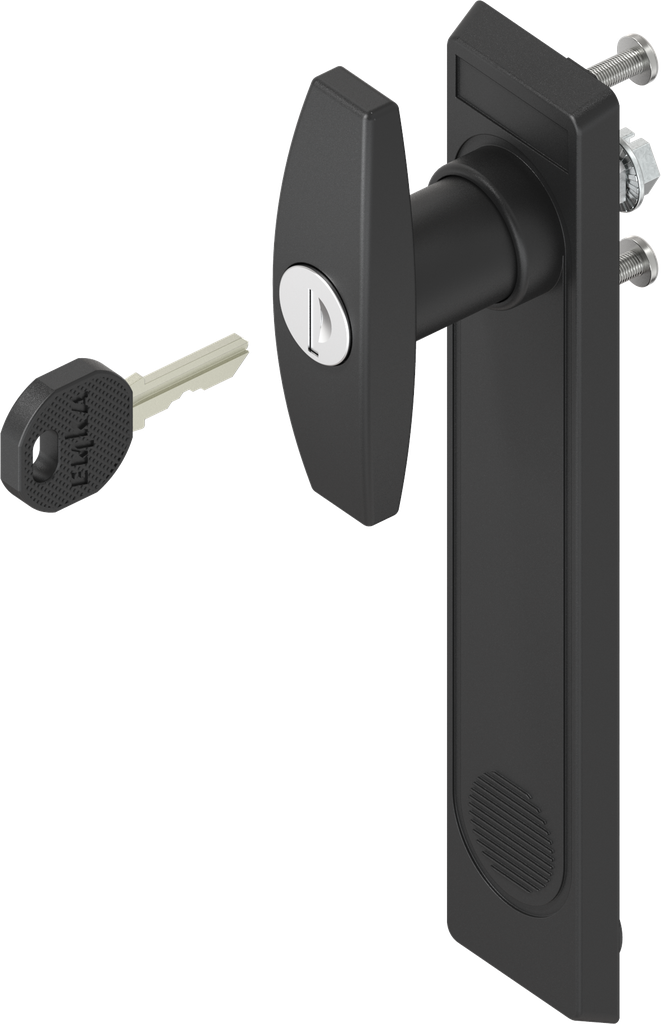

Escutcheon 2153 with T-handle, keyed EK 333, Polyamide black and zinc die black powder-coated; 2153-U7
Product information:
Logo recess: 27 x 8 x 0.5
Multicolour pad print possible
Internal Reference:
2153-U7
Product Type:
Escutcheon
Program:
2153
Catalog sheet:
3H-220
Material of the module :
Polyamide black and zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
Handle Art:
T-handle
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking means key tag:
T-handle keyed EK 333
Locking components:
Rod control,Bearing bush with cam
No Specifications
