Escutcheon 2153 with L-handle, non-keyed, Polyamide black and zinc die black powder-coated
Escutcheon 2153 with L-handle, non-keyed, Polyamide black and zinc die black powder-coated
Escutcheon 2153 with T-handle, non-keyed, Polyamide black and zinc die black powder-coated
Escutcheon 2153 with T-handle, non-keyed, Polyamide black and zinc die black powder-coated

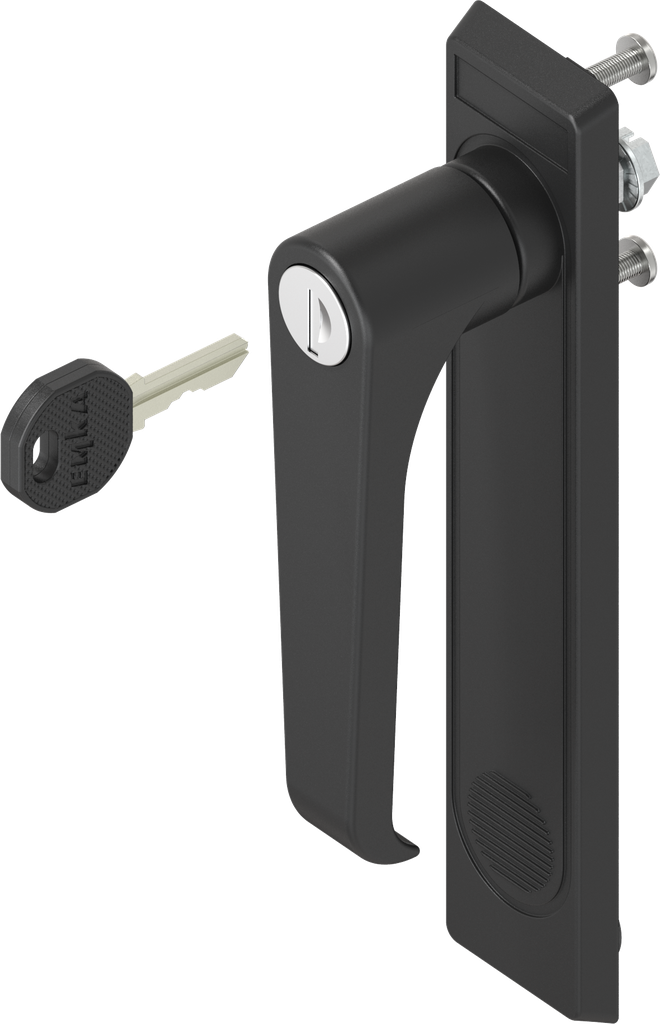

Escutcheon 2153 with L-handle, keyed different, Polyamide black and zinc die black powder-coated; 2153-U5

https://www.emka.com/products/2153-u5 https://www.emka.com/web/image/product.template/234519/image_1920?unique=21823f8

    This combination does not exist.

    Inside the sealing Outside the sealing Foamed seal Protection class IP 54
    Contact Us

    Product information:

    Logo recess: 27 x 8 x 0.5
    Multicolour pad print possible
    Internal Reference: 2153-U5
    Product Type: Escutcheon
    Program: 2153
    Catalog sheet: 3H-220
    Material of the module : Polyamide black and zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Foamed gasket: Yes
    Handle Art: L-handle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Round Cylinder Type: EMKA EK, differently keyed
    Locking means key tag: L-handle keyed different
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Keys
    Bearing bush
    Rod control
    Here you can find the product data sheets and CAD files of this product
