Locking set with insert Eastern Europe Ø 13 half-round, Polyamide GF black
Locking set with insert Eastern Europe Ø 13 half-round, Polyamide GF black
Escutcheon 2150 for insert double bit with mask, Polyamide GF black
Escutcheon 2150 for insert double bit with mask, Polyamide GF black

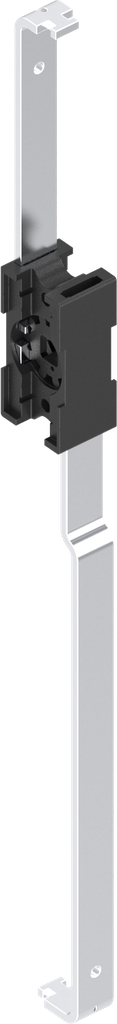

Rod control for flat rods, Polyamide and steel zinc-plated; 2121-U27-C

https://www.emka.com/products/2121-u27-c https://www.emka.com/web/image/product.template/234452/image_1920?unique=01d3411

    This combination does not exist.

    Inside the sealing Outside the sealing Left Right
    Contact Us

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 2121-U27-C
    Product Type: Rod control
    Program: 2121
    Catalog sheet: 3YA-520
    Material of the module : Polyamide and steel
    Surface of the module: zinc-plated
    Rod: Flat rod
    Connection rod mount: Rivet in T-shape, stamped
    Mounting Positions : Inside the sealing,Outside the sealing
    Quick assembly of rod: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam
    Rod
    Adapter
    Swinghandle, Lifthandle
    Escutcheon
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3YA-520
    Product data sheet
    CAD file | 2121-U27-C_igs
    CAD file | 2121-U27-C_stp
